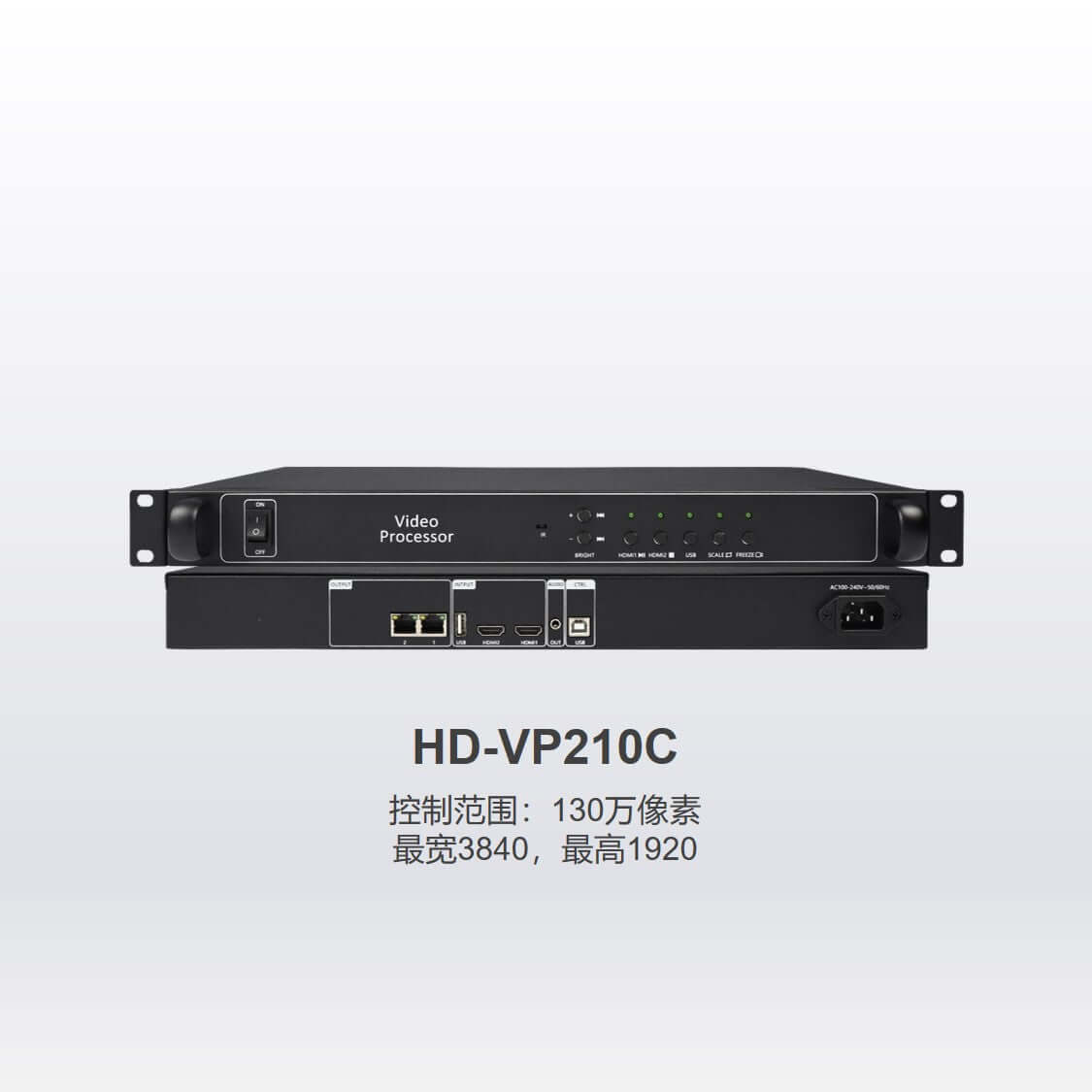

HUIDU HD-VP210C 3 In 1 LED Screen video processor video controller

HUIDU HD-VP210C 3 In 1 LED Screen video processor video controller Features:

1. Control range: 1.3 million pixels, maximum horizontal support 3840 pixels, vertical maximum support 1920 pixels;
2. Signal switching: support arbitrary switching of 2 channels of HDMI synchronous signals and 1 channel of USB signals;
3. USB playback: support direct playback of videos and pictures in various mainstream formats under the root directory of the U disk, the maximum support 1080P
HD video playback;
4. Audio input/output: support 2 channels of HDMI audio input (choose one of the two to play), 1 channel of TRS 3.5mm standard dual soundchannel audio output;
5. Output network port: standard 2 Gigabit network ports, directly cascaded to the receiving card;
6. Brightness setting: support one-button adjustment of brightness without cumbersome operations;
7. Key lock: lock the key to prevent the abnormal display caused by misoperation;
8. Infrared remote control wireless control (optional): Support functions such as program switching and brightness setting.

Connection display diagram:

Download Specification:
HHUIDU HD-VP210C video processor video controller Specification(Chinese)

HUIDU HD-VP210C 3 In 1 LED Screen video processor User Manual
