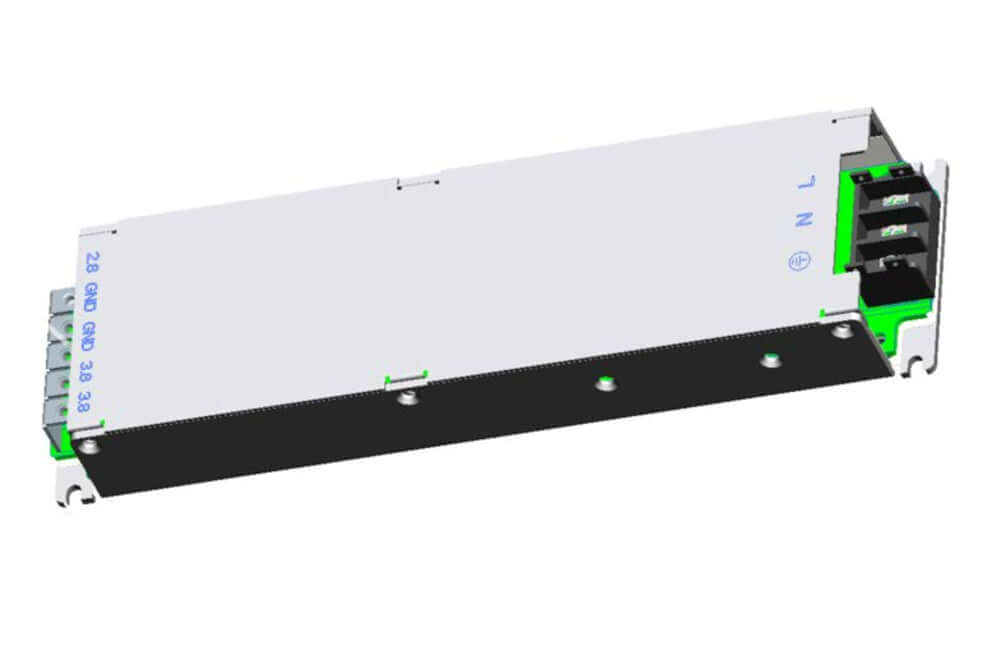

LaitePower T200V3.8-2.8A1 LED Screen Power Supply

$33.20

LaitePower T200V3.8-2.8A1 LED Screen Power Supply has the following features: ● (input voltage)90Vac to 264Vac,(Applicable to global voltage range)● (Protection function): (SCP, OCP, OTP)● (Operation temperature range): -30℃…

Add to Cart
LaitePower T200V3.8-2.8A1 LED Screen Power Supply
$33.20

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

LaitePower T200V3.8-2.8A1 LED Screen Power Supply
$33.20

[wpforms id=”1190″ title=”true” description=”Request a call back”]

LaitePower T200V3.8-2.8A1 LED Screen Power Supply has the following features:

● (input voltage)90Vac to 264Vac,(Applicable to global voltage range)
● (Protection function): (SCP, OCP, OTP)
● (Operation temperature range): -30℃ to +70℃(-40℃ can start up)
● (High Efficiency, long life and high reliability)
● PCB (PCB using conformal coating process)



T200V3.8-2.8A1 LED Screen Power Supply Parameter

INPUT
Input Voltage Range  90Vac to 264Vac
Rated Input Voltage  100Vac to 240Vac
Input Frequency Range  47Hz to 63Hz
Rated Input Frequency  50Hz to 60Hz
Input Current  Max. 3.5A at 90Vac input at Full Load
Inrush Current  60A (TYP. peak) at 240Vac
Power Factor  0.99at 100Vac, 0.96 at 230Vac
Efficiency  83% min@220Vac ,Full Load



OUTPUT
Output Power  200W
Output Channel Rated Output Voltage Voltage Rated Current
CON5/6(+)(-)  +3.8Vdc  ±5%  100Vac to 240Vac 0A-30A
CON2(+)(-)  +2.8Vdc  ±5%  100Vac to 240Vac 0A-30A



Dimensions

210.0mm x 58.0mm x 26.0mm±0.5mm
