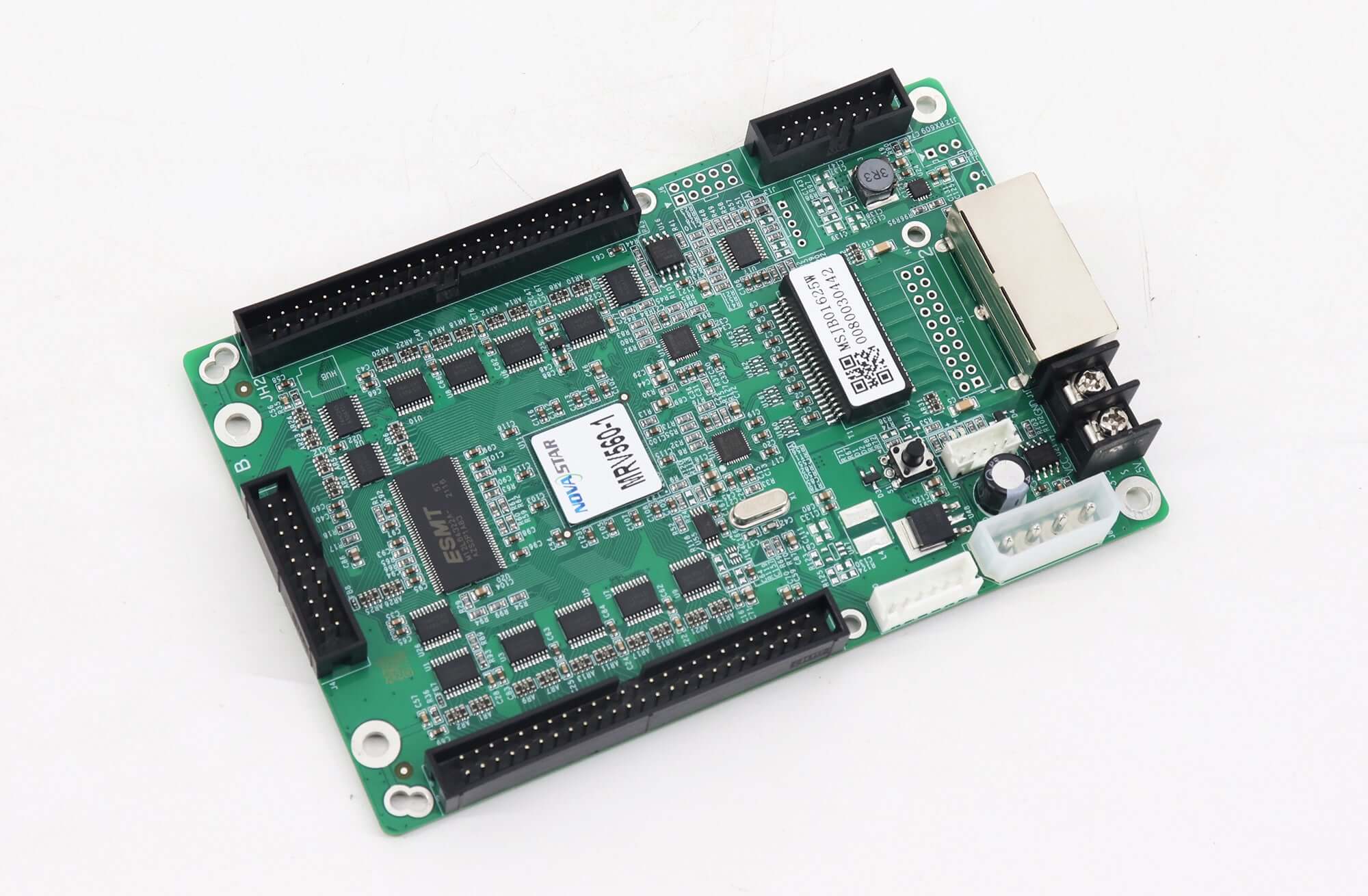

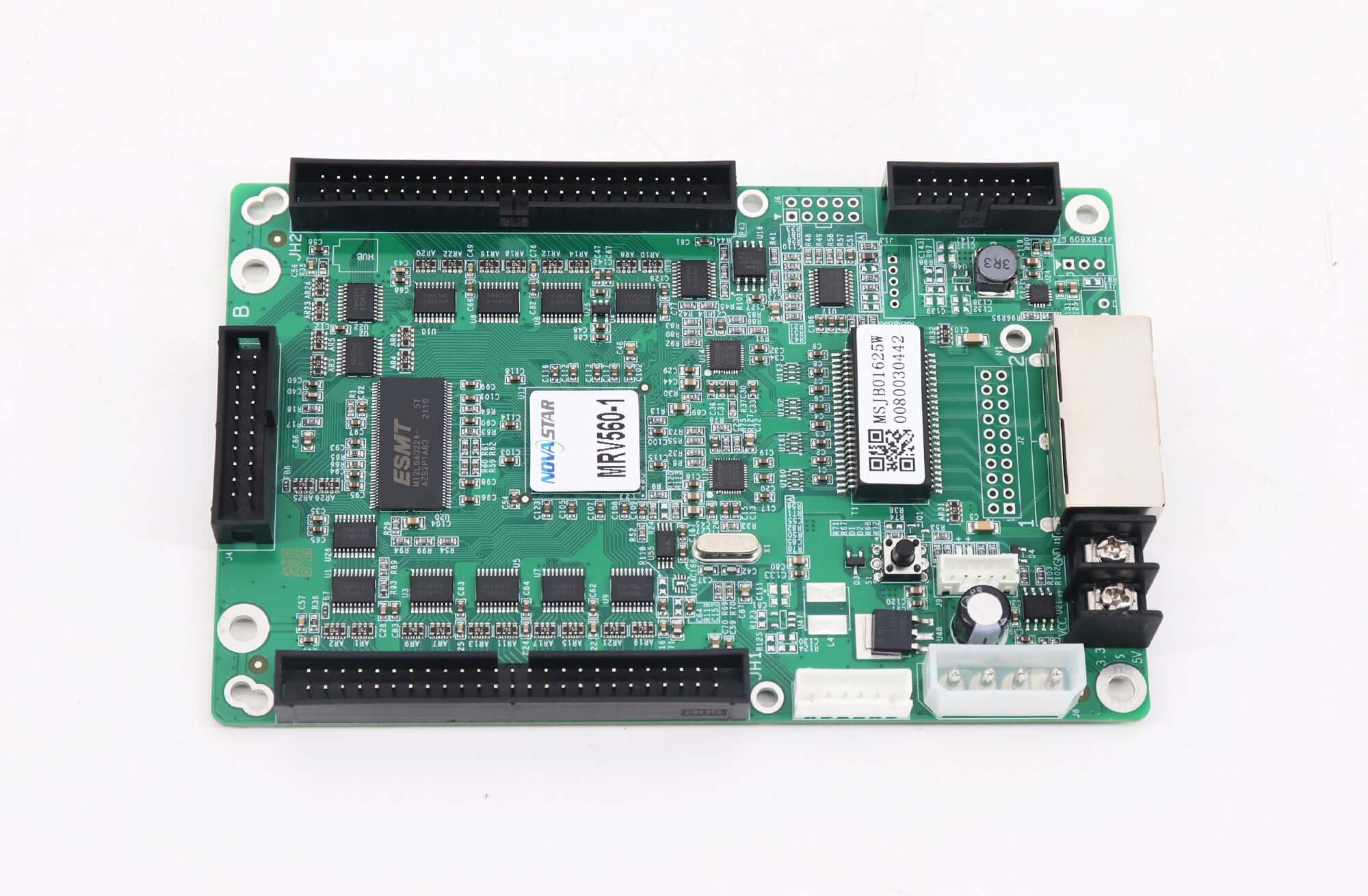

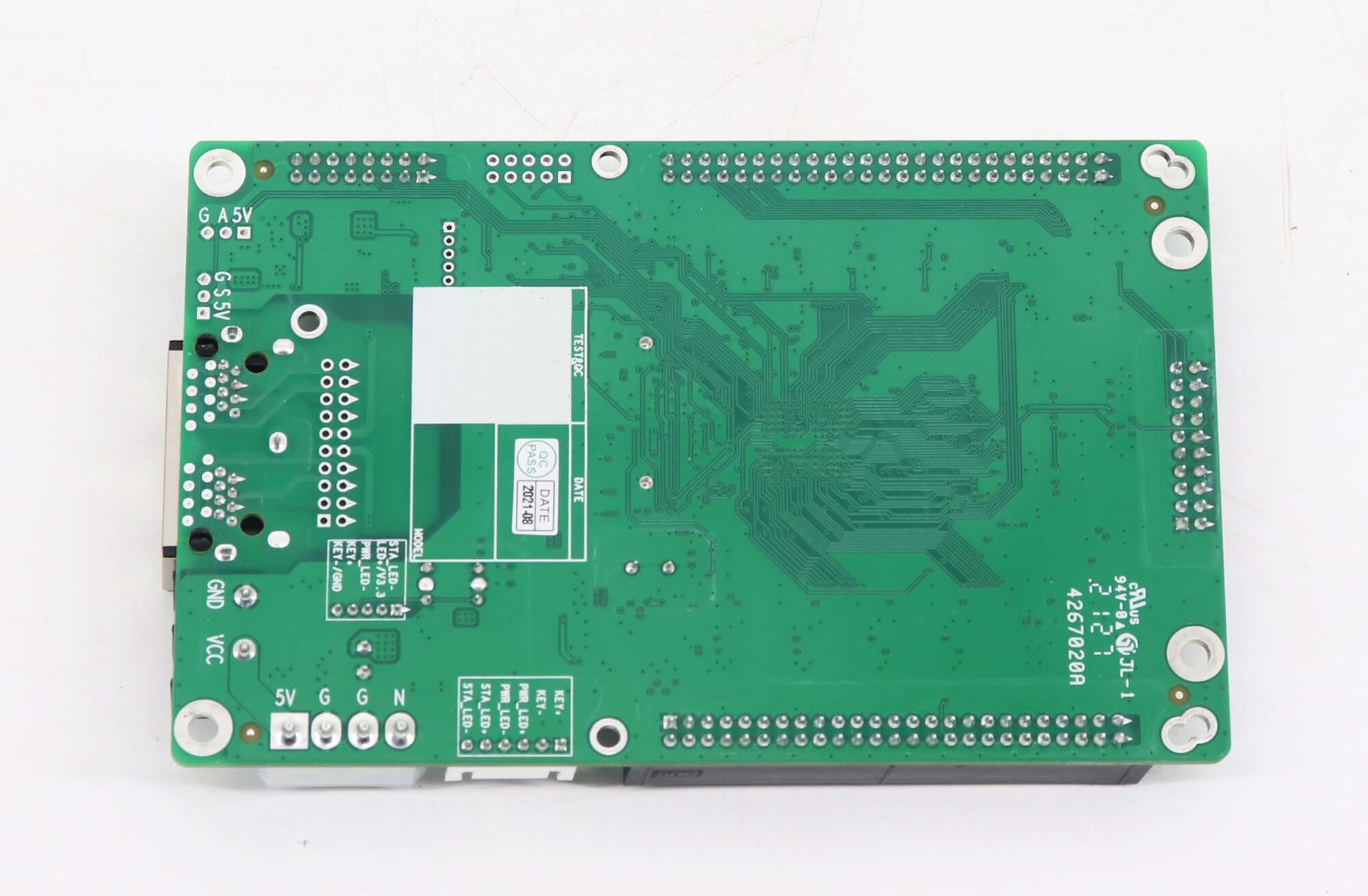

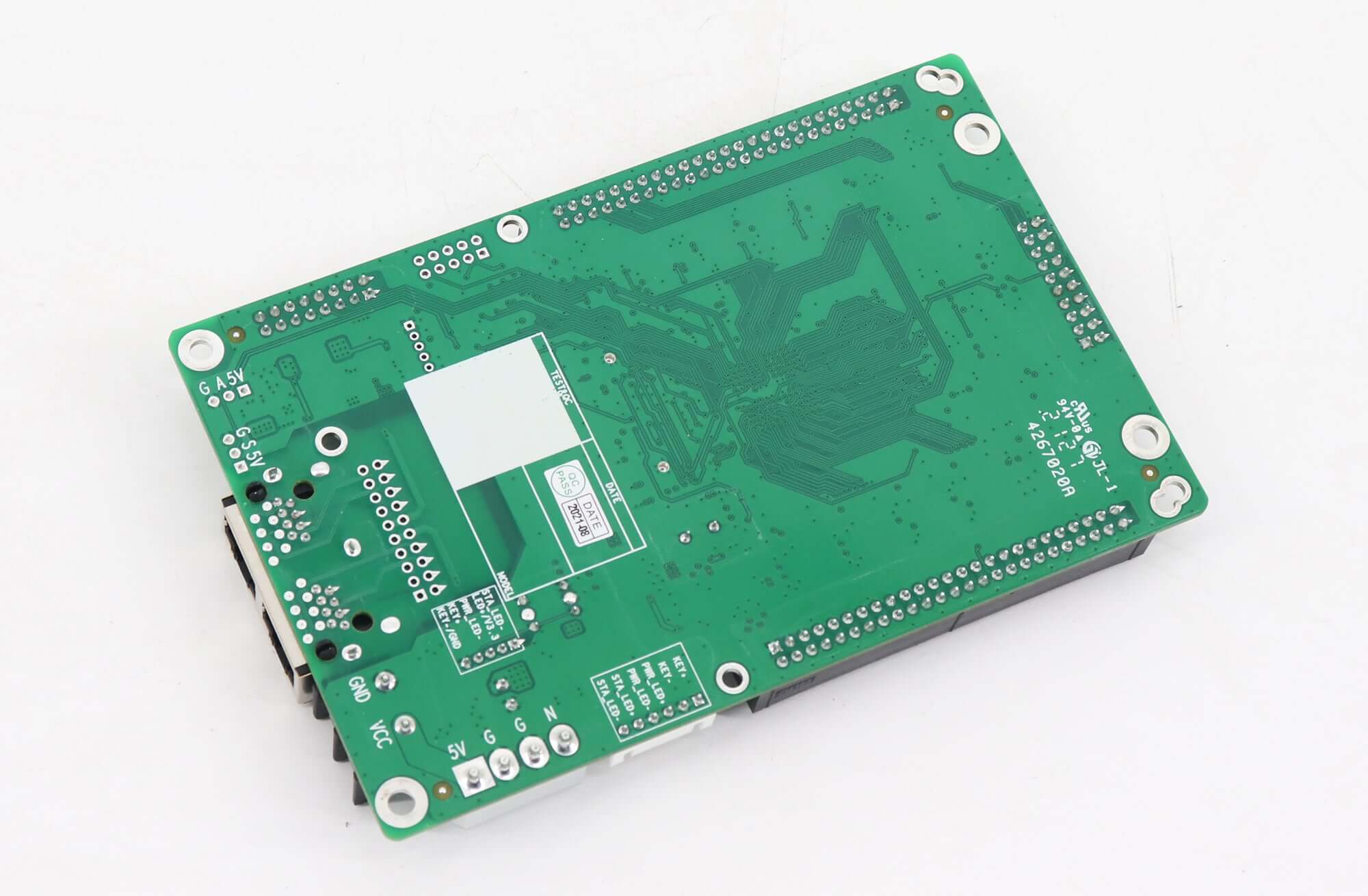

Novastar MRV560-1 EMC LED Screen Controller Card

Novastar MRV560-1 EMC LED Screen Controller Card Features:

MRV560 is the EMC version of MRV360 with its effective reduction of the electromagnetic radiation of the whole system.

1)Single card outputs 16-group of RGBR ‘data;
2)Single card outputs 20-group of RGB data;
3)Single card outputs 64-group of serial data;
4)MOM can store calibration coefficient and LED module information;
5)Single card supports resolution of 256×226;
6)Configuration file readback;
7)Temperature monitoring；
8)Ethernet cable communication status detection;
9)Power supply voltage detection;
10)High gray scale and high refresh rate;
11)Pixel-by-pixel brightness and chromaticity calibration.
12)Brightness and chromaticity calibration coefficients for each LED;
13)Pre-store picture setting;
14)Able to connect monitoring card to achieve comprehensive monitoring;
15)Comply with RoHS standard;
16)Comply with EU CE-EMC Class B standard.

Recognition of Novastar MRV560 Series Card:

To meet theneeds of different customers, Nova provides more specific models of the products,including standard products in stock, other models need to be customized;
