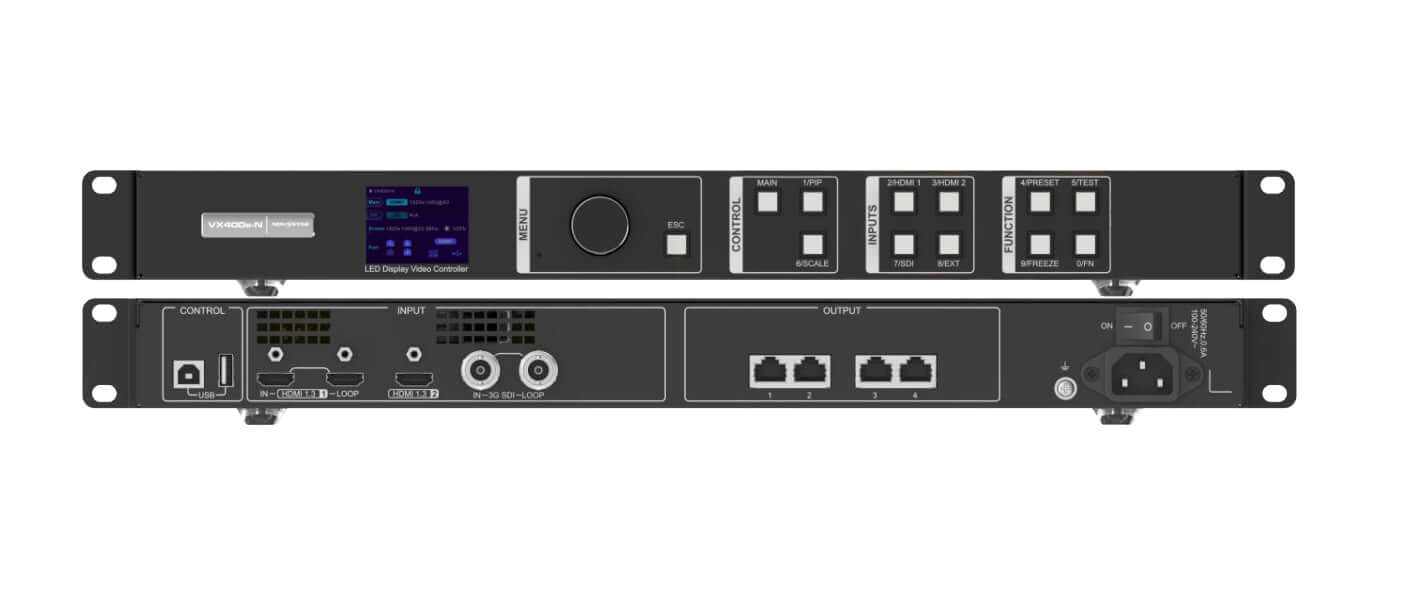

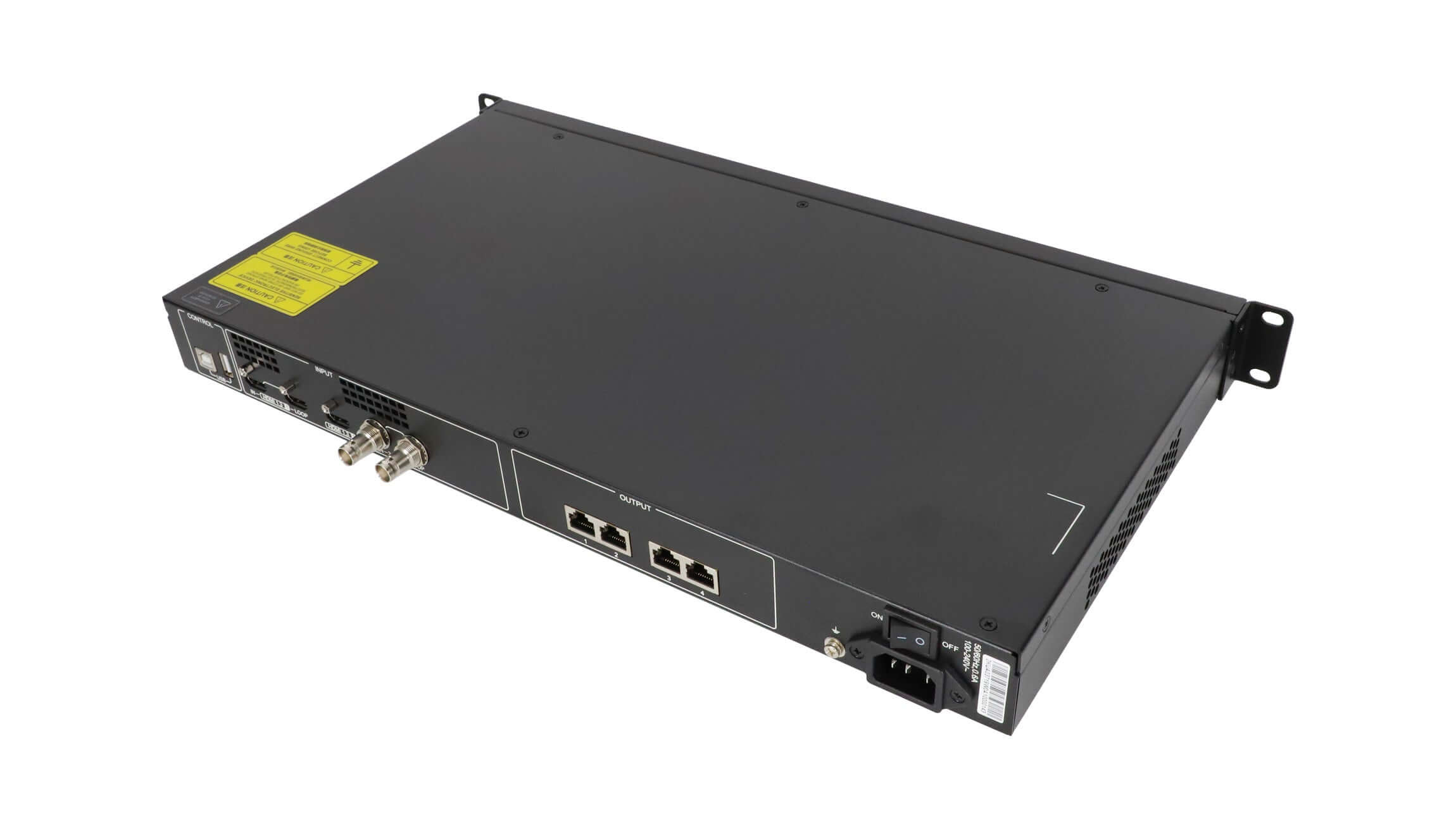

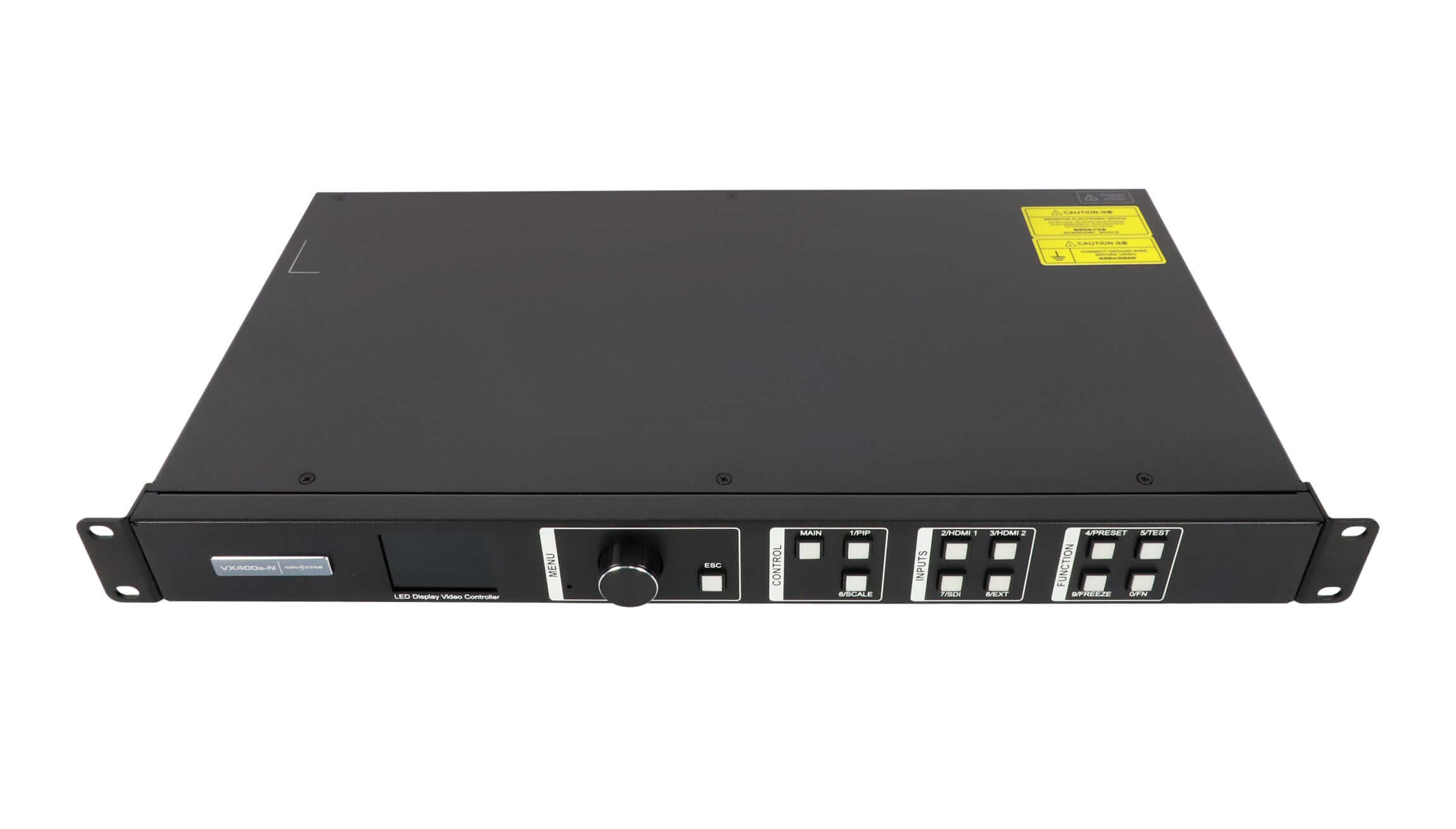

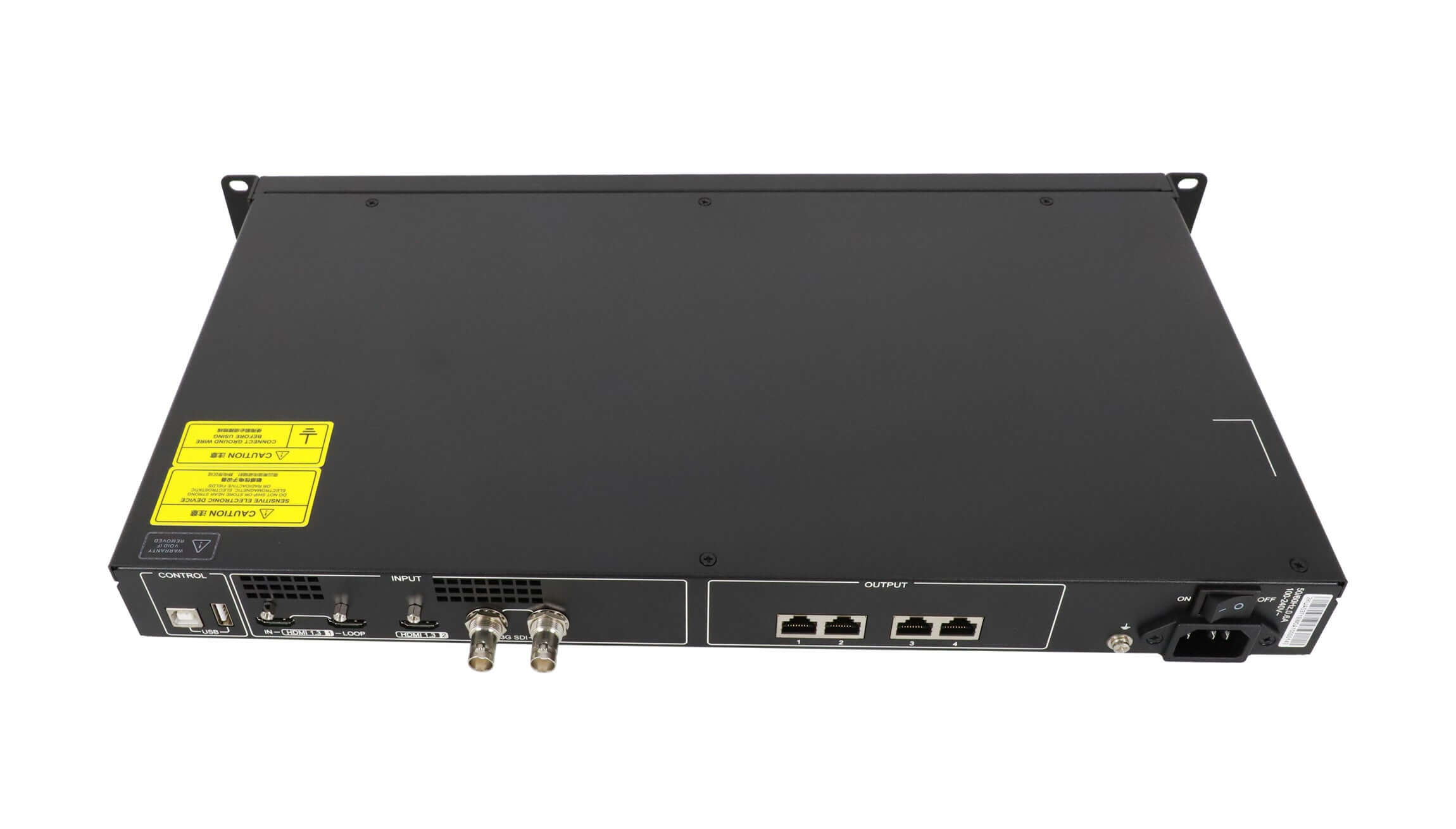

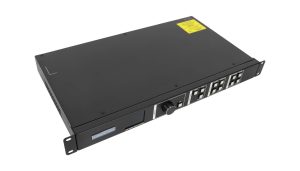

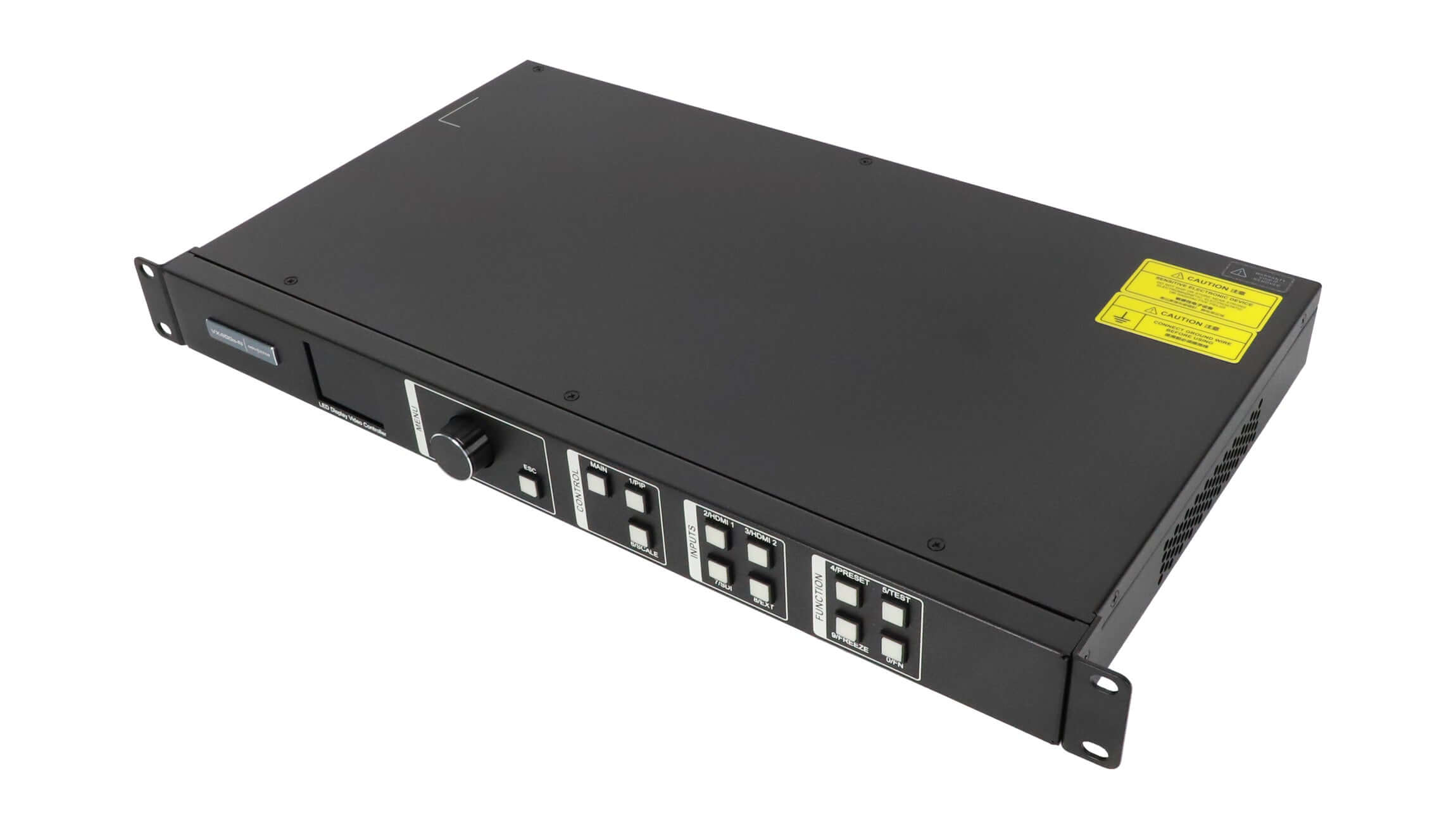

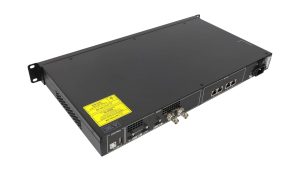

Novastar VX400s-N All-in-One Controller

Novastar VX400s-N All-in-One Controller Features：

1.Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x 3G-SDI (IN & LOOP)
2.Output connectors
− 4x Gigabit Ethernet ports
A single device unit drives up to 2.3 million
pixels, with a maximum width of 3840 pixels
and a maximum height of 3840 pixels.
3.Audio input and output
− Audio input accompanied with an HDMI input
source
− Audio output via a multifunction card
− Output volume adjustment supported
4.2x layers
− Adjustable layer size and position
− Adjustable layer priority
5.Output synchronization
-An internal input source can be used as the sync
-source to ensure the output images of all
-cascaded units in sync.
6.Powerful video processing
− Based on SuperView III image quality
processing technologies to provide stepless
output scaling
− One-click full screen display
− Free input cropping
7.Easy preset saving and loading
-Up to 10 user-defined presets
8.Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
9.Up to 4 units cascaded for image mosaic
10.Output image quality management
-Brightness, saturation, contrast and hue
adjustment
11.Pixel level brightness and chroma calibration
-Working with NovaLCT and NovaStar calibration
-software to support brightness and chroma
-calibration on each LED, effectively removing
-color discrepancies and greatly improving LED
-display brightness and chroma consistency,
-allowing for better image quality.
12.Multiple operation modes
-Control your device as you wish via NovaLCT or
-device front panel knob and buttons.

Download Specification：
Novastar VX400s-N All-in-One Controller Specification
