Outdoor Front Service LED Display 2ftx1ft – P4.7, P6.3, P9.5
IP68
≥ 10000nits
Fanless Design
Low mounting cost
90-degree angle
Quick problem shooting
Smart, light and thin
Rapid Heat Dissipation

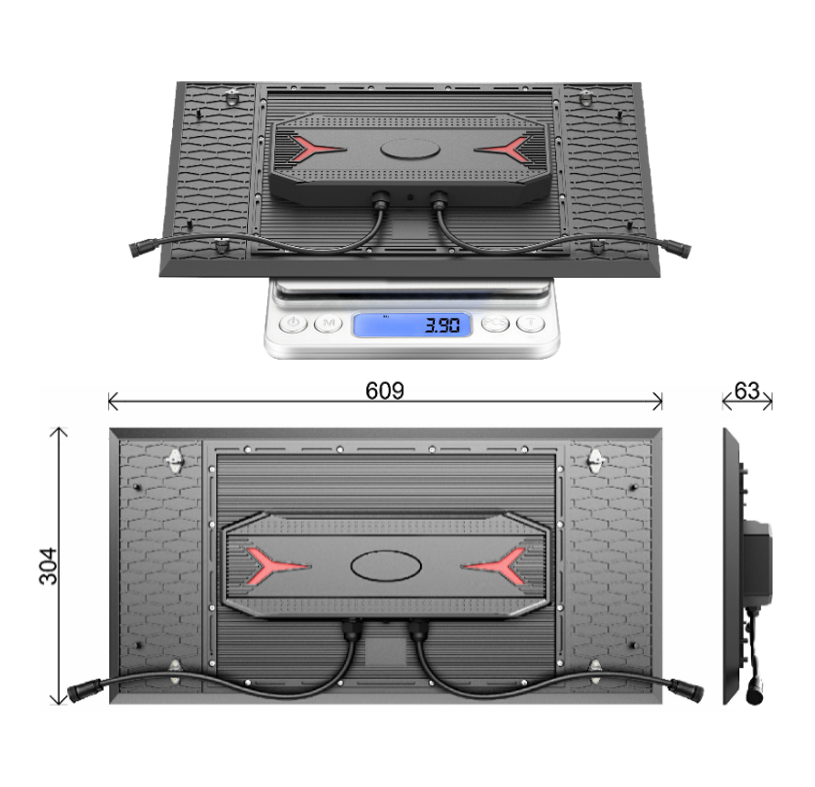

Smart, light and thin
The panel size is 2 ft x 1 ft. The thickness of our Outdoor Ultra Series is 63mm including the module, and it only weighs about 3.9 kgs. With its metallic appearance and unique design, the decorative effect of the cabinet is more appreciated, reflecting its nobility and cost.

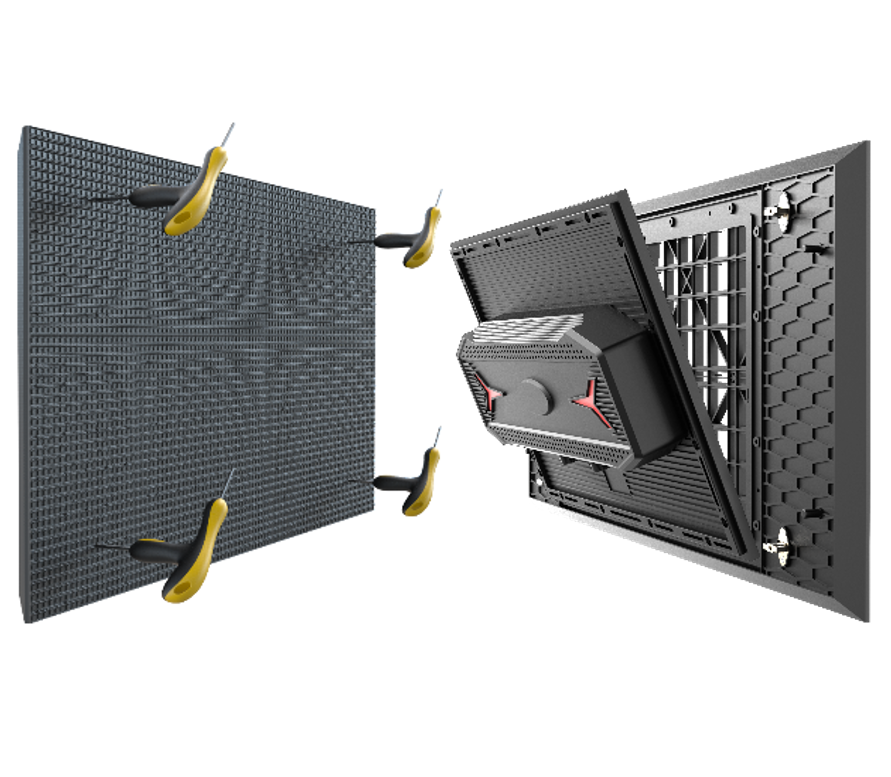

Quick problem shooting
The power supply, receiving card and module are an integral component. This kind of concise and easy design allows remove and replace modules fast in an emergency, especially when the technician wonder which part has issues. Fast problem solving saves a large amount of labor cost.

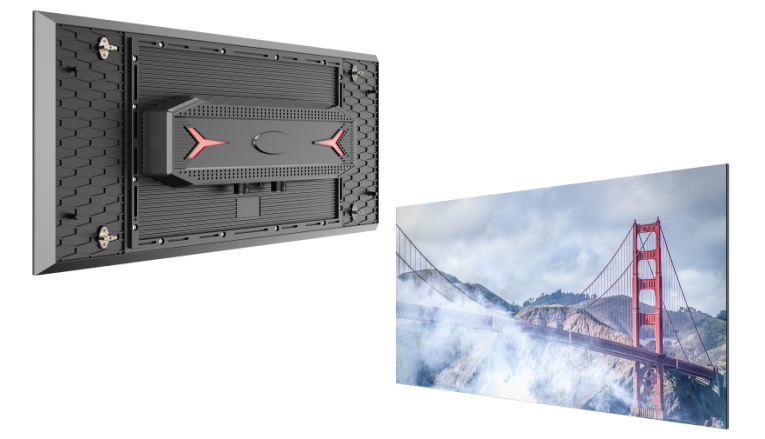

Rapid Heat Dissipation
Aluminium module back shell and power supply casing accelerates heat dissipation. Therefore, the LED screen can work properly without air conditioner even when the weather temperature is as high as 55 degrees. Meanwhile, fanless design enables the screen to work more reliably in dusty environment such as roadside and high humidity places such as seashore.

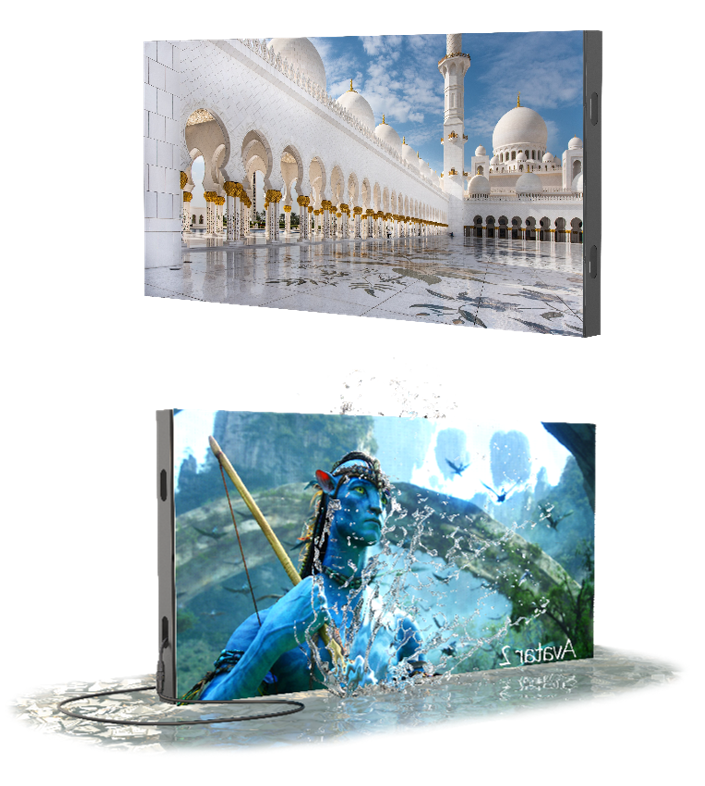

High reliability, wide application and brightness up to 10,000 nits
With IP68 design, the item is an ideal DOOH product which suits any kind of working environment: dusty roadside, humid seashore, high temperature locations, rainy regions, etc. Meanwhile, the screen can be used 10000 nits brightness for strong sunlight.

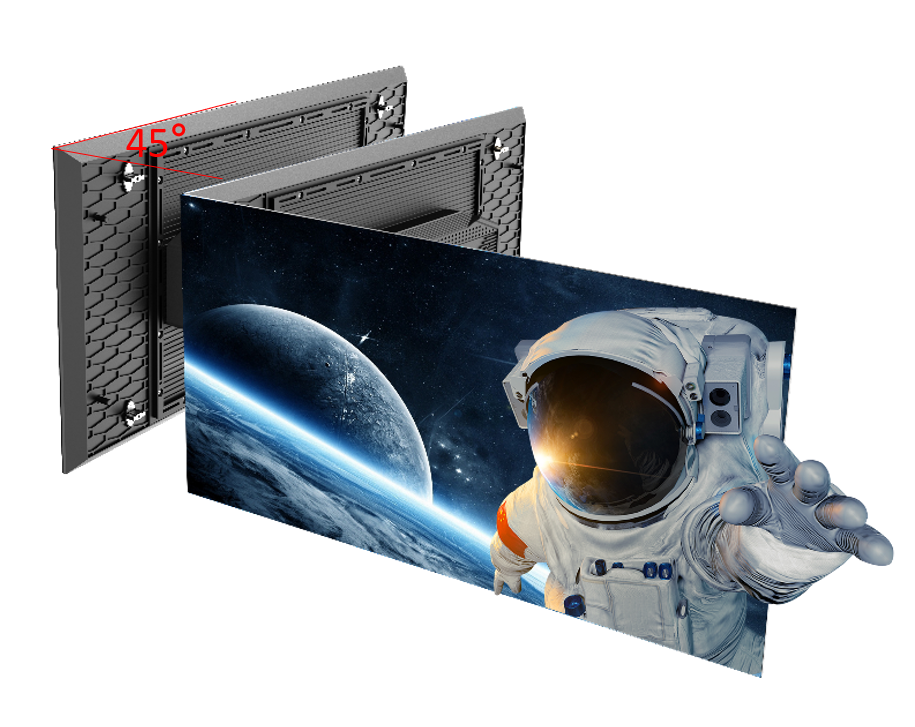

45° cutting Angle design
With 45° cutting angle design, the Front Service 2ftx1ft Ultra LED display cabinets can be assembled at seamless 90˚ angles, so in addition to passive visualizations, the screen also can be used for 3D visual effect or a rectangle wall. With friendly design of the shell structure, it brings a strong three-dimensional visual impact.

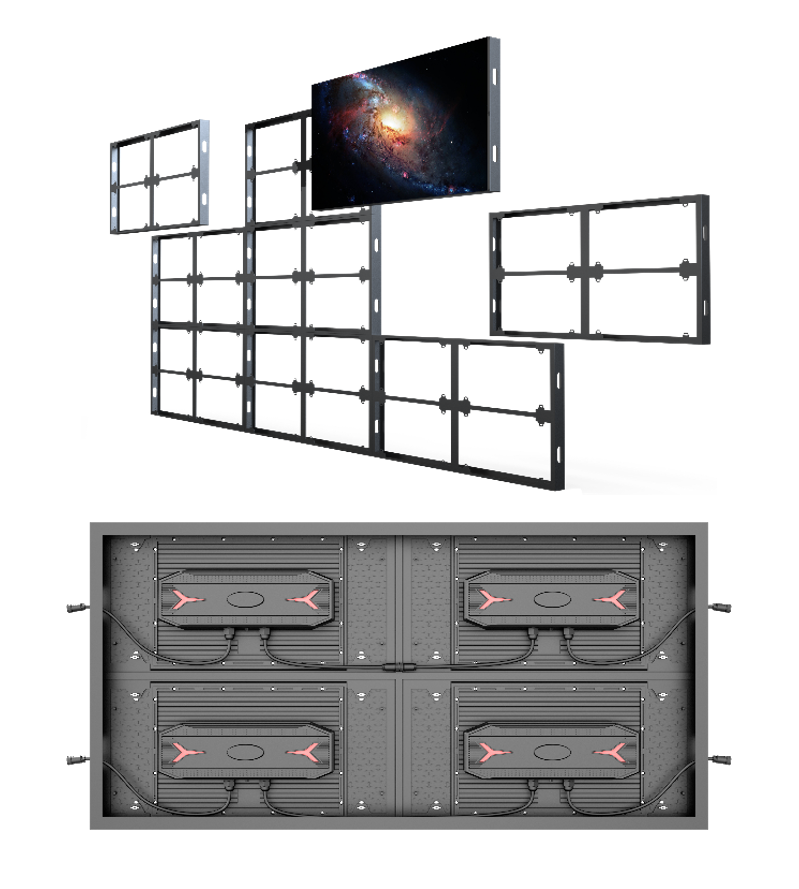

Low mounting cost
With this choice design, all you have to do is build a very simple framework. And then lock the units on the frame. High grade locking system, minimalist cable connector design and light cabinet make it easy and quick to install, at the same time, for your savings.
Application fields:
This product is usually used in:
-
Truck Trailers
-
Scoreboards
-
Digital Out Of Home(DOOH)
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P4.7
4.7625mm
SMD1921
128dots x 64dots
1/8scan
4096dots
2ft x 1ft
2ft x 1ft
128dots x 64dots
44,088dots/m²
≥4.7 m
6,500nits
IP67
1,920Hz～3,840Hz
13bits～24bits
H:110° / V:110°
800W/m²
260W/m²
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
3.9kg
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P6.3
6.35mm
SMD2727
96dots x 48dots
1/6scan
4608dots
2ft x 1ft
2ft x 1ft
96dots x 48dots
24,800dots/m²
≥6.3 m
6500nits ~ 8000nits
IP67
1,920Hz～3,840Hz
14bits～24bits
H:110° / V:110°
550W/m²
180W/m²
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
3.9kg
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P9.5
9.525mm
SMD2727
64dots x 32dots
1/2scan
2048dots
2ft x 1ft
2ft x 1ft
64dots x 32dots
11,022dots/m²
≥9.5m
6,500nits ~ 10,000nits
IP67
1,920Hz～3,840Hz
14bits～24bits
H:110° / V:110°
550W/m²
180W/m²
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
3.9kg
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
