Introduction：

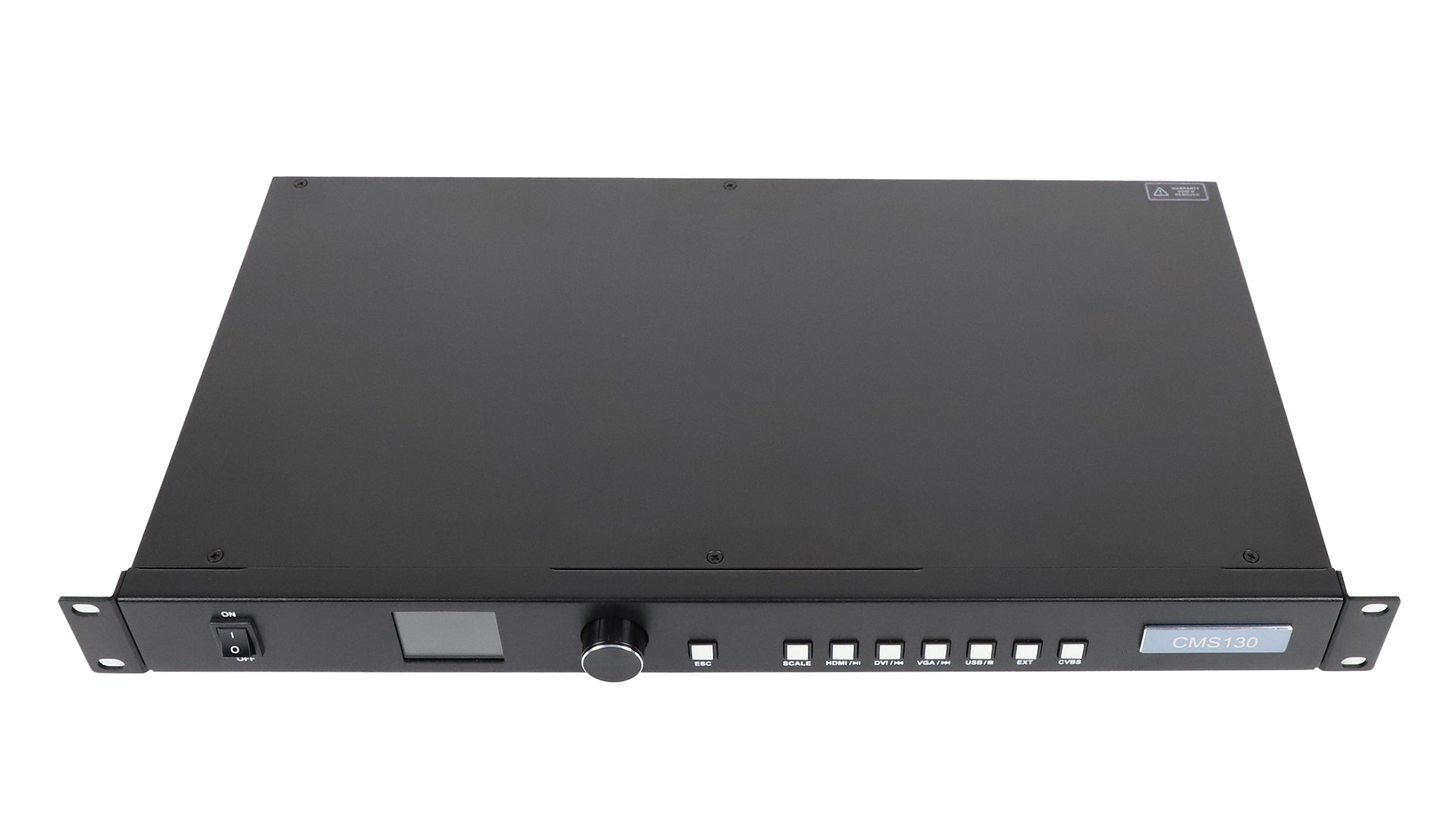

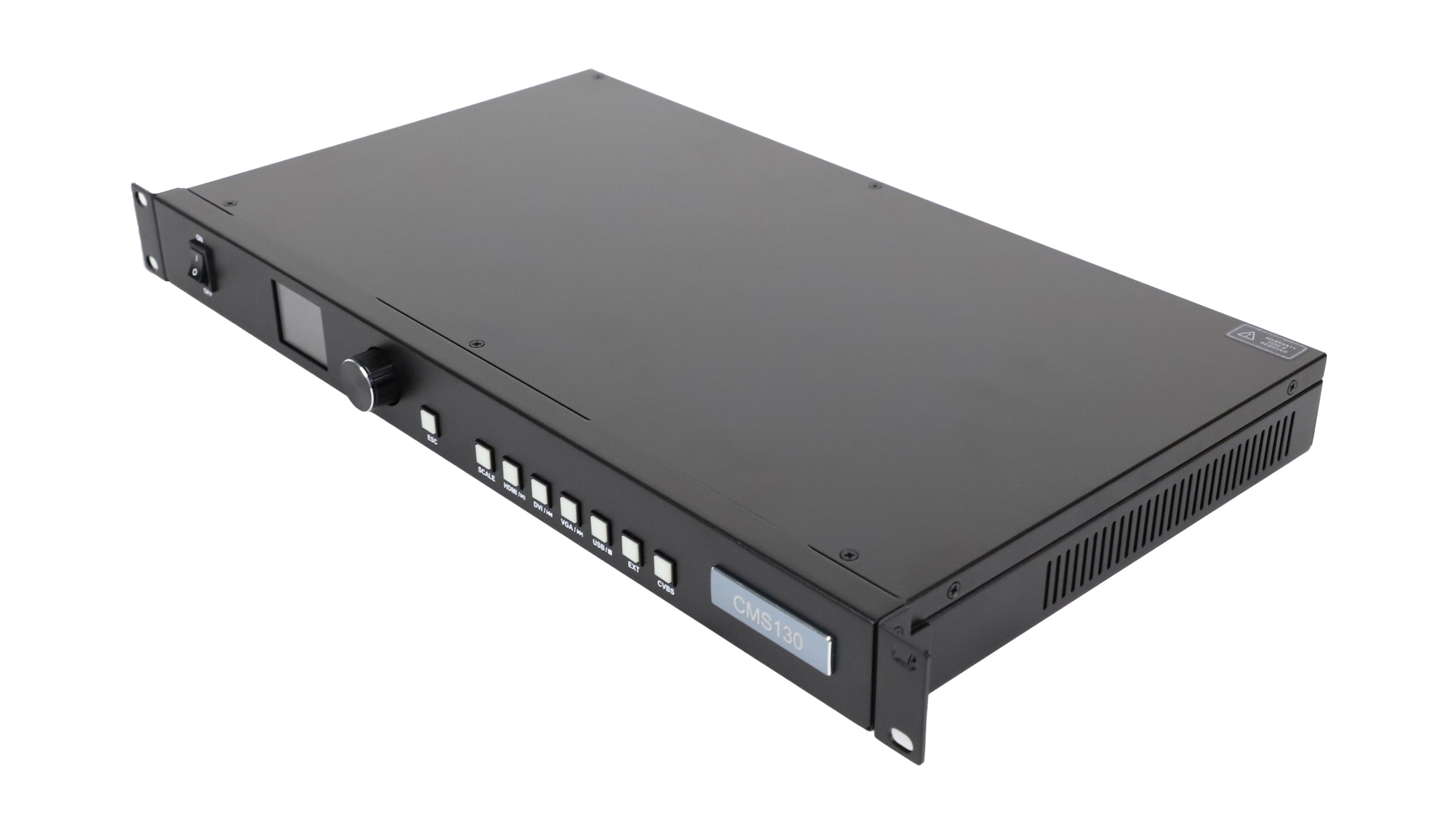

The CMS130 all-in-one controller is a pure hardware device that is easy to operate. It features different types of high-definition input connectors, and integrates professional LED screen control technologies and video processing capabilities, making on-site installations effortless. Designed with an industrial-grade casing, the CMS130 is well suited for complex operational environments and can be widely used in applications such as malls, hotels, exhibition sites and TV studios.
Features：

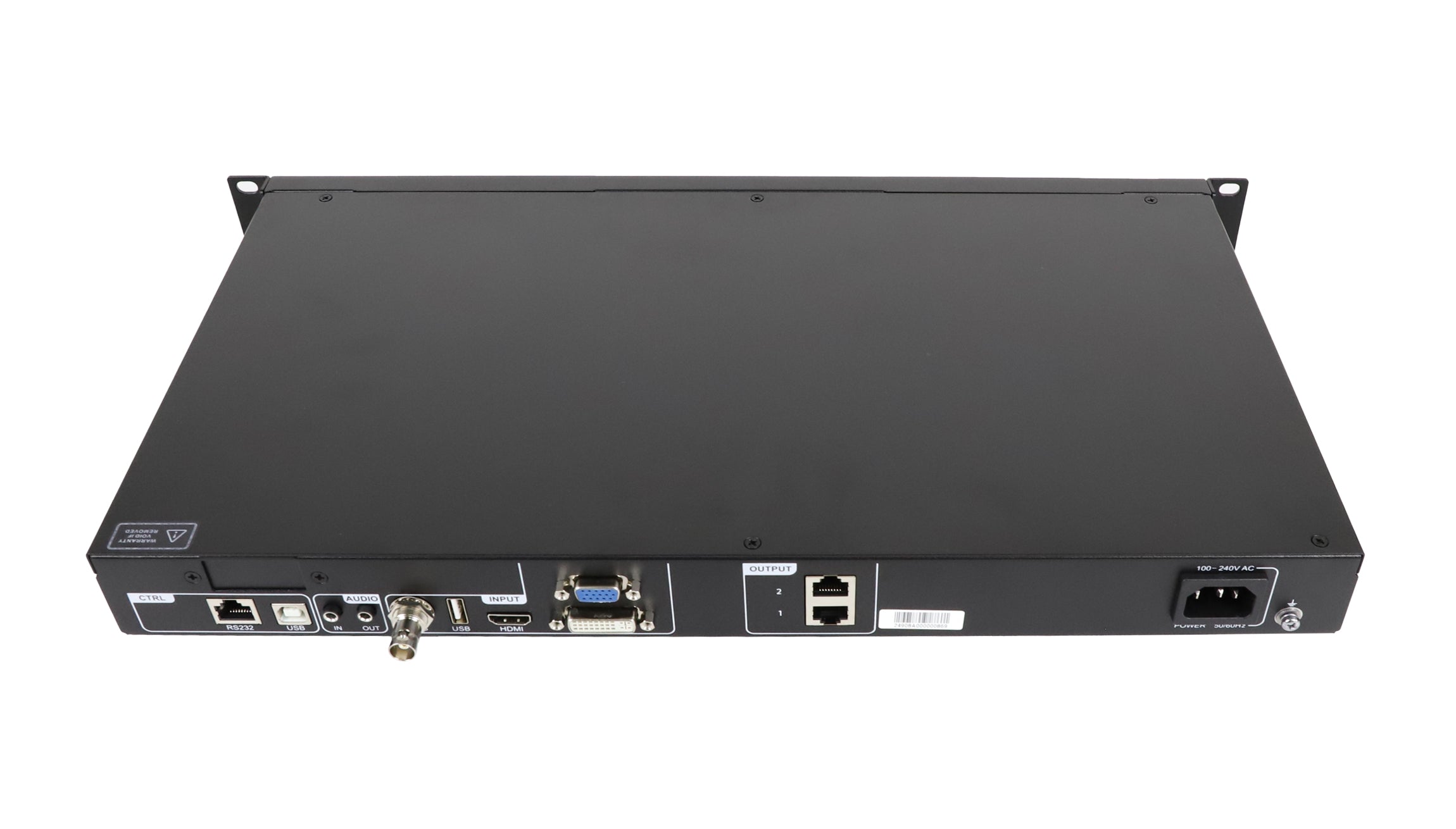

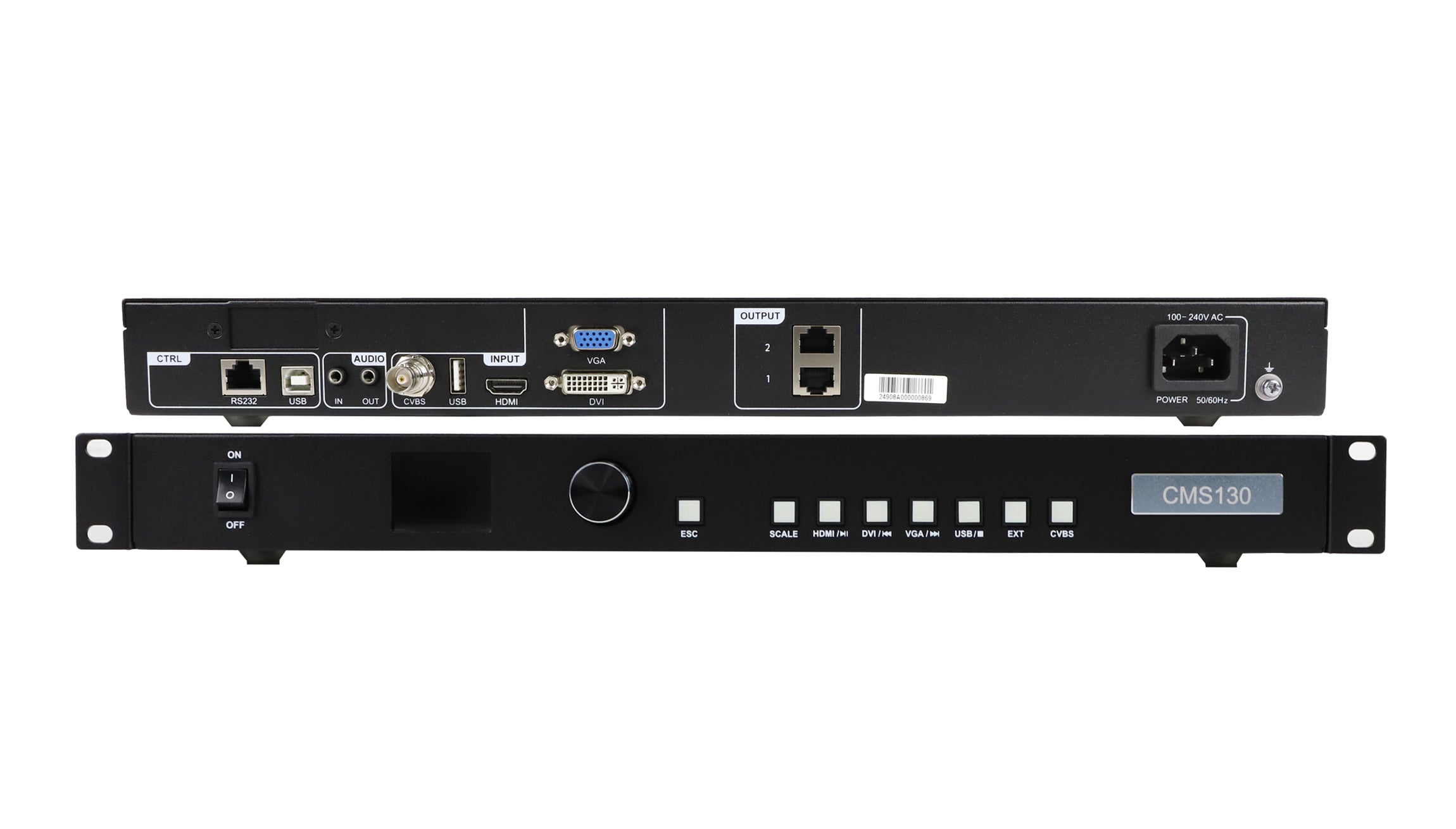

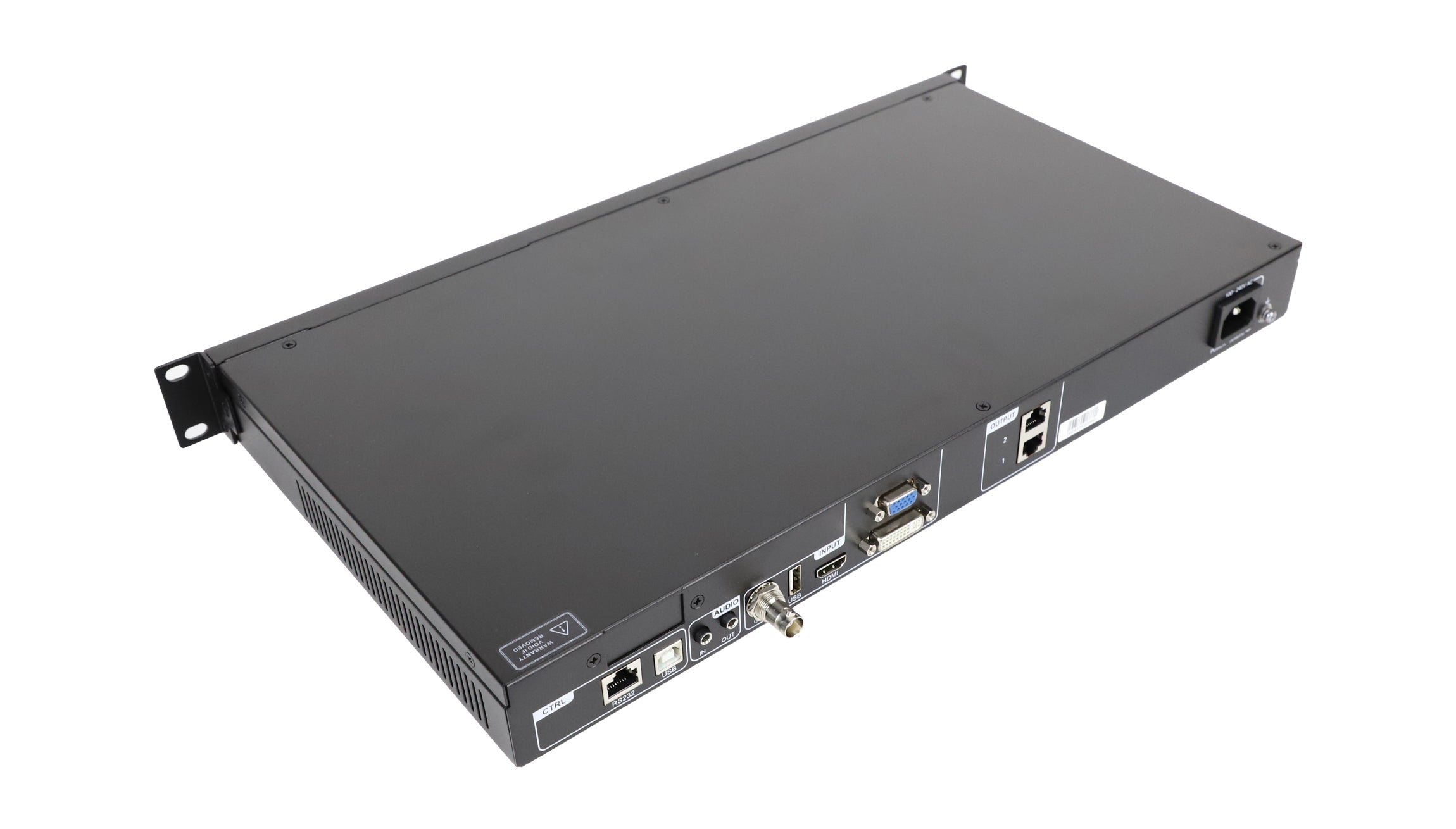

1.Up to five input connectors: 1x DVI, 1x HDMI 1.3, 1x VGA, 1x USB, 1x CVBS
2.Adjustable layer position and size, and input cropping supported
3.Press input source buttons to easily switch between the input sources
4.External independent audio
5.EDID management supported
6.Personalized image scaling: Full screen, pixel to pixel and custom
7.Quick configuration to easily configure the LED screen
8.2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels
9.Easy preset saving and loading Up to 6 user-defined presets
10.LED screen color adjustment, such as brightness and Gamma
11.Controlled via central control devices
Download Specification:
Novastar CMS130 All-in-One LED Screen Controller
