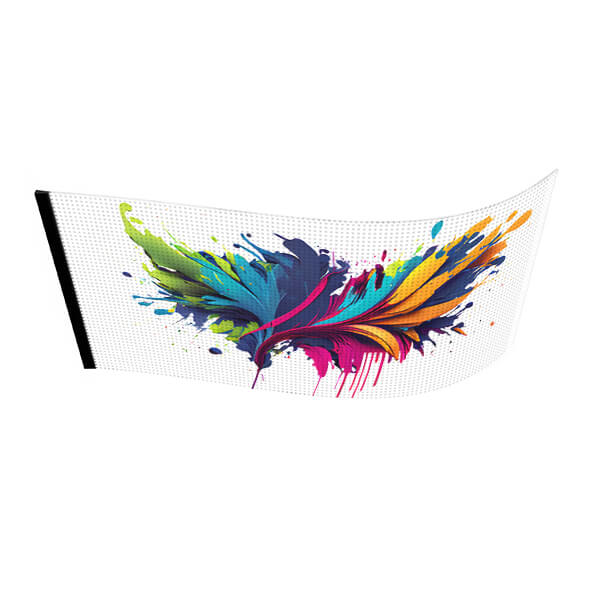

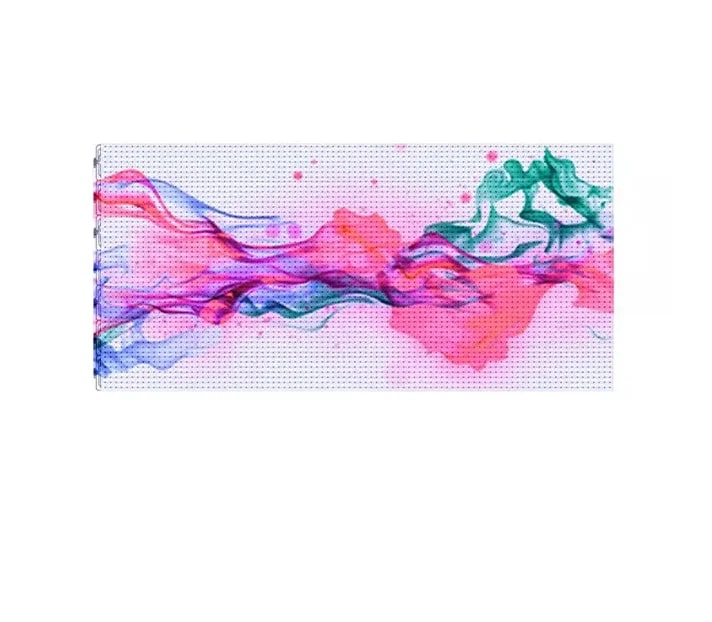

Transparent LED Film is a cutting-edge solution for all your indoor signage needs. With its thin, flexible, and self-adhesive tiles, this LED screen is easy to install and customize to your unique specifications. Its high-resolution display and versatile design make it perfect for a wide range of applications, from retail displays to trade shows and exhibitions. Plus, its ultra-thin profile ensures that it seamlessly integrates with any environment, while still providing stunning, vibrant visuals.
FEATURES
Invisible PCB & Mesh Technology, Super high transparency up to more than 95%.
Slim & Soft for Creative Design,Ultra-thin and ultra-light
Easy Installation & Anti-UV, self-adhesive Film which paste on the glass without frames or other gaps.
Flexible during installation, the size and layout of the film can be customized to suit different installation areas.
Sufficient brightness,Excellent color performance
SELF-ADHESIVE FILM, EASY INSTALLATION
Self-adhesive Film which paste on the existing railing glass or window without frames or other gaps.
The easier installation saves labor costs, and the wiring of power and signals is also very easy and can be hidden naturally.

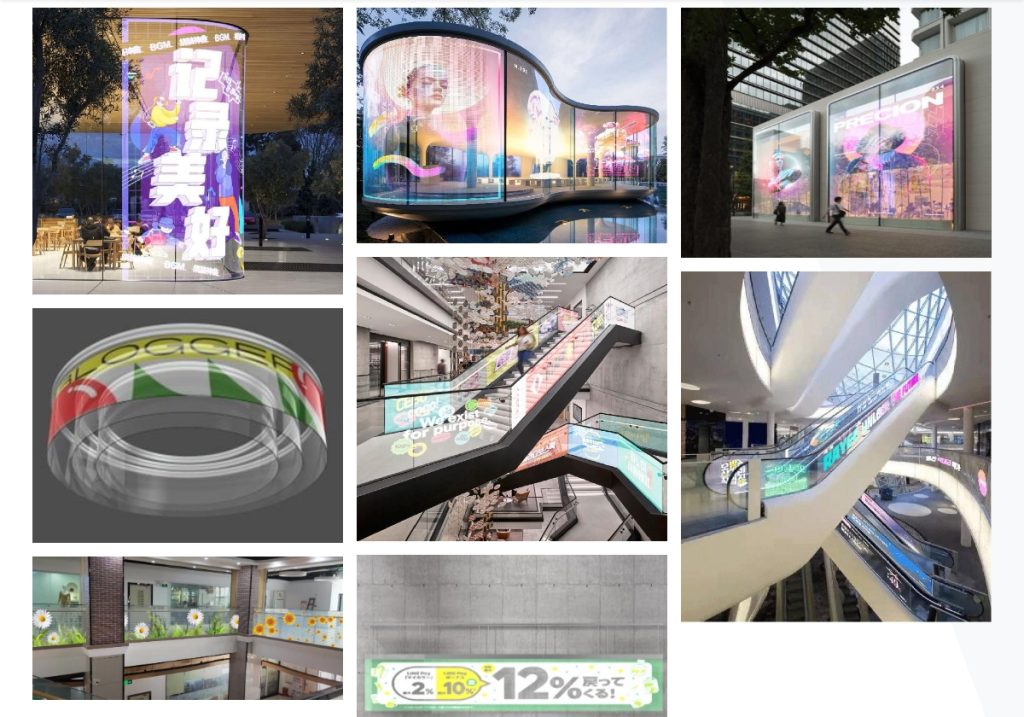

It adds a rich visual experience, a great innovation to the glass.
INVISIBLE PCB & MESH, SUPERB TRANSPARENCY
Invisible PCB or Mesh technology comes with up to 95% transparency. At first glance, you do not see any wires between the LED modules.
When the LED film is on, the played video can delivers various information effectively by attracting the attention of passersby. Importantly, things behind the glass are still visible.

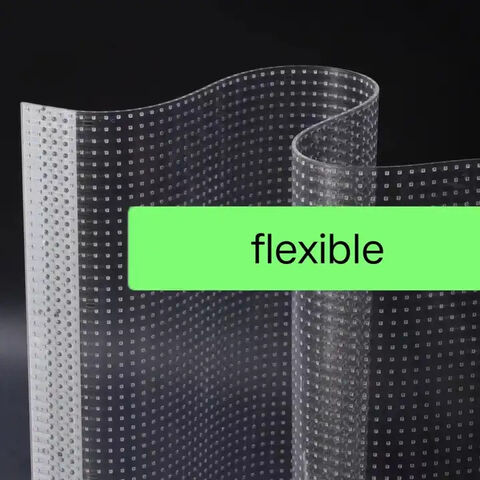

SLIM & FLEXIBLE FOR CREATIVE DESIGN

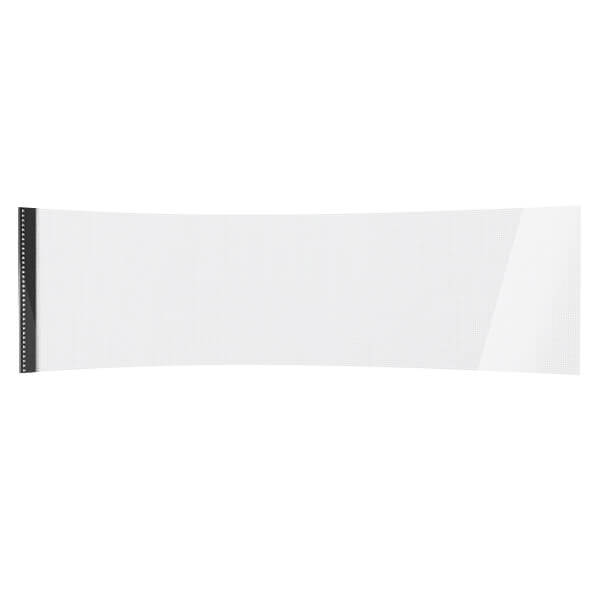

The Adhesive LED Film is Ultra-thin and ultra-light, with thickness of the LED film is only 2.5 mm,
the maximum sheet size is 1000×400 mm, weight 1.3 kg.
the standard screen size 1000x240mm, weight 0.8kg

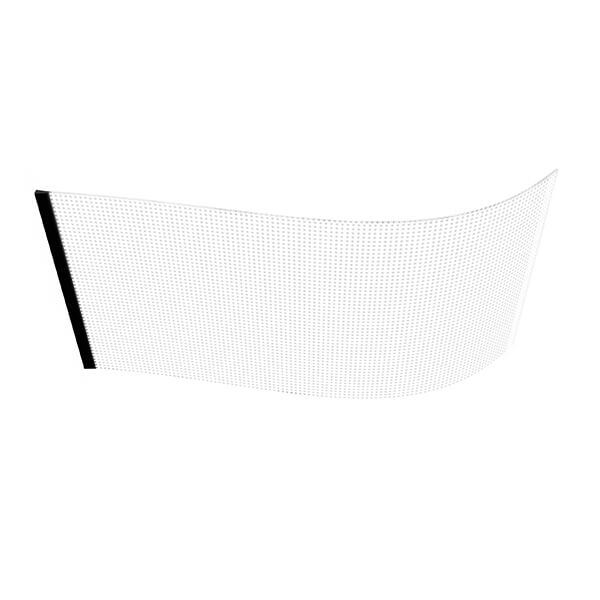

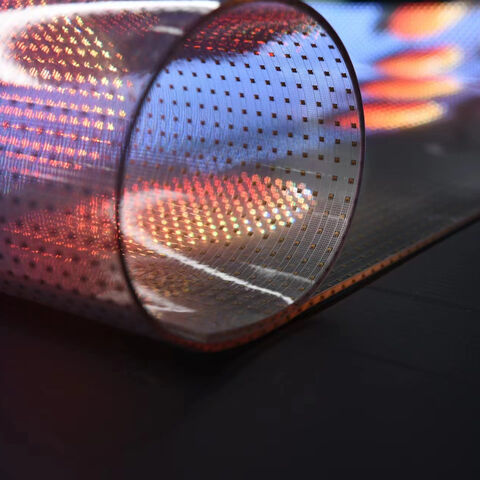

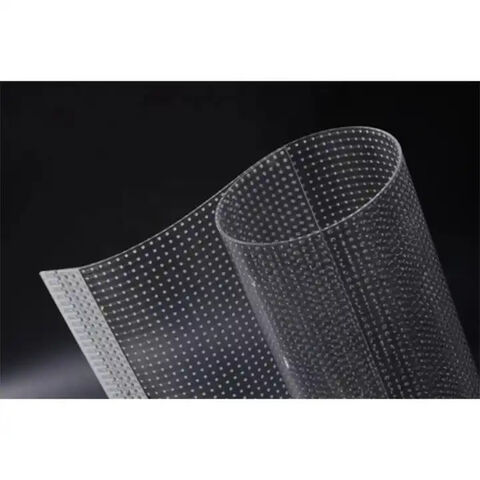

Fine material is very flexible, can be adapted to both flat and curved glass
This gives designers more scope of application and broadens their application occasions.
OUTSTANDING EXPANDABILITY, FLEXIBLE DURING INSTALLATION

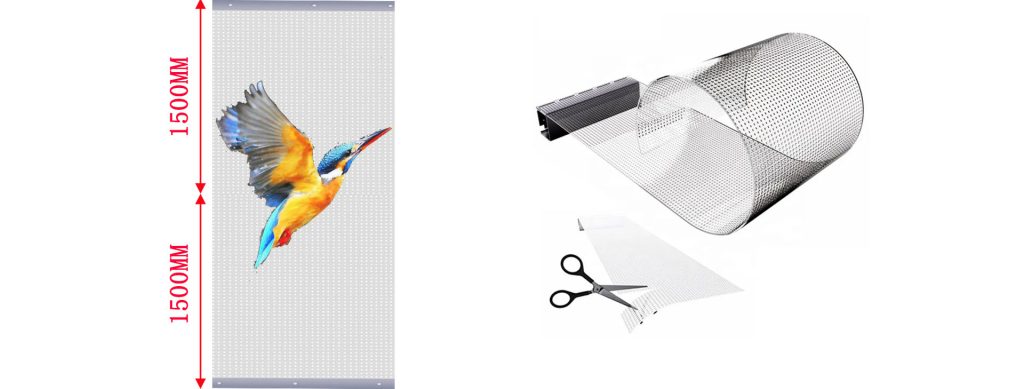

The transparent LED Film can be expanded by adding more films in a vertical or horizontal way,
and it can cut or customize to sizes for meet size requirement or specail glass shapes such as triangles.
SUFFICIENT BRIGHTNESS
The LED Film with pixel pitch range from 6.25mm, 8mm, 10mm, 15mm and 20mm, the brightness in 2000nits makes indoor viewing very clear.
If attached to a glass window or wall facing the street outside, we can provide the film with 4000nits brightness which would be enough to attracts the attention of passersby while displaying a wide range of colors.
Adhesive Transparent LED Film Display Screen | ||||||
MODEL | P5 | P6.25 | P8 | P10 | P15 | P20 |
Module size (mm) | 1000×320 | 1000*400 | 1000*400 | 1000*400 | 990*390 | 1000*400 |
LED light | NationStar SMD1415 | NationStar SMD1515 | NationStar SMD1515 | NationStar SMD1515 | NationStar SMD2121 | NationStar SMD2121 |
Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
Pixel spacing (mm) | 5*5 | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
Module pixel | 200×64=12800 | 160*64=10240 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
Pixel/m2 | 40000 | 25600 | 16500 | 10000 | 4356 | 2500 |
Brightness | 2000-4000cd/m² | 2000-5000 cd/m² | 2000-5000 cd/m² | 2000-5000 cd/m² | 2000-6000 cd/m² | 2000-6000 cd/m² |
Permeability | 90% | 90% | 92% | 94% | 94% | 95% |
Angle of view ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
Peak power | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ |
Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
Work environment | Temperature -20~55°C | Temperature -20~55°C | Temperature -20~55°C | Temperature -20~55°C | Temperature -20~55°C | Temperature -20~55°C |
Humidity 10-90% | Humidity 10-90% | Humidity 10-90% | Humidity 10-90% | Humidity 10-90% | Humidity 10-90% | |
Weight | 1.2kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
Drive mode | Static state | Static state | Static state | Static state | Static state | Static state |
Control system | NovaStar/Colorlight | NovaStar/Colorlight | NovaStar/Colorlight | NovaStar/Colorlight | NovaStar/Colorlight | NovaStar/Colorlight |
Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H |
Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Refresh rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
