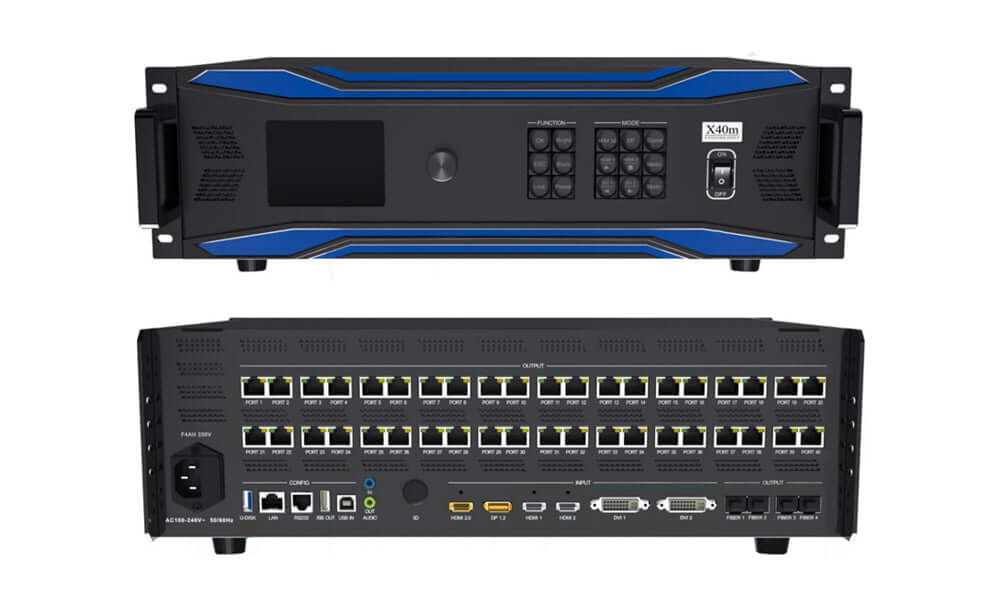

Colorlight X40m professional led master controller

Colorlight X40m professional led display screen controller Features：

enter
●The maximum input resolution is 4096X2160@60Hz
2-way 4K input: 1XDP1.2, 1 XHDMI2.0
●4 channels of 2K input: 2XHDM1.4, 2XDVI
●1 way ∪ disk interface

output
● The maximum loading capacity is 26.21 million pixels
40-way Gigabit Ethernet output or 4-way 10-Gigabit optical output, optional

audio
●1 channel independent audio input
●1 channel independent audio output
●Support HDMI and DP audio analysis output

Function Description
●Maximum 6 windows display, each window has 1 layer, and the layers overlap each other (when 1 4K input signal, it can support 4 channels of high-definition input at the same time, supporting 5 windows; when 2 4K input signals, only support 2 windows)
●Window free roaming, free zooming window, minimum 64X 64 resolution
●Video signal can be cropped arbitrarily, switched seamlessly, the size of the cropping frame can be adjusted freely, and the minimum resolution is 64X64
●Precise color management, adjustable display color gamut, need the support of corresponding model receiving card
●Video genlock technology, support locking internal vsync, input signal source, automatic genlock (lock according to layer)
●Support brightness and color temperature adjustment, support accurate color temperature
●Support 3D (optional)
●Low brightness and high gray, can effectively maintain the complete display of gray scale under low brightness
●Support 128 scenes to save and recall
●Support ∪ disk playback and upgrade
●Support OSD (optional)

Download Specification:
Colorlight X40m Controller for LED Display screen Specification
