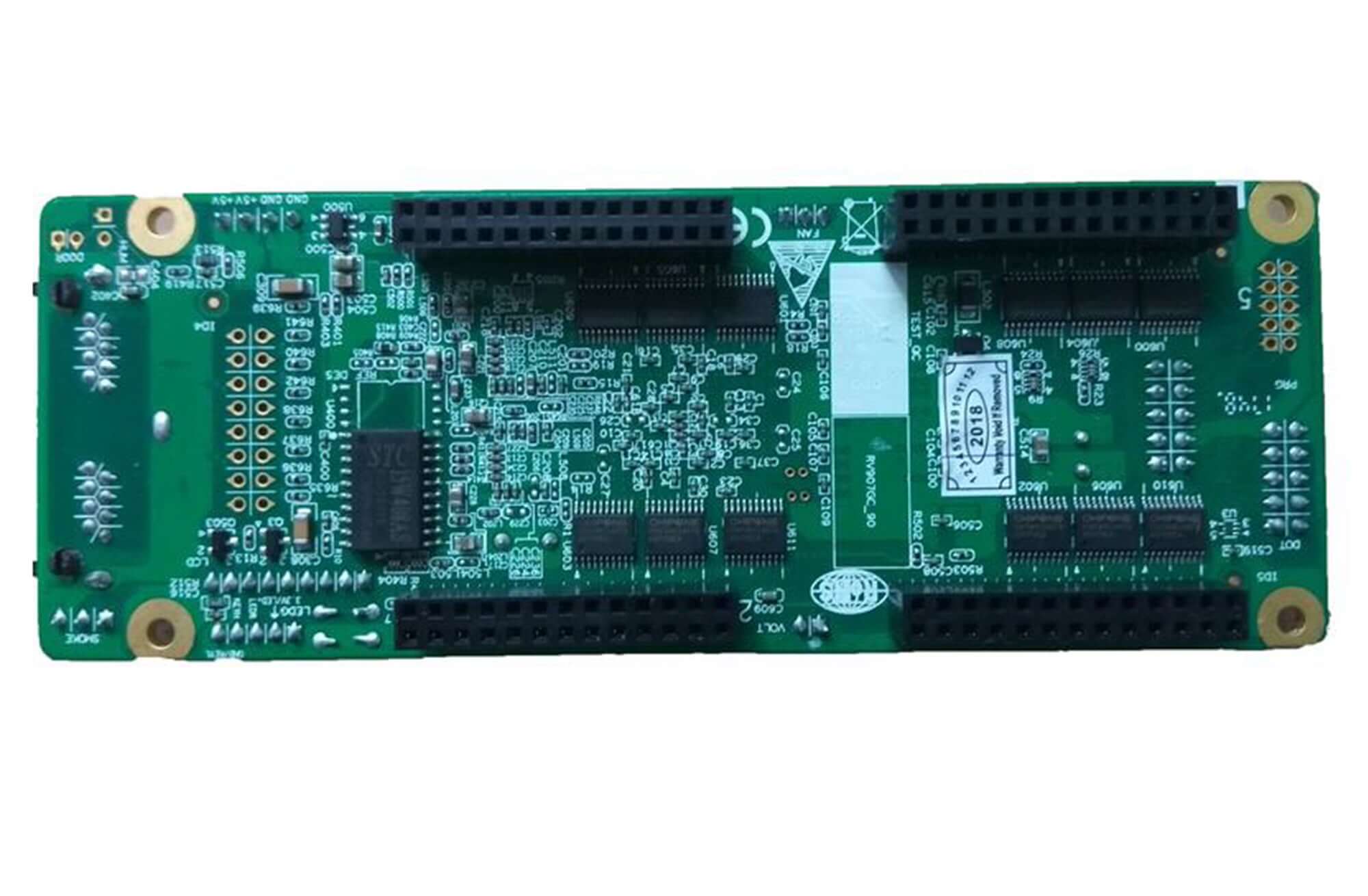

LINSN RV927H LED Panel Sender Card

Features of LINSN RV927H LED Sender Card for LED Panel:

1) A single card can output 16 groups of RGBR’ data;
2) A single card can output 20 sets of RGB data;
3) A single card can output 24 sets of RGB data;
4) A single card can output 32 sets of serial data;
5) A single card supports a maximum of 512 × 384 pixels;
6) Each port provides a VCC pin, which can be directly powered from the power supply of the unit board;
7) Support temperature detection;
8) Support box door switch detection;
9) Support two-way fan speed detection;
10) Support humidity detection (additional humidity module is required);
11) Support smoke detection (additional smoke sensor module is required);
12) Support 3 channels of voltage detection (1 channel for receiving card voltage, 2 channels for external
Voltage);
13) Support point-by-point brightness correction, single-card chromaticity space conversion;
14) Support network cable error test;
15) Support dual receiving card hot backup;
16) Support high brush and high gray of most chips;
17) Comply with EU RoHs standard;
18) Comply with EU CE-EMC Class B standard;

LINSN RV9207H LED Panel Sender Card Specification
