P2.6 P2.9 P3.9 P1.9 Indoor Column Curved Flexible LED Screen Display 500×500
Rental Flexible Curved LED Screen
LeemanLED newly developed rental flexible curved LED screen for stages can be made into inner arcs, outer arcs, and S-shaped angles. This makes the curvature of LED rental screens more smooth.
Product Introduction
Support 0-45 degrees, adjustable in 2.5-degree increments;
Support fast splicing;
Support S-shaped splicing;
Support large angle inner and outer arc splicing;
Support circular splicing;
Support inter-splicing with flat curved 500 series;
Support front maintenance;

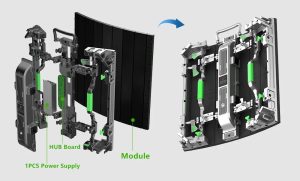

Tool-free easy disassembly of the power box;

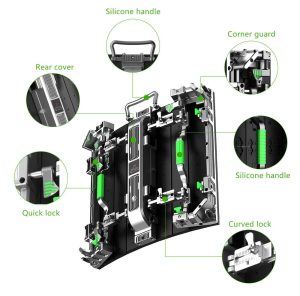

Semi-automatic corner protection.
One Cabinet can realize S shape
One single cabinet can do the “S” shape, which can meet the display of various creative shapes as much as possible.
Free curved surface
Soft series rental flexible LED screen can be spliced at any angle from 0 to 45 degrees. Eight cabinets can form a circle.
Mixed Splicing
The Flexible series rental flexible LED screen can be seamlessly spliced with cabinets of 500mm*500mm size like the 90 degree series and Curved 500 series at will. It boasts extremely strong expandability and can highly meet the requirements of creative display, making the video presentation more three-dimensional.
Leeman Pro Series Indoor Outdoor Curved Flexible Rental LED Display Screen 500×500 | ||||
Model NO. | P1.953 | P2.604 | P2.976 | P3.91 |
Pixel Pitch | 1.95mm | 2.6mm | 2.9mm | 3.91mm |
LED Chip Lamp | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire |
LED type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
Flatness between modules | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Module size (W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
Module resolution (W*H) | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
Cabinet size(W*H*D) | 500*500*75mm | 500*500*75mm | 500*500*75mm | 500*500*75mm |
Cabinet resolution (W*H) | 256*256dots | 192*192dots | 168*168dots | 128*128dots |
Cabinet weight | 6.5kg/pc | 6.5kg/pc | 6.5kg/pc | 6.5kg/pc |
Density | 262144dots/m² | 147456dots/m² | 112896dots/m² | 65400dots/m² |
IC | ICN2153 ICN2065 | ICN2153 ICN2065 | ICN2153 ICN2065 | ICN2153 ICN2065 |
Scan | 32S | 32S | 21S | 16S |
Best viewing distance | >1m | >2m | >3m | >4m |
Best viewing angle | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° |
Brightness | 1000-2000cd/m² | 1000-4500cd/m² | 1000-5000cd/m² | 1000-5000cd/m² |
Working voltage | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz |
Maximum power | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² |
Average power consumption | 100W/m² | 200W/m² | 200W/m² | 200W/m² |
~300W / m² | ~300W / m² | ~300W / m² | ~300W / m² | |
Screen temperature rise | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees |
Environmental Temperature/°C | -10°C~60°C | -10°C~60°C | -10°C~60°C | -10°C~60°C |
Operating Temperature | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH |
No condensation | No condensation | No condensation | No condensation | |
Screen color temperature | 2000K~9500K | 2000K~9500K | 2000K~9500K | 6500K~9500K |
Driving method | 1/32 scanning | 1/32 scanning | 1/32 scanning | 1/16 scanning |
Gray scale | 16bits~24bits | 16bits~24bits | 16bits~24bits | 16bits~24bits |
Refresh frequency | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz |
IP grade | Front:IP68 | Front:IP68 | Front:IP68 | Front:IP68 |
Back:IP66 | Back:IP66 | Back:IP66 | Back:IP66 | |
Continuous working time | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs |
Lifetime | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs |
Installation method | Back Frame Installation / Hoisting / Inner Arc Installation | |||
Pixel correction | Equipped with point – by – point brightness and chromaticity correction | |||
Contrast ratio | 6000:1 | |||
Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |||
Control mode | Synchronization control | |||
Control distance | Super five double stranded network cable, more than 100 meters using optical fiber transmission | |||
Software interface | Windows XP /7/8/10 IOS | |||
Signal input | HDMI、DVI, VGA, USB, LAN(Extensible interface) | |||
Cabinet material | Waterproof Die-casting Aluminum | |||
PowerCon | Neutrick Power connector with cable | |||
EtherCon | Neutrick Power connection with cable | |||
Maintenance method | Dual Service, Front Maintenance and Back service | |||
Warranty time | 5 years warranty time and free lifetime technical support | |||
Certification | UL CE ETL ROHS EMC FCC ISO, IECEE, CB |
