High Quality Outdoor Rental Transparent LED Display 500X1000 and 500×500
High Transparency
3840Hz Refresh rate
High Brightness
IP65
Great Gray Scale
Fast and Easy Installation
Light and Slim
Flexible Design

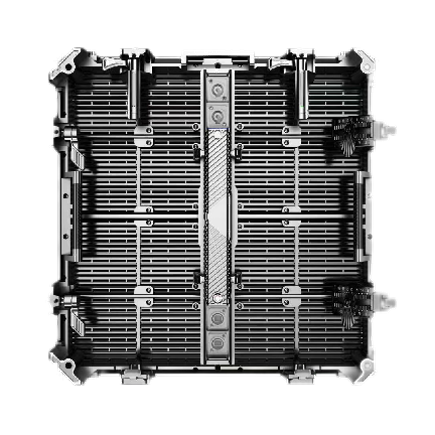

Light and Thin
The cabinet material is die-cast aluminum, which is lighter and has higher overall precision. Thickness of the cabinet is only 75mm and the weight is less than 19kgs/sqm which greatly reduces the stress during transportation and instalation.
Cabinet size: 500mm*500mm*75mm / 500mm*1000mm*75mm
Pixel pitch P3.9-P7 .8 is available.

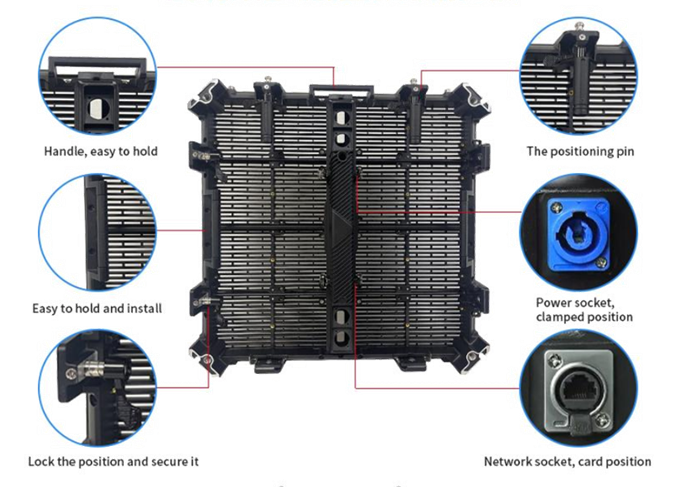

Product appearance display
1) Easy to hold and install with handles and postioning pin.
2) Stable power socket and network socket, the wire will be stably fixed, and the power supply and signal transmission are stable.
3) Socket can be customized according to customer needs.

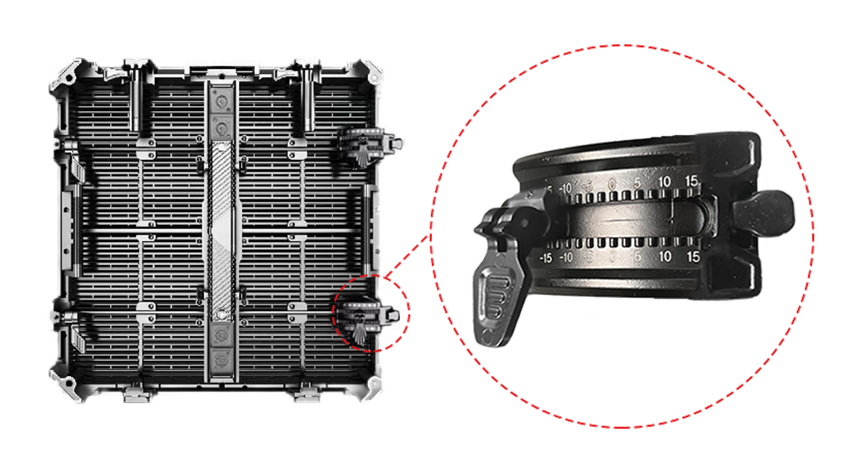

Various shapes with curved lock desigen
Adopting the push-pull curver lock design, we can choose seven arcs (-15° -10° -5°0° 5° 10°15°).
The diverse arc selectivity allows clients to choose the most appropriate arc according to specific needs, making it more flexibly applicable to different scenarios and designs.

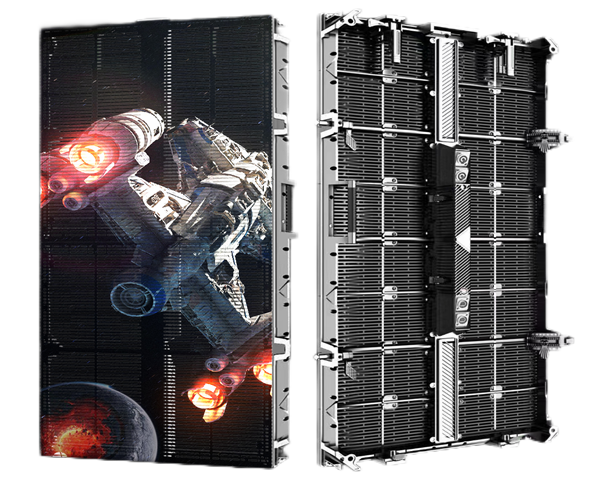

High Transparency
Transparency can be up to 36%, which can produce a strong perspective effect , making the images more vivid , especially at night.

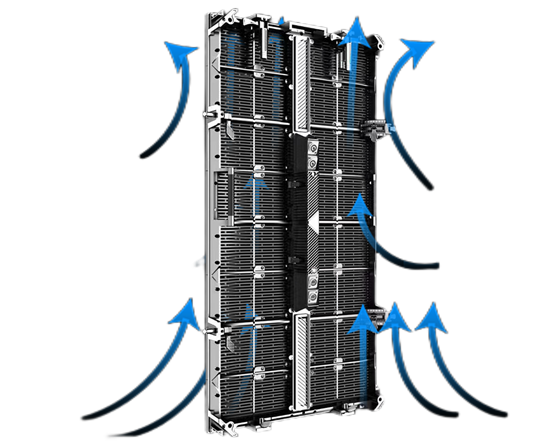

Excellent Heat Dissipation
1) Die-casting aluminum cabinet.
2) The cabinet is used with wind-pass design. As a result, even without fans and air conditioners , the screen can still work properly in the high temperature environment of 60°.

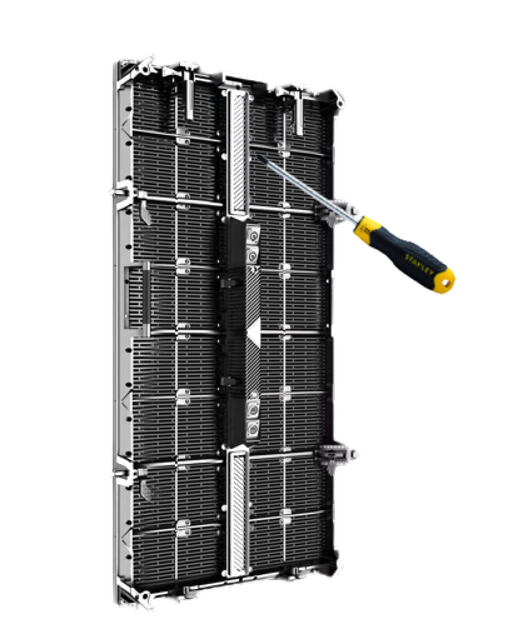

Rear Access
We install the module and power bo.via screws. The modules , power supply, receiving card , and other components can be disassembled from the rear, which is convenient to install and maintain the screen.

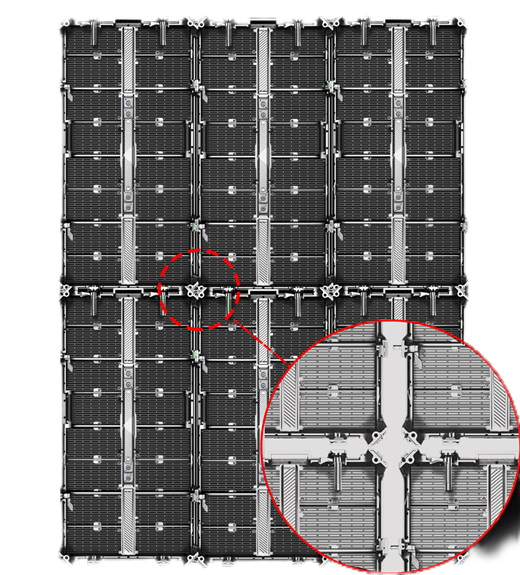

Fast and Easy Installation
Our Outdoor rental transparent LED display realizes the connection between the cabinets through connecting pieces and fast locks. And we also design a handle for each cabinet. So that it can be carried to install fast and easily.

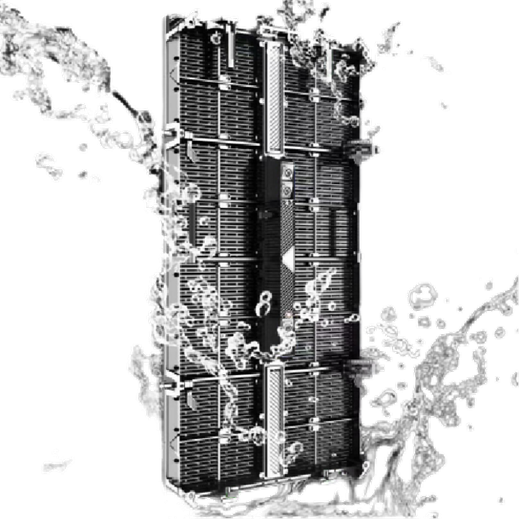

High Protection: IP65
1) All exposed materials are waterproof and UV resistant. 2) Our outdoor connivers are plugged in from bottom to top of the power box , which make more waterproof.

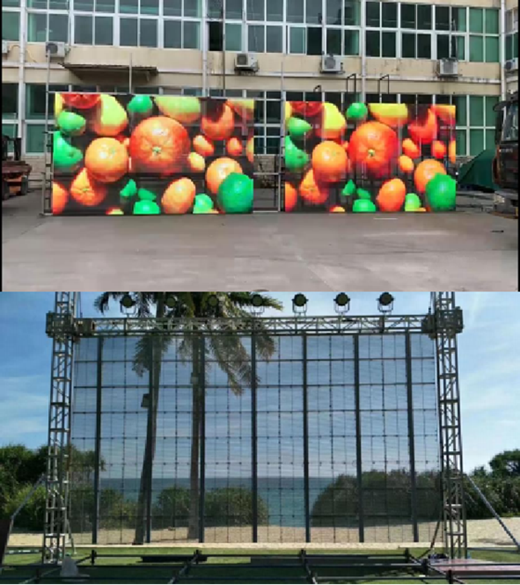

Multiple Options of installation
Stacking installation: Ground stacking makes your installation easier and faster during the events.
Hanging installation: The hanging bar can hang the cabinets from truss. The light weight of the cabinet will reduce the physical pressure of the frame.

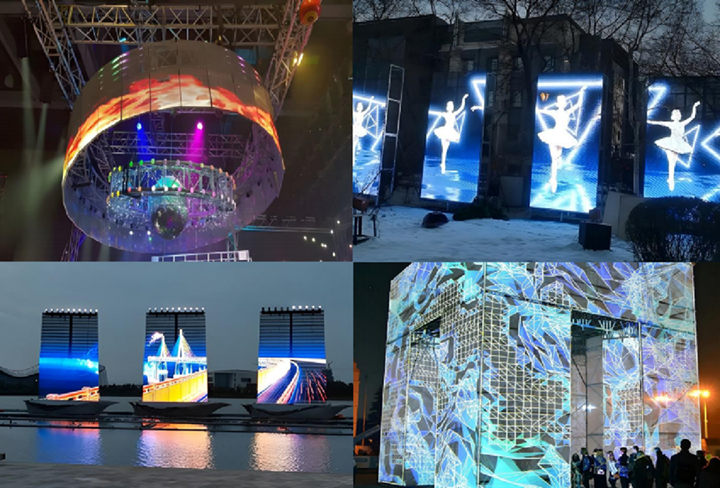

Application Fields
To fit every different scene , our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
-
Cinemas
-
Stages
-
Advertisements
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Transparency
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P3.91-7.81
3.91mm(W) / 7.81mm (H)
SMD 1921
128dots × 16dots
1/8scan
2,048dots
500mm × 125mm
500mm x 1000mm x 75mm/500mmx 500mm x 75mm
128dots × 128dots/128dots × 96dots
32768dots/㎡
≥7m
36%
4000~5000nits
IP65
1920~3840Hz
14bits
H:120° / V:120°
800W/㎡
260W/㎡
AC240V @ 50Hz / 60Hz
﹣40℃～45℃
10%～90%
Die-casting Aluminum
19kg/㎡
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
