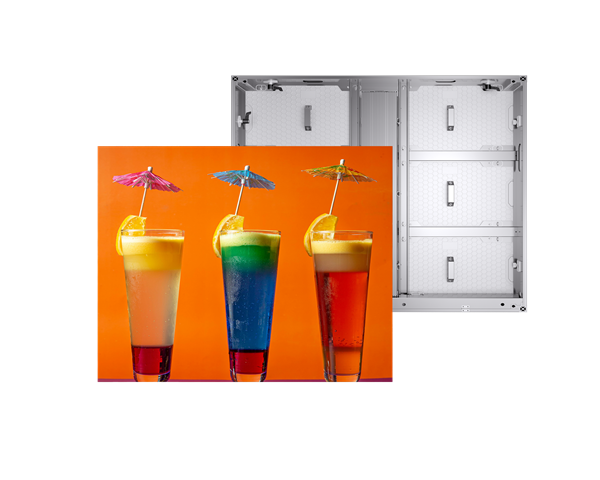

Outdoor Front Service and Rear Access LED Display High Brightness 6000nits – 12000nits
Lightweight
14bits～22bits
High stability
50% Energy Saved
Cable Free
Aluminum cabinet
Super Cost-effective

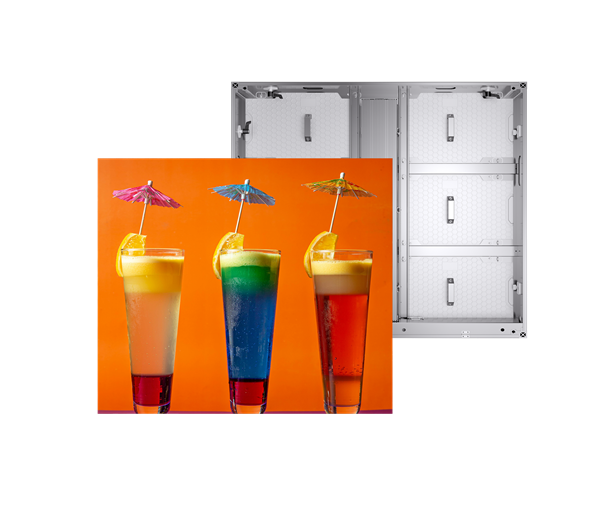

IP66Slim and lightweight design

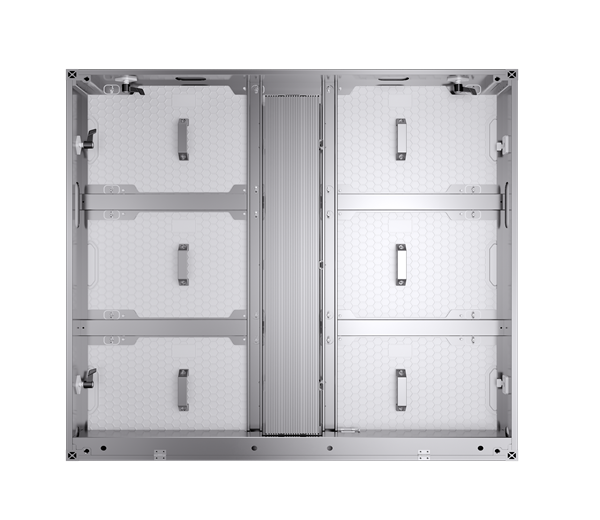

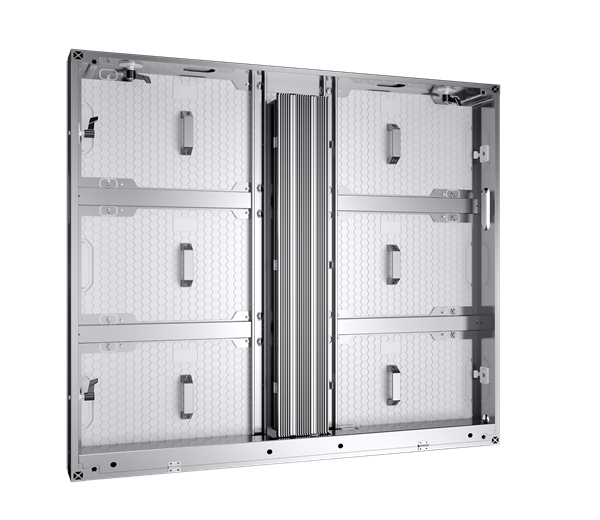

The aluminum cabinet is designed to be 25kgs/sqm lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation. Multiple panel sizes can be easily assembled into a big screen of different dimensions. 960(w)mm x 960(h)mm , 82mm thickness, 25kgs/sqm weight. The pixel pitch P4.4, P5.71, P6.67, P8 and P10 are available.
Front and Rear Access
The power supply, receiving card, and module can be removed from the front or rear side. This kind of concise and easy design allows removing and replacing modules fast in an emergency, especially when the technician wonders which part has issues. Fast problem-solving saves a large amount of labor costs.
Cable free module with signal row pin socket
This design doesn’t require the ribbon cable, so the signal connection of the modules is much better than common designs in the market. What’s more, we use single row pin sockets, its characteristics are: High precision: Its precise pin spacing ensures stable connections between electronic components and improves the overall performance of the circuit board. High reliability: It is made of high-quality materials, has good electrical conductivity and corrosion resistance, and can ensure the stable operation of the circuit.
Protective Method: IP66
The Platinum Pro Series LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds for a long time. The IP66 design can isolate electronic parts from humidity and dust, so the screen is more reliable.
Hight Brightness up to 10,000nits
To display clearly what is on the LED screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate, and gray scale, the visual performance of the screen is unexceptionable.
High refresh rate and high grayscale
A refresh rate greater than or equal to 3840Hz is used to capture high dynamic range images, which helps to eliminate scan lines and flickering on the display. A high grayscale level of 14bits-22bits ensures excellent visual quality, and the LED display provides vivid visual effects.

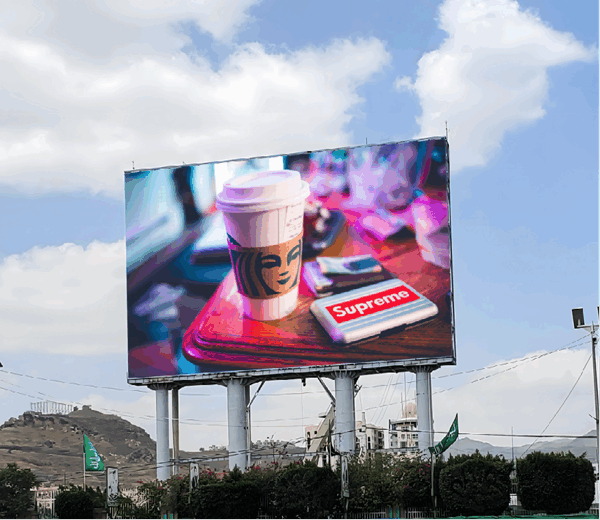

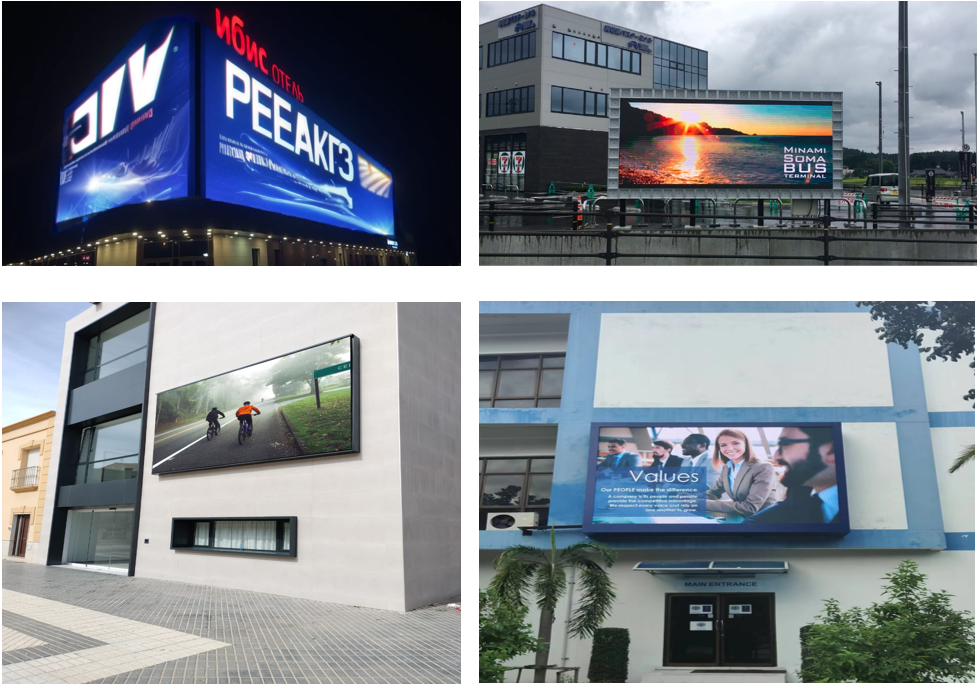

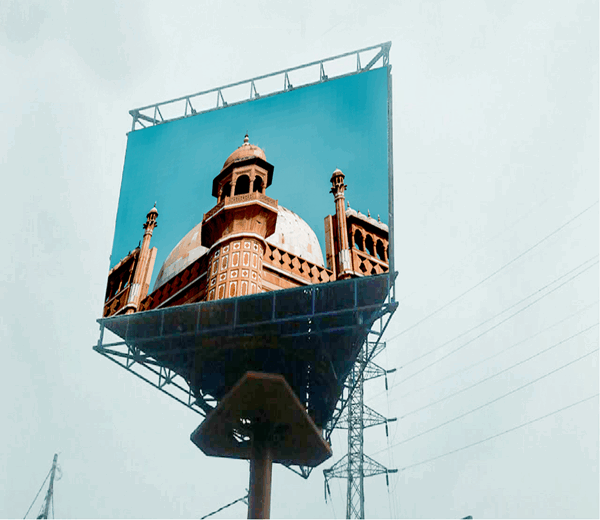

Application Fields
-
-
Truck Trailers
-
Scoreboards
-
Digital Out Of Home(DOOH)
-
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size(mm)
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P5.71
5.71mm
SMD2727
84dots x 56dots
1/7scan
4704dots
480mm x 320mm
960 x960×82
168dots x 168dots
30,671dots/㎡
≥5.71 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
25kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P6.67
6.67mm
SMD2727
72dots x 48dots
1/6scan
3456dots
480mm x 320mm
960 x960×82
144dots x 144dots
22,478dots/㎡
≥6.67 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
25kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P8
8mm
SMD2727
60dots x 40dots
1/4scan
2400dots
480mm x 320mm
960 x960×82
120dots x 120dots
15,625dots/㎡
≥8 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
25kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P10
10mm
SMD2727
48dots x 32dots
1/2scan
1536dots
480mm x 320mm
960 x960×82
96dots x 96dots
10,000dots/㎡
≥10 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
25kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
