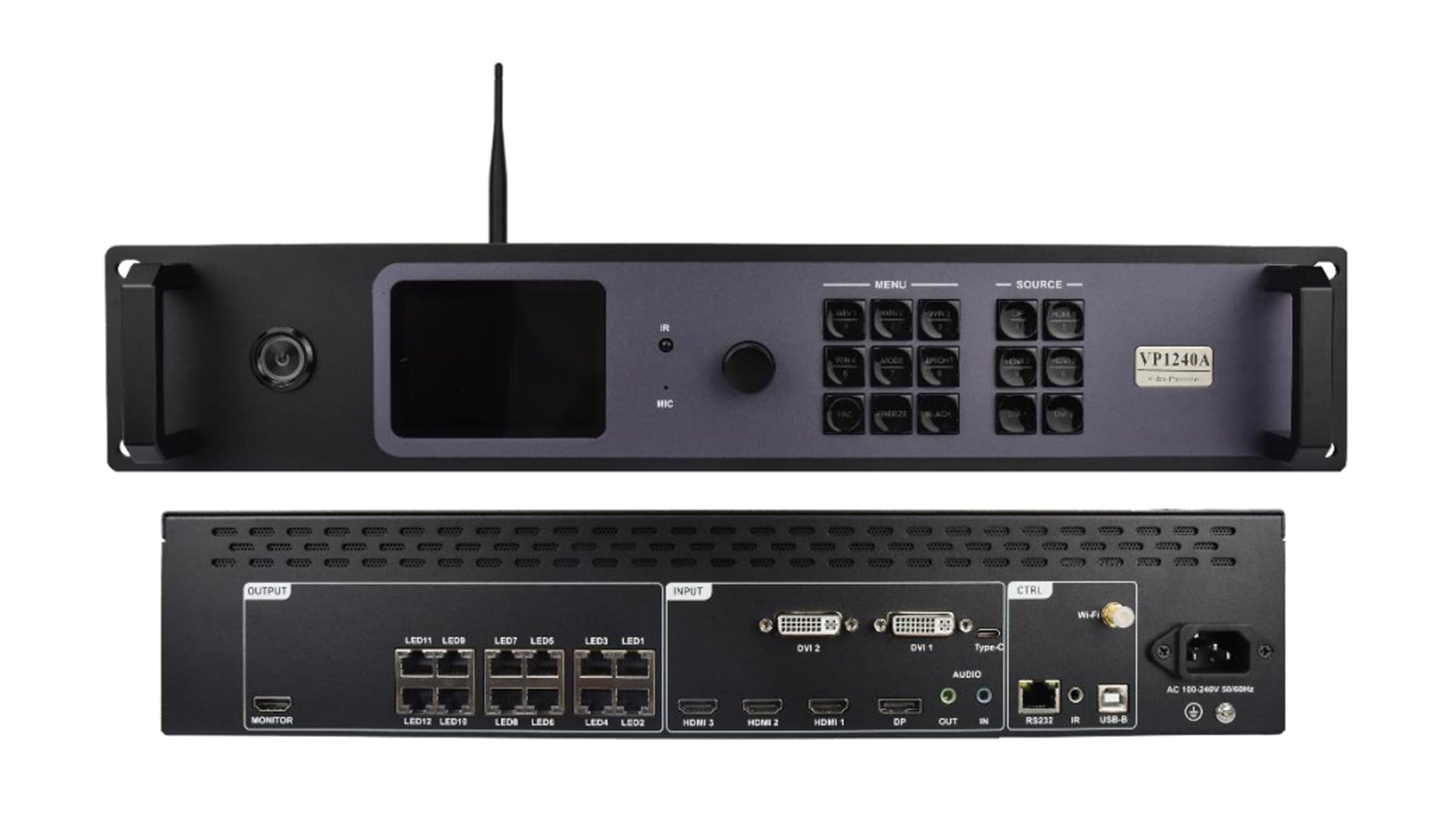

Huidu HD-VP1240A 2-in-1 LED Display Video Processor

HD-VP1240A is a two-in-one video processor for LED display, which integrates 12Gigabit Ethernet port outputs and supports four-screen display. It has 7 channels of synchronous signal input, supports up to 4K video signal input (some interfaces), and can switch between multiple synchronous signals at will. It can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback. At the same time, VP1240A is equipped with Wi-Fi function as standard, and supports mobile APP wireless control.

Connection Diagram

Features

Input:
 Support 1 channel of DP/1 channel of Type-C (both cannot be used at the same time), 1 channel of HDMI 2.0, 2 channels of HDMI 1.4, 2 channels of DVI signal input, multiple video signals can be switched arbitrarily.
 Support 1 TRS 3.5mm standard two-channel audio input and HDMI/DP audio input.
Output:
 Standard configuration of 12 Gigabit Ethernet ports, directly cascaded to the receiving card.
 The maximum control is 7.8 million pixels, the maximum horizontal support is 16000 pixels, and the maximum vertical support is 4000 pixels.
 1 TRS 3.5mm standard two-channel audio output.
Function:
 Support 4K@60Hz synchronous signal input, point-to-point display.
 Support four-screen display, support any layout of the screen.
 Support 8 scene presets and calls.
 Standard Wi-Fi, support mobile phone APP wireless control.
 Support brightness adjustment and key lock function.
