Outdoor LED Totem Display Banner & Outdoor Led Screens for Digital Totem and Kiosk P2, P2.5, P3, P4, P5
Light Weight
Thin Screen
Various Designs
Stable Performance
High Brightness
Easy OperationOutdoor Advertising Player

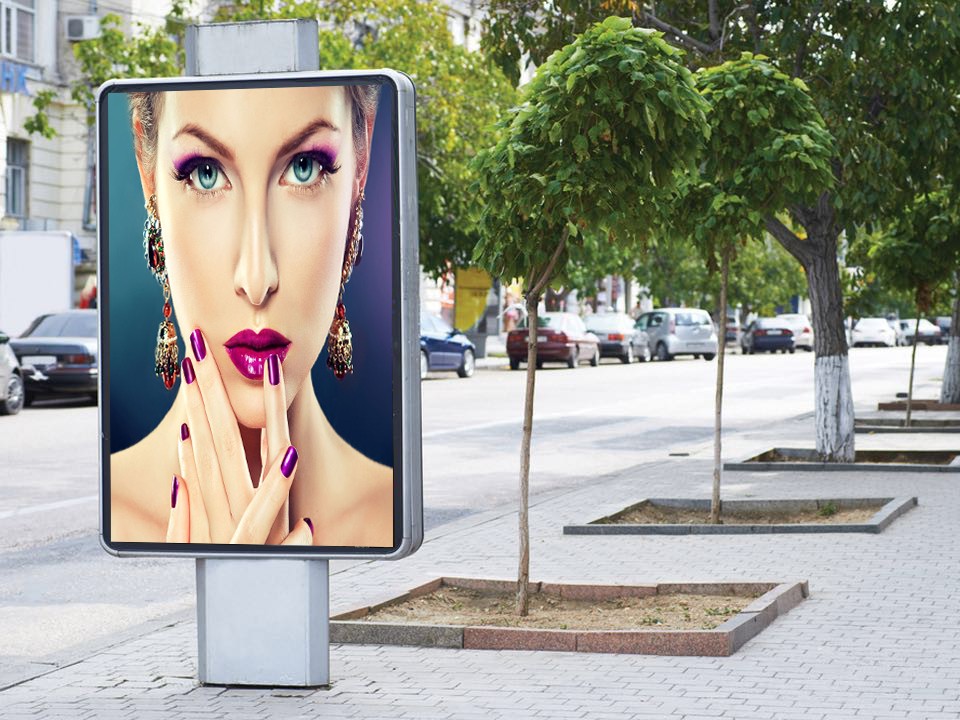

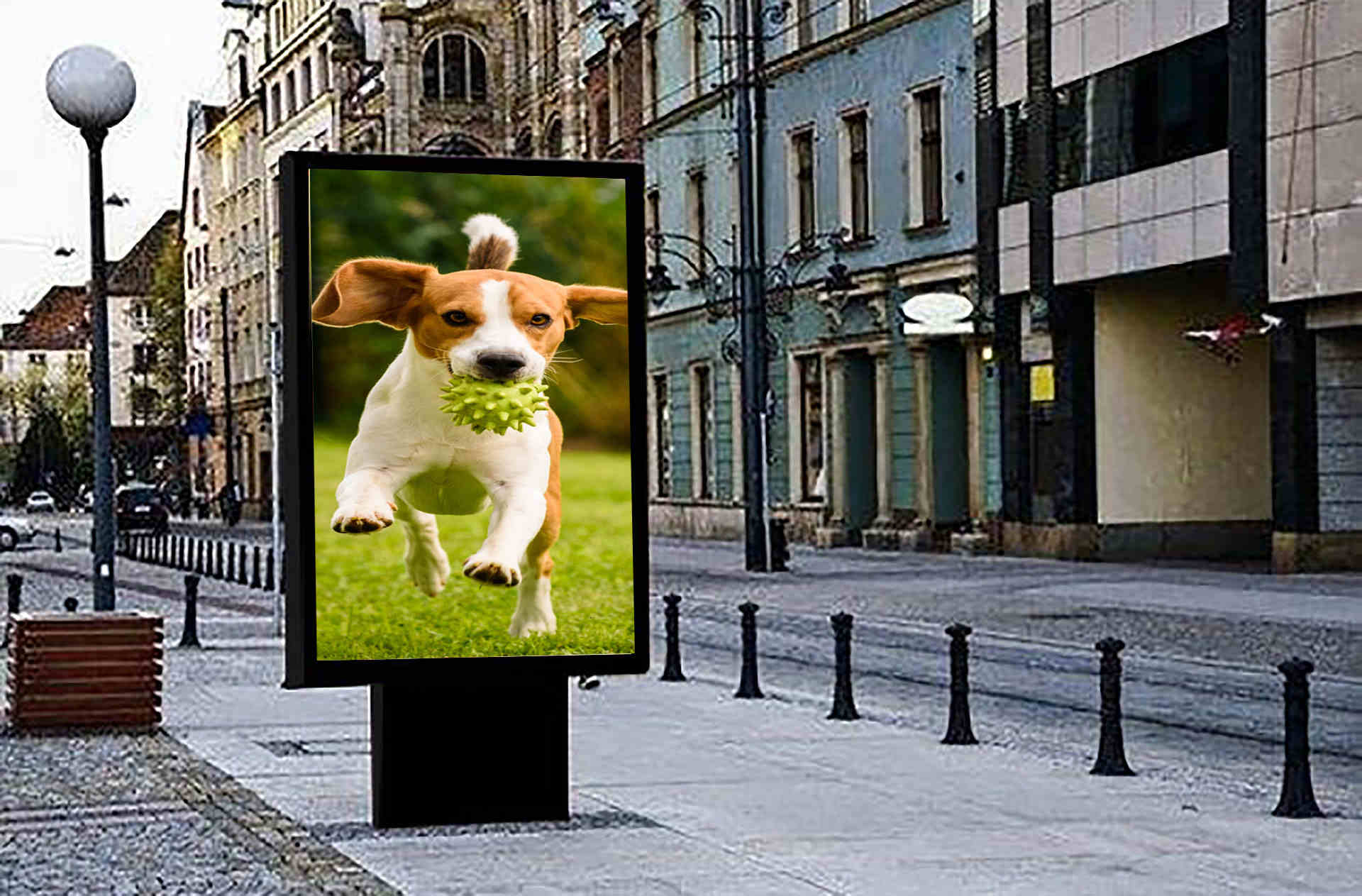

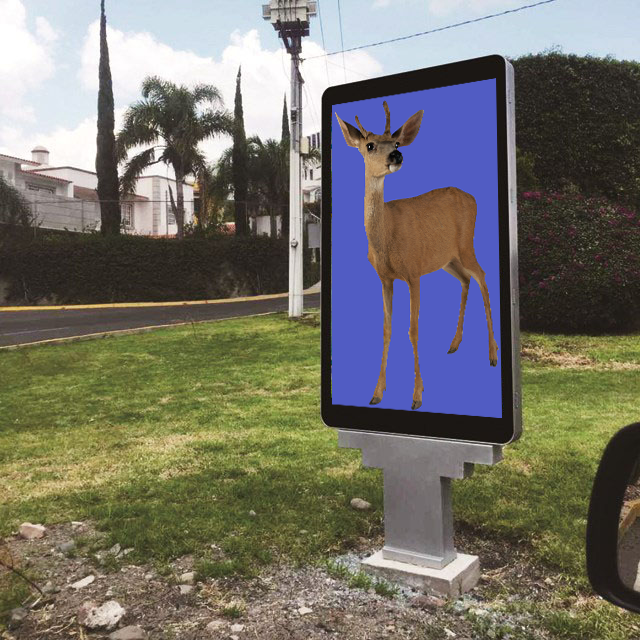

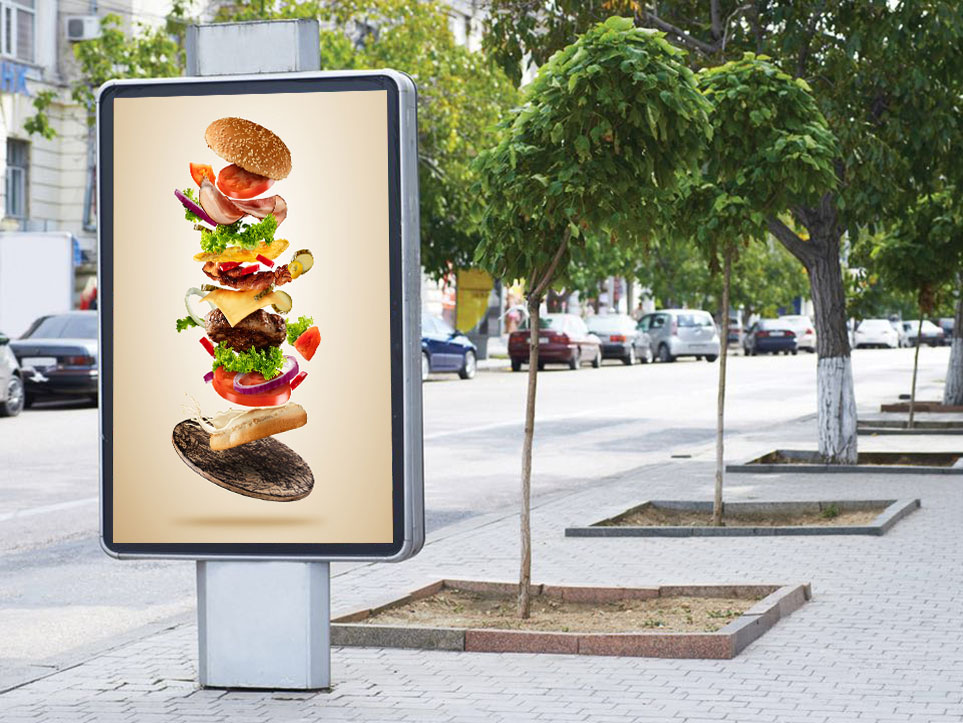

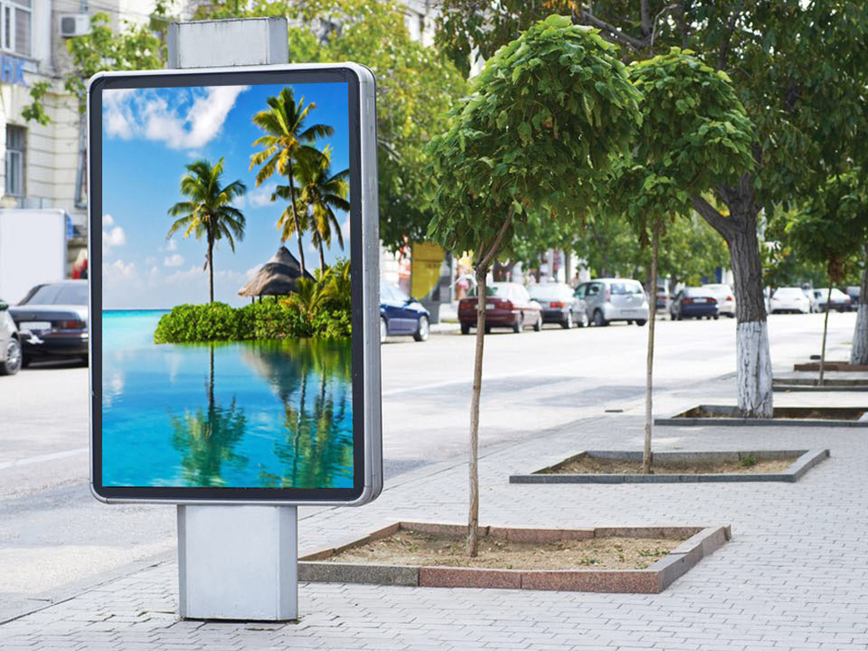

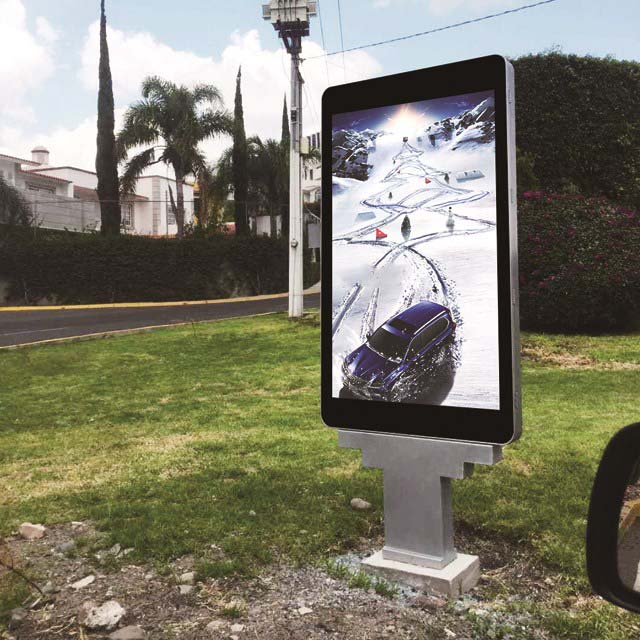

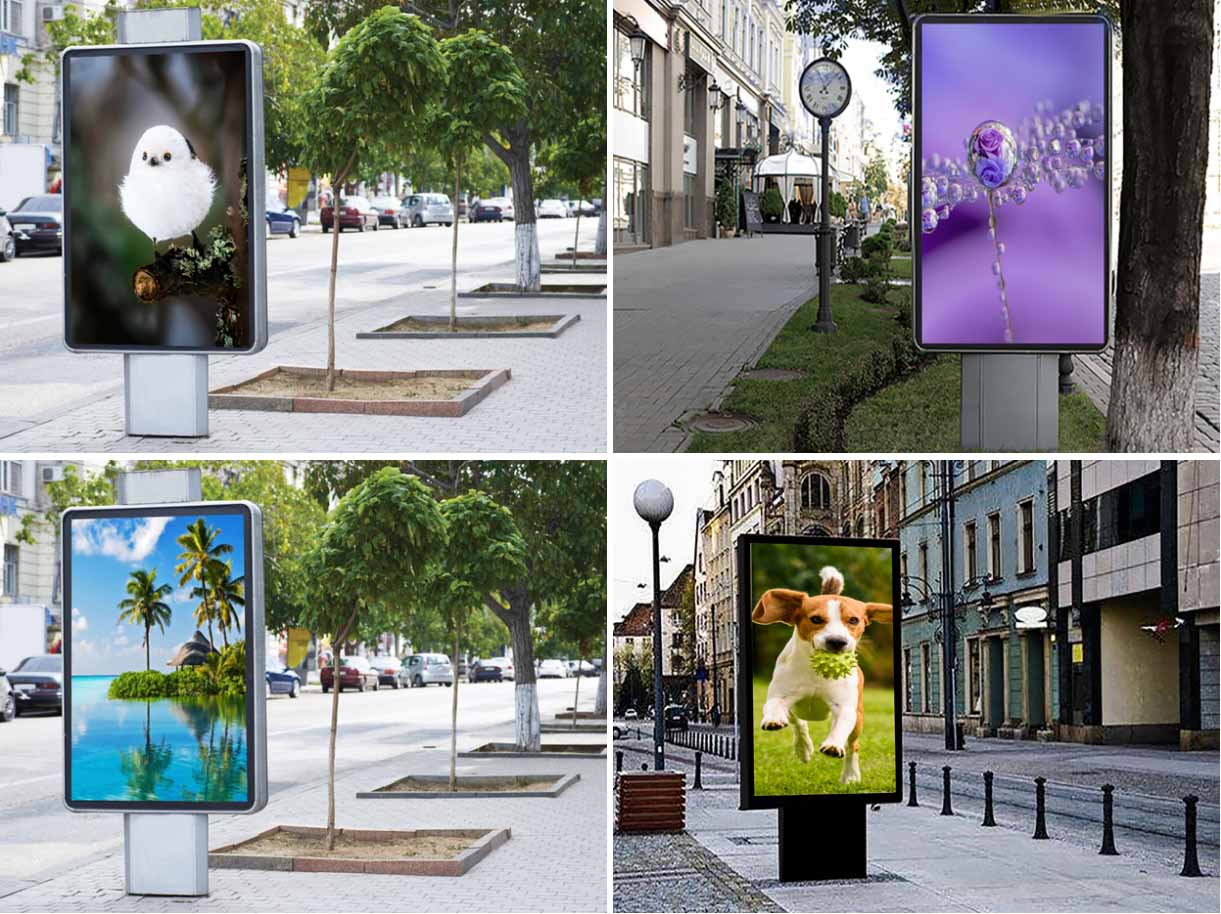

AP1 series is our outdoor advertising LED screen products. They are also called totem LED displays, which are usually used in shopping plaza, train station, airport, etc. It aims at different kinds of outdoor advertisements. The pixel pitches are P2, P2.5, P2.9, P3, P4 and P5.
Light Weight:85KG
Thin Screen:
Various Designs:different
High Technical Parameter
Our outdoor digital LED screens use very good materials so that its gray scale can be up to 24bits, IP grade can be up to IP65, and refresh rate can be up to 3840Hz.
Stable and Perfect Performance
Superior brand power supply is adopted. High quality LED materials and excellent PCB design ensure the performance of our outdoor digital Pole LED display boar.
High Brightness
Advanced LED materials are used and the brightness of the screen can be up to 6000nits. Our outdoor Pole LED display has very good clarity in sunlight.
Easy Operation
The totem LED display can support Wi-Fi, CAT5, and even remote control via internet. It can run videos, images, texts, etc. without computers after the display content is uploaded.
Application Fields
To be adapted for every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
-
Outdoor Advertising;
-
DOOH;
-
Street Advertisement.
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Panel display Size
Panel display Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Weight of Machine
Dimension of Machine
Operating System
Signal Source Compatibility
-
P2.9
2.976mm
SMD1415
84dots × 84dots
1/14scan
7,056dots
250mm × 250mm
750mm × 1,500mm
252dots × 504dots
112,896dots/㎡
≥2.9m
5,000nits～6,000nits
IP65
1,920Hz～3,840Hz
13 bits～24bits
H:160° / V:160°
850W/㎡
300W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron
82kg/pc
830mm(w) x 1,660mm(h) x 130mm(d)
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P3
3mm
SMD1415
64dots × 64dots
1/16scan
4,096dots
192mm × 192mm
768mm × 1,536mm
256dots × 512dots
111,111dots/㎡
≥3m
5,000nits～6,000nits
IP65
1,920Hz～3,840Hz
13 bits～24bits
H:160° / V:160°
850W/㎡
300W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron
85kg/pc
850mm(w) x 1,700mm(h) x 130mm(d)
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P4
4mm
SMD1921
64dots × 32dots
1/8scan
2,048dots
256mm × 128mm
768mm × 1,536mm
192dots × 384dots
62,500dots/㎡
≥4m
5,000nits～6,000nits
IP65
1,920Hz～3,840Hz
13 bits～24bits
H:160° / V:160°
750W/㎡
240W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron
85kg/pc
850mm(w) x 1,700mm(h) x 130mm(d)
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P5
5mm
SMD2727
64dots × 32dots
1/8scan
2,048dots
320mm × 160mm
640mm × 1,600mm
128dots × 320dots
40,000dots/㎡
≥5m
5,000nits～6,000nits
IP65
1,920Hz～3,840Hz
13 bits～24bits
H:160° / V:160°
750W/㎡
240W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron
80kg/pc
720mm(w) x 1,760(h) x 130mm(d)
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
