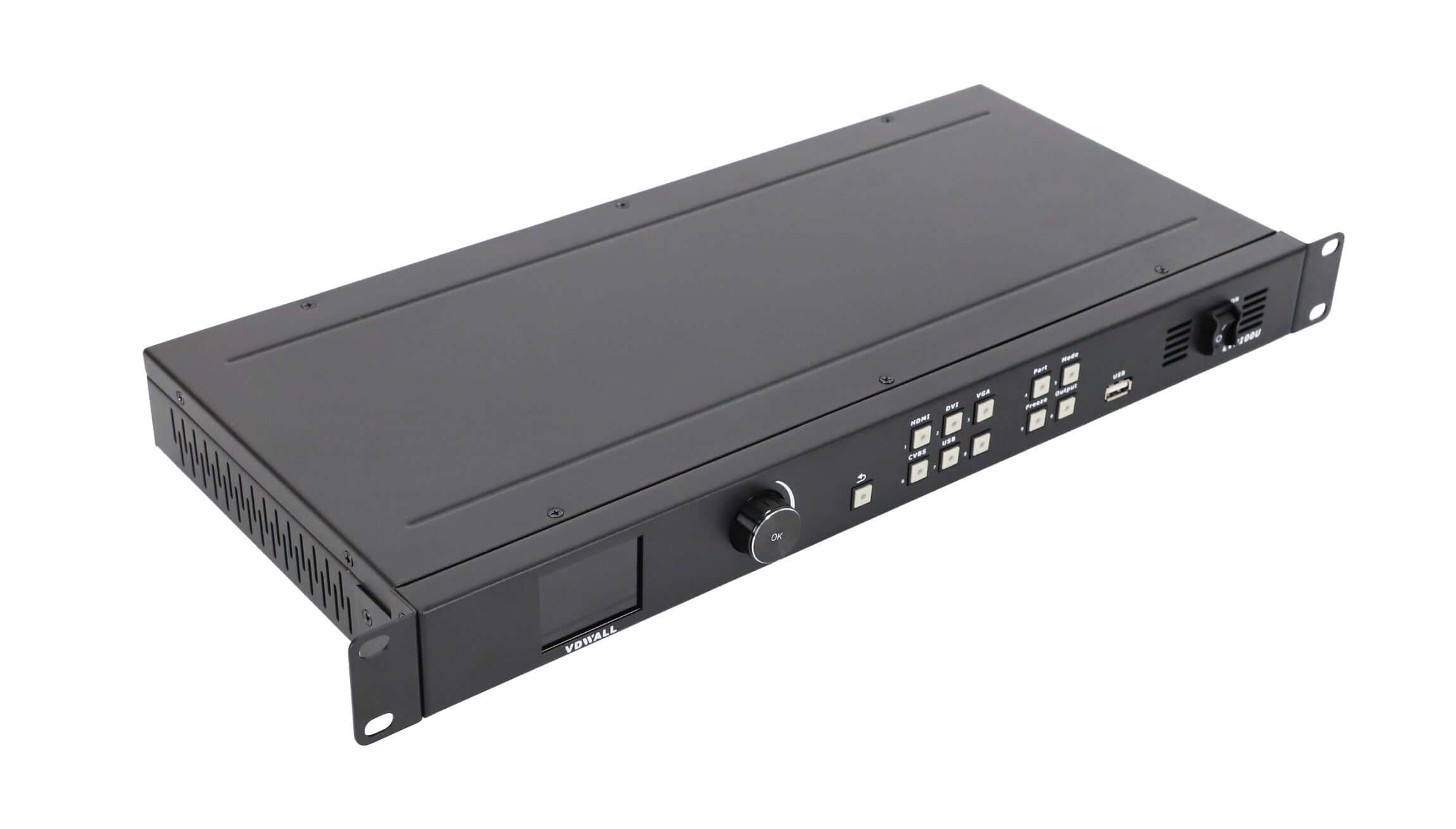

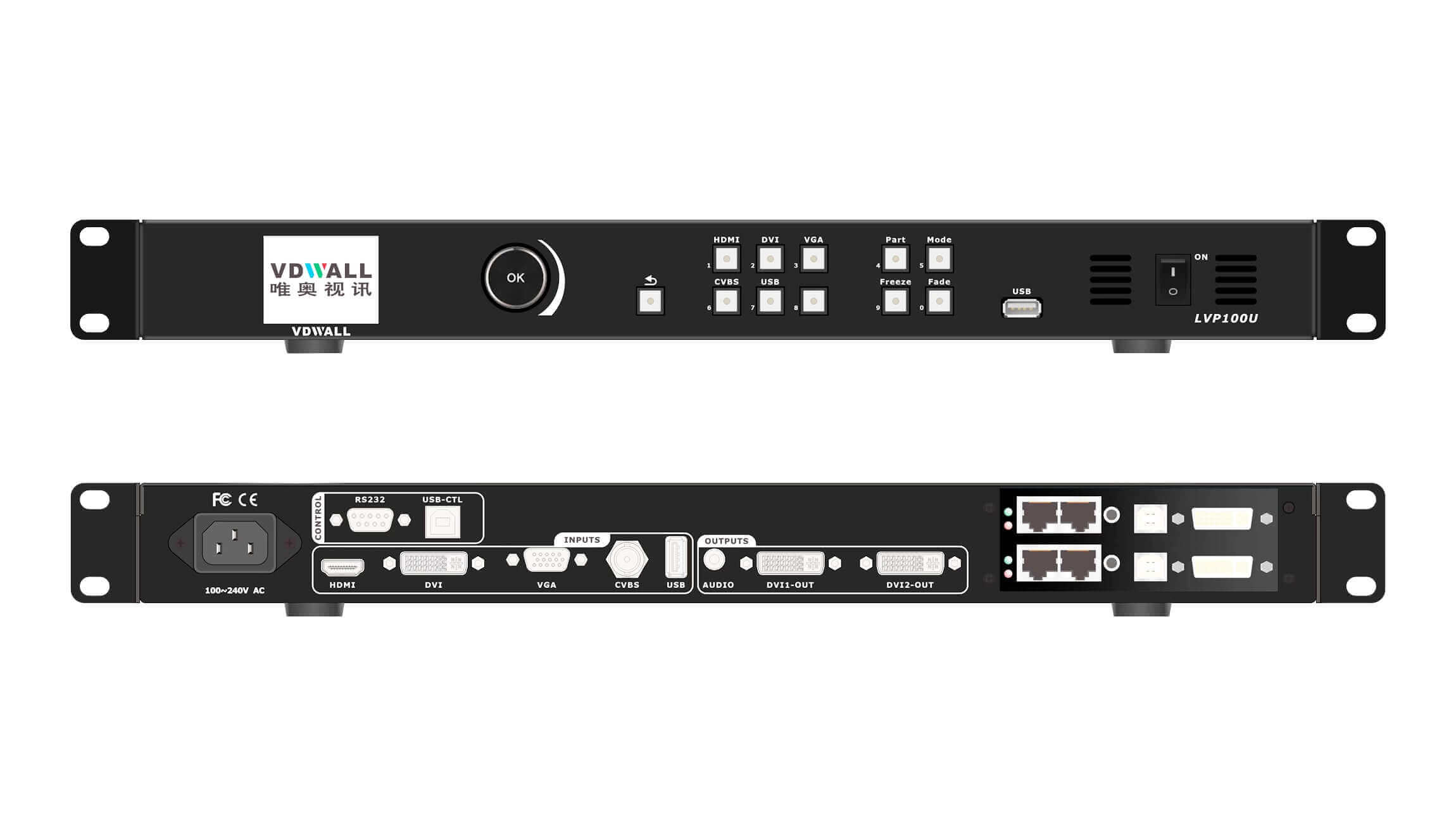

VDWALL LVP100U LED HD Definition Video Processor Features:
●NTSC image and video processing, you can customize soft or standard two effects
5-way input, 3-way output, audio output, to meet the application requirements of most small LED displays
●A variety of output resolutions can be selected, which perfectly fits the size of the LED display
●A variety of input DVI EDID resolutions can be selected and set to perfectly realize point-to-point display
●Seamless switching, fade in and fade out switching,
● Customize color, clarity and brightness
●Preset scenes, providing 10 preset storage spaces, quickly applying various scenes
●Manipulation method: panel buttons. The operation is flexible and convenient.
●Built-in 2 LED sending cards
◆24/7 application, high reliability and stability
VDWALL LVP100 LED High Definition Video Processor Specifications:
Specification of OutputsOthers
|
Specification of Inputs
|
||
| Quantity/Type |
1×CVBS
1×VGA（RGBHV）
1×DVI（
VESA / CEA-861）
1×HDMI（
VESA / CEA-861）
2×USB（USB2.0）
|
|
| Composite Video | PAL / NTSC | |
| Video Amplitude/ Impedance |
1V (p_p) / 75Ω | |
|
HDMI
|
PC（VESA Standard）/
HDMI1.3（CEA-861）
|
≤1920×1280@60Hz |
|
DVI
|
PC（VESA Standard）/
DVI1.4（CEA-861）
|
≤1920x 1280@60Hz |
|
VGA
|
VGA（RGBHV Standard）
|
≤1920×1080@60Hz |
|
CVBS
|
Support PAL, PAL-M/N,
NTSC, SECAM format
|
|
|
USB
|
USB2.0 standard
|
≤1920 x 1080@60Hz |
|

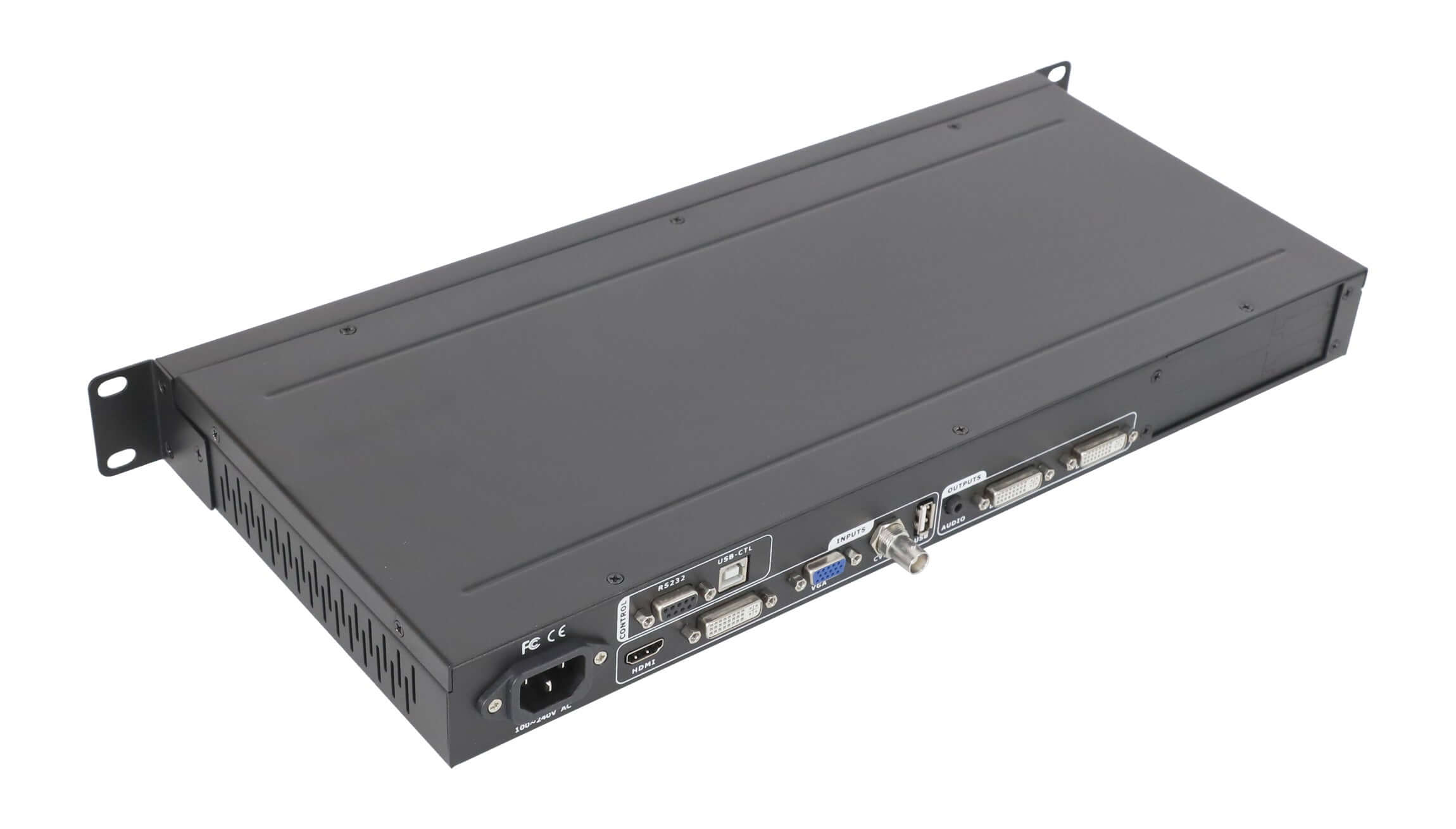

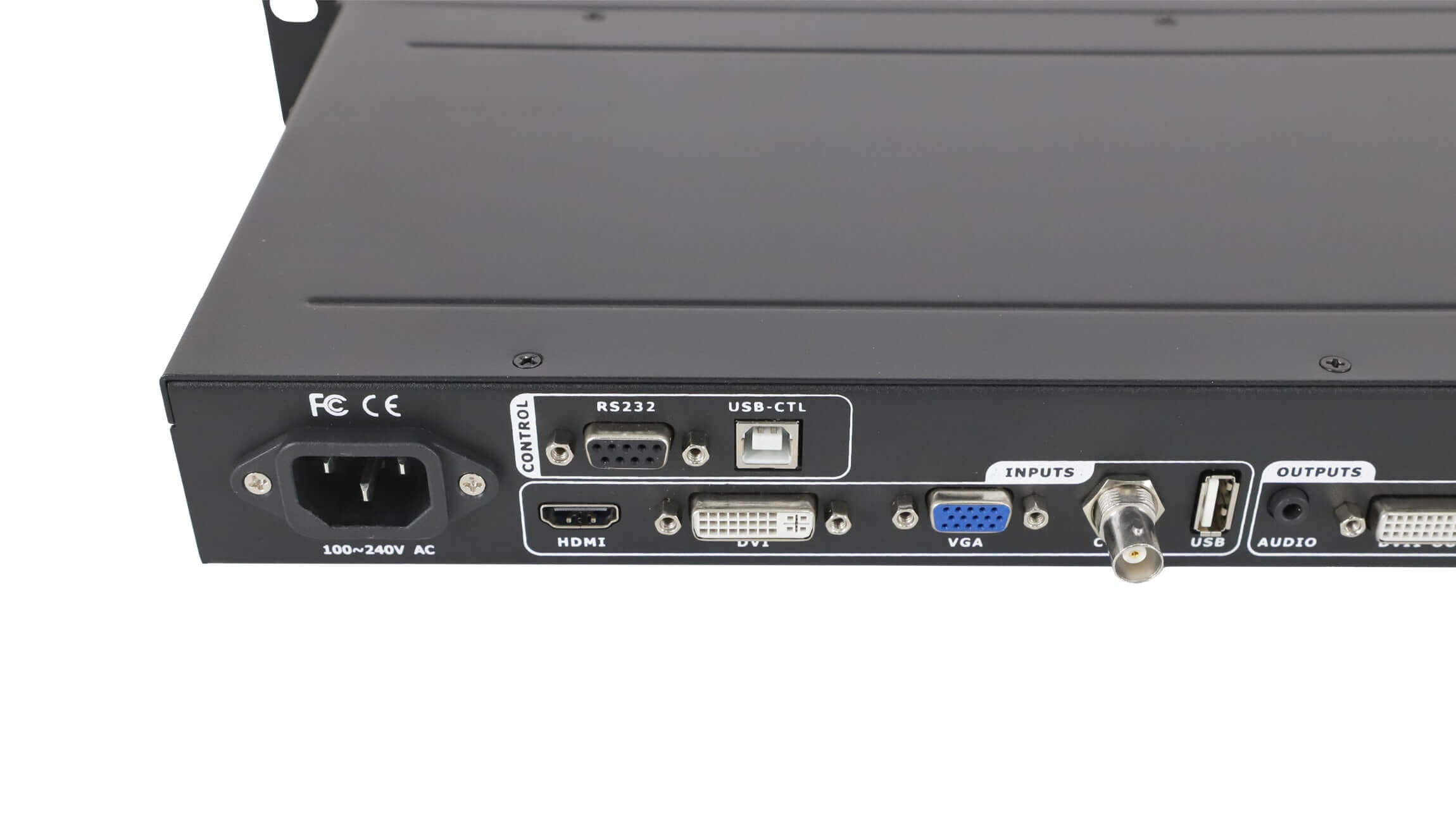

Input Terminal
|
CVBS：BNC
VGA：15pin D_Sub ( Female )
DVI：24+1 DVI_D
HDMI：HDMI Type A
|
|
|
Output Signal
|
||
|
Amount / Type
|
2x DVI
1x AUDIO
|
|
|
DVI Format
|
1024×768@60Hz
1280×720@60Hz
1280×1024@60Hz
1600×1200@60Hz
1920×1080@60Hz
1920×1200@60Hz
1920×1280@60Hz
|
|
|
Customized Output
Resolution
|
@60Hz：
(2.65 million pixels)
4096*640@60Hz
3840*720@60Hz
2560*1080@60Hz
1340*2018@60Hz
@30Hz：
530（
5.3 million pixels）
4096*640@30Hz
3840*720@30Hz
2560*1080@30Hz
1340*2018@30Hz
|
|
|
AUDIO Format
|
Stereo Output
|
|
|

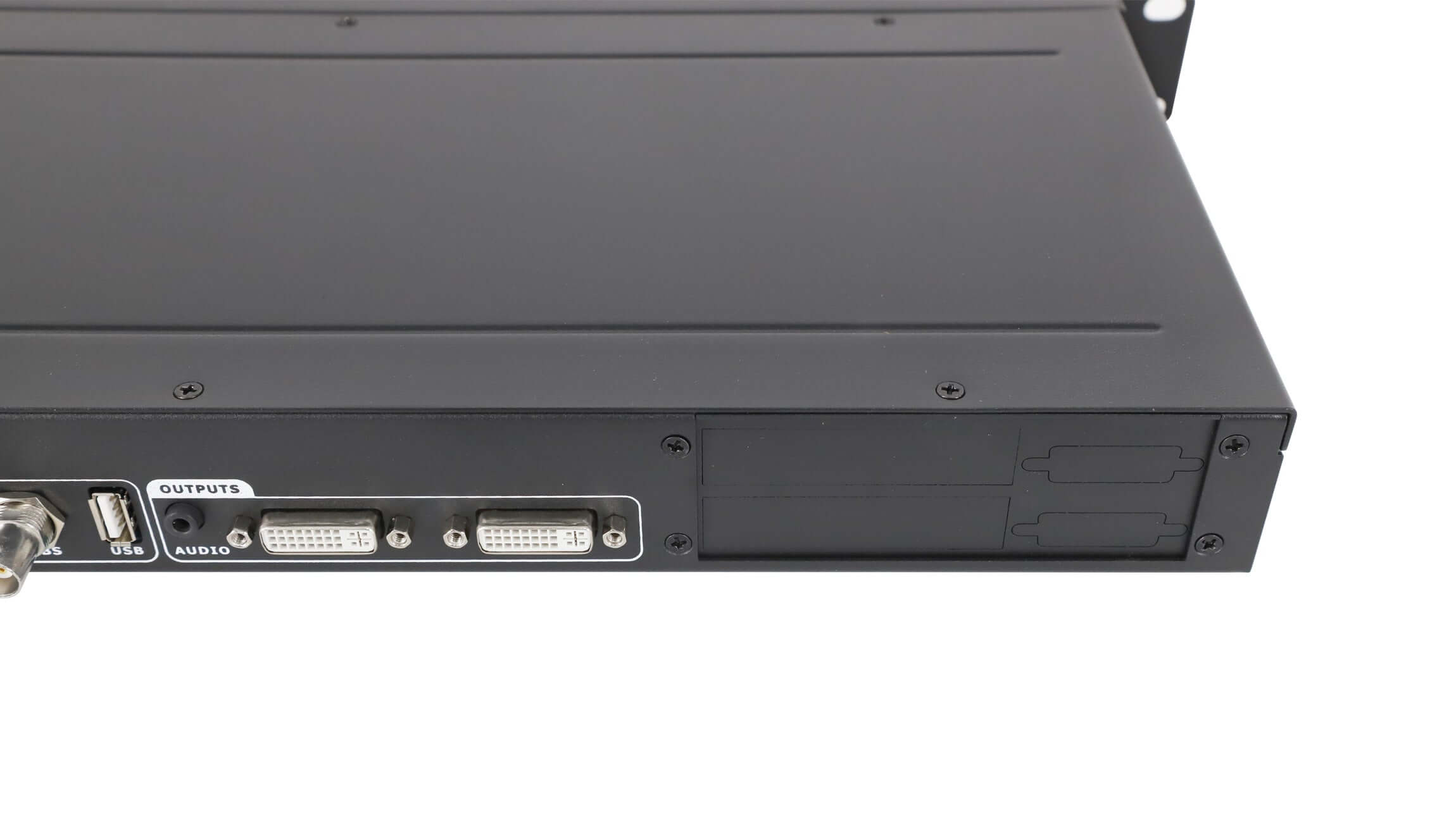

Output Terminal
|
DVI OUT：24+1 DVI_D
AUDIO OUT：AUDIO
|
|
|
Others
|
||
|
Control Port
|
RS232
|
|
|
Control& Update
|
USB-CTL
|
|
|

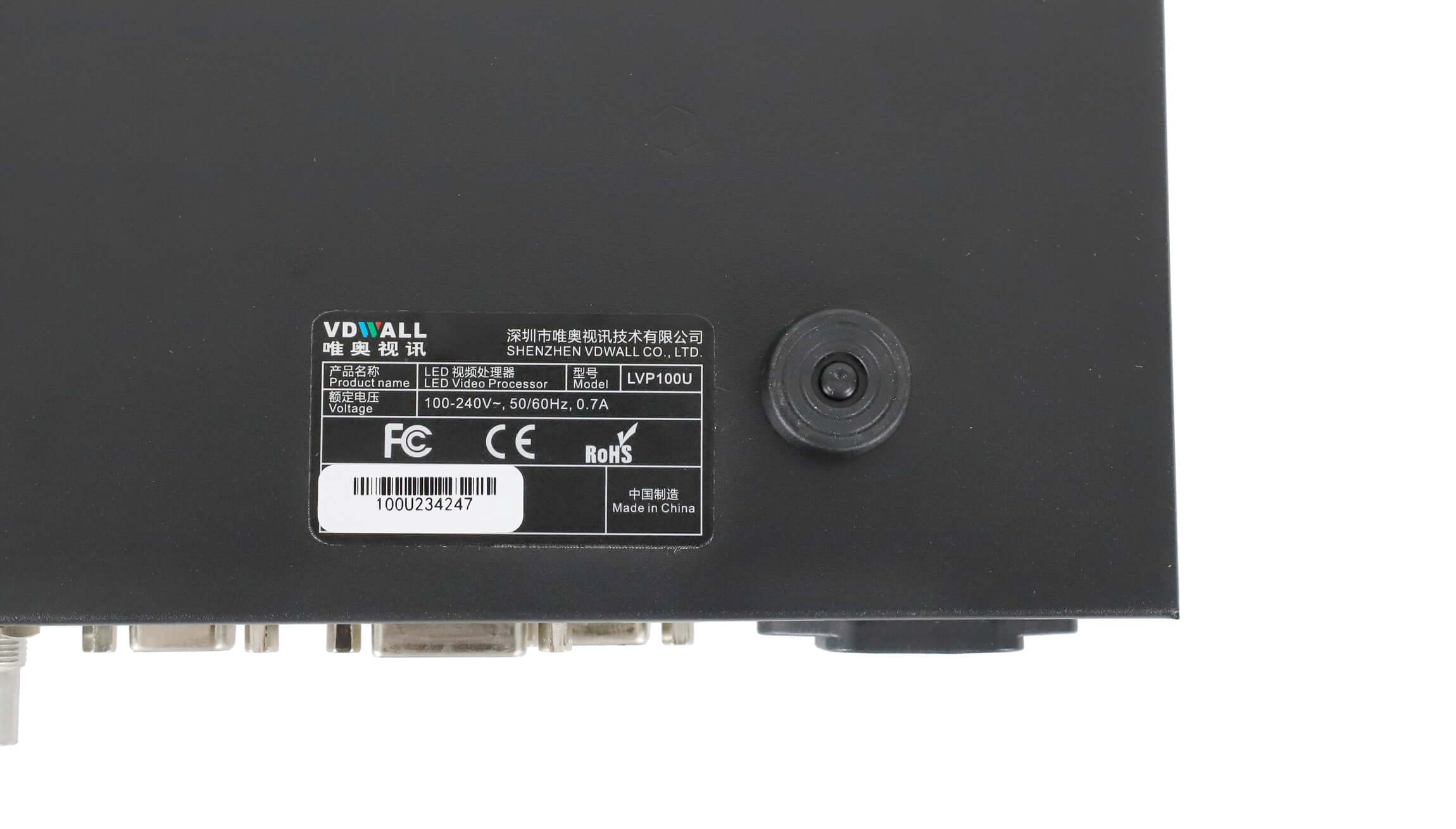

Input AC Power
|
100-240VAC 50/60Hz
|
|
| Packing Size | 535 (L) x 315 (W) x 145 (H)mm | |
| Weight | G.W.: 4Kg, N.W.: 2.5Kg | |
|
Power Consumption
|
22W |
|
|
Ambient Temperature
|
0-50℃
|
|
|
Ambient Humidity
|
15-90%
|
|
|

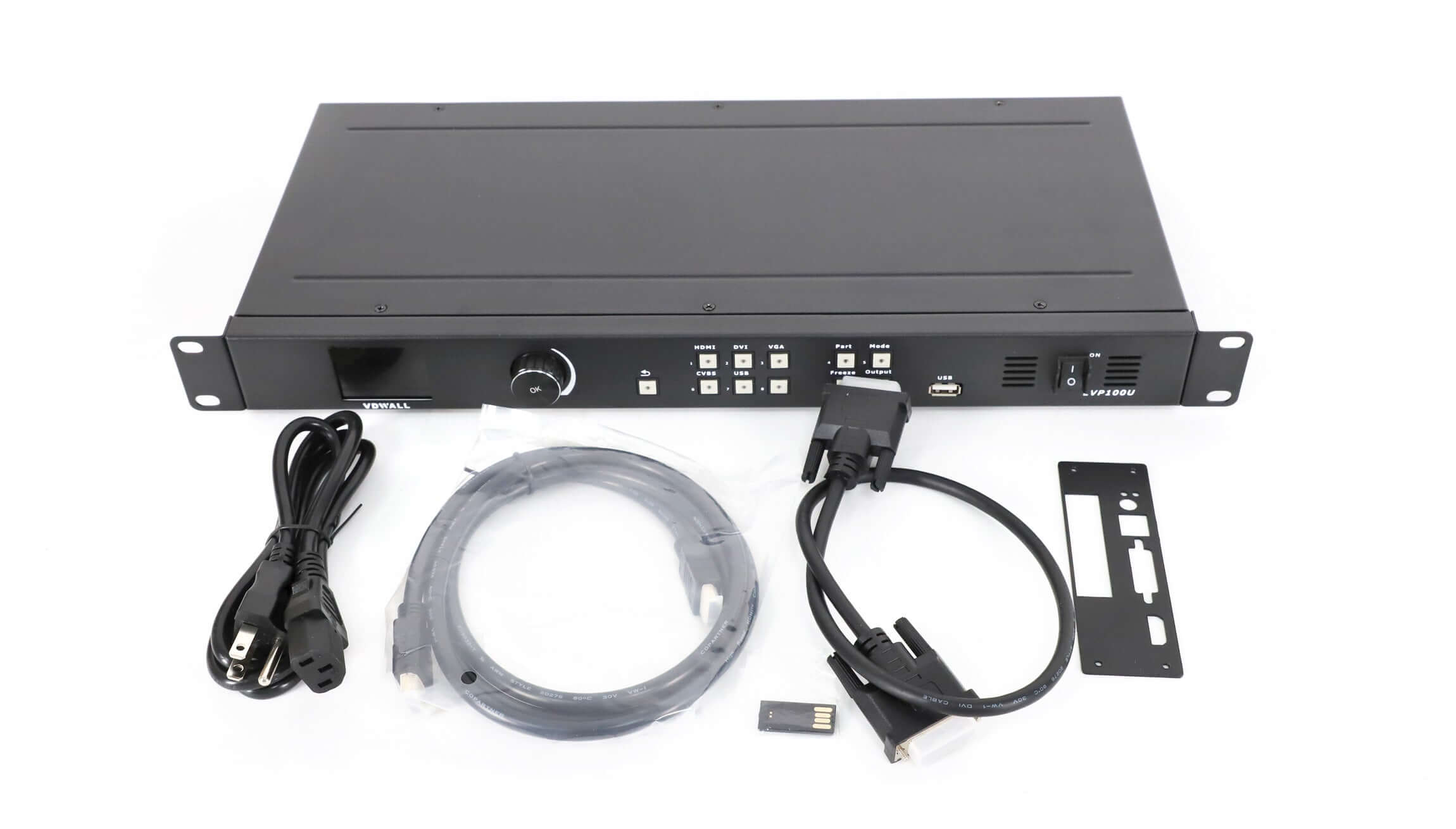

Standard Accessory
|
1.2M Power Cable×1
0.5M DVI Cable×1
1.5M HDMI Cable×1 User Manual × 1 USB Disk×1
|
|
