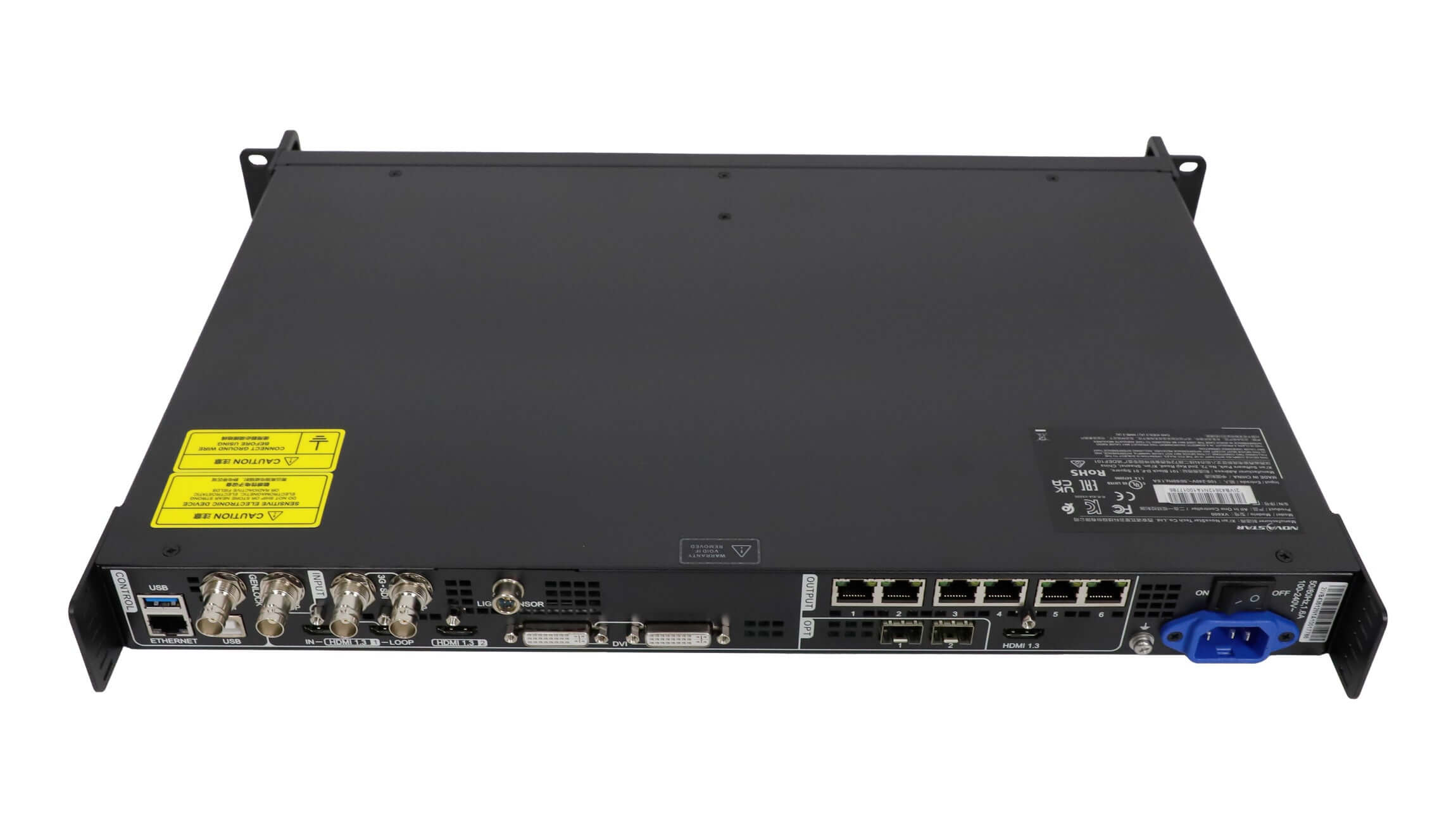

Novastar VX600S LED Screen Video Controller Features:
Supports up to 7 input interfaces, including 2 channels of 3G-SDI, 2 channels of HDMI1.3, 2 channels of DVI, 1 channel of USB
Support 3 windows and 1 channel OSD.
Supports quick and advanced screen functions.
In the switcher mode, the Take button is supported on the screen.
PGM preview is supported in switcher mode.
Support input resolution custom adjustment and input source backup settings.
Supports brightness adjustment of the screen.
Support multiple devices to be spliced and loaded.
Support full-screen automatic zooming of the screen.
The maximum width of the video output is 4096 pixels.
Supports the creation of 16 user scenarios as templates to save and call directly for easy use.
Supports selection of HDMI input source or DVI input source as synchronization signal to achieve field level synchronization of output.
Intuitive OLED display interface on the front panel, clear button light prompts, simplifying system control operations
Novastar VX600S LED Screen Video Controller Parameter:
| Input | ||
| Interface Type | Quantity | Description |
| 3G-SDI | 2 | Maximum support 1920×1080@60Hz resolution video source input, backward compatible |
| USB | 2 | U disk video picture file playback. Connect the mouse. |
| U-AUDIO | 2 | Output audio interface |
| DVI | 2 | The VESA standard supports up to 1920×1200@60Hz input video source input, which is backward compatible. Support HDCP |
| HDMI | 2 | Maximum support 1920×1200@60Hz resolution video source input, backward compatible. Support HDCP. |
| Output | ||
| Ethernet port | 6 | 6-channel network port output interface |
| DVI | 1 | Pre-monitoring interface, can be set to PGM preview. The U disk can be connected to the display for human-computer interaction display. |
| Control interface | ||
| Ethernet | 1 | Connect to PC communication or access the network |
| USB Type-B | Connect to a PC and control it via a PC. USB cascading input |
|
| USB Type-A | Used for device cascade output | |
| Parameter | ||
| Power interface | AC100V~240V 50/60Hz | |
| Operating temperature | -20℃~60℃ | |
| Dimension | 1U standard chassis | |
Download Specification:
Novastar VX600S LED Screen Video Controller Specification
Novastar VX600S LED Screen Video Controller User Manual
