Notice before order 1) Parts included: LED module, signal cable between modules, power cable between module and power supply. 2) Buy modules of same batch: to avoid brightness and color…

Add to Cart
Outdoor P3.076 320x160mm LED Screen Display Module
$31.40 O preço original era: $31.40.$23.00O preço atual é: $23.00.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Outdoor P3.076 320x160mm LED Screen Display Module
$31.40 O preço original era: $31.40.$23.00O preço atual é: $23.00.

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Outdoor P3.076 320x160mm LED Screen Display Module Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD1415 48mcd 120°/120° 622nm 25℃,8mA
Green 155mcd 120°/120° 526nm 25℃,5mA
Blue 20mcd 120°/120° 470nm 25℃,3mA
Module Parameter
Pixel Pitch 3.076mm
Pixel Configuration SMD1415
Density 105,688 pixels/㎡
Module Resolution 104pixel(L) * 52pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 25mm(D)
Driving Mode Constant current, 1/13 duty
Electricity Parameter
Optical Ratings
Brightness ≥5,000 cd/㎡
Viewing Angle 120°(Horizontal)； 120°(Vertical)
Best Viewing Distance ≥3m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 40W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20～+60 ºC
Storage Temperature -30～+70 ºC
Working Humidity 10%～90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65
Out-of-Control Pixel Rate ≤0.01%

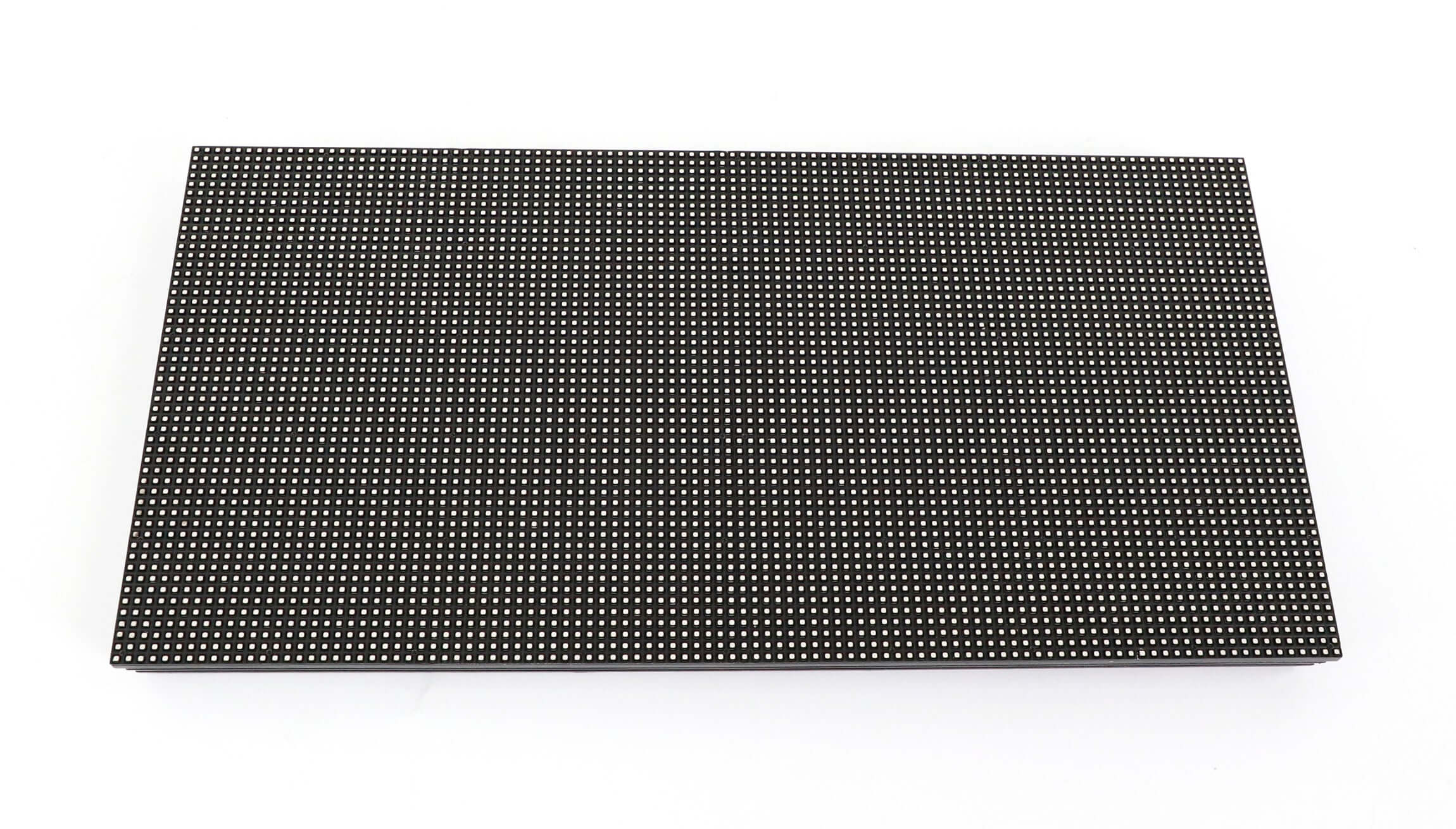

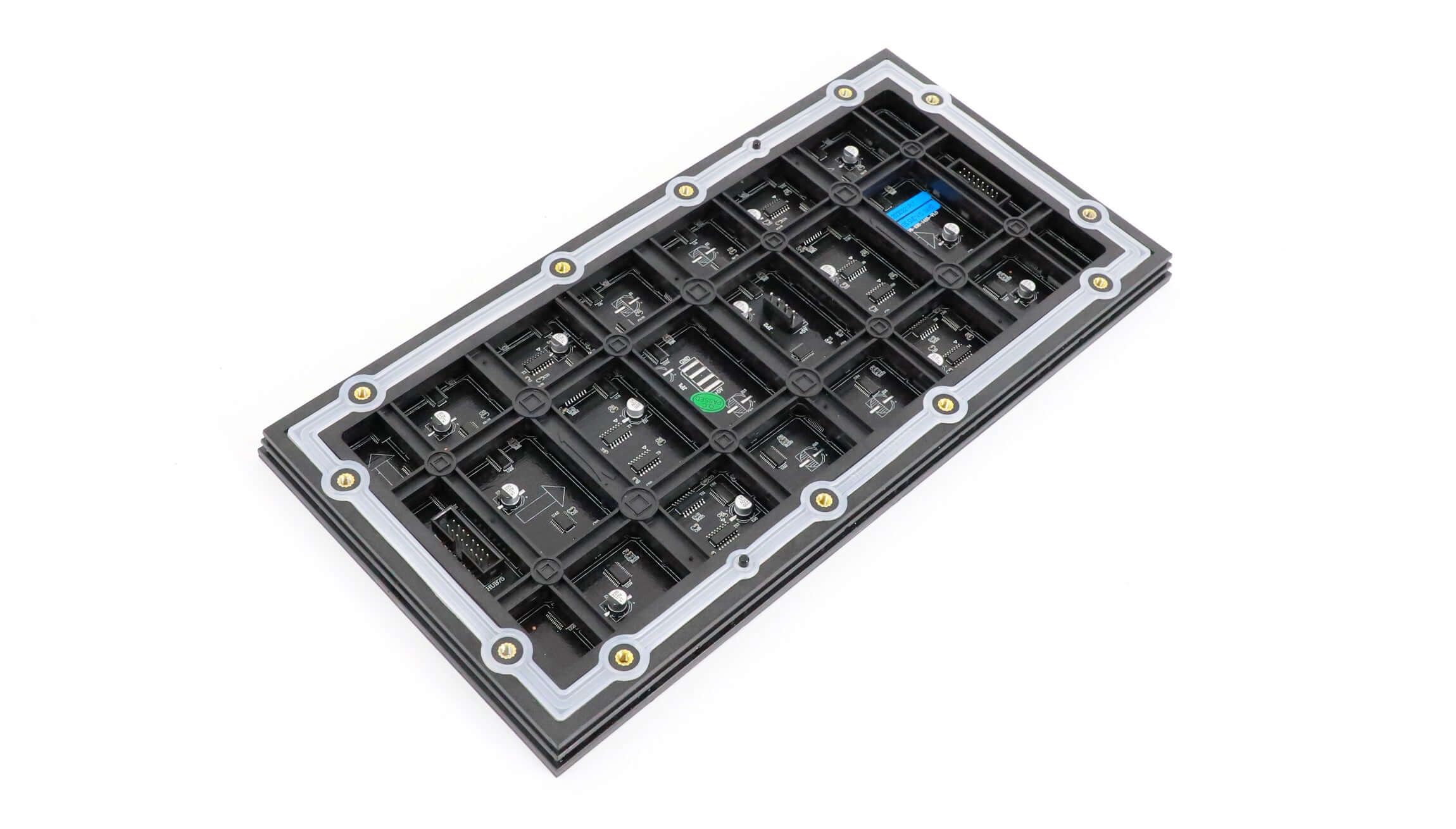

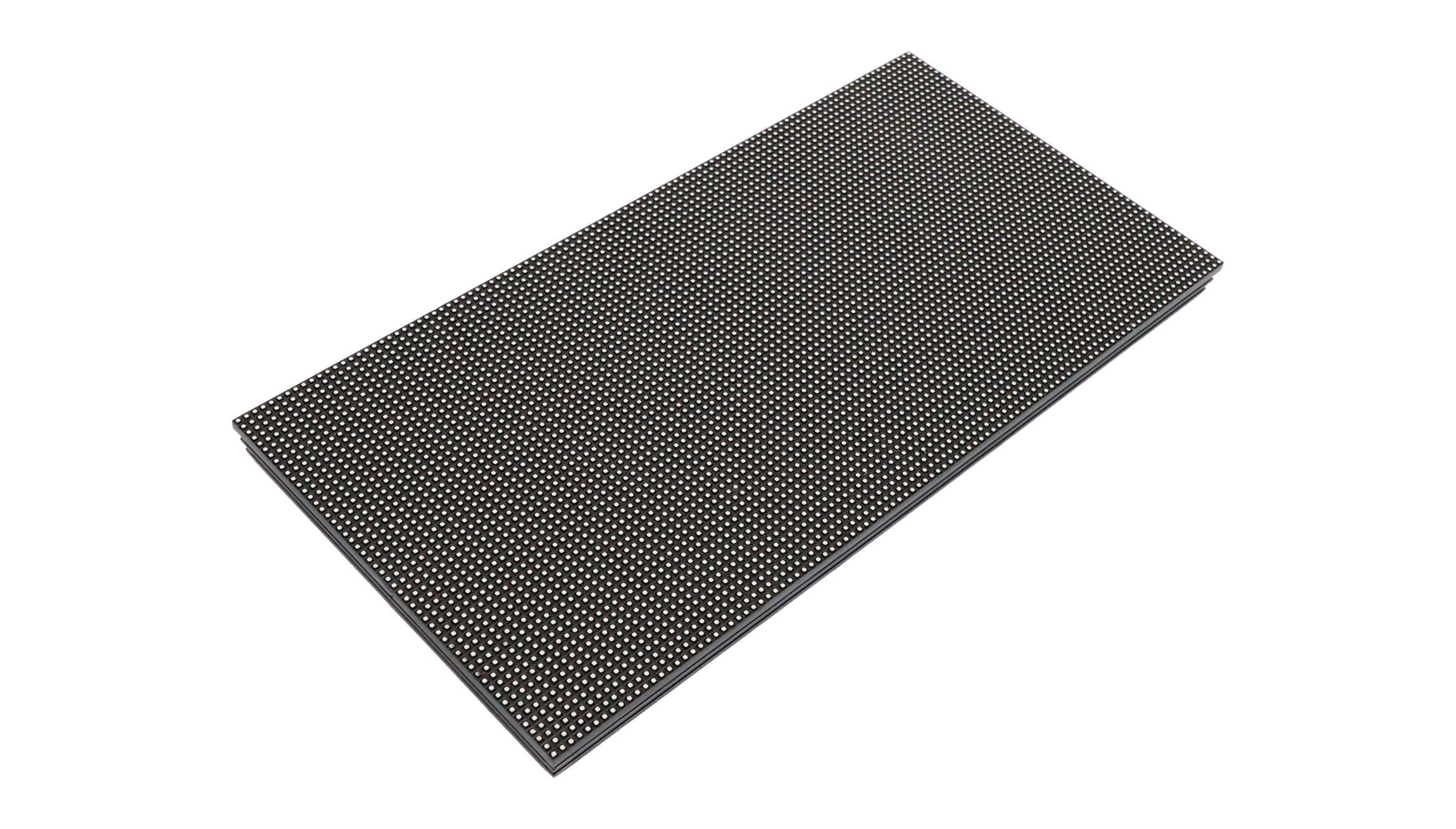

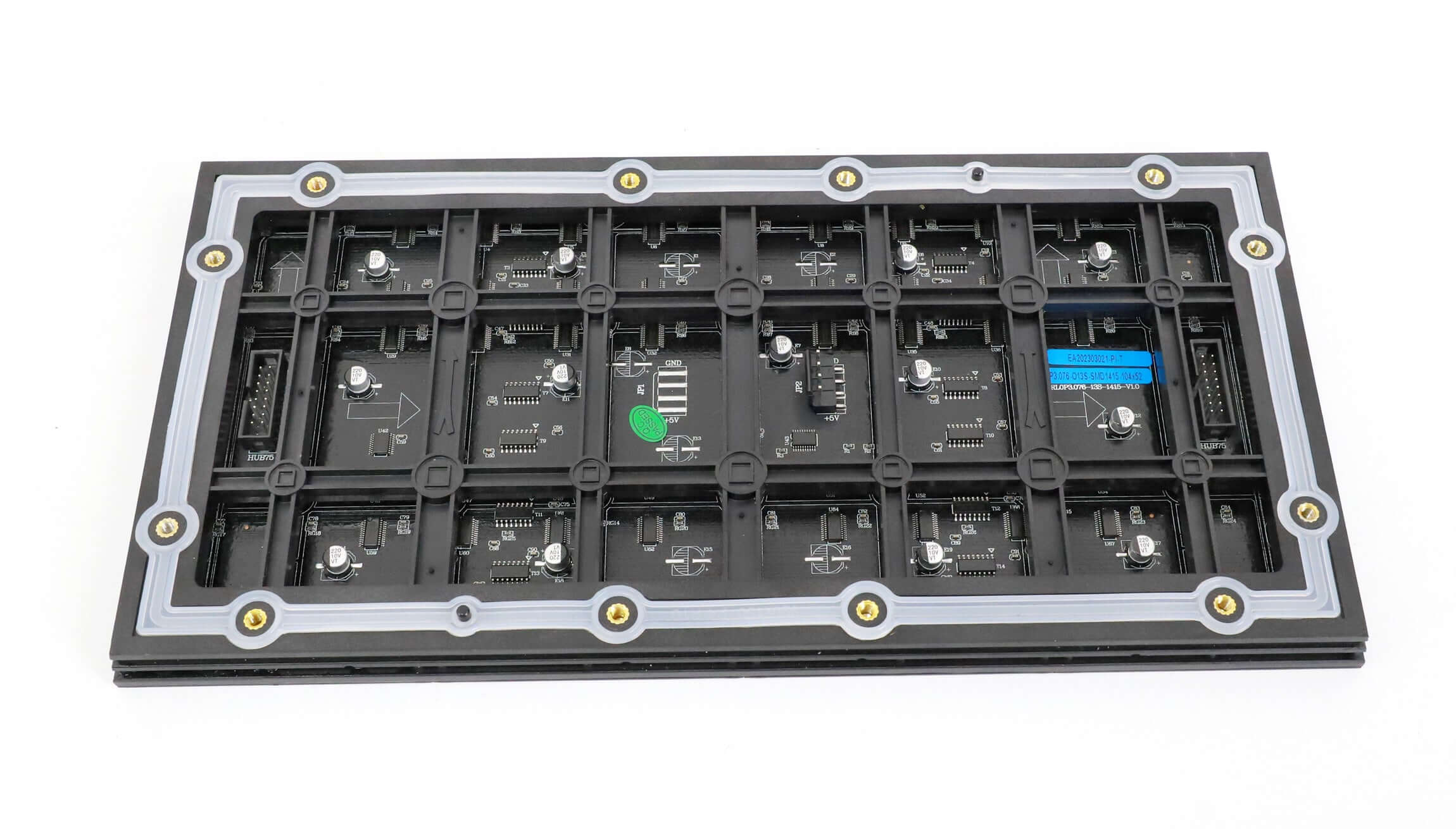

Most pictures of Outdoor P3.076 320x160mm LED Screen Display Module:

Informação adicional

Peso 1 kg
