High-grade XR LED Screen for Virtual Production-P1.56 P1.95, P2.6, P2.97
Excellent and safe module design
Easy maintenance and good cooling design
XR technology
Stunning vision
Optimized curve lock and no black-lines design
7680Hz refresh rate

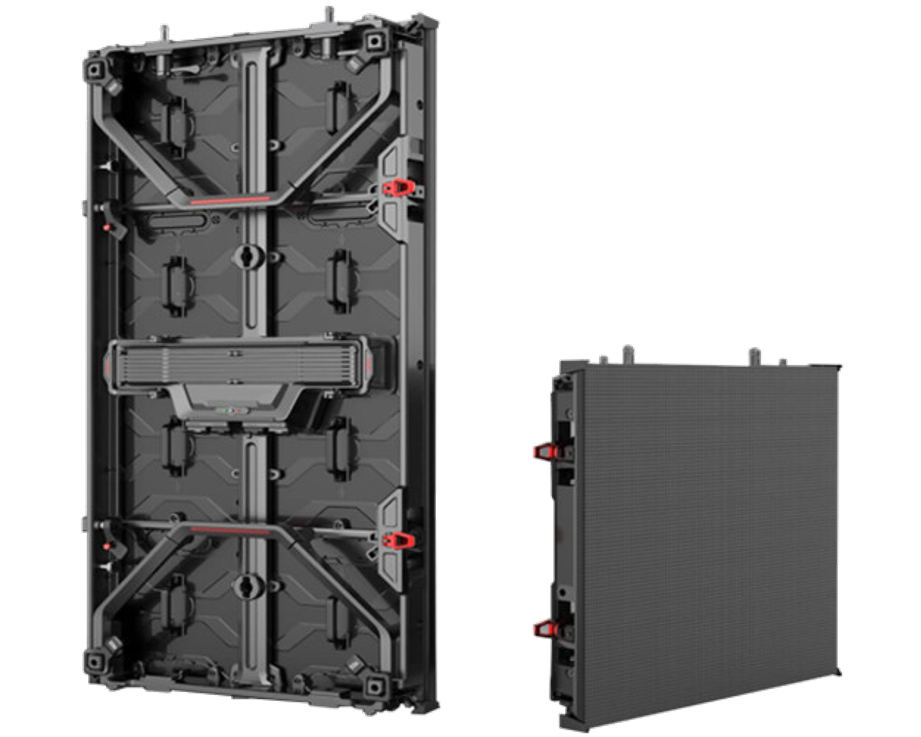

Excellent and safe module design
To meet different needs of live events projects, our XR Ultra series uses front and rear module maintenance design. Armed with N52 type strong magnets on the LED modules, the LED panel will be more secured.
The pixel pitch P1.5, P1.9, P2.6 and P2.9 are available.

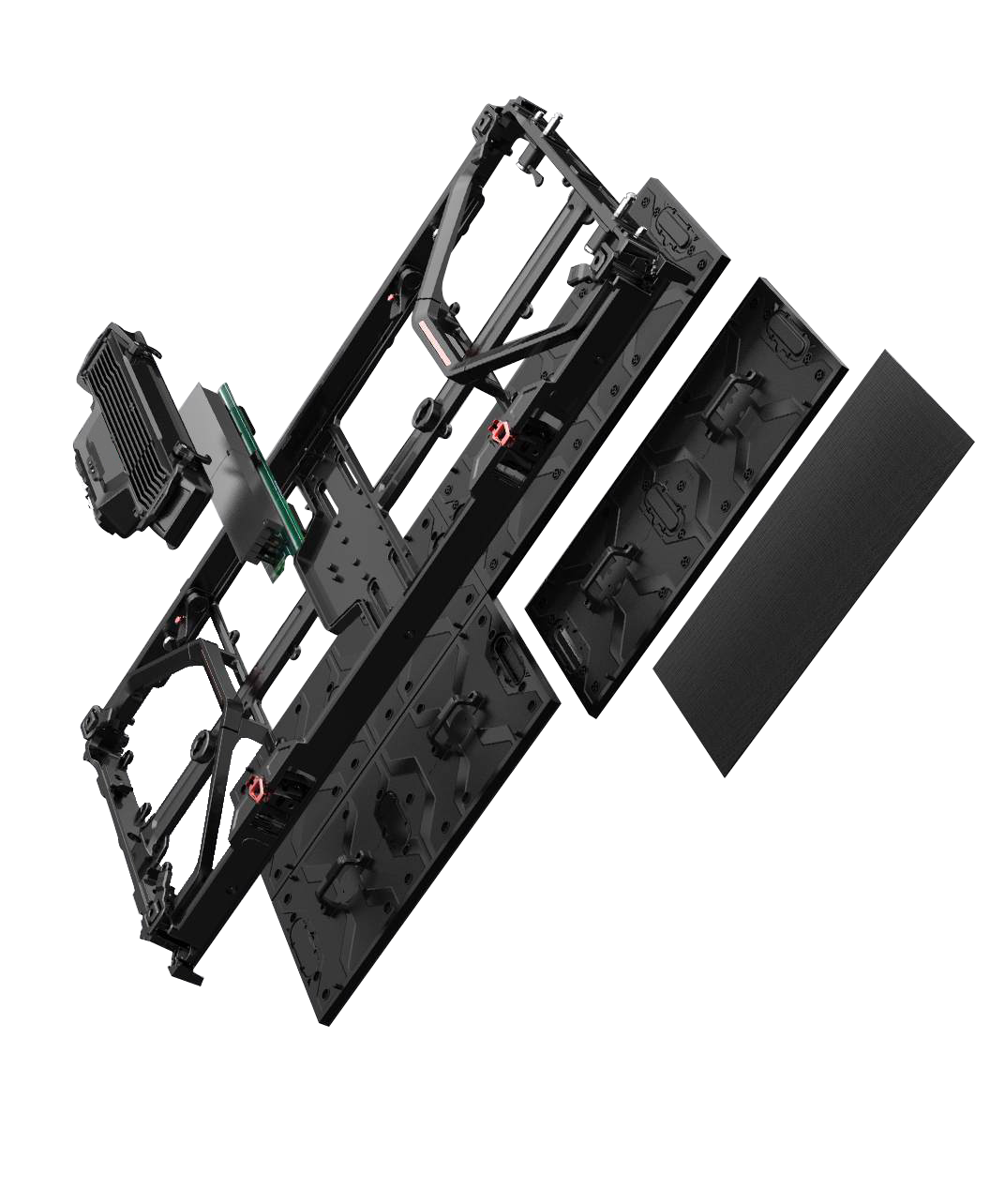

Easy maintenance and good cooling design
Beside the magnetic module design, all components like receiving cards, hub board, power supply, and other accessories are in a detachable box which can be swapped out in few seconds. This greatly reduces the “downtime” during the event.
What’s more, heat sink strips are on the backside of the control box, which helps to cool the power supply quicker.
XR technology

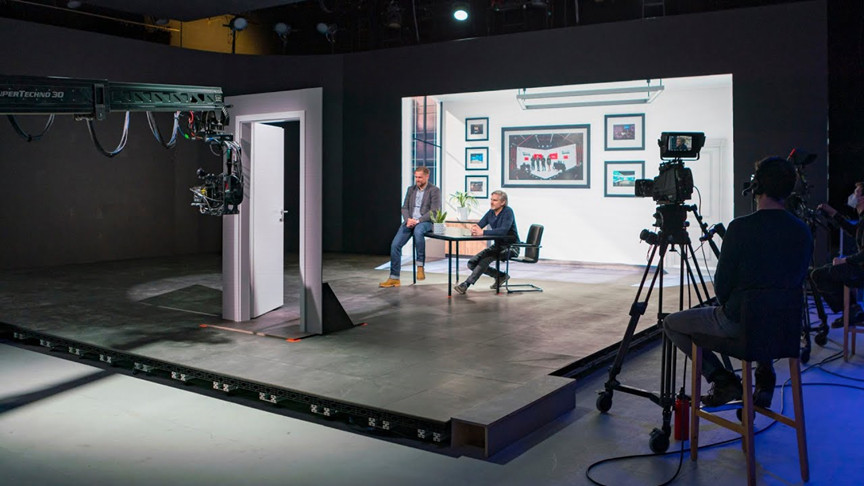

Our XR LED Screen and Display for Virtual Studio Production have been specifically developed for used in film & TV industries as well as extended reality applications. Leeman’s intelligent electronnic design capabilities performed acritical role in the XR’s high-performance abilities, creating a display that is meticulously close to real-life imagery.

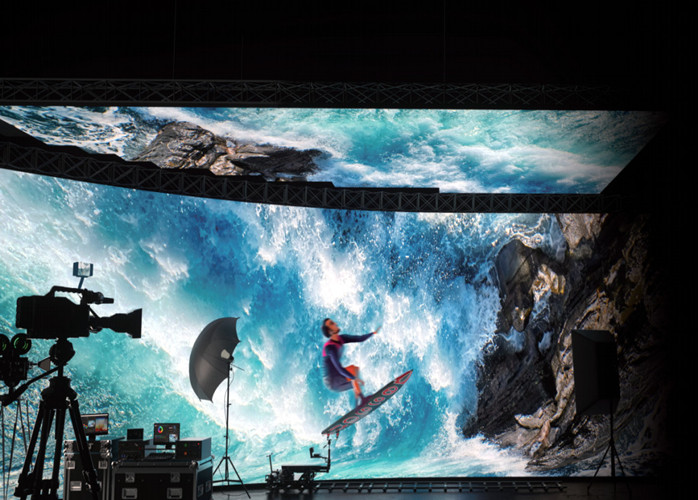

Stunning vision
The XR Ultra is able to perform a refresh rate of 7680Hz, a max frame frequency of 236Hz and a max grayscale of 16 bits. With these characteristics, our XR Ultra can easily be synchronized with most of brands of high-quality broadcast cameras, no even one frame delay.

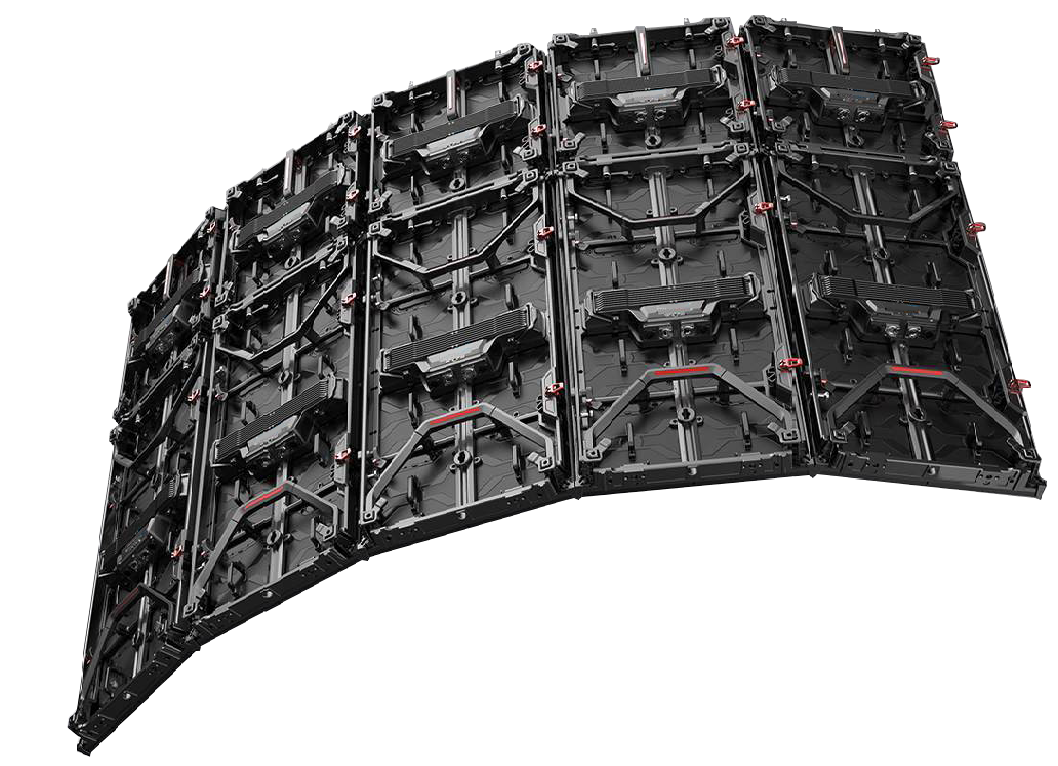

Optimized curve lock and no black-lines design
The curve locks use rotating design and support the curve from -15 degree to 15 degree. The lock fastens the cabinet more firmly and rapidly.
There are soft strips on the left and right side of the panel. They block the light from the back of the screen, so the screen won’t appear black lines caused by the gaps between the panels.
Application fields:
-
Program
-
Advertisements
-
Film studio
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P1.9
1.953mm
SMD 1212
128dots × 128dots
1/16scan
16,384dots
250mm × 250mm
500mm × 500mm
256dots × 256dots
262,144dots/㎡
≥1.9m
1000nits～1,200nits
IP40
≥7680Hz
≥16bits
H:140° / V:140°
650W/㎡
200W/㎡
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Magnalium
8.5kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P2.6
2.604mm
SMD1515
96dots × 96dots
1/16scan
9,216dots
250mm × 250mm
500mm × 500mm
192dots × 192dots
147,456dots/㎡
≥2.6 m
1000nits～1,200nits
IP40
≥7680Hz
≥16bits
H:140° / V:140°
650W/㎡
200W/㎡
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Magnalium
8.5kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P2.9
2.976mm
SMD1515
84dots × 84dots
1/14scan
7,056dots
250mm × 250mm
500mm × 500mm
168dots × 168dots
112,896dots/㎡
≥2.9 m
1000nits～1,200nits
IP40
≥7680Hz
≥16bits
H:140° / V:140°
650W/㎡
200W/㎡
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Magnalium
8.5kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
