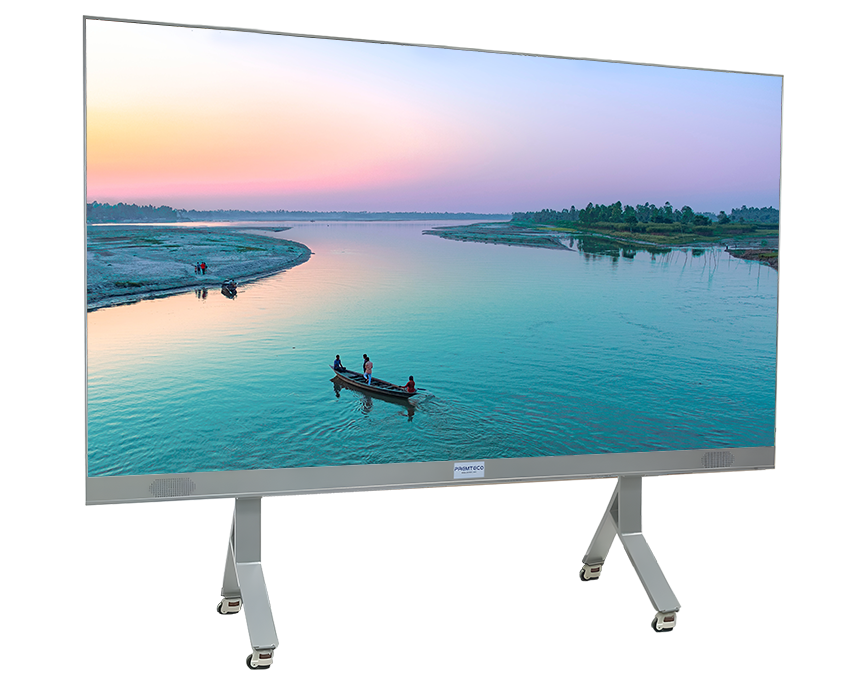

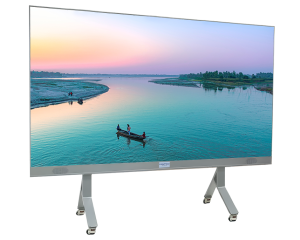

All In One Interactive LED Display Board-P1.2, P1.5, P1.8
Die-casting Aluminum
Light and Thin
Wide Viewing Angle
Flexible Installations
Excellent Performance
1920Hz～3840Hz
Fully Front Access
16:9 Aspect RatioHigh Resolution
High resolution is a key point in the performance of LED display screen. The higher pixels, the higher definition, so you can watch the screen from a closer distance without pixelation. Our All In One Interactive LED Board series has pixel pitches of P1.2, P1.5, and P1.8. It is a perfect item for traffic control rooms, meeting rooms, TV studios, exhibition centers, and more.

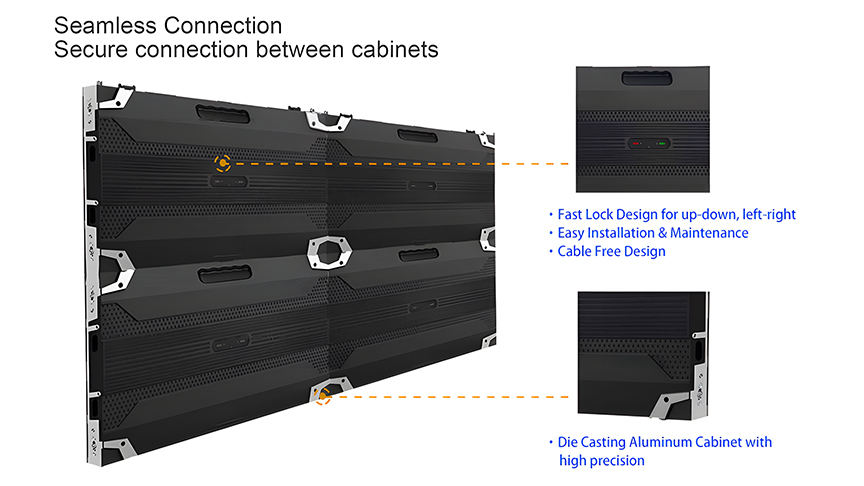

Seamless Connection
The die-casting aluminum cabinet with internal lockers ensures precision and a seamless, bezel-free display. All signal and power cables are concealed inside the cabinets, providing greater stability and a clean appearance.

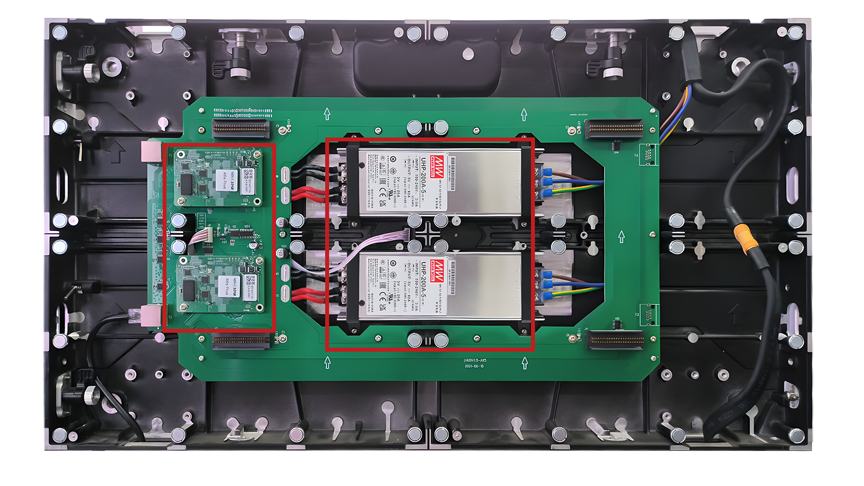

Fully Front Access & Easy To Install And Maintain
The cabinet is designed with fully front access, allowing for easy removal of power supplies, receiving cards, cables, and other components. This design makes installation and maintenance more convenient for us. Our All In One Interactive LED Display series supports dual backup for power and signal, ensuring continuous operation even in the case of failure or outage. This improves reliability and reduces downtime, making our new enclosure an excellent choice for critical operations.

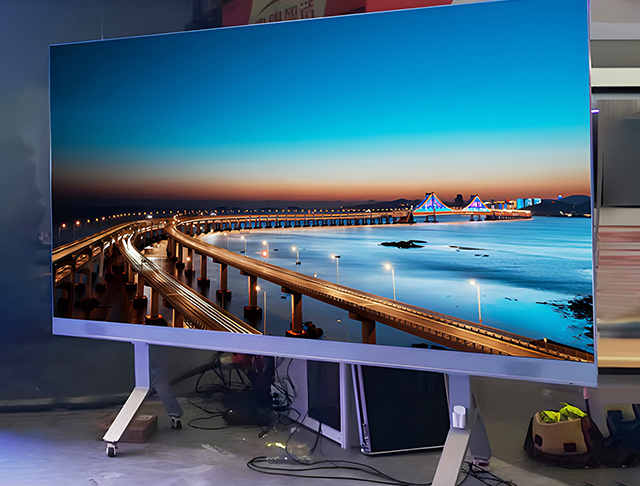

Large Viewing Angle
The high-precision die-casting cabinet makes the flatness of the screen great, thus the viewing angle can be up to 160°. And the screen is seamless.
High Color Contrast Ratio and Enhancement of Sharpness, Brightness and Color
Our all in one interactive led flat panel series has an excellent visual performance because we adopt high-quality HOB technology. The color contrast ratio is even better than 6,000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.
Golden Aspect Ratio Cabinet Size
The cabinet aspect ratio is 16:9. We can also make various screen resolutions with 16:9 aspect ratio, such as 720P, 2K, 4K, or other resolutions.
Application Fields
To fit every different scene, our products utilize superior materials with a concise and strong structure, and various installation methods make it flexible and easy to apply.This product is usually used in:
-

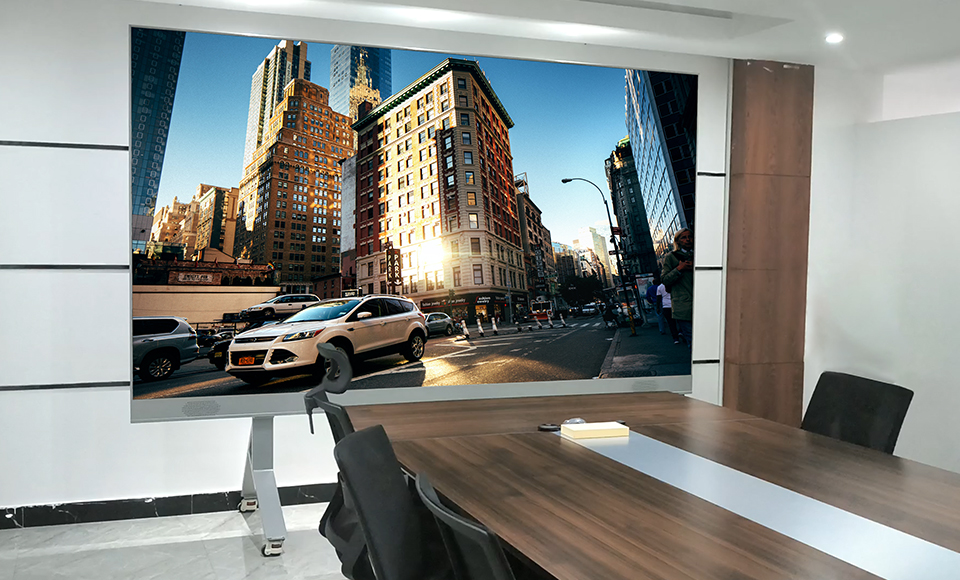

Meeting Room;
-
TV Studio;
-

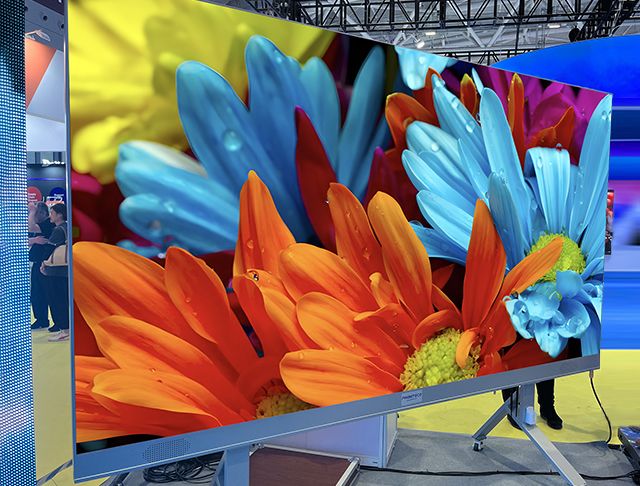

Exhibition Center;
-
Shopping Mall;
-
Airpor
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P1.2
1.25mm
SMD1010
240dots × 135dots
1/27scan
32,400dots
300mm × 168.75mm
600mm × 337.5mm × 40mm
480dots × 270dots
640,000dots/㎡
≥1.2m
100nits~600nits
IP43
3,840Hz
13bits～18bits
H:160° / V:160°
500W/㎡
170W/㎡
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
6.3kg/panel
Windows (Win7, Win8, etc.)
USB,WIFI,HDMI,RJ45,3.5mm audio jack port
-
P1.5
1.562mm
SMD1010
192dots × 108dots
1/27scan
20,736dots
300mm × 168.75mm
600mm × 337.5mm × 40mm
384dots × 216dots
409,600dots/㎡
≥1.5 m
100nits~600nits
IP43
3,840Hz
13bits～18bits
H:160° / V:160°
500W/㎡
170W/㎡
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
6.3kg/panel
Windows (Win7, Win8, etc.)
USB,WIFI,HDMI,RJ45,3.5mm audio jack port
-
P1.8
1.875mm
SMD1515
160dots × 90dots
1/30scan
14,400dots
300mm × 168.75mm
600mm × 337.5mm × 40mm
320dots × 180dots
284,444dots/㎡
≥1.8 m
100nits~600nits
IP43
3,840Hz
13bits～18bits
H:160° / V:160°
500W/㎡
170W/㎡
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
6.3kg/panel
Windows (Win7, Win8, etc.)
USB,WIFI,HDMI,RJ45,3.5mm audio jack port
