Indoor Front Service LED Display 1000×250 and 750×250 x 500×250 – P1.5, P1.9, P2.6, P2.9, P3.9
Die-casting Aluminum
Light and Thin
Wide Viewing Angle
Flexible Installations
Excellent Performance
13bits ~ 24bits
1,920Hz～3,840Hz

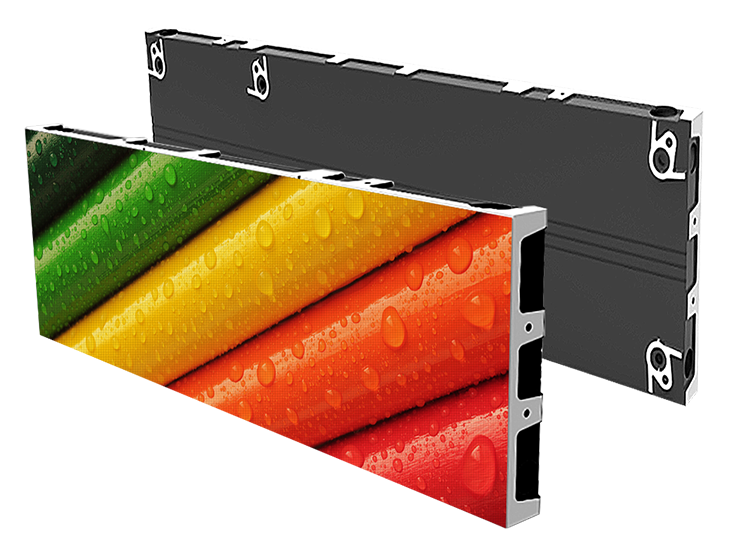

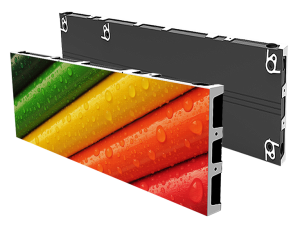

Fully Front AccessDie-Casting Aluminum Design
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands.
Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with a humanized design is stronger, more light-weight, and precise. This LED panel is highly praised for a better user experience. The pixel pitches of this LED screen are SMD P1.5 P1.9, P2.6, P2.9, P3.9.
Front Access Design

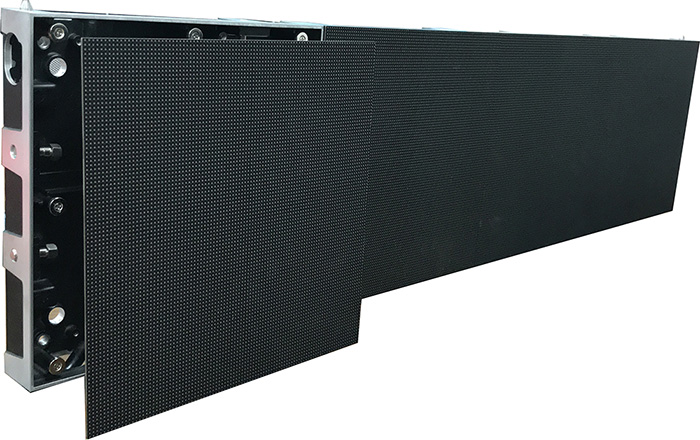

All electrical components: power supply, receiving card, and data cable are easily accessed from the front of the Indoor LED display. This design feature allows for direct wall mount installation.

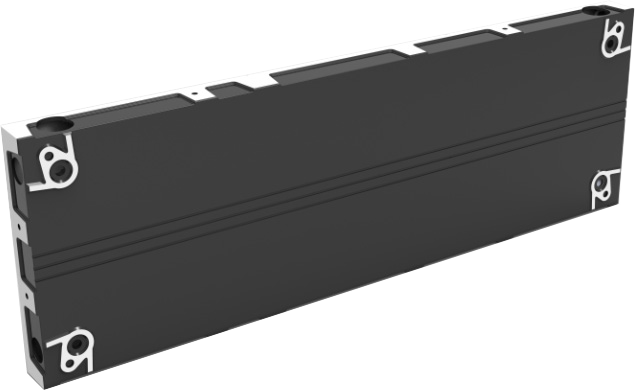

Ultra-thin and ultra-light features
The Front Service LED screen cabinet is 42mm (1.65”) thick.

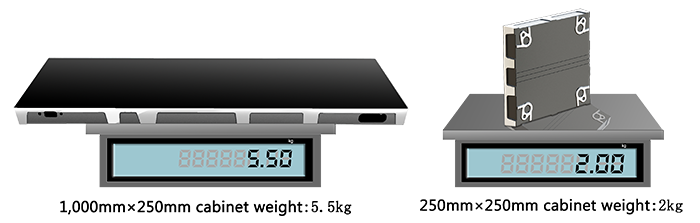

The LED display cabinet options weigh 5.5kgs (12.1lbs) or 2kgs (4.4lbs).
It is one of the thinnest cabinets in the prevailing market, more cost-effective in installation space and steel structure.

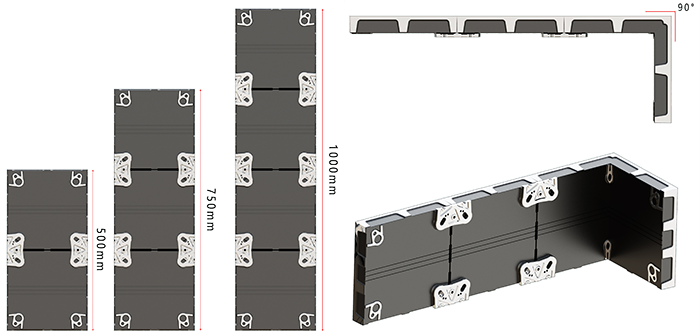

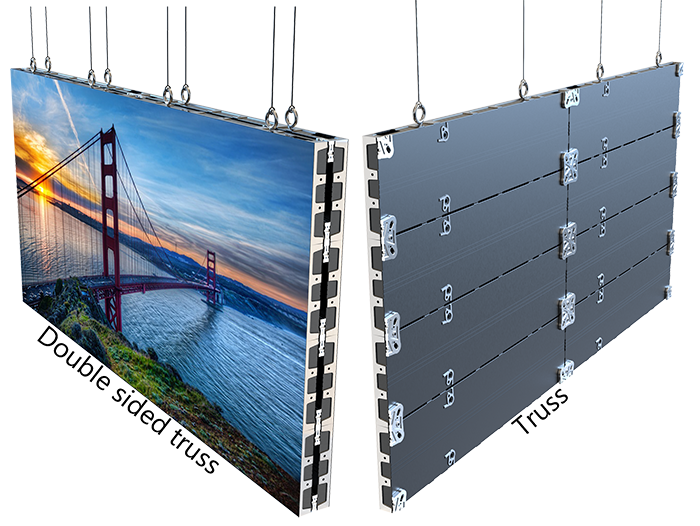

Flexible Installations
Thanks to the excellent cabinet structure design, the installation method is flexible, and the screen can fit well into different projects.
Alternative cabinet size options
The Front Maintenance LED display cabinet is available in two sizes: 1,000mm (39.4”) x 250mm (9.8”) or 250mm (9.8”) x 250mm (9.8”). This world’s smallest cabinet size provides flexibility when selecting your final LED display size. The FA3 LED display cabinets can be assembled at seamless 90˚ angles.
Advanced Visual Performance
Gold aspect ratio: 4:3/16:9.
Customized resolution: 1080p, 2K, 4K, 8K, etc.
Wide Viewing Angle: up to 160°
They are achieved by an industry setting display refresh rate of 3,840Hz combined with a Grey Scale performance that reaches 24bits luminance intensity.
Multiple Functions

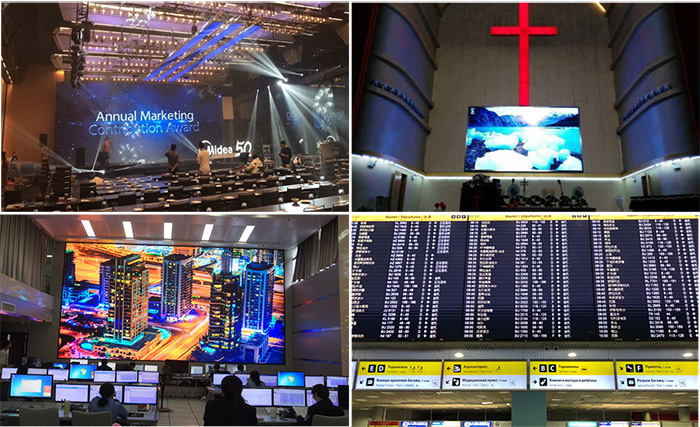

This indoor LED panel is usually be used for:
-
Fashion shop;
-
Meeting room video wall;
-
Church digital screen;
-
Indoor advertising;
-
Airport, etc.
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Screen Lifespan
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P1.9
1.953mm
SMD1515/ SMD1415(outdoor)
128dots x128dots
1/32scan
1,6384dots
250mm x 250mm
1000mm x 250mm or 250mm x 250mm or 750mm x 250mm
1000mm x 250mm or 250mm x 250mm or 750mm x 250mm
262,144dots/㎡
≥1.9 m
800nits～1,200nits / 2,000nits
IP43
1,920Hz～3,840Hz
14bits～24bits
H:110° / V:110°
500W/ ㎡
160W/ ㎡
≥100,000 hours
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
5.5kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P2.6
2.604mm
SMD1515 / SMD1415(outdoor)
96dots x 96dots
1/32scan
9,216dots
250mm x 250mm
11000mm x 250mm or 750mm x 250mm or 250mm x 250mm
384dotsx 96dots or 96dotsx 96dots
147,456dots/㎡
≥2.6 m
800nits～1,200nits / 2,000nits
IP43
1,920Hz～3,840Hz
14bits～24bits
H:110° / V:110°
450W/ ㎡
150W/ ㎡
≥100,000 hours
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
5.5kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P2.9
2.976mm
SMD2020 / SMD1415(outdoor)
84dots x 84dots
1/28scan
7,056dots
250mm x 250mm
1000mm x 250mm or 250mm x 250mm or 750mm x 250mm
336dotsx 84dots or 84dotsx 84dots
112,896dots/㎡
≥2.9 m
800nits～1,200nits / 2,000nits
IP43
1,920Hz～3,840Hz
14bits～24bits
H:110° / V:110°
350W/ ㎡
115W/ ㎡
≥100,000 hours
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
5.5kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P3.9
3.906mm
SMD2020 / SMD1921(outdoor)
64dots x 64dots
1/16scan
4,096dots
250mm x 250mm
1000mm x 250mm or 250mm x 250mm or 750mm x 250mm
256dotsx 64dots or 64dotsx 64dots
65,536dots/㎡
≥3.9m
800nits～1,200nits / 2,000nits
IP43
1,920Hz～3,840Hz
14bits～24bits
H:110° / V:110°
300W/ ㎡
100W/ ㎡
≥100,000 hours
AC110V – AC220V @ 50Hz/60Hz
﹣20℃～50℃
10%～90%
Die-casting Aluminum
5.5kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
