Colorlight X16E Professional LED Controller Box

Colorlight X16E Professional LED Controller Box Features：

1 channel DP1.2 and 1 channel HDMI 2.04K input
2 HDMI 1.4 and 2 DVI inputs
The maximum load is 10.48 million pixels, the widest is 16384 pixels, or the highest is 8192 pixels
The maximum input resolution is 4096×2160@60Hz, and supports custom resolution setting
16 Gigabit Ethernet port output
Any switching, cropping, splicing and scaling of video signals
6-screen display, position and size can be adjusted freely
Accurate color management, adjust the display color gamut
Video Genlock Technology
Independent audio input and output
HDMI and DP audio analysis output
LAN port control
Mobile phone APP control
RS232-serial protocol control
High Bandwidth Digital Content Protection Technology Based on HDCP Protocol
Brightness and color temperature adjustment

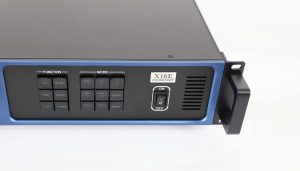

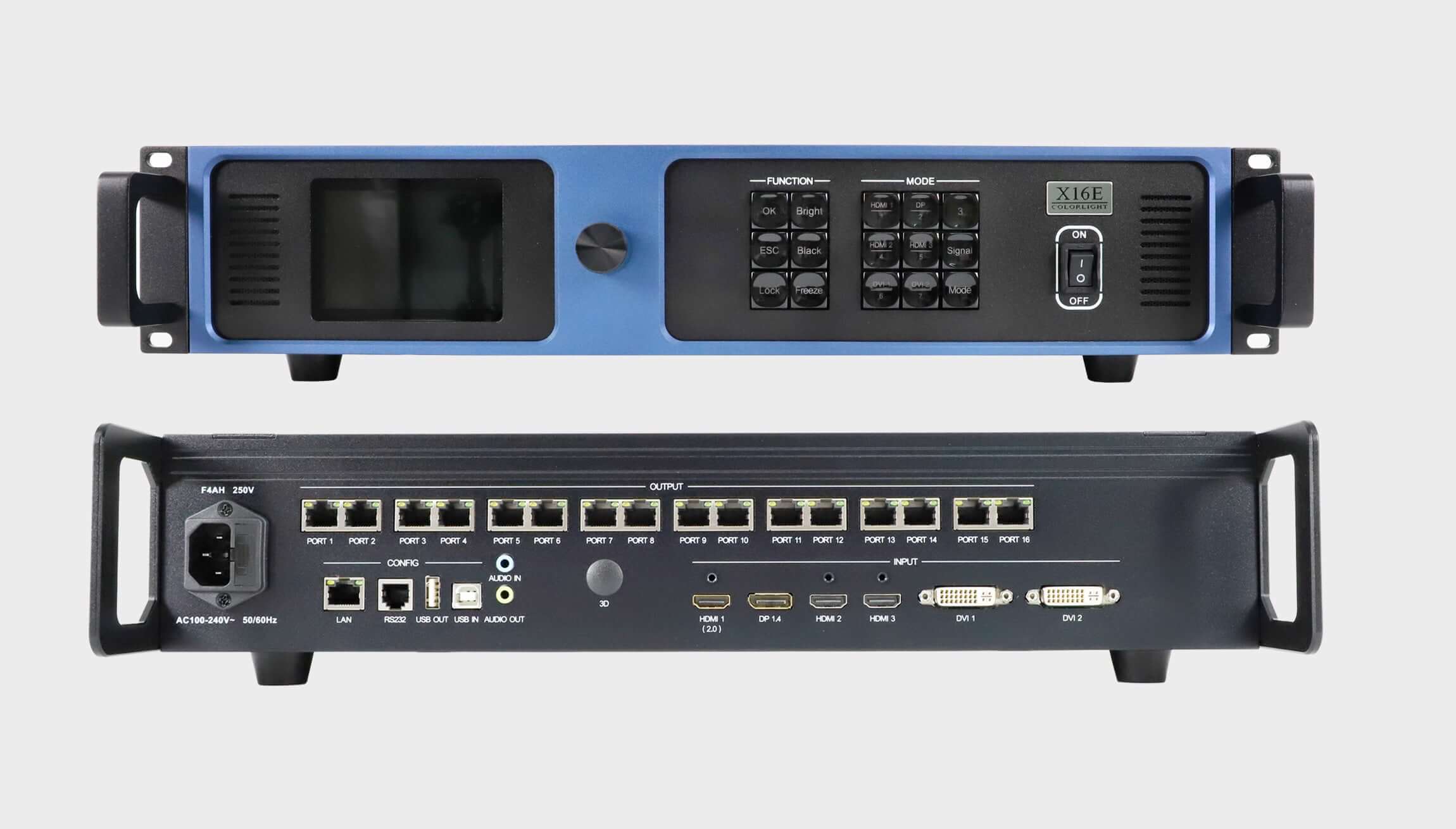

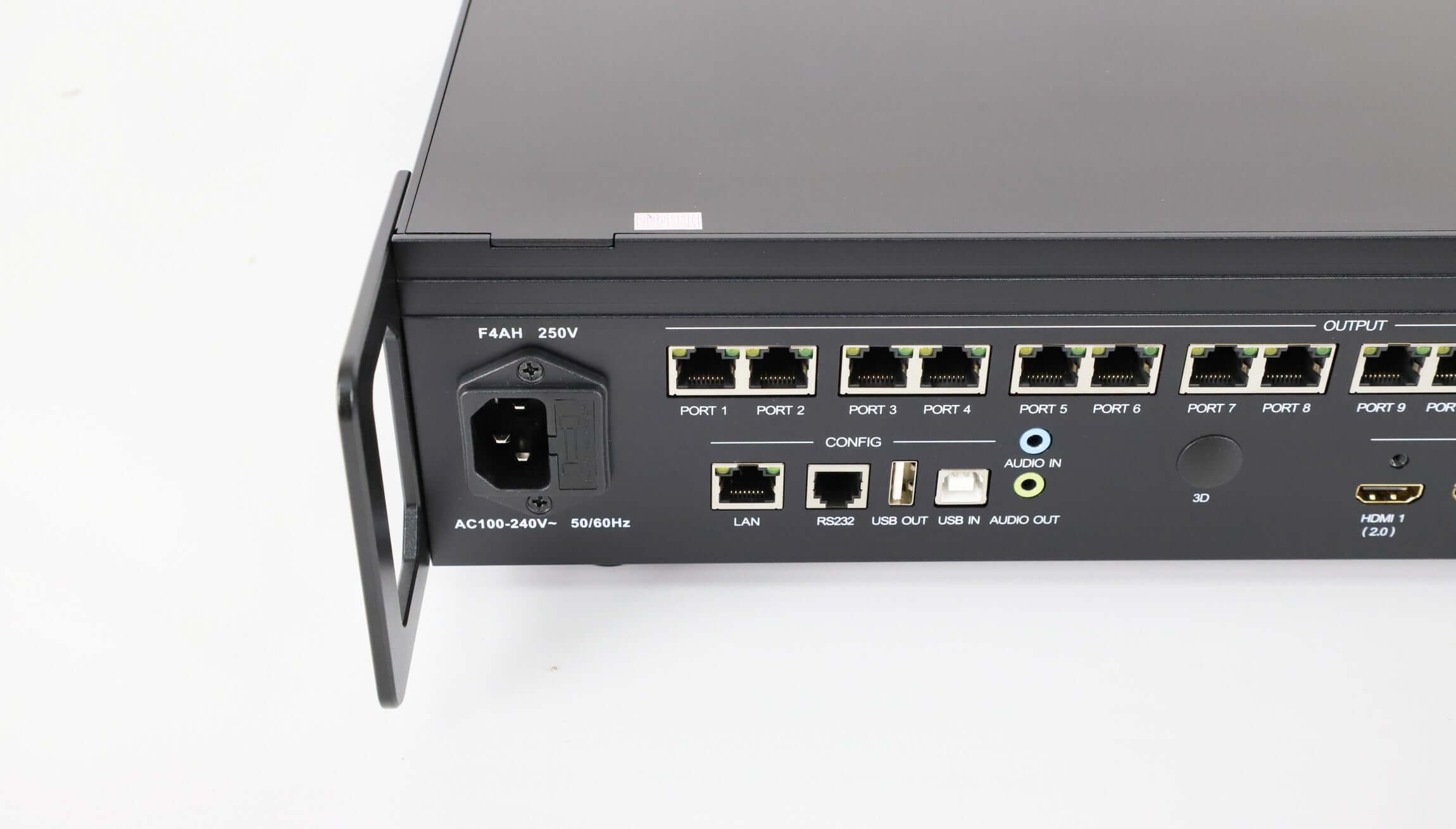

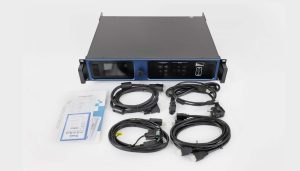

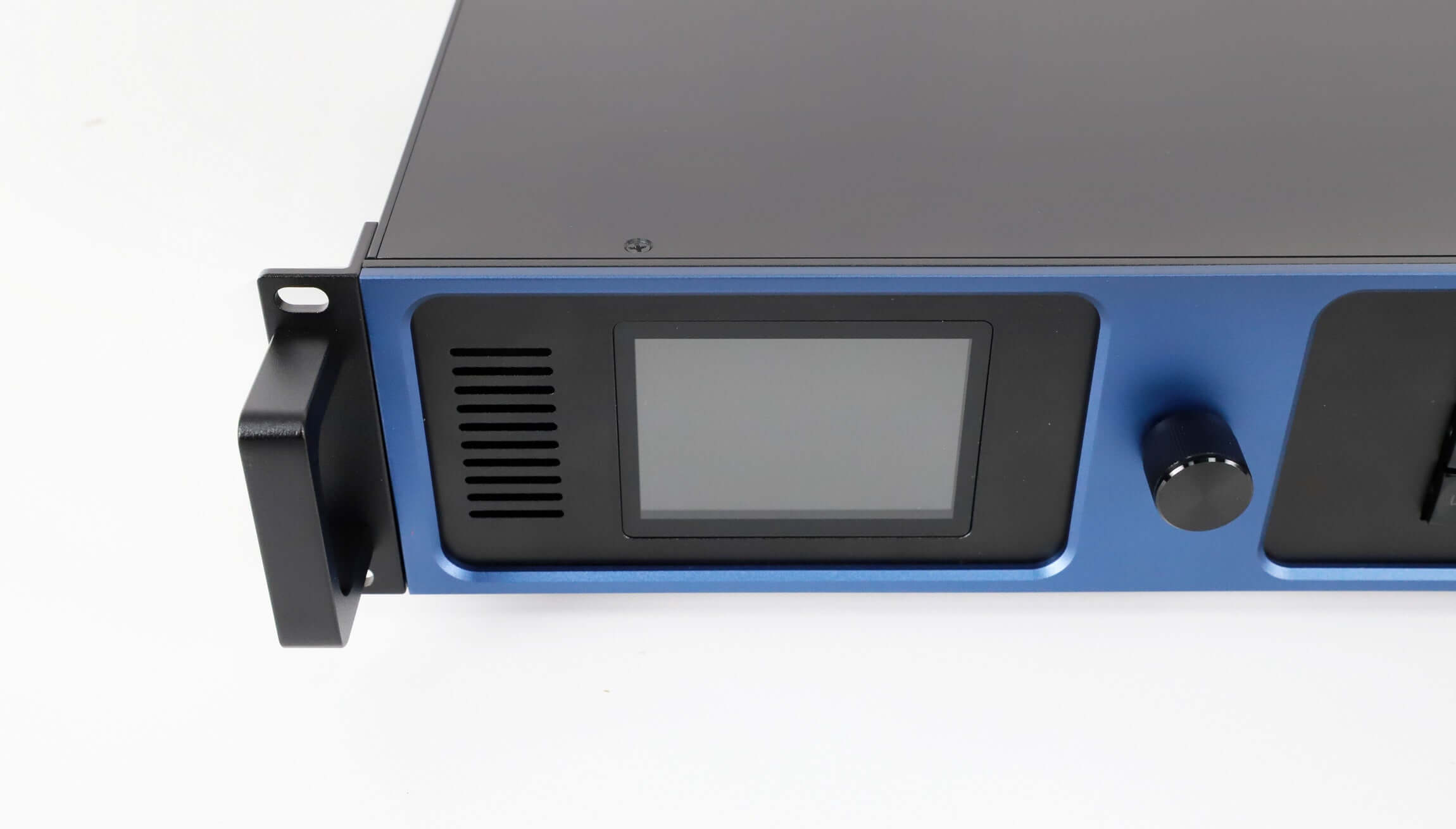

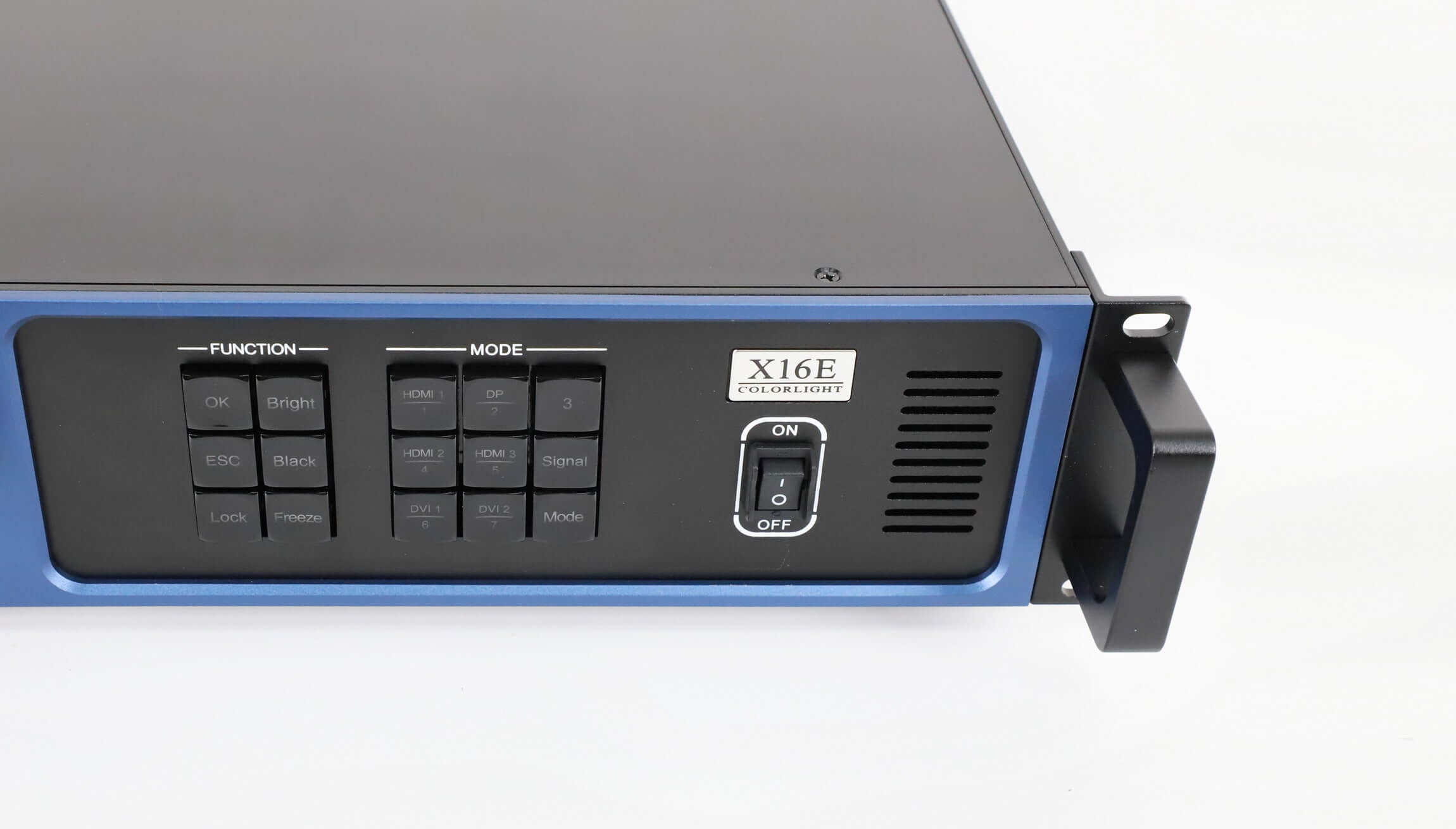

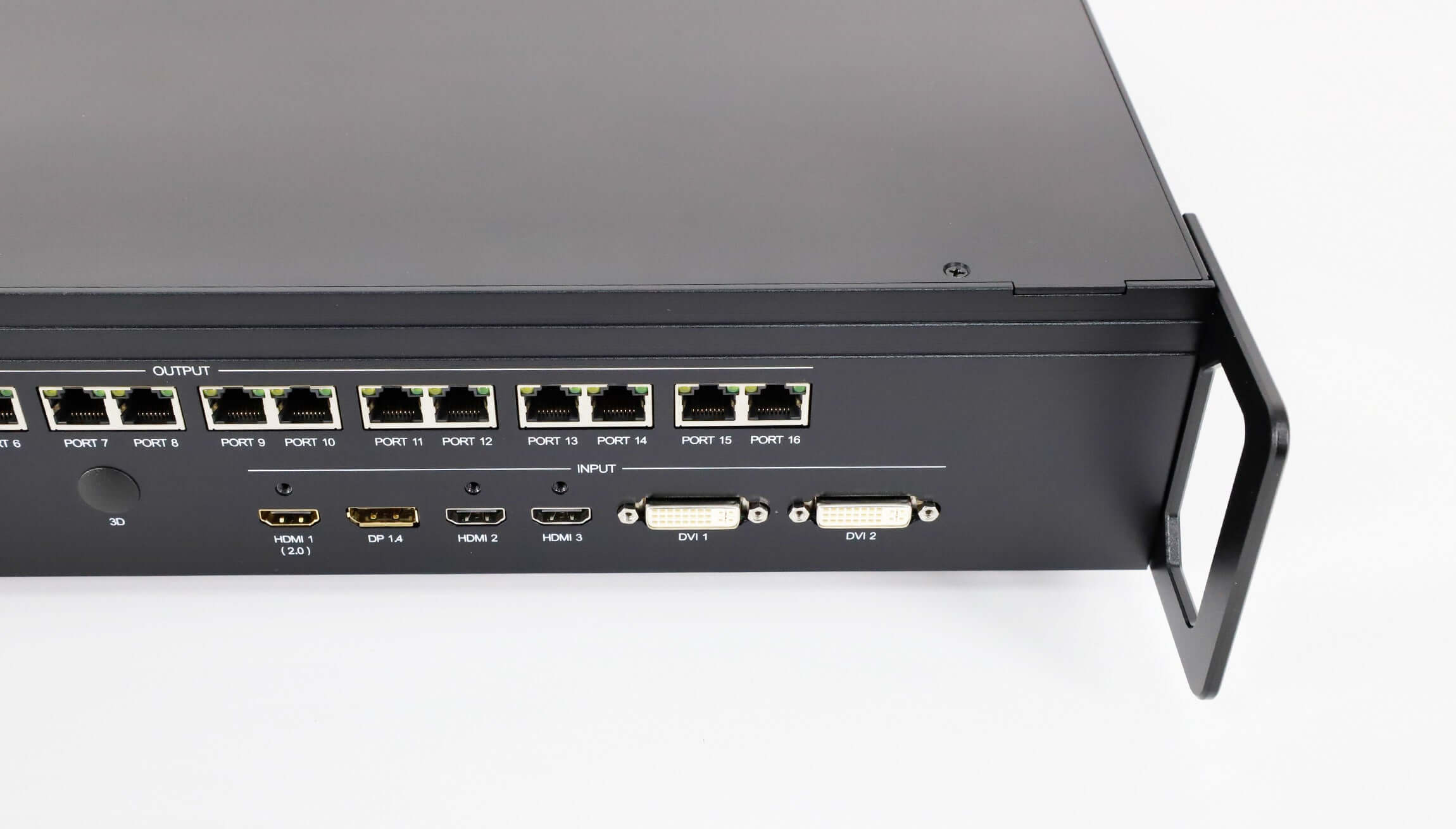

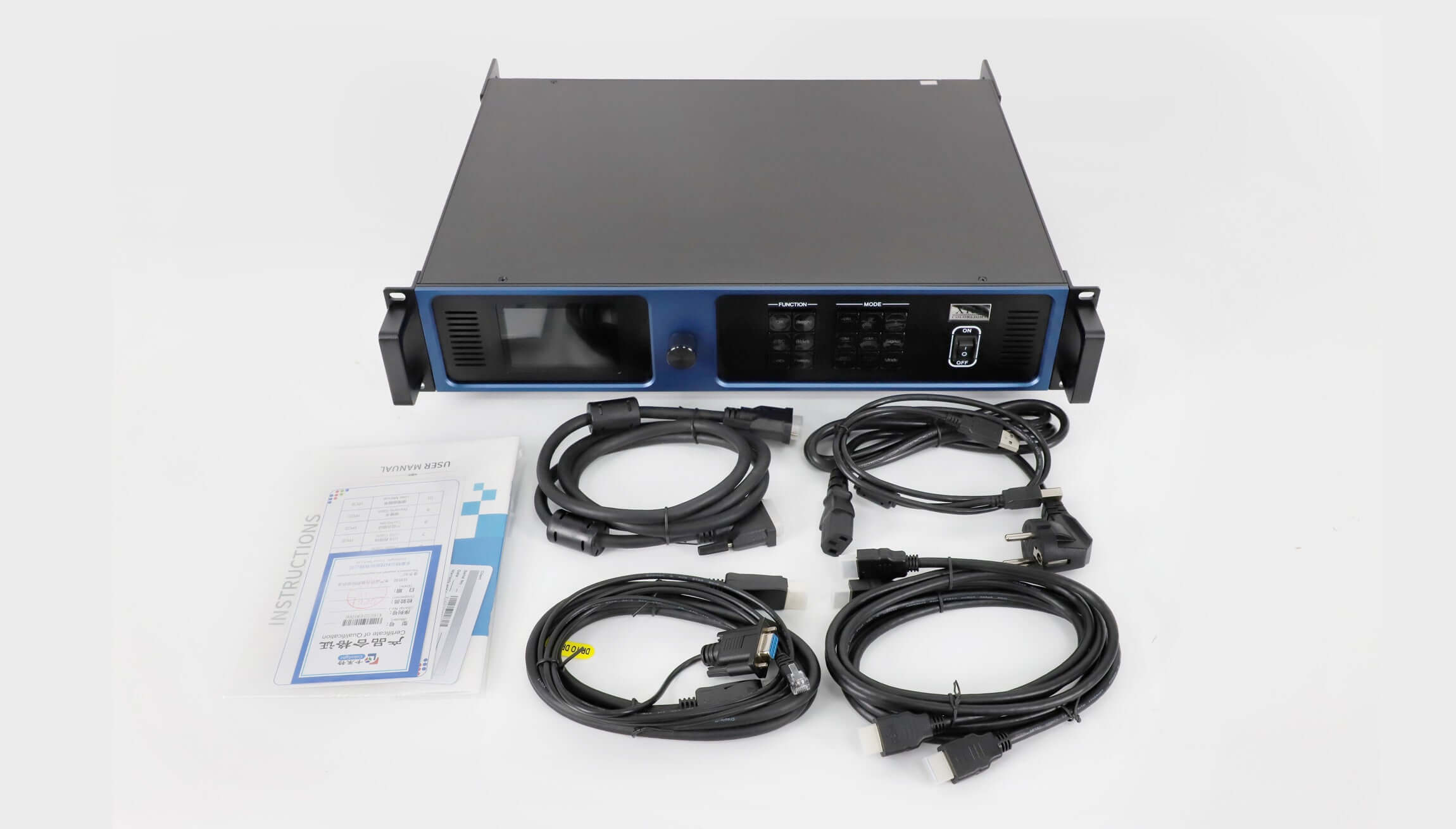

Most pictures of Colorlight X16E Professional LED Controller Box：

Download Specification:
Colorlight X16E Professional LED Controller Box Specification
Colorlight X16E Professional LED Controller Box Manual
