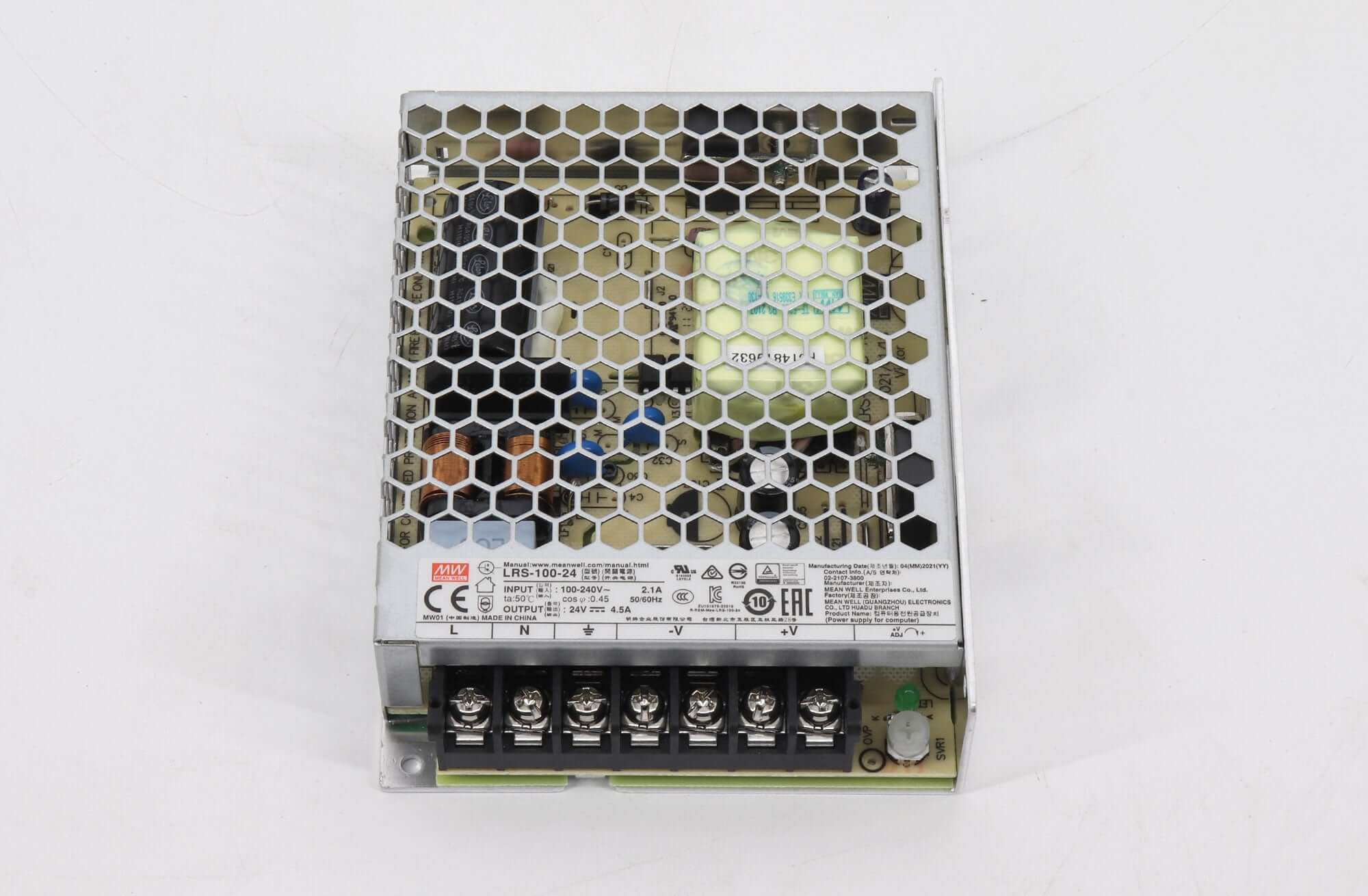

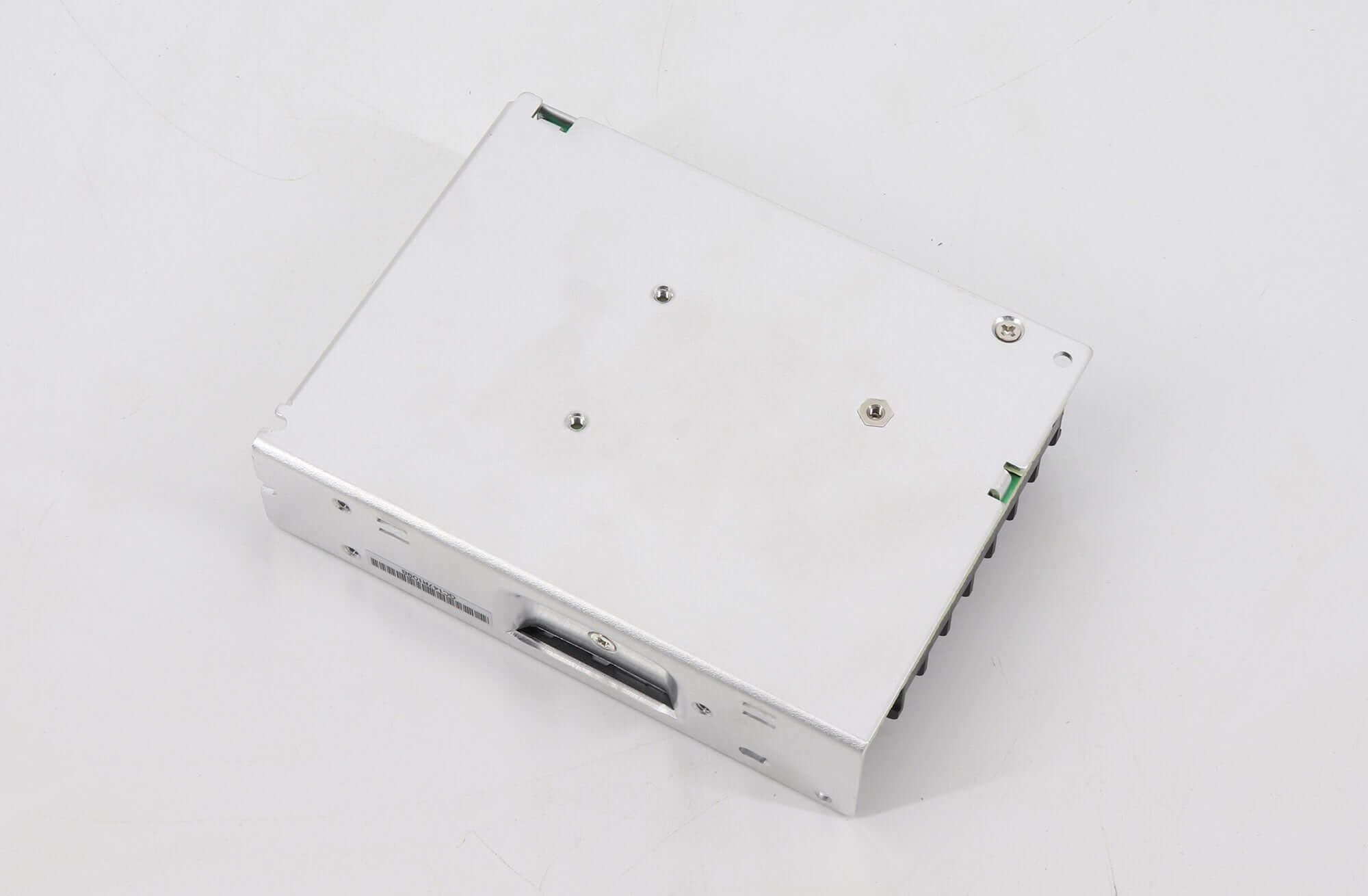

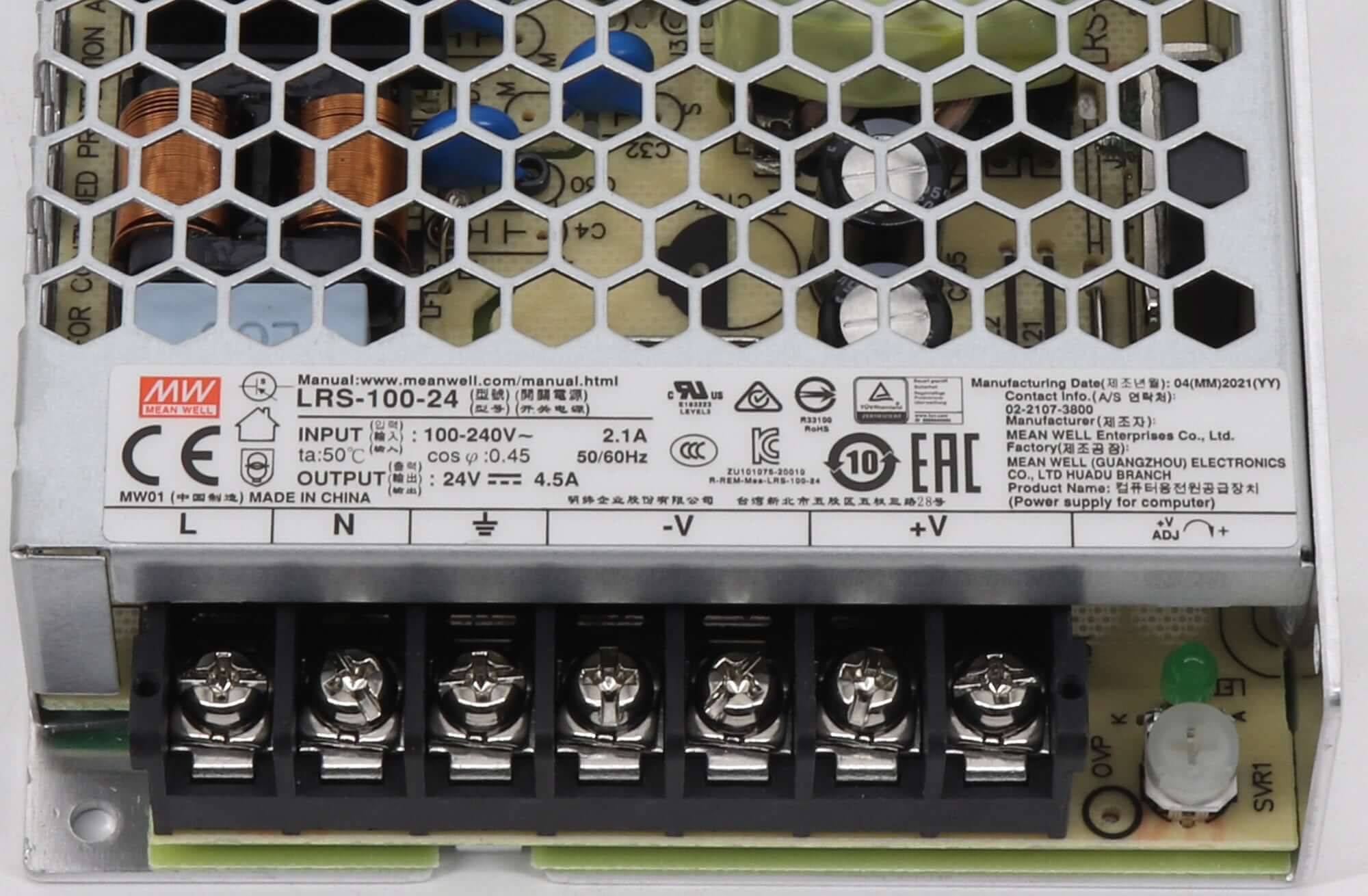

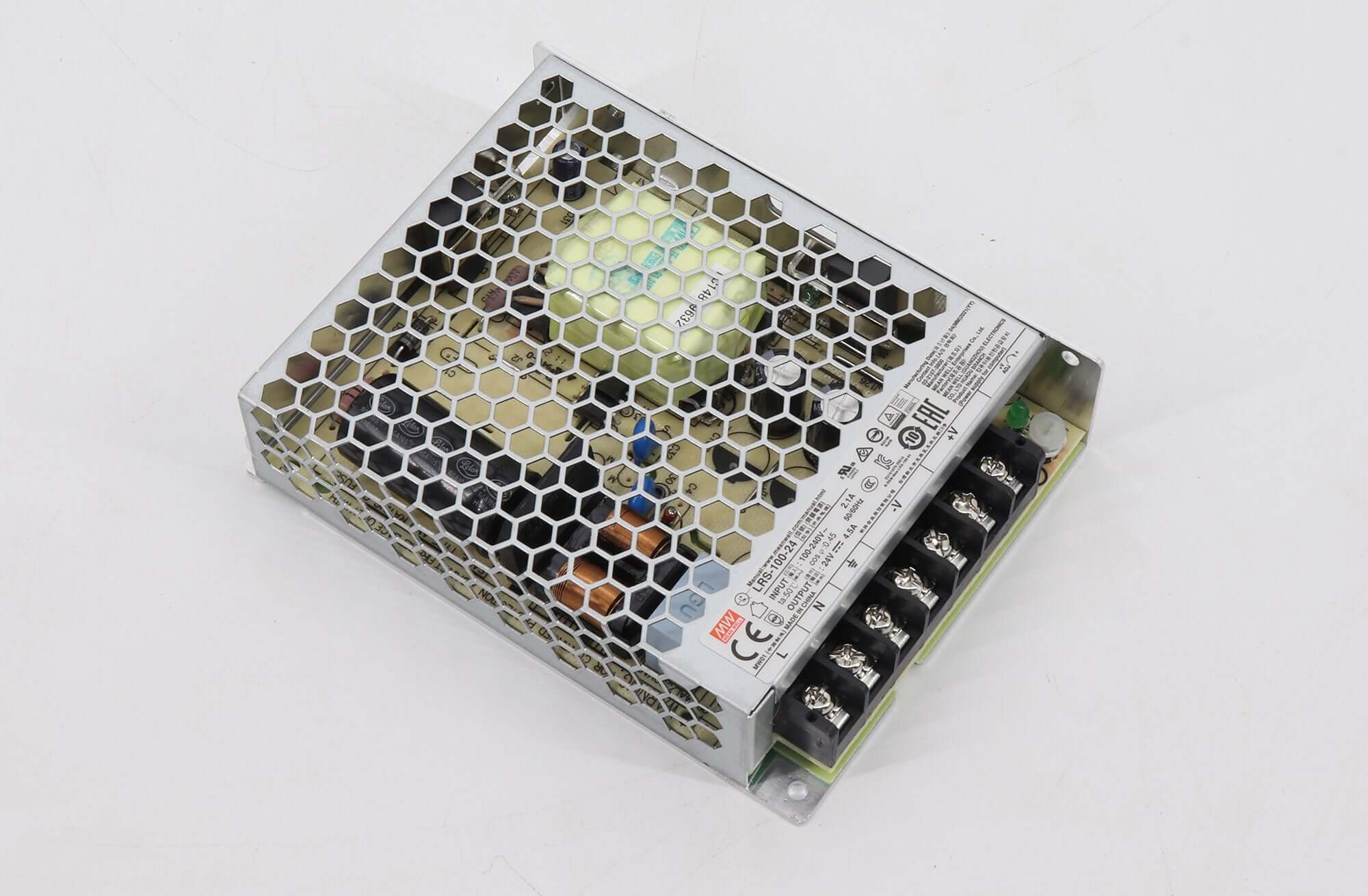

Meanwell LRS-100-24 Single-output Enclosed Power Supply for LED Screen

* Universal AC input / Full range

* Withstand 300VAC surge input for 5 second

* No load power consumption<0.2W

* Miniature size and 1U low profile

* High operating temperature up to 70℃

* Protections: Short circuit / Overload / Over voltage

* Cooling by free air convection

* Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances

* Operating altitude up to 5000 meters (Note.8)

* Withstand 5G vibration test

* High efficiency, long life and high reliability

* LED indicator for power on

* Over voltage category III

* 100% full load burn-in test

* 3 years warranty

   LRS Series is a single-output enclosed type power supply with 30mm of low profile design. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-50 that the whole series operates from -30°C through 70°C under air convection without a fan.Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement. LRS-50 has the complete protection functions and 5G anti­ vibration capability; it is complied with the international safety regulations such as TUV EN62368-1.
