Outdoor DIP LED Display P8 P10 P16 P20
Low Power Consumption
High Brightness (10,000nits)
1,920Hz~3,840Hz
3 Layers Coating Protection
Stable Outdoor Fixed Installation
13bits~24 bits
Low Power Consumption
We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, the display saves 20% energy. The pixel pitches are P10, P16 and P20.
High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.
High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.
High Protective Grades
3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.
Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can’t be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 24bits. It is very high so the image looks very vivid and perfect.

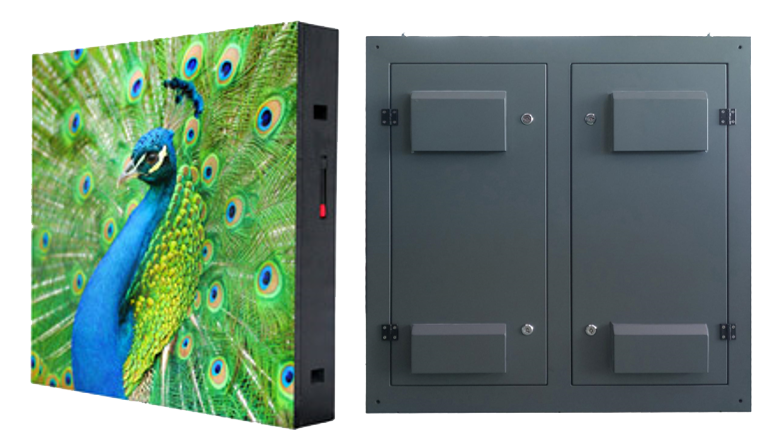

Stable Outdoor Fixed Installation
The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacturing this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.
Visual Performance
-
High Contrast: The contrast ratio of the LED screen gives sharp image quality.
-
High Brightness: The brightness of the LED display can be up to 10,000nits. Even if the screen is facing the direct sunlight, the image still looks clear.
Stable Performance, Reliable Quality
We have sold many LED screens to different countries and regions like America, Europe, Middle East, Africa, etc.
Many of our screens have been working for more than 5 years, and they are still working properly. Our LED screens are a great solution for outdoor advertising billboards.
Application Fields
-
Outdoor Advertising
-
DOOH
-
LED Truck
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P10
10mm
DIP346
32dots × 16dots
1/4scan
512dots
320mm × 160mm
960mm × 960mm
96dots × 96dots
10,000dots/㎡
≥10m
≥7,000nits
IP65
1,920Hz～3,840Hz
13bits～24bits
H:120° / V:60°
460W/㎡
130W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron / Aluminum
60kg/㎡ or 45kg/㎡
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P16
16mm
DIP346
16dots × 16dots
static
256dots
256mm × 256mm
1,024mm × 768mm
64dots × 48dots
3,906dots/㎡
≥16m
7,000nits～10,000nits
IP65
1,920Hz～3,840Hz
13bits～24bits
H:120° / V:60°
520W/㎡
150W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron / Aluminum
60kg/㎡ or 45kg/㎡
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P20
20mm
DIP346
16dots × 8dots
static
128dots
320mm × 160mm
960mm × 960mm
48dots × 48dots
2,500dots/㎡
≥20m
6,000nits～7,500nits
IP65
1,920Hz～3,840Hz
13bits～24bits
H:120° / V:60°
390W/㎡
110W/㎡
AC220V～AC110V @ 50Hz / 60Hz
﹣20℃～65℃
10%～90%
Iron / Aluminum
60kg/㎡ or 45kg/㎡
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
