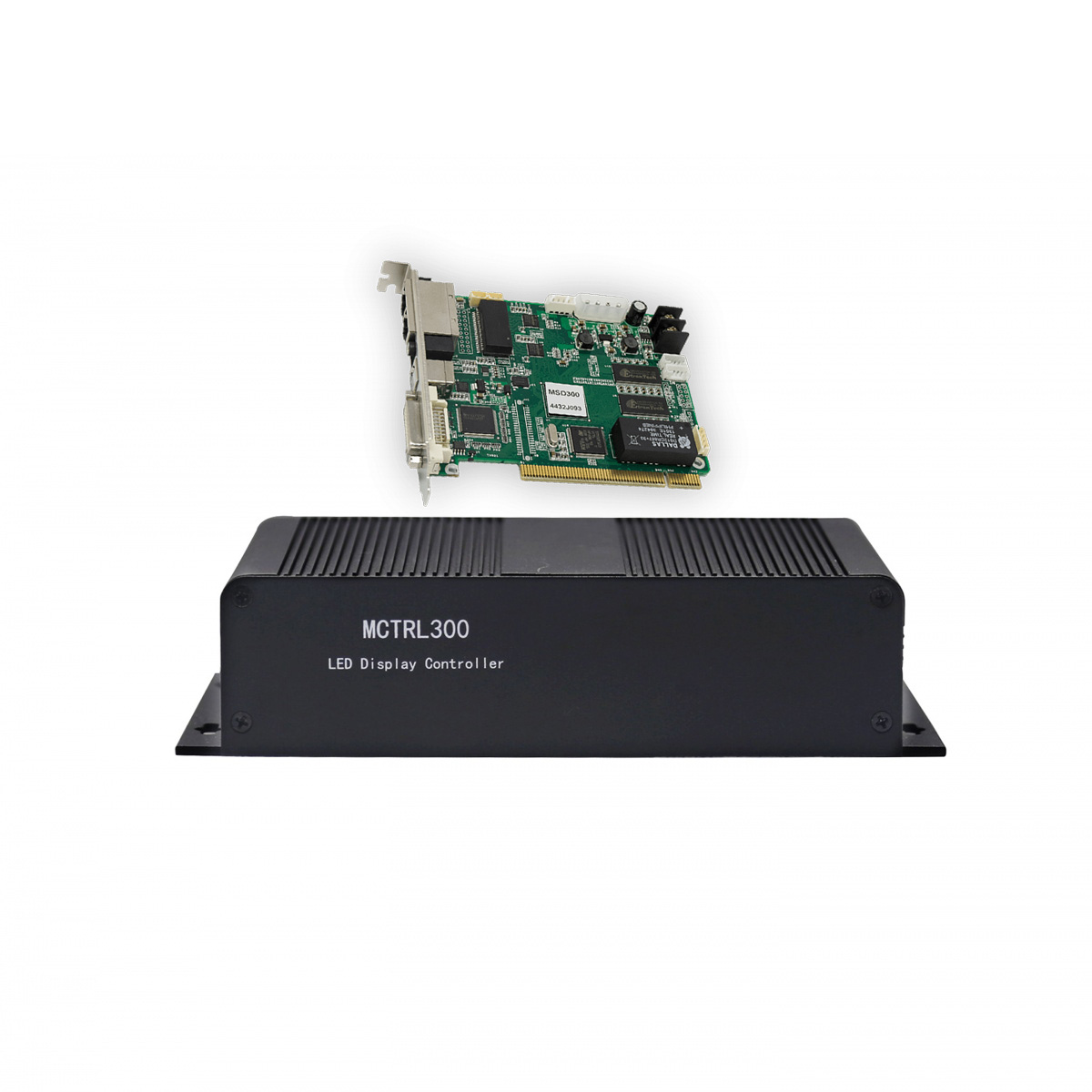

Novastar 1.3 million resolution led display controller/sender is Novastar’s independent control card from the M3 Series, and supports audio and video input, undertakes encoding and data processing, sending the audio and video to the display.

Add to Cart
Novastar LED Display Controller Card
$110.00 – $180.00

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Novastar LED Display Controller Card
$110.00 – $180.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Novastar MSD300 Sending Card | Novastar MCTRL300 | Novastar TCC160 TCC70 LED Controller Card | Novastar Independent LED Video Controller MX6000 Pro MX2000 Pro MX40 Pro MX30 MX20 KU20 CX40 Pro MCTRL4K (4Kx2K) MCTRL1600 (4Kx2K) MCTRLR5 (4Kx1K) MCTRL700 MCTRL660 PRO MCTRL660 MCTRL600

1. MSD300 Sending Card Description:

1). DVI video input
2). Audio transmission
3). Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup.
4). USB port control, for cascading and control of multiple units.
5). 1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1970×712@69Hz, 2048×668@60Hz.
6). CE / RoHS / EAC / FCC / IC

2. MSD300 Sending Card Features:

1). 1 × DVI video input and 1 × audio input
2). 2 × Gigabit Ethernet output
3). 1 × light sensor connector
4). Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.
5). Supports a variety of video formats.

3. MSD300 Sending Card Specifications:

Indicator
Red

Device operating indicator. Working status:

  • On: The power supply is normal.
  • Off: The power is not supplied or the power supply is abnormal.
Green

Device status indicator. Working status:

  • Slow flashing: Video input unavailable
  • Normal flashing: Video input available
  • Fast flashing: The screen is displaying the startup image.
  • Breathing: The Ethernet port redundancy has taken effect.

Input
DVI×1
  • Single-link DVI input connector
  • Supported maximum resolution: 1920×1200@60Hz, downward compatible
  • Resolution customizable
    • Maximum width: 3840 pixels
    • Maximum height: 1920 pixels
AUDIO Audio input connector
Output
RJ45×2
  • 2 Gigabit Ethernet ports
  • Maximum loading capacity of a single port: 650,000 pixels
  • Supports redundancy between Ethernet ports.

Control
USB (Type-B) Connects to the PC.
UART IN/OUT Input/Output connector for cascading devices
Function Connector
LIGHT SENSOR Connects to a light sensor to monitor ambient brightness, allowing for automatic brightness adjustment of LED display.
Power Supply
DC 3.3V~5.5V DC power connector
FILE NAME RELEASE NOTES SPECIFICATIONS FIRMWARE
MSD300 Sending Card Release Notes Specifications Firmware

Novastar Mctrl300 LED Display Controller

MCTRL300 is novastar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.

1. Mctrl300 LED Display Controller Description:

1). DVI video input
2). Audio transmission
3). Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
4). USB port control, for cascading and control of multiple units
5). 1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840
6). 1 light sensor interface, adjust the screen brightness automatically
7). Independent power supply
8). Certifications: CE, RoHS, EAC, FCC, IC

2. Mctrl300 LED Display Controller Features:

1). 1 × DVI input
2). 1 × audio input
3). 1 × type-B USB control port
4). ART control ports to cascade devices for uniform control.
5). Dual Ethernet outputs.
6). Supports the new generation of NovaStar calibration technology, which is fast and efficient.
7). 1 × light sensor connector.
8). Supports resolutions up to 2048×668@60Hz and downward compatibility.
9). Supports a variety of video formats.

3. Mctrl300 LED Display Controller Specifications:

Connector

 Connector Name

Description
Input DVI IN
  • Single-link DVI connector
  • Resolution up to 1920×1200@60Hz and downward compatible
  • Custom resolutions supported:
    • Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz
AUDIO Audio input connector
Output RJ45 × 2
  • 2 Gigabit Ethernet outputs
  • Maximum loading capacity of a single Ethernet port: 650,000 pixels
  • Support redundancy between Ethernet ports.
Function LIGHT SENSOR Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.
Connector Connector Name Description
Control UART IN/OUT Input and output ports for cascading devices
USB Type-B USB control port for connecting to PC
Power AC 100V-240V~50/60Hz
Indicators
RUN Device operating indicator. Working status:

  • Flashing slowly: Video input unavailable
  • Flashing normally: Video input available
  • Flashing rapidly: The screen is displaying startup image.
  • Breathing: Ethernet port redundancy has taken effect.
STATUS Device power indicator. Working status:

  • On: The power supply is normal.
  • Off: The power is not supplied, or the power supply is abnormal.
FILE NAME RELEASE NOTES SPECIFICATIONS FIRMWARE
Mctrl300 Sending Controller Release Notes Specifications Firmware
