KYstar KS604 Large Screen Sending Box For LED Screen Wall
$145.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

The KYstar KS604 Large Screen Sending Box For LED Screen Wall is a management terminal device for sending cards. It is an independent management unit that facilitates the management of power and signals on the site of multiple sending cards, in line with international and industry standards. It comes with two one-two splitters and supports free copying of 2.6 million resolutions.



KYstar KS604 Large Screen Sending Box For LED Screen Wall Features:

 Independent power supply and installation of 4 small sending cards
 Two independent DVI splitters, one divided into two
 1.5U chassis for easy installation


KYstar KS604 Large Screen Sending Box For LED Screen Wall Parameter:

Input
Type Qty Spec.
DVI 2 Standard DVI-D socket，18+1Pin；DVI1.1；TMSD Level，Single pixel input，165MHz Bandwidth；Support resolution：2560×1024 @60Hz        1536×1536 @60Hz2048×1152 @60Hz        1920×1200 @60Hz1920×1080 @60Hz        1680×1050 @60Hz1600×1200 @60Hz        1440×900 @60Hz1600×1200 @60Hz        1440×900 @60Hz1360×768 @60Hz         1280×1024 @60Hz1280×800 @60Hz         1024×768 @60Hz and 2560×1024 @60Hz Custom resolution within range



Output
Type Qty Spec.
DVI-D 4 Standard DVI-D socket，18+1Pin；DVI1.1；TMSD Level，Single pixel input，165MHz Bandwidth；Support resolution：2560×1024 @60Hz        1536×1536 @60Hz2560×1024 @60Hz        1536×1536 @60Hz2048×1152 @60Hz        1920×1200 @60Hz1920×1080 @60Hz        1680×1050 @60Hz1600×1200 @60Hz        1440×900 @60Hz1400×1050 @60Hz        1366×768 @60Hz1360×768 @60Hz         1280×1024 @60Hz1280×800 @60Hz         1024×768 @60Hz以 and 2560×1024 @60Hz Custom resolution within range



Power input 100-240V AC~50/60Hz 1.0A
Operating
temperature		 -20℃~85℃
Working
humidity		 0℃~40℃
Dimension 483×340×67mm（L×W×H）
Weight 5KG
Power
consumption		 50W

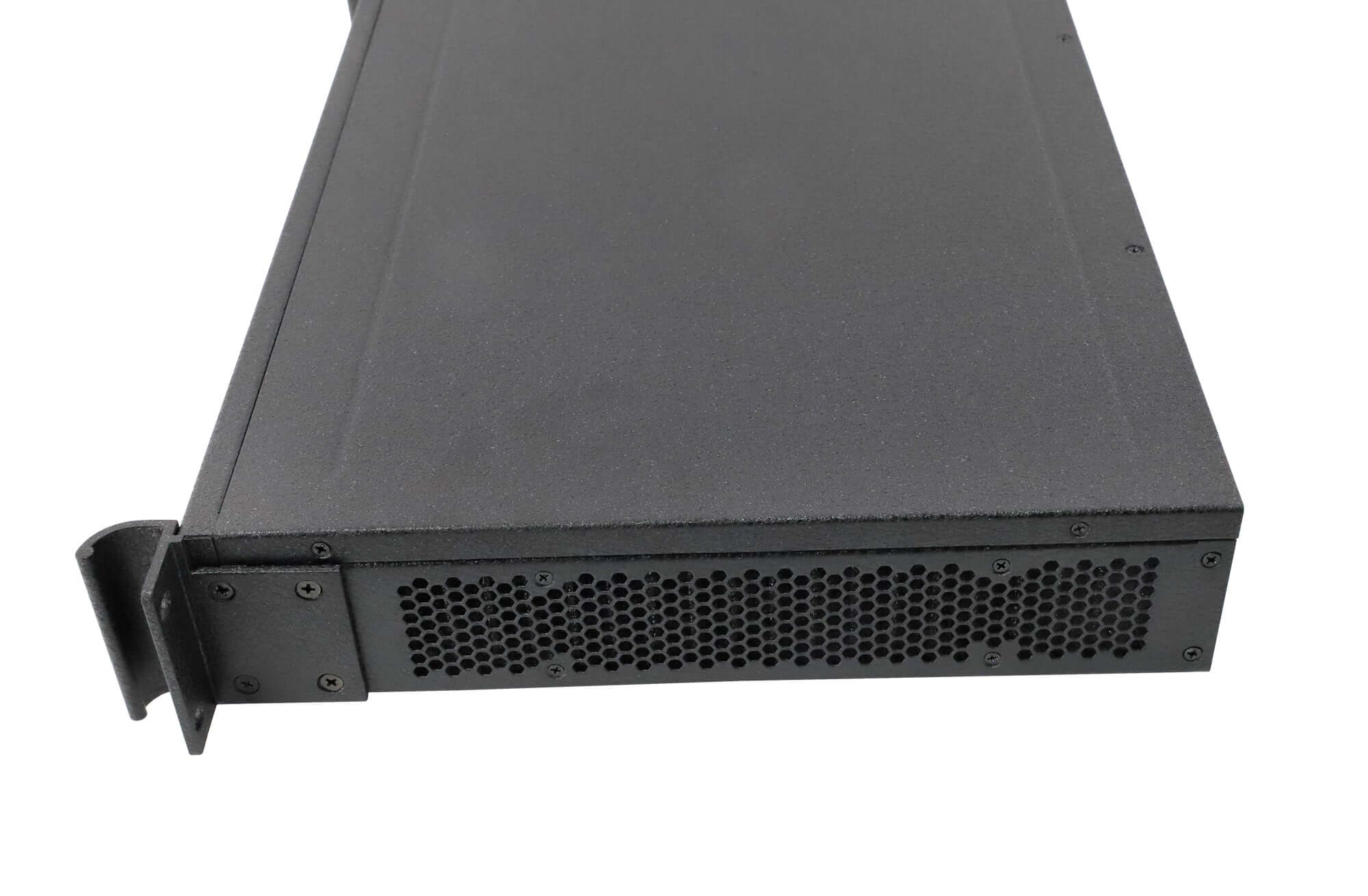

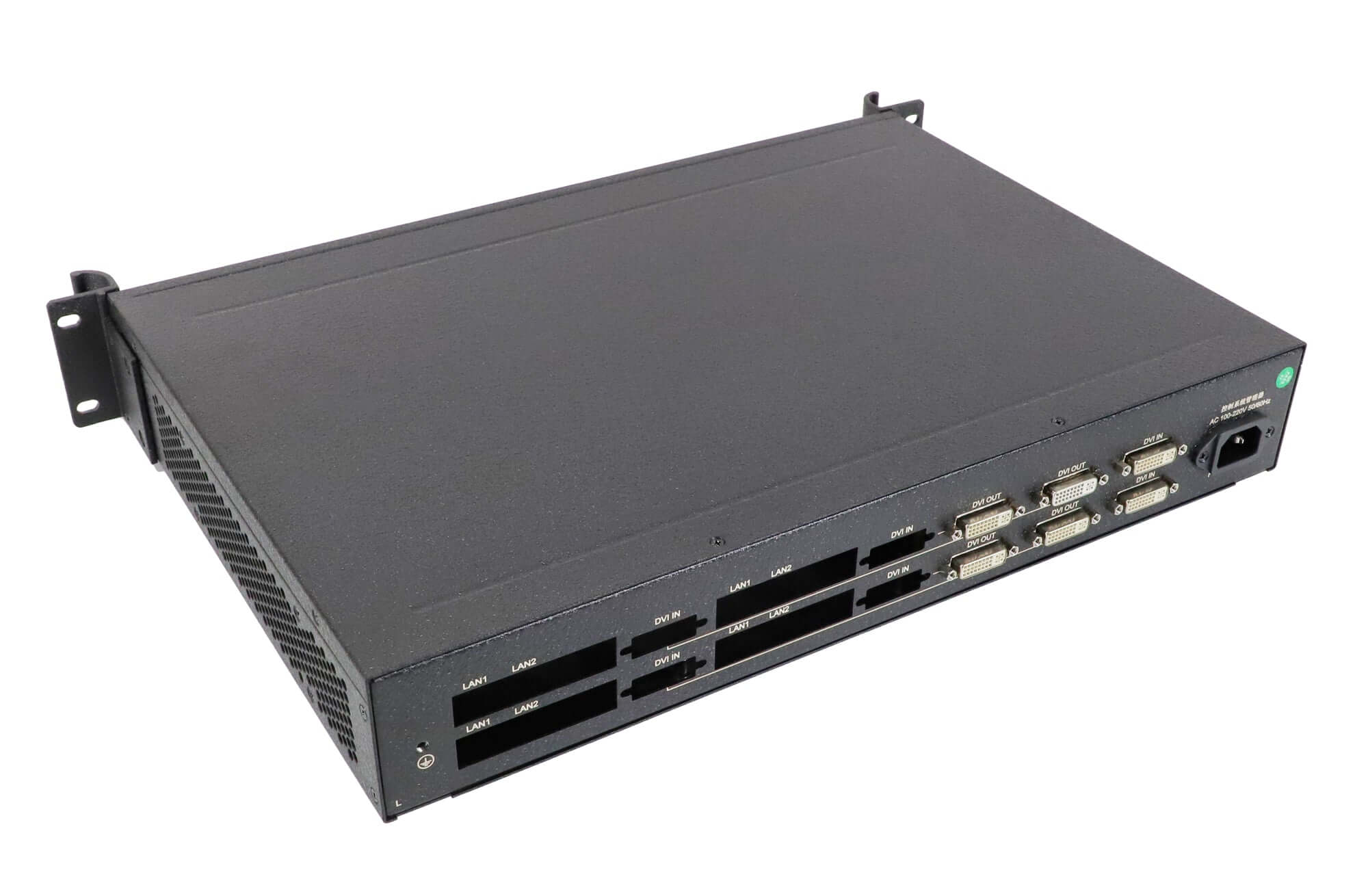

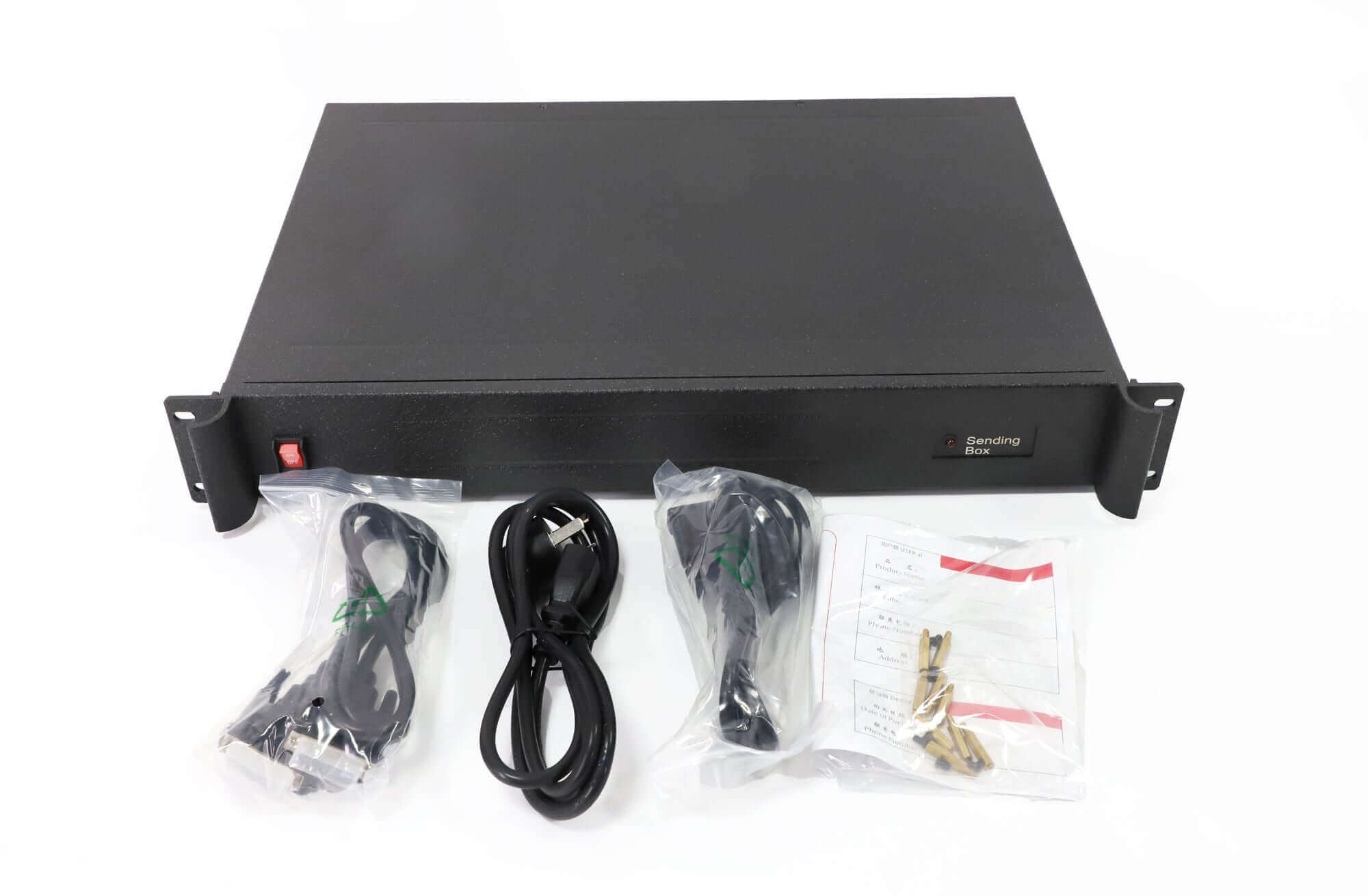

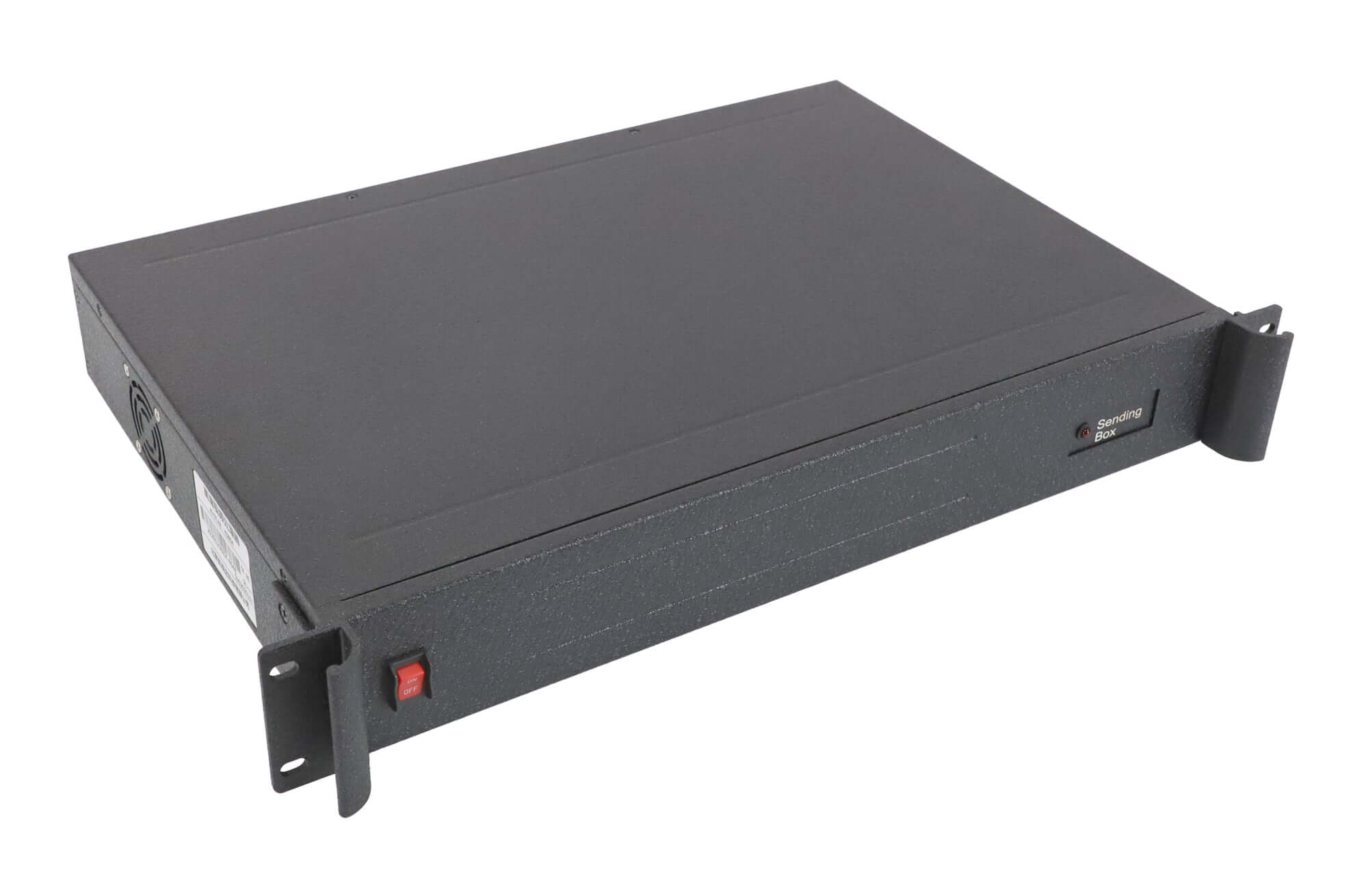

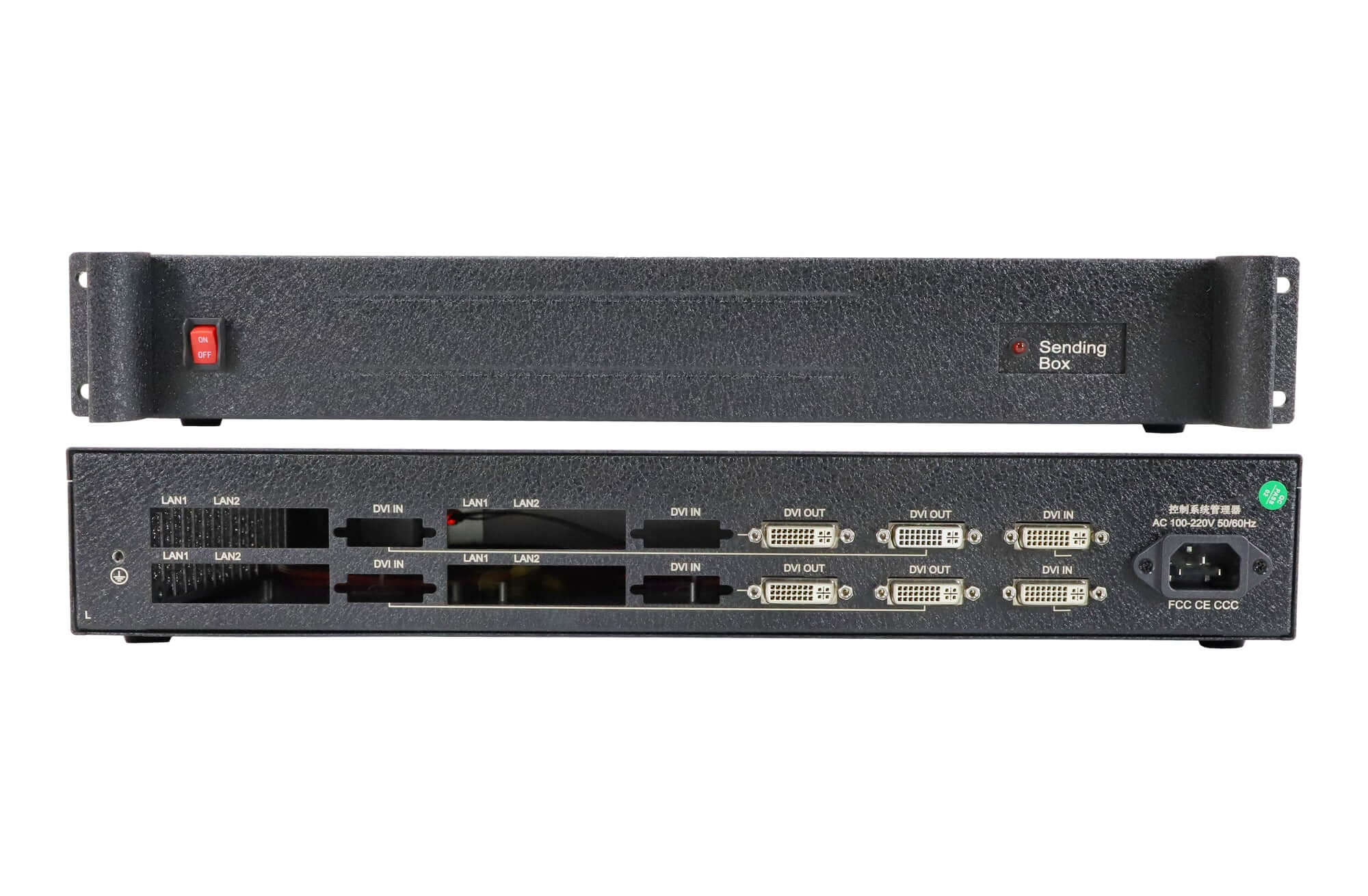

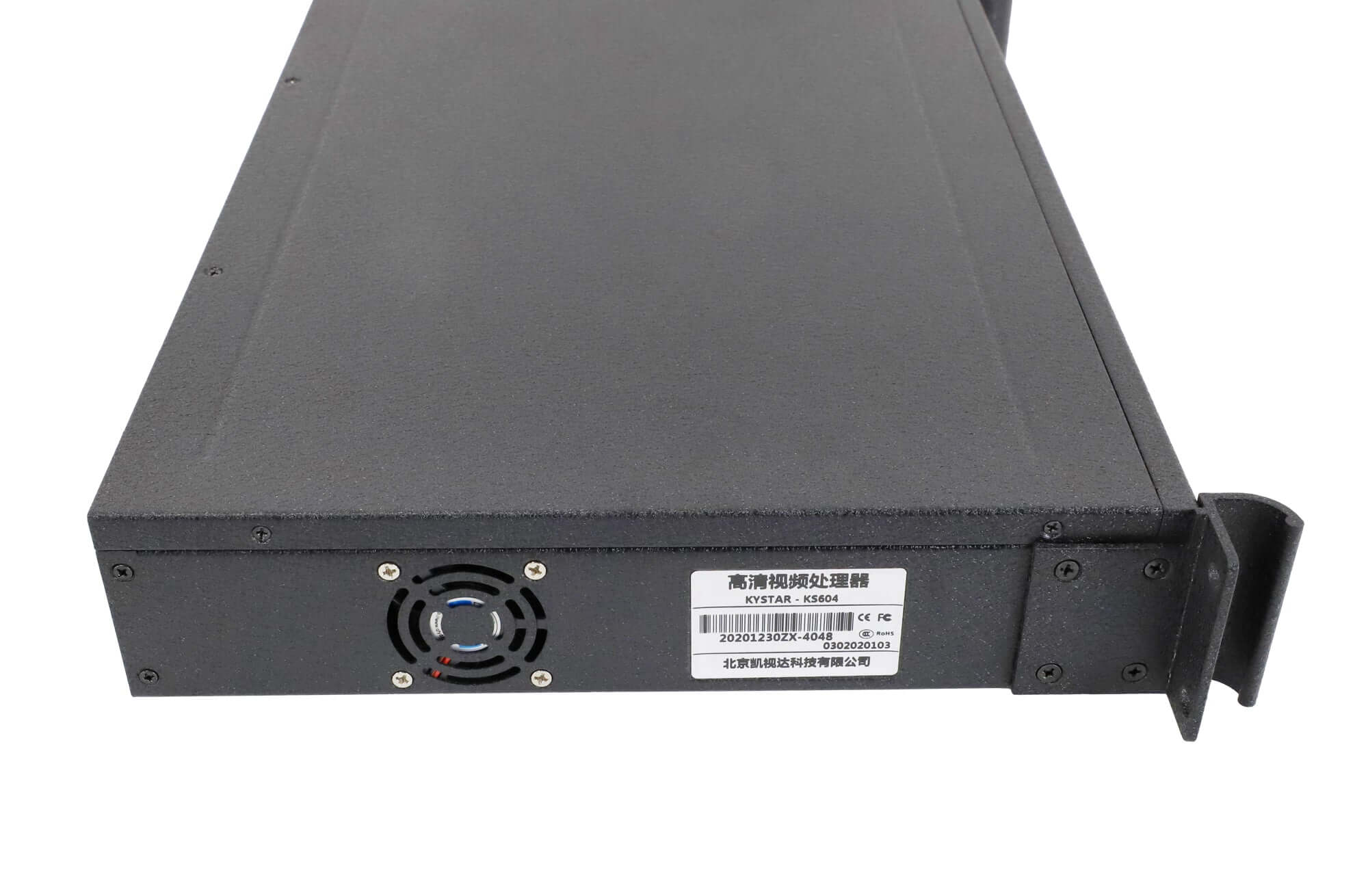

 Most pictures of KYstar KS604 Large Screen Sending Box For LED Screen Wall：


Download Specification

KYstar KS604 Large Screen Sending Box For LED Screen Wall Specification
