Interactive Floor LED Display-P2.5, P2.6, P2.9, P3.9, P4.8,P5.2,P6.25
Stable mask
Interactivity
IP54
High load-bearing capacity
Fast and Easy Maintenance
1500nits-1800nits
1920Hz ~ 3840Hz
14bitsSlim and lightweight design

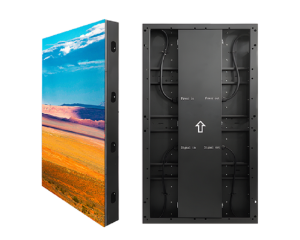

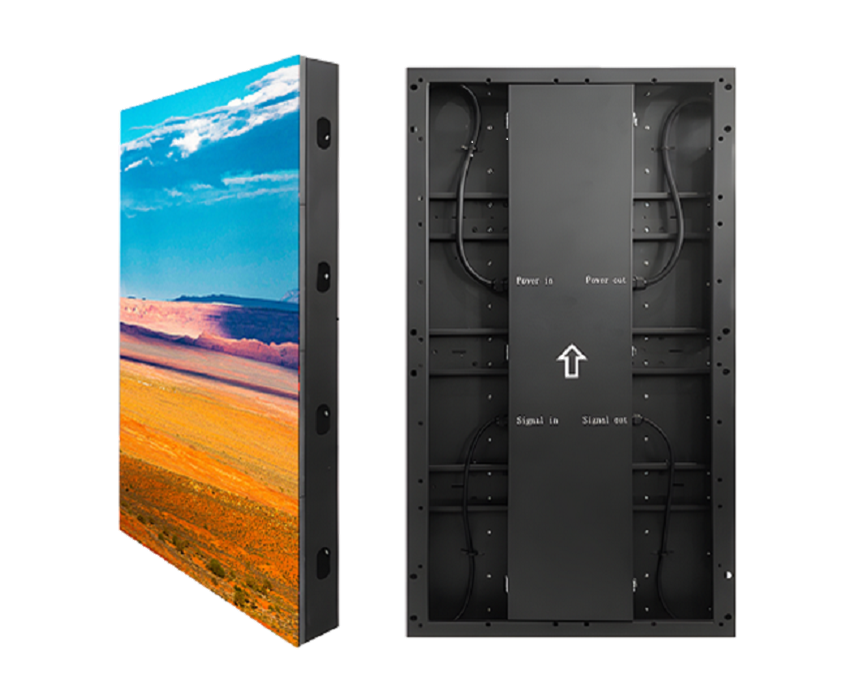

The iron led cabinet only weights 23kgs which is lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation and maintenance. 0.5m by 1m panel size can be easily assembled into big screen of different dimensions.
-

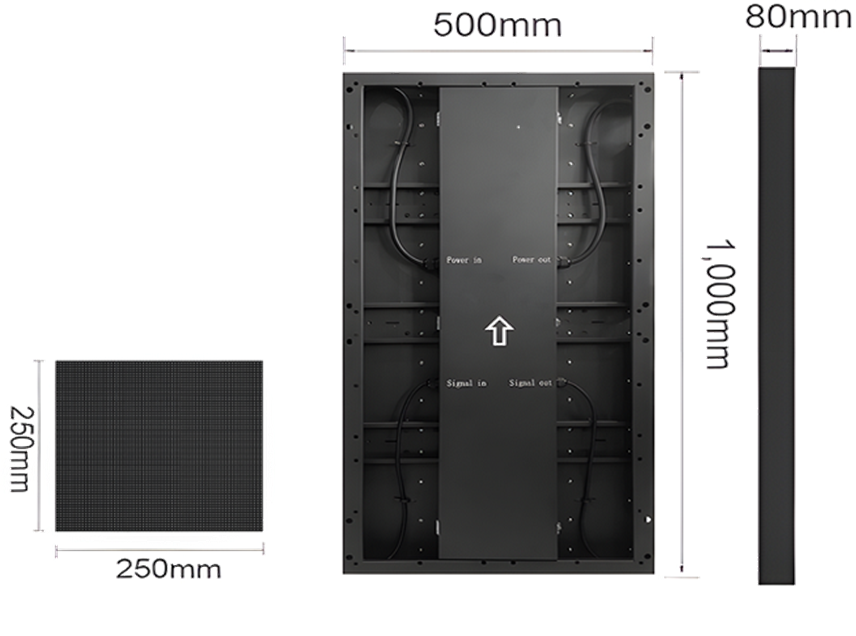

0.5m(w) x 1m(h)
-
80mm thickness
-
23kgs weight
The pixel pitch P2.5, P2.6, P2.9, P3.9, P4.8,P5.2, and P6.25 are available.
High Load-bearing Capacity

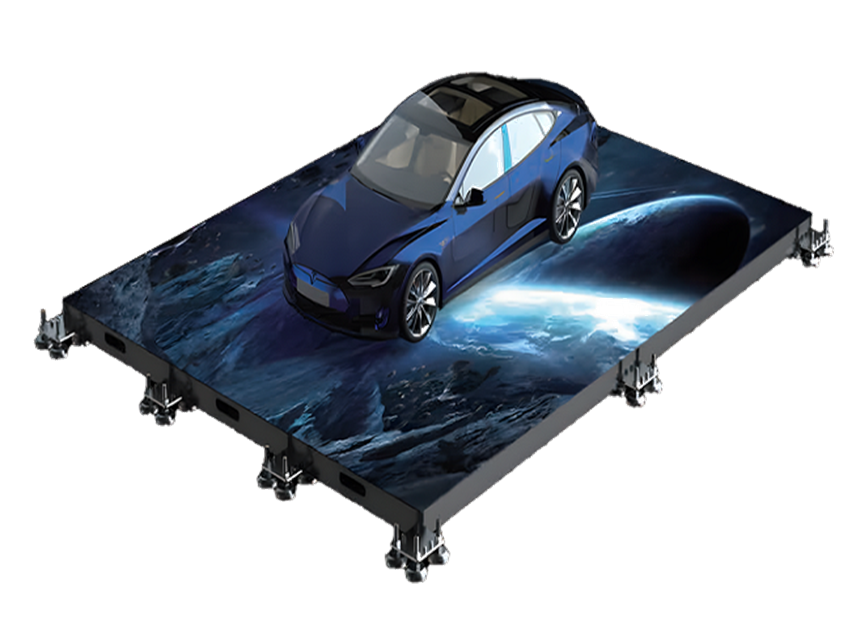

Each square meter can bear 2200kg It has excellent load-bearing performance thanks to the following points: 1) The cabinet material is strong, and the board is 1.5 2) Multilayer subdivision PC mask is used 3) One cabinet (is equipped) with 4 adjustable feets which support adjustable height: 130mm-170mm Special reinforcement structure and wire buckle design greatly enhance the stability of the cabinet.
Strong PC Mask Design
-
Using private mode anti-scratch mask
-
The mask convex design enhances the wear resistance and scratch resistance of the module surface
-
IP54. Protective rubber ring enhances waterproof performance
-
Enough distance reserved between the LEDs and the mask so the LEDs won’t be influenced when people standing on
-
Multilayer subdivision PC mask is stronger to realize high protection level

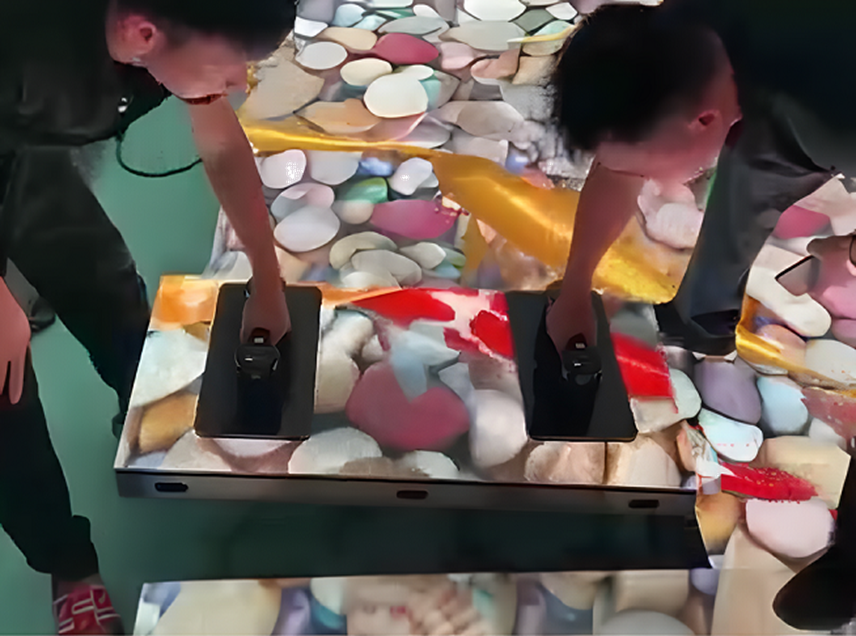

Interactive Induction
-

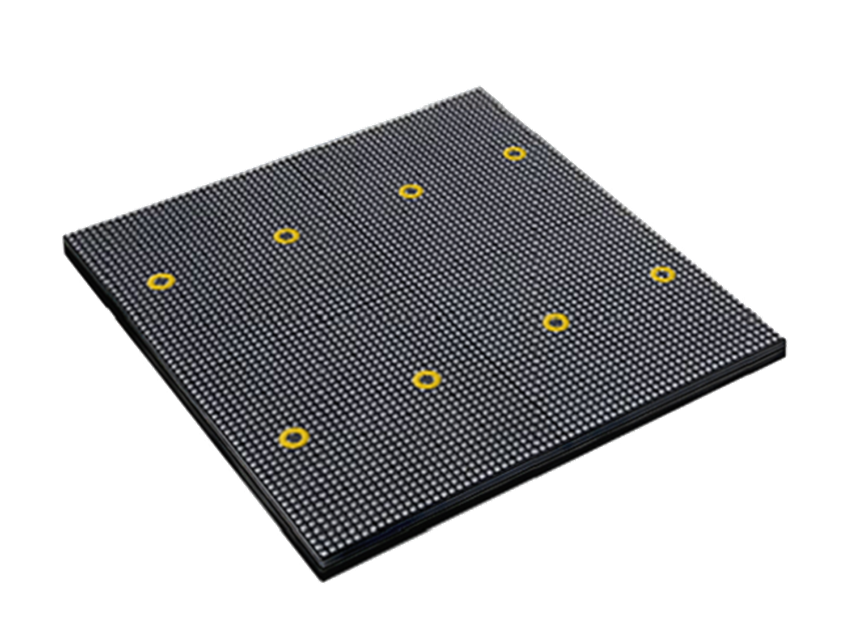

One module has 8 built-in chips to achieve the fast response time: 0.016s.
-
Adjustable sensitivity. The reaction speed and time can be changed on the software according to different needs.
-
The response speed of the built-in chip is much faster than that of the radar sensor.
Comparison of radar sensing and build-in chip sensing
Radar sensing sensitivity is lower than chip sensing.
Radar-sensed signals are vulnerable to interference,if the radar device is blocked, corresponding interaction will disappear.
The gravity sensing chip senses according to the force of people stepping on the ground,it can detect 1,000 people at the same time without any delay. There will be no failure point.

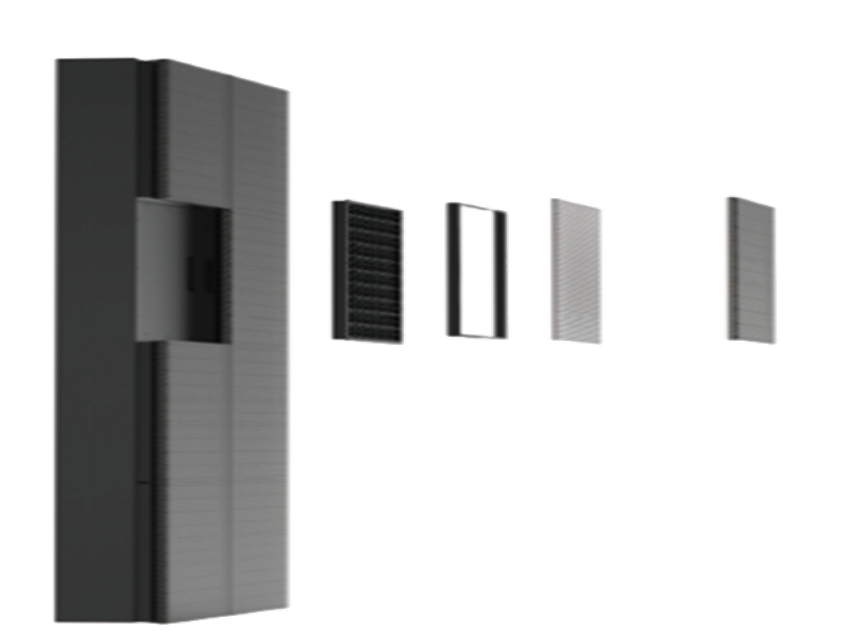

Cabinet Front Maintenance
Magnetic suction cabinet design, supporting arbitrary removal of the cabinet without affecting the normal operation of other parts. Also it’s more convinent for replacing the modules.
Good heat dissipation

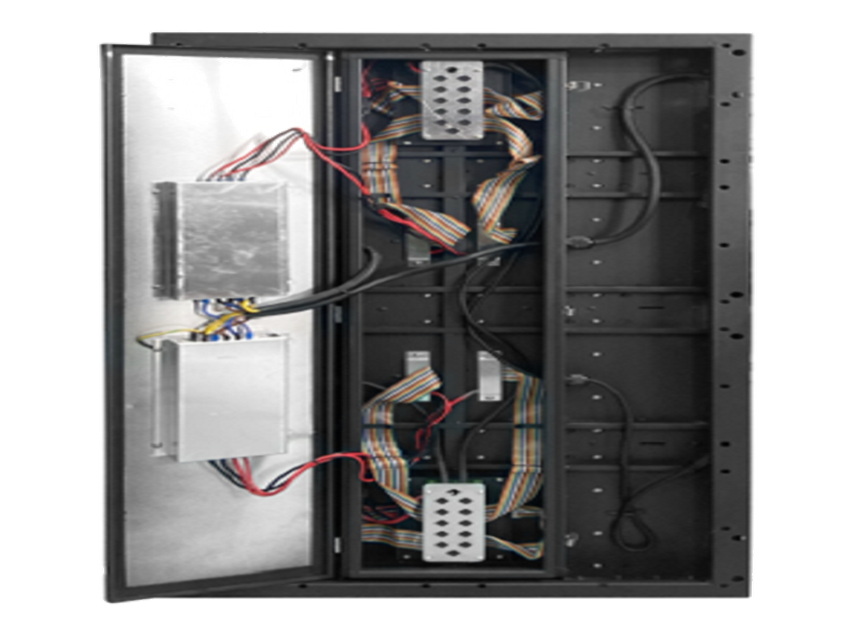

The back cover of cabinet and power box are made of aluminum, which makes the cabinet more durable and highly stable. Meanwhile, heat dissipation of aluminum is much better than other materials in the market. As the eletronic components can be cooled down quickly, their lifespan will be longer.

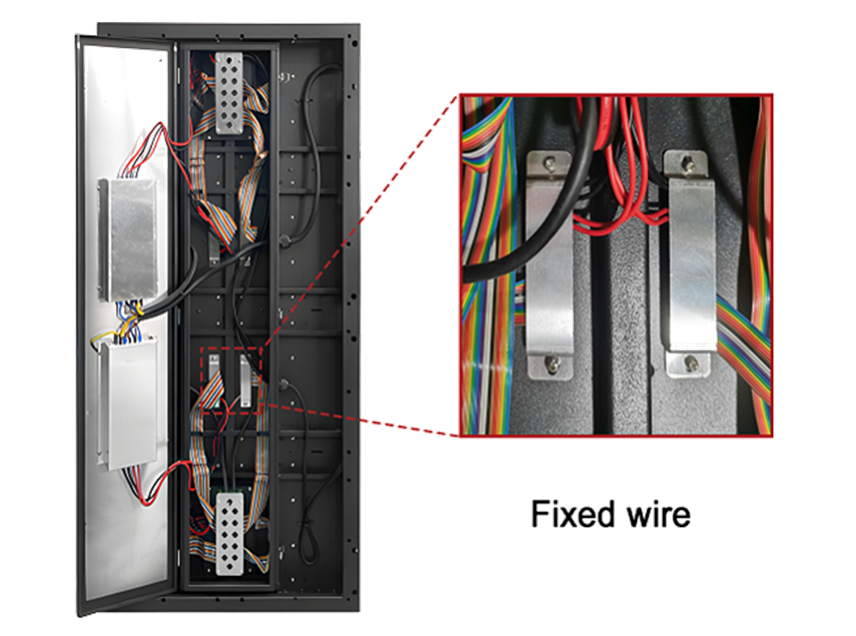

Patch design to fix cables
Each cabinet has patches for fixing cables.The vibration generated when stepping on the screen will not cause the wire to loosen. And the inner layout will be neater.
High brightness up to 6500nits
Unlike the regular indoor screens only reach 800nits brightness, our product can reach 6500nits since we use outdoor LEDs. And it has better moisture resistance.
Multiple installation modes
-

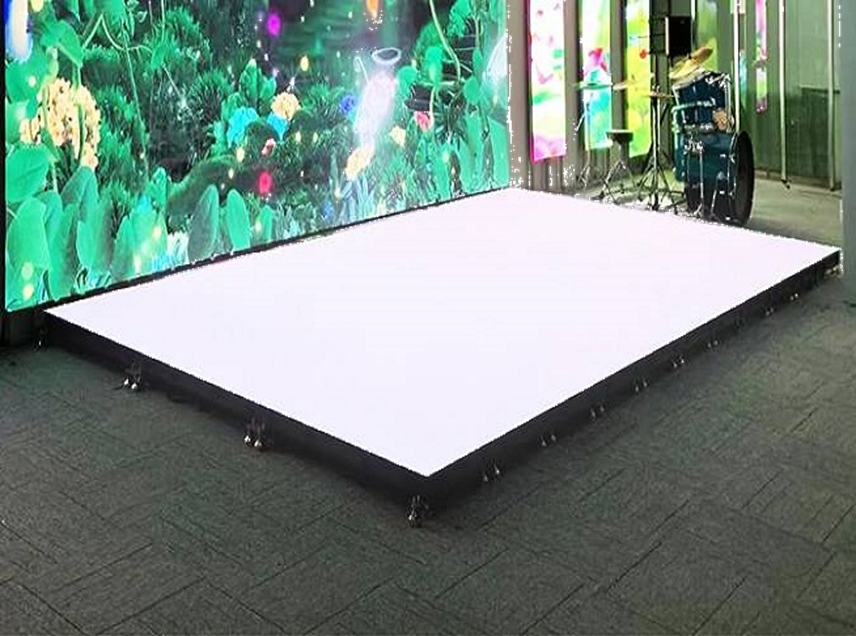

Tiled installation
-
Wall installation
-
Stairs installation
Application Fields
-

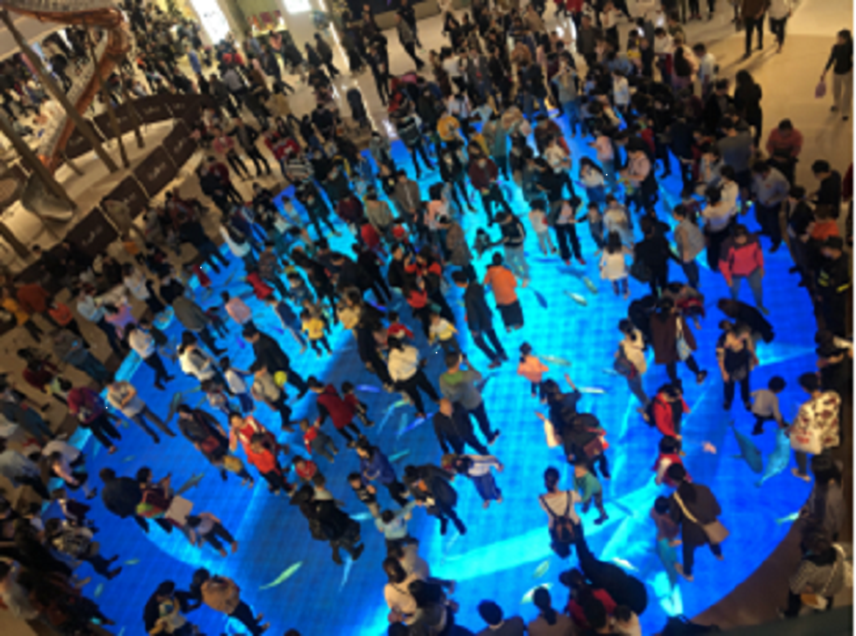

Shopping Mall
-

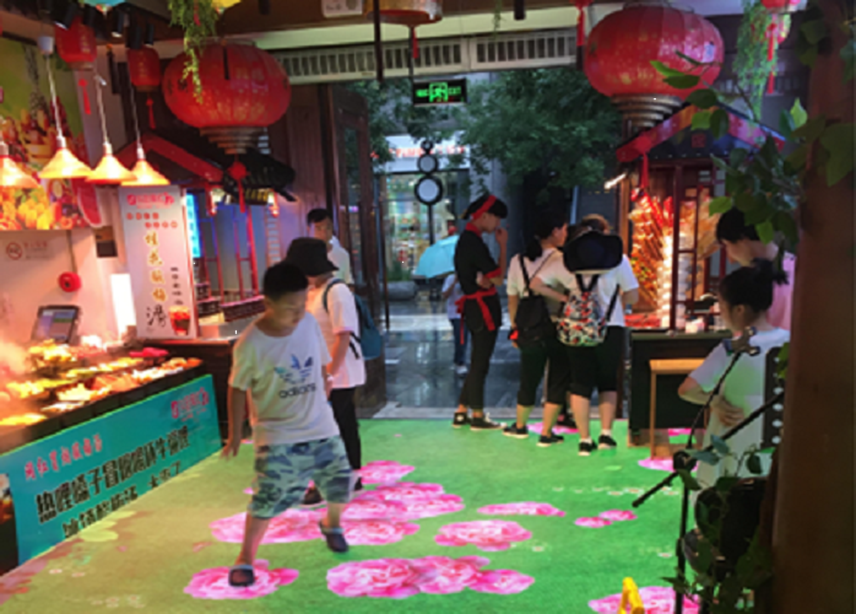

Hotel and Restaurants
-
Exhibition Center
-

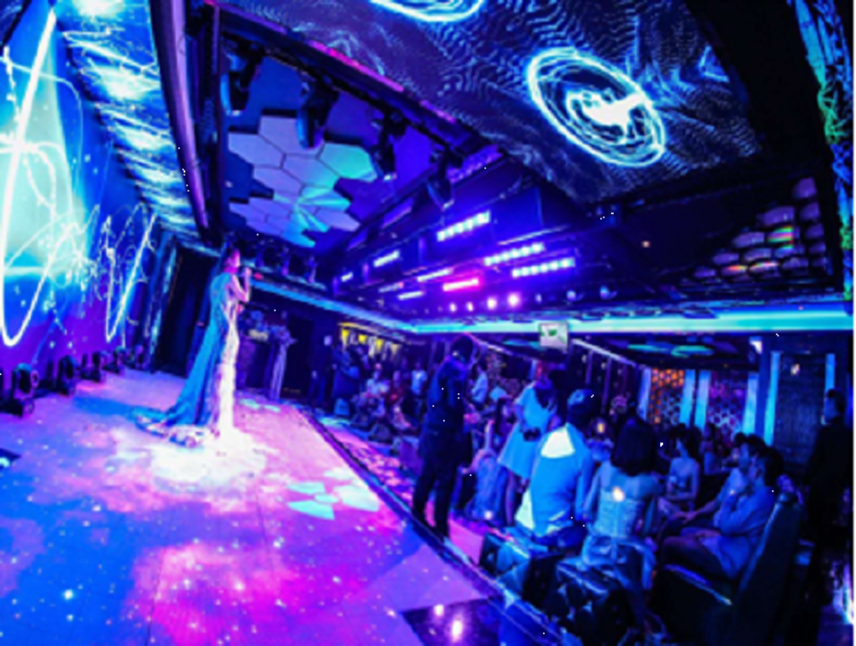

Entertainment Center
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P2.5
2.5
SMD1415
100dots x 100dots
1/21scan
10000dots
250mm x 250mm
500mm x 1000mm
200dots x 400dots
160000dots/㎡
≥2.5m
900nits-1500nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
-
P2.6
2.6
SMD1415
96dots x 96dots
1/21scan
9216dots
250mm x 250mm
500mm x 1000mm
192dots x 384dots
147456dots/㎡
≥2.6m
900nits-1500nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
-
P2.9
2.976
SMD1415
84dots x 84dots
1/21scan
7056dots
250mm x 250mm
500mm x 1000mm
168dots x 336dots
112896dots/㎡
≥2.9m
900nits-1500nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
-
P3.9
3.91
SMD1921
64dots x 64dots
1/16scan
4096dots
250mm x 250mm
500mm x 1000mm
128dots x 256dots
65536dots/㎡
≥3.9
900nits~1800nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
-
P4.8
4.81
SMD1921
52dots x 52dots
1/13scan
2704dots
250mm x 250mm
500mm x 1000mm
104dots x 208dots
43264dots/㎡
≥4.8
900nits~3000nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
-
P5.2
5.2
SMD1921
48dots x 48dots
1/12scan
2304dots
250mm x 250mm
500mm x 1000mm
96dots x 192dots
36864dots/㎡
≥5.2
900nits~3000nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
-
P6.25
6.25
SMD1921
40dots x 40dots
1/10scan
1600dots
250mm x 250mm
500mm x 1000mm
80dots x 160dots
25600dots/㎡
≥6.25
900nits~3000nits
IP54/IP45
1920-3840Hz
14bit
160°/160°(H/V)
400W/Panel
200W/Panel
100~240V AC 50-60Hz
-10℃~+60℃
10~90%RH
Iron
24kg
Windows(win7,win8,etc)
DVI , HDMI
