Leeman LED Screen 500X500 Outdoor Indoor P1.56, P1.95, P2.6, P2.9, P3.9, P4.8
Great Cabinet Design
Light Weight
Seamless Connection
Excellent Performance
Curve Capabilities
Easy Repair
1,920Hz～3,840Hz

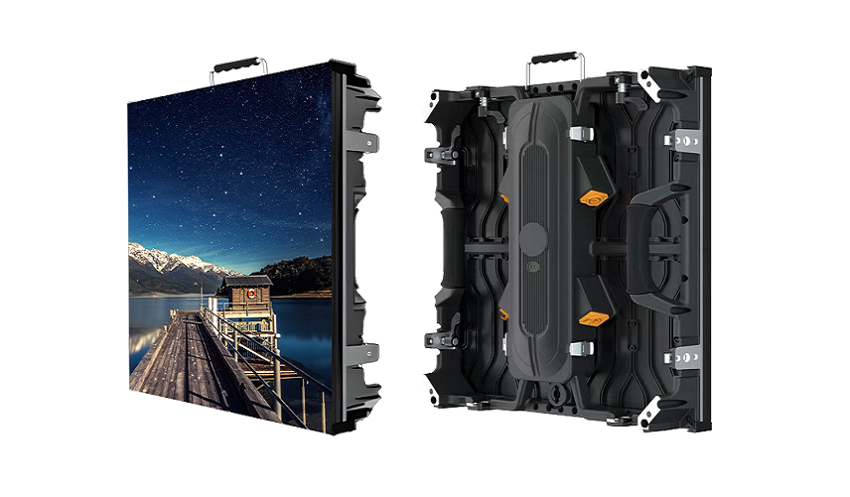

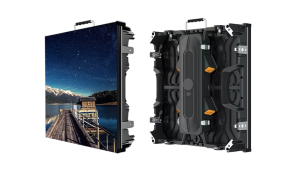

Various ShapesGreat Cabinet Design
-
Handle on the top brings convenience.
-
Protectors on the corner to protect the LEDs and cabinet
-
Fast lock for quick installation

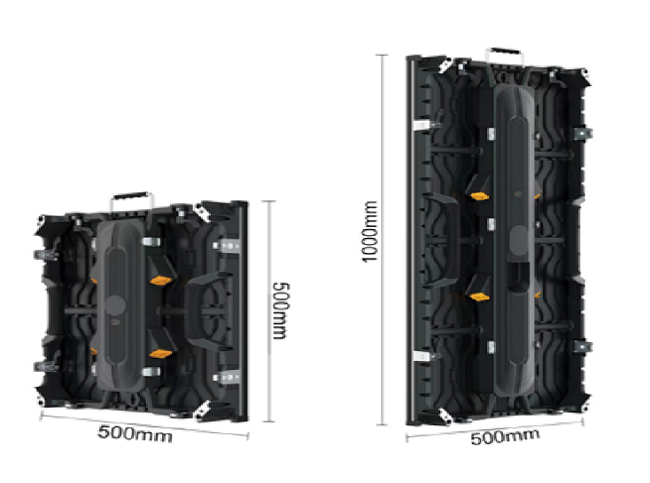

Two options: 500*500mm, 500*1000mm

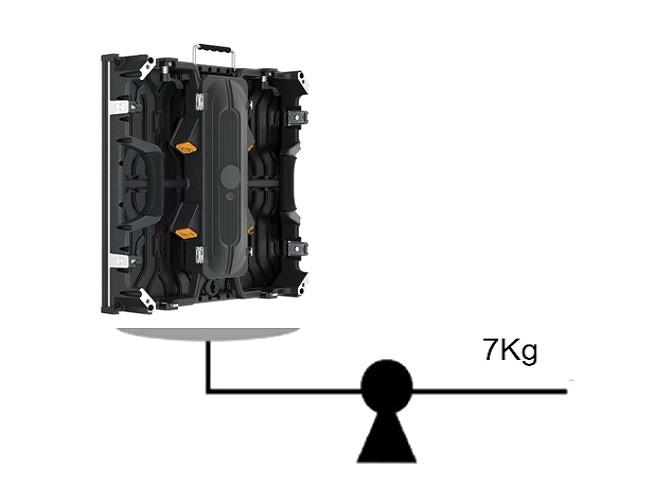

Light Weight
As the cabinet uses die-cast aluminum material, the weight of the panel is only 7 kgs, and it has great heat dissipation.

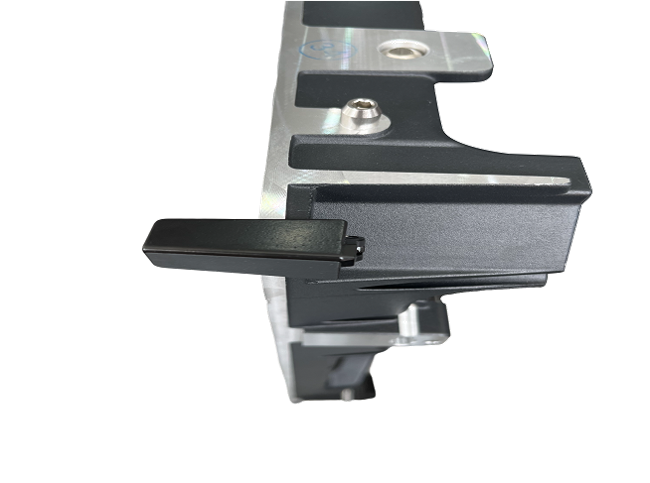

Corner Protection
Each cabinet corners are equipped with protectors, which can protect the cabinet and LEDs from damage caused by accidental collision.

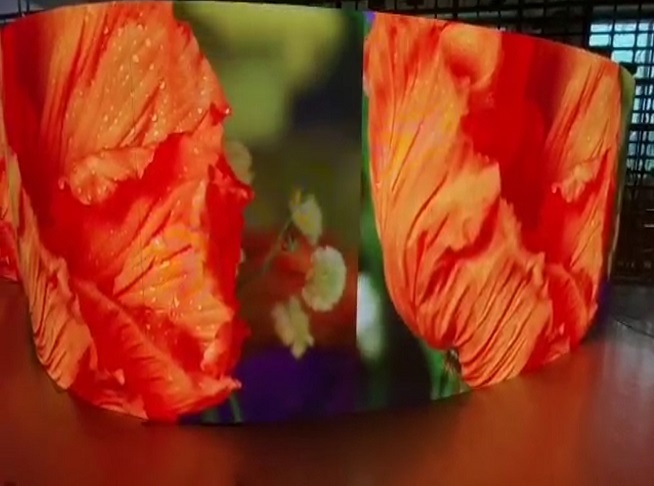

Curved Design
The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave)
Excellent visual effert
With its excellent video performance, create an immersive and dynamic visual experience. Provide viewers with a dynamic and engaging visual experience.
Application Fields
This indoor LED panel is usually be used for:
-
Activity;
-
Stages;
-
Exhibition hall;
-
Sports Events.
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Cabinet Weight
Cabinet Material
Input Voltage
Operating Temperature
Operating Humidity
Operating System
Signal Source Compatibility
-
P2.6
2.604mm
SMD1515
96dots x 96dots
1/32scan
9,216dots
250mm x 250mm
500mm x 500mm
192dots x 192dots
147,456dots/m²
≥2.6m
600nits~800nits
IP43
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
520W/m²
175W/m²
7kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/60Hz
﹣20℃~65℃
10%~90%
Windows(Win7,Win8,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P2.9
2.976mm
SMD1515
84dots x 84dots
1/28scan or 1/42scan
7056dots
250mm x 250mm
500mm x 500mm
168dots x 168dots
112,896dot/m²
≥2.9m
600nits~800nits
IP43
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
520W/m² or 300W/m²
100W/m²
7kg/panel or 14kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/60Hz
﹣20℃~65℃
10%~90%
Windows(Win7,Win8,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P3.9
3.906mm
SMD2020
64dots x 64dots
1/16scan
4,096dots
250mm x 250mm
500mm x 500mm or 500mm x 1,000mm
128dots x 128dots or 128dots x 256dots
65,536dots/m²
≥3.9m
800nits~1200nits
IP43
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
520W/m²
175W/m²
7kg/panel or 14kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/60Hz
﹣20℃~65℃
10%~90%
Windows(Win7,Win8,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P4.8
4.807mm
SMD2020
52dots x 52dots
1/13scan
2704dots
250mm x 250mm
500mm x 500mm or 500mm x 1,000mm
104dots x 104dots or 104dots x 208dots
43,264dots/m²
≥4.8m
800nits~1200nits
IP43
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
520W/m²
175W/m²
7kg/panel or 15kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/61Hz
﹣20℃~66℃
10%~91%
Windows(Win7,Win9,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.1, etc.
