Aggiungi al carrello
Colorlight Z6 Pro Professional LED Display Super Controller $16,000.00 Il prezzo originale era: $16,000.00.$15,950.00Il prezzo attuale è: $15,950.00.
Colorlight H16F-N LED Screen Video Wall Fiber Optic Transceivers $2,300.00 Il prezzo originale era: $2,300.00.$1,840.00Il prezzo attuale è: $1,840.00.
In offerta!

Colorlight Z4 4K UHD LED Controller integrated with Video Splicer Switcher

Il prezzo originale era: $5,372.92.Il prezzo attuale è: $4,904.41.

-9%

Overview Z4 is a professional LED display controller. As video splicer, processor and sender in one combined, Z4 has high capability of video signal reception, processing and transmission….

Add to Cart

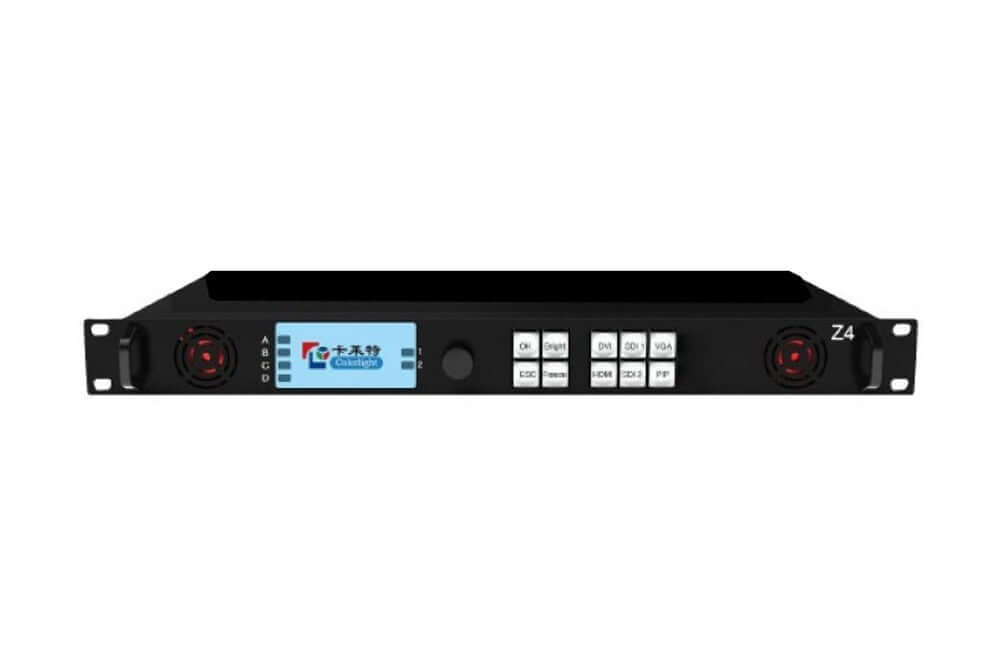

Colorlight Z4 4K UHD LED Controller integrated with Video Splicer Switcher
$5,372.92 Il prezzo originale era: $5,372.92.$4,904.41Il prezzo attuale è: $4,904.41.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Colorlight Z4 4K UHD LED Controller integrated with Video Splicer Switcher
$5,372.92 Il prezzo originale era: $5,372.92.$4,904.41Il prezzo attuale è: $4,904.41.

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Overview
Z4 is a professional LED display controller. As video splicer, processor and sender
in one combined, Z4 has high capability of video signal reception, processing and
transmission. It achieves excellent high-definition images and flexible image control
function. Z4 can be applied to popular rental display and common fixed display
perfectly.


Features
Video input ports including 1xHDMI(with loop), 1xDVI(with loop), SDI×2, VGA×1;
Input resolution up to 1920×1200@60Hz;
Support PIP and picture window roaming, the location and size of PIP can be adjusted freely;
Support 12bit HD video source;
Loading capacity: 2.3 million pixels; Maximum Width: 4096 pixels, Maximum Height: 4096 pixels;
Support splicing and cascading among several controllers with synchronization strictly;
Support brightness and chromaticity adjustment, color gamut transformation;
Support zero latency of sending;
Support improved gray-scale at low brightness;
Support HDCP1.4;
Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.



The Front Panel

NO Name Function
1 1.8-inch LCD Display operation menu and system information
2 Knob Turning knob to select or adjust
OK：Enter key
3 Function keys ESC：Escape current operation or selection
Bright：Brightness option
Freeze：Freeze screen
PIP：PIP switch
4 Selection keys DVI/HDMI/SDI1/SDI2/VGA：set up video source input





The Back Panel

Input Interface
1 HDMI HDMI1.4 input with loop
2 DVI DVI input with loop
3 SDI 2x3G-SDI inputs
4 VGA VGA input
Output Interface
1 Fiber Output  2 singlemode LC fiber outputs
2 Gigabit Ethernet 4 Gigabit Ethernet outputs
3 HDMI HDMI monitoring output



Controlling Interface
1.100M Ethernet            Network Control (communication with PC,
or access network)
2.USB_OUT                         USB output, cascading with next controller
3.USB_IN                             USB input, connection with PC to configure
parameters of display image
5.GENLOCK_LOOP            Genlock signal loop output



Download Specification:
Colorlight Z4 4K UHD Video Processor Specification

Informazioni aggiuntive

Peso 20 kg
COD: 6809815908543 Categoria: Tag: ,
