Outdoor Front Service LED Display 960×960

$540.00 – $790.00

1. The displays price include charge for DDP By Sea;
If you want to via DHL, need add 10-15USD/Kg;
2. The displays include power supply & receiver card;
3. Need to buy from the whole cabinet (1Pcs/40Kg);
4. Conventional(HS/RS LED+DP/FM) ship in 10-15 days;
Customized(Nationstar+ICN) ship in 20-25 days, MOQ=50Pcs;
5. Mandatory 72 hours aging test before dispatch;
6. Warranty 3 years free, return to factory, pay freight by sender.

Outdoor Front Service LED Display 960x960

$540.00 – $790.00

Model: No selection

Quick add

Ledic: No selection

Quick add

Svuota

Descrizione
Informazioni aggiuntive

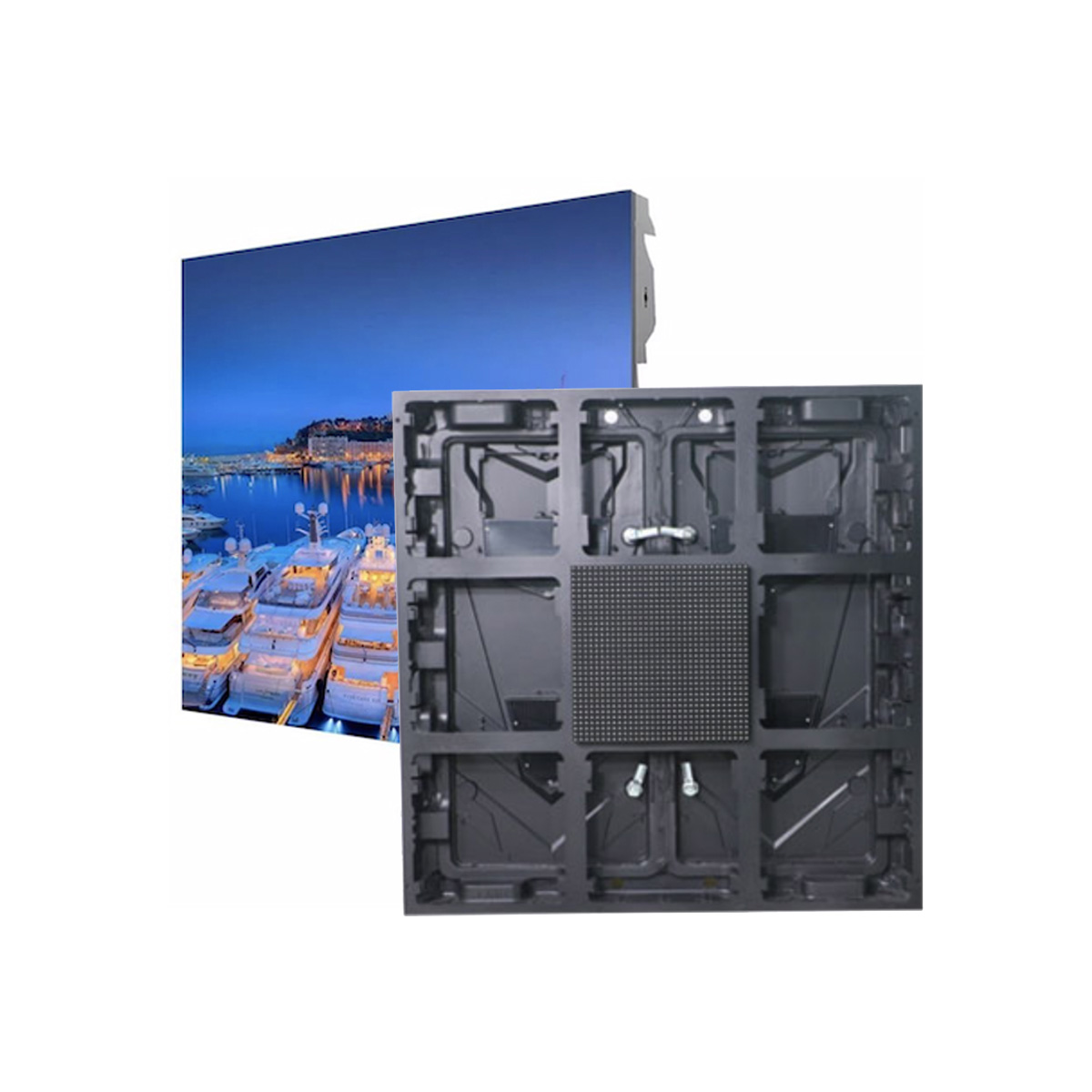

Product Features Introduction of Outdoor Front Service LED Display 960×960

Fix the led modules behind the cabinet (front or rear installation), specially developed for both front and back sides maintenance of the led display with limited space superior solution for outdoor branding.

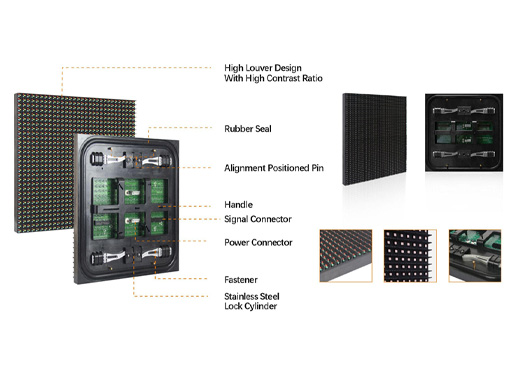

1. This series led display uniformly uses 960*960mm alloy die-casting waterproof and 320*320mm led modules, with optional pitches of P4/P5.3/P6.67/P8/P10 to meet the needs of different scenarios.

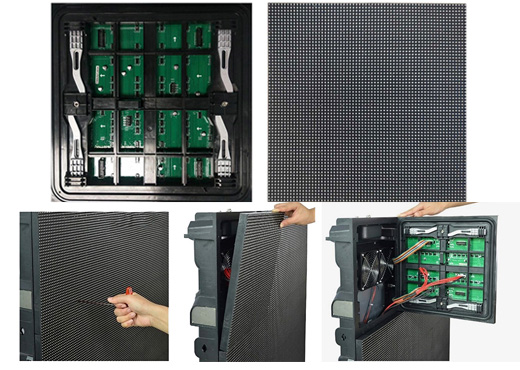

2. Dual-maintenance, both the front side and back side. People usually use its front maintenance function. Easy maintenance, easy to take the modules with a hexagonal screwdriver. No screws, easier to take the modules and mount the modules on the cabinet.

3. High brightness: reliable smd three-in-one led packaging technology and advanced calibration technology ensure that the brightness of our led screen can reach above 7500cd/m2, and still keep the picture clear without flickering or distortion.

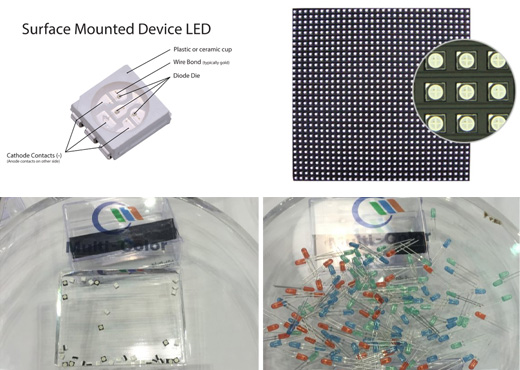

4. Various configurations are available: HS/RS LED, kinglight or nationstar, and IC can be MBI5124, ICN2153, ICN2038S or FM6323 with high refresh rate (1920-3840Hz) and high gray scale.

5. Large angle, wide field of view: vertical angle of 140°, horizontal viewing angle of 140°; which is very wide, allowing viewers to fully watch the content from different angles.

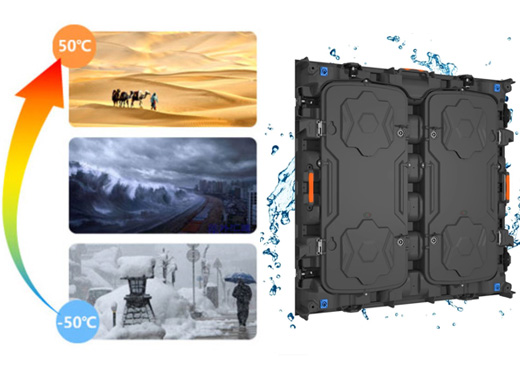

6. Adopt high-standard sealing protection, reach IP65 high protection level, ensure that the led display cabinet is dustproof, waterproof, corrosion-resistant, and can work normally under any weather conditions.

Purchase Notes about Front Maintenance LED Display

1. Please purchase enough led displays and spare module and control card parts (3-5%) to build the overall led screen, as the same batch of led modules will use the same batch leds, ICs, and capacitors to ensure the same brightness, color temperature, angles and software settings;

2. The conventional configuration finished display (HS/RS LED+DP/FM) usually have in stock and can be shipped within 10-15 days; Customized items (Nationstar + ICN/MBI) can be shipped within 20-25 days, and require MOQ=50Pcs;

3. Our led modules/screen can be matched with mainstream led control systems such as Novastar, Linsn, and Colorlight, you can ask our sales staff for relevant settings files;

4. Our led modules/displays are provided with the necessary data ribbon cables and power cables for free. If you need special cables, additional charges will be required;

5. Our modules/displays are tested for 72 hours of aging before dispatch, white balance aging for 48 hours and video aging for 24 hours;

6. The led modules/display price include charge DDP By Sea(20-25 days) but not include destination tariffs; if you want to via DHL(5-7 days), need add 10-15USD/Kg, please contact our sales to get specific charge.

7. Our led modules/displays have 3-year free warranty, returned it to the factory for repair, and the sender pays the freight.

Outdoor Front Installation 960*960mm Series Technical Parameters


1. Basic Parameters
Pixel Pitch	4	5	6.67	8	10
Module Size	320*320mm	320*320mm	320*320mm	320*320mm	320*320mm
Resolution/Pixels	80*80	64*64	48*48	40*40	32*32
LED (HS/RS/NATIONSTAR)	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535
Driver IC	DP5125/ICN2153	DP5125/ICN2153	DP5125/ICN2153	DP5125/ICN2153	DP5125/ICN2153
Driver Mode	1/10	1/8	1/6	1/5	1/2
2. Electricity Parameters
Brightness(Nits)	≥4500	≥4500	≥4500	≥4500	≥4500
Gray Scale	8bits input, correction with 16bits
Display Color	16.7M
View Angle	140 degree ( horizontal) 140degree(vertical)
View Distance	1m-30m
3. Driver Power Supply
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	1000 W/m2
Average Power Consumption	350 W/m2
4. Control System
Refresh Frequency	1920/3840Hz	1920/3840Hz	1920/3840Hz	1920/3840Hz	1920/3840Hz
Correction Scale Level	16bits
Frame Update Frequency	60Hz
Gamma Correction	-5.0—5.0
Color Temperature	5000-9300 adjustable
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
5. Reliability
Operating Temp	-20-60 Celsius Degrees
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Protection Level	IP65
Out of Control Pixel Rate	0.01%
Continuous Working Time	≥48 hours

Peso	N/A
Dimensioni	N/A
Model: No selection	P10, P4, P5, P6.67, P8
Ledic: No selection	HS/RS LED+DP/FM, Nationstar+ICN
