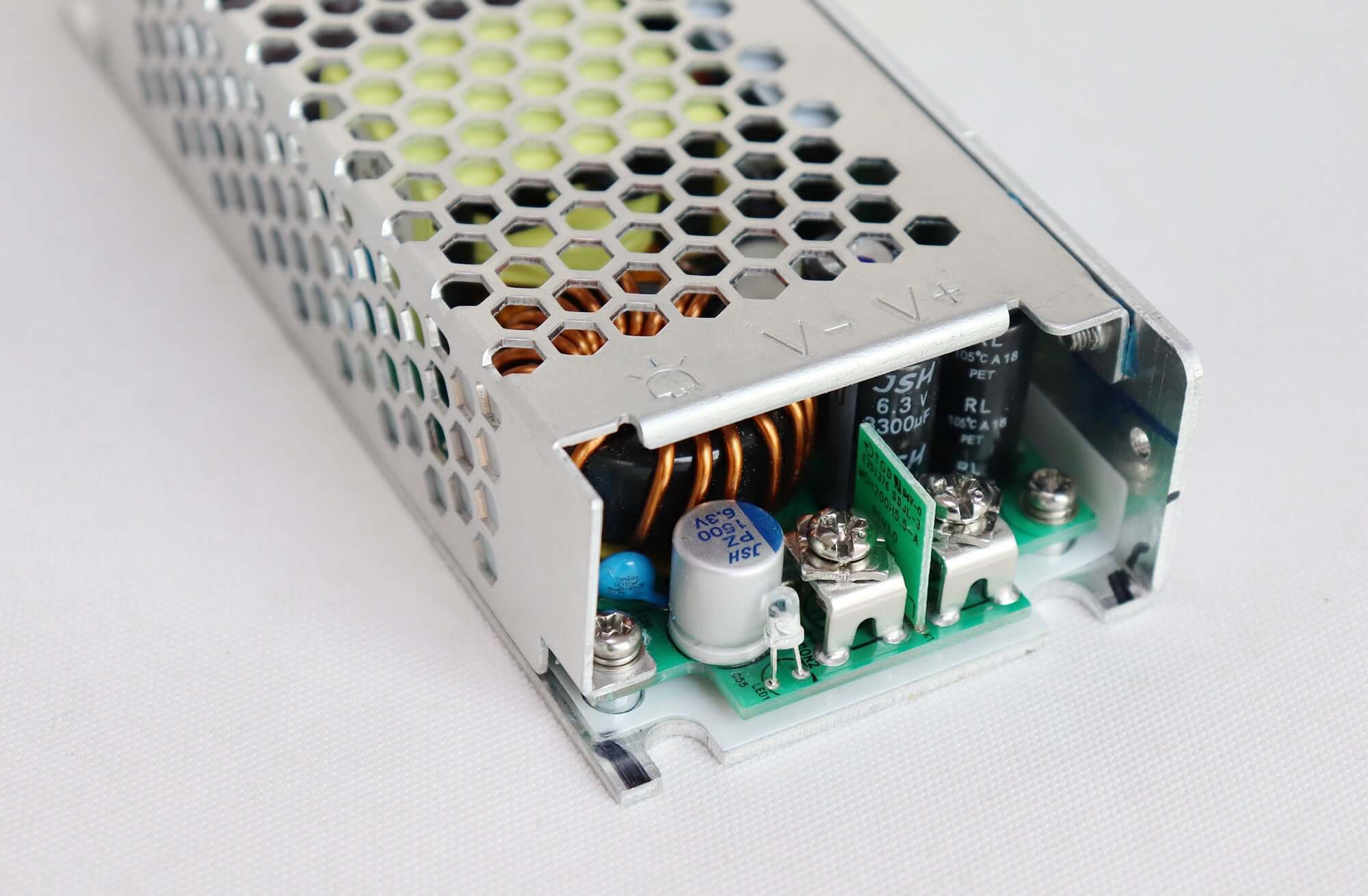

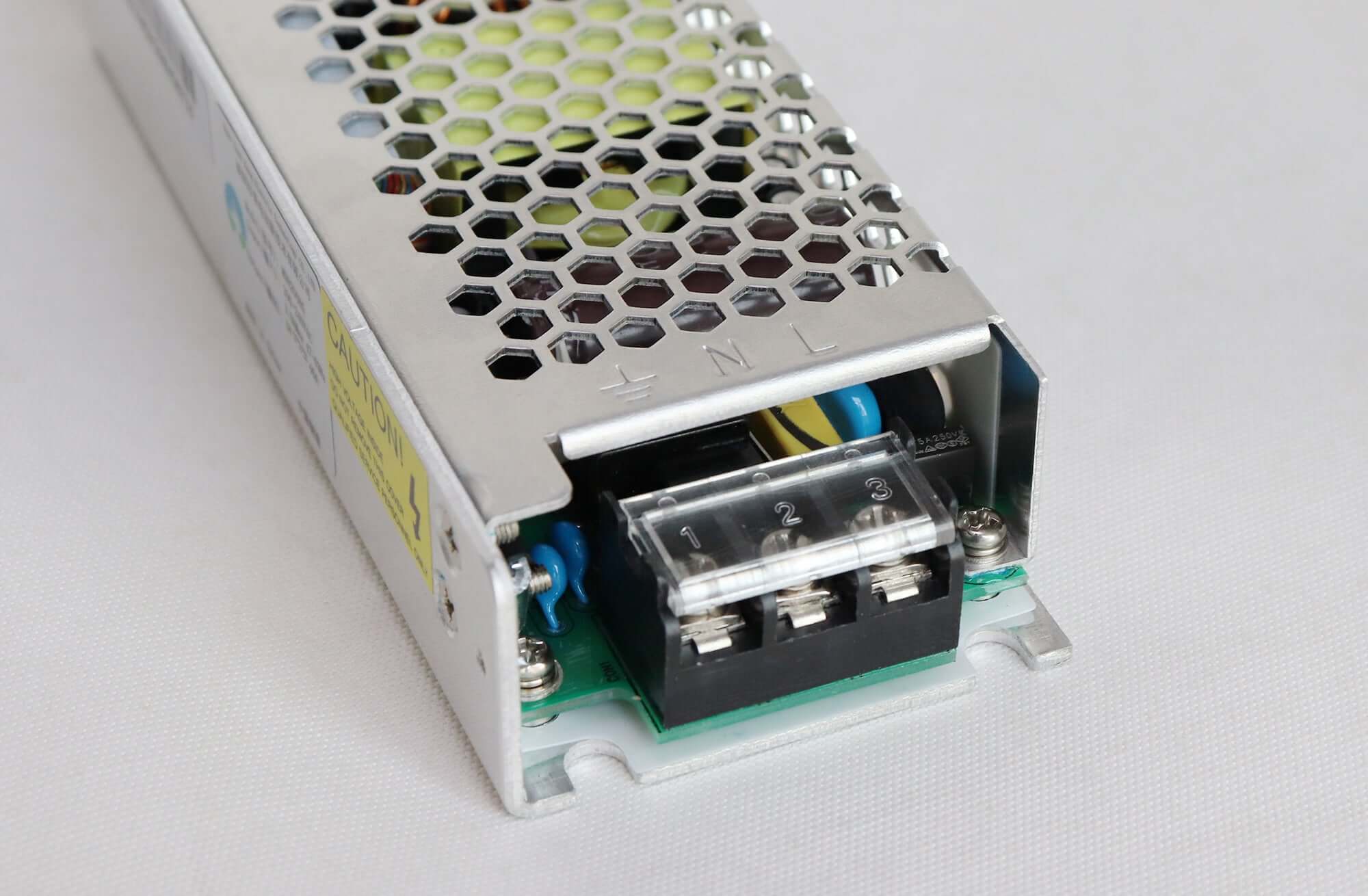

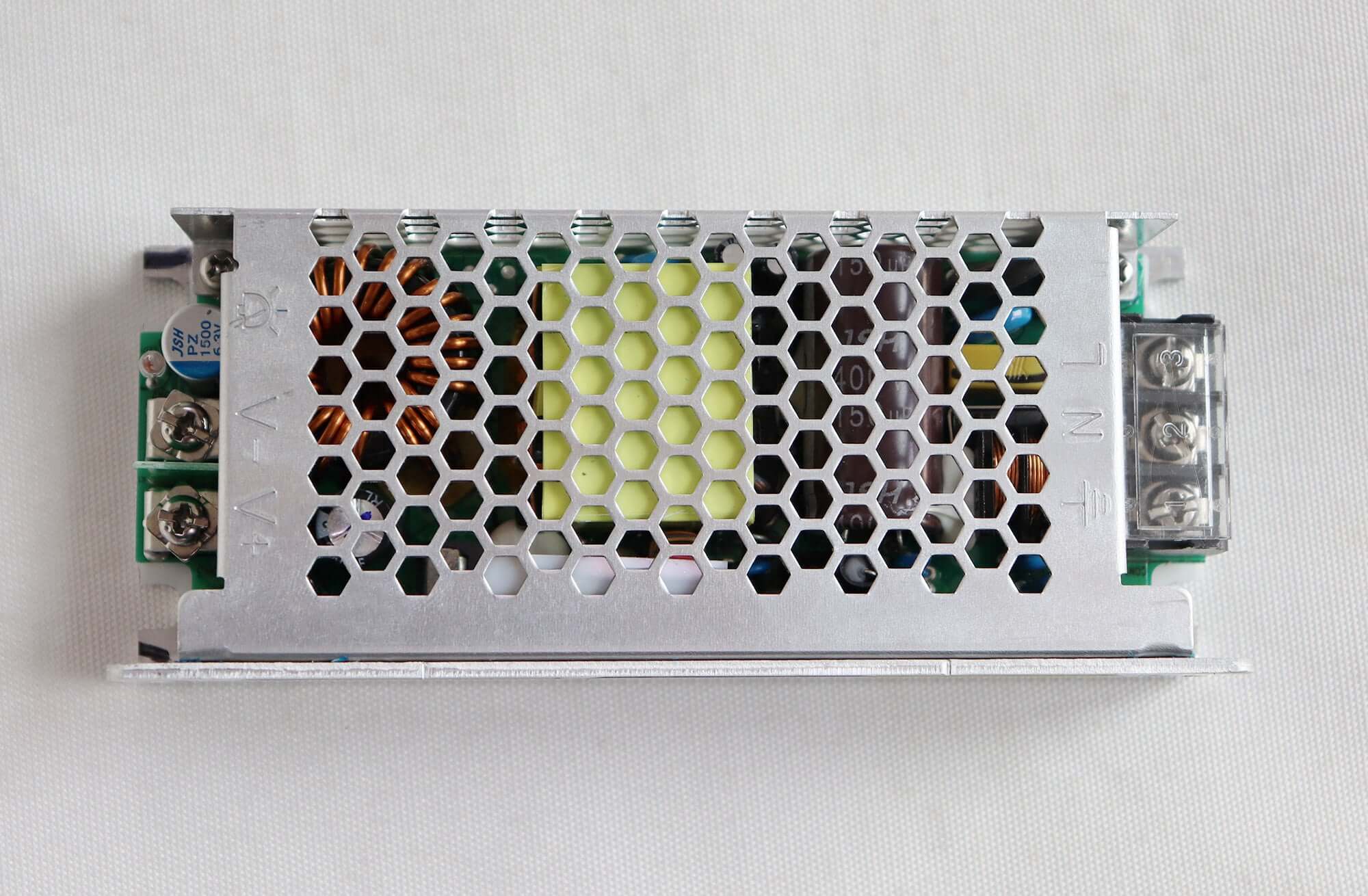

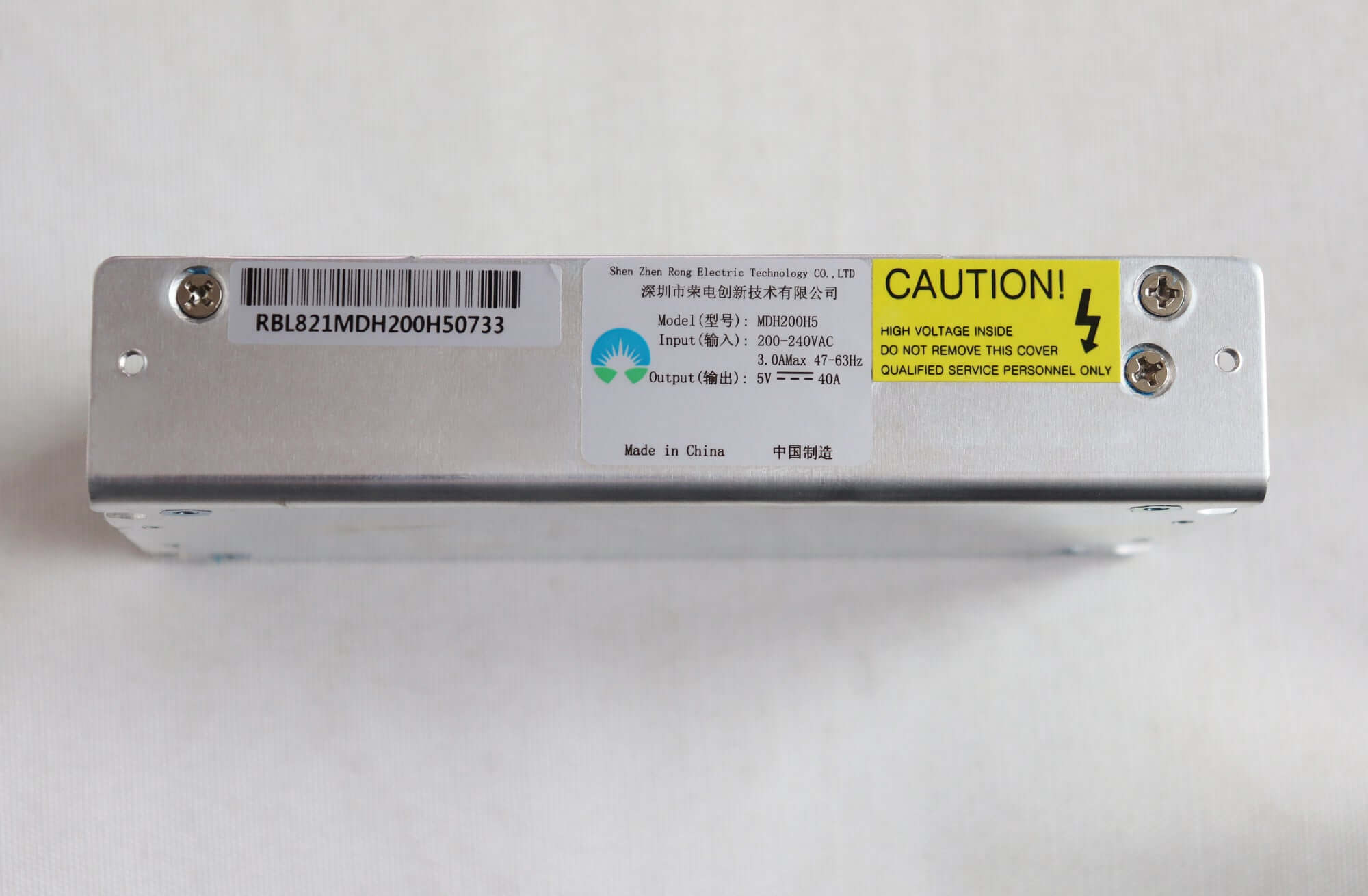

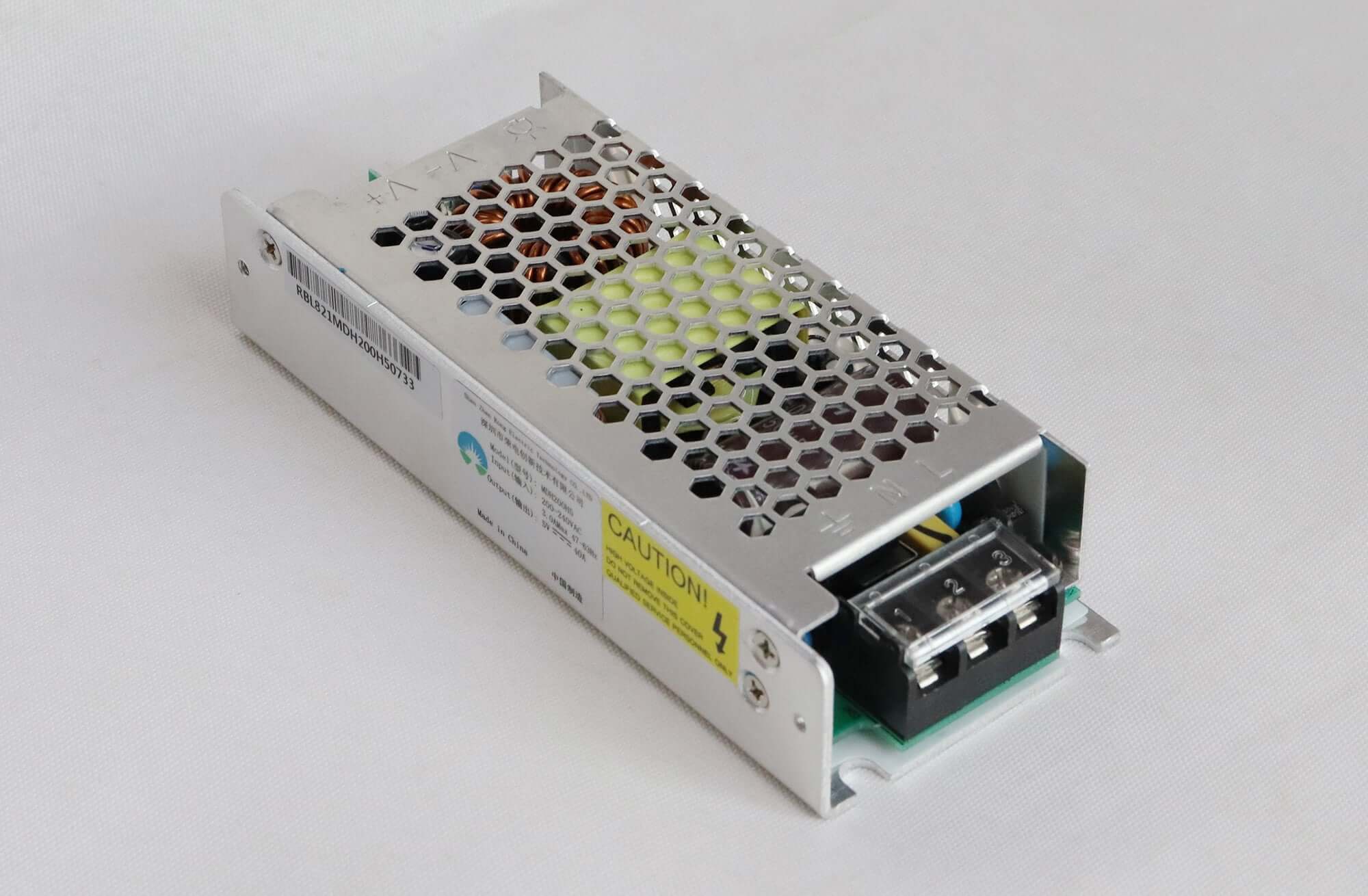

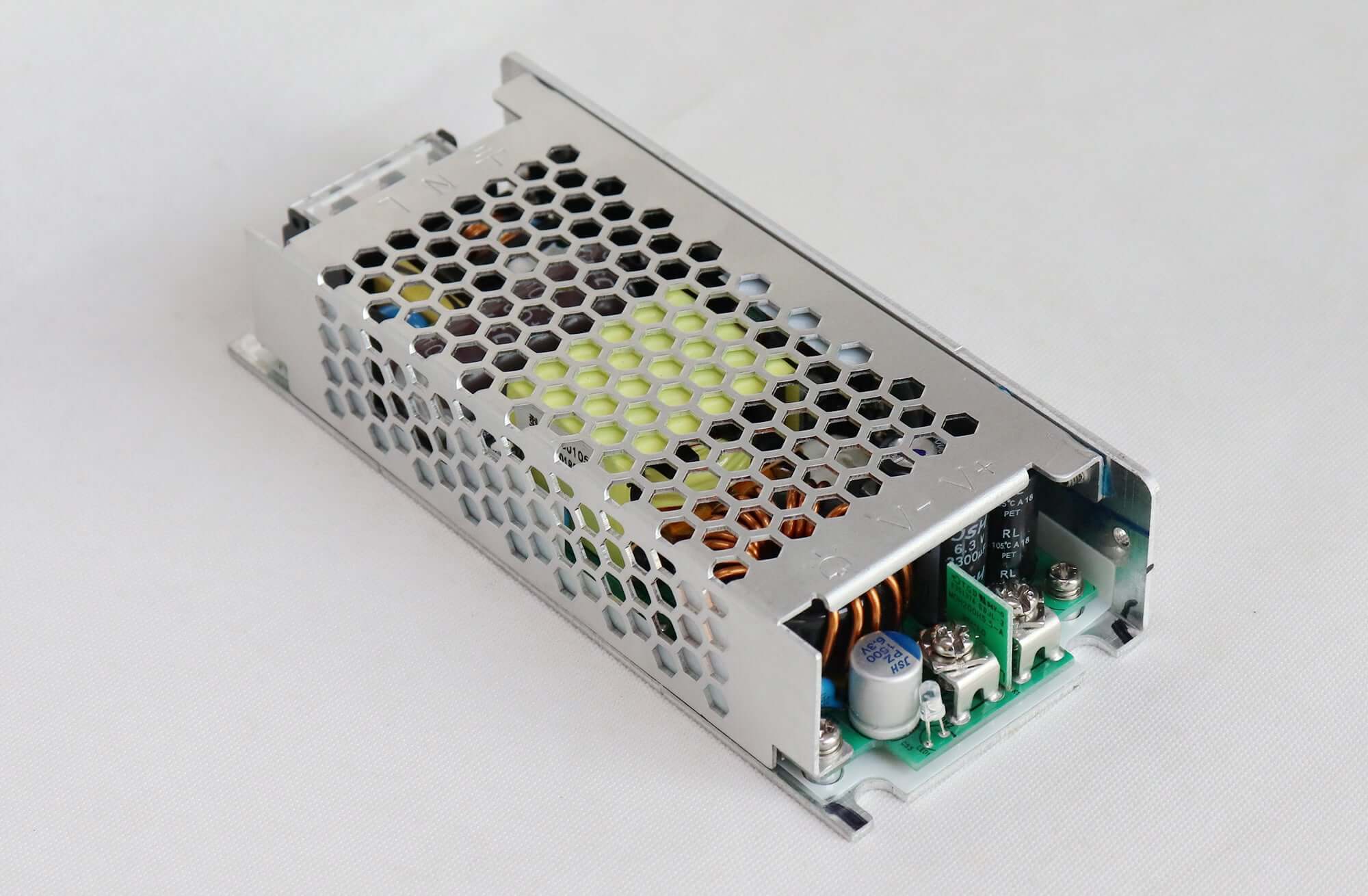

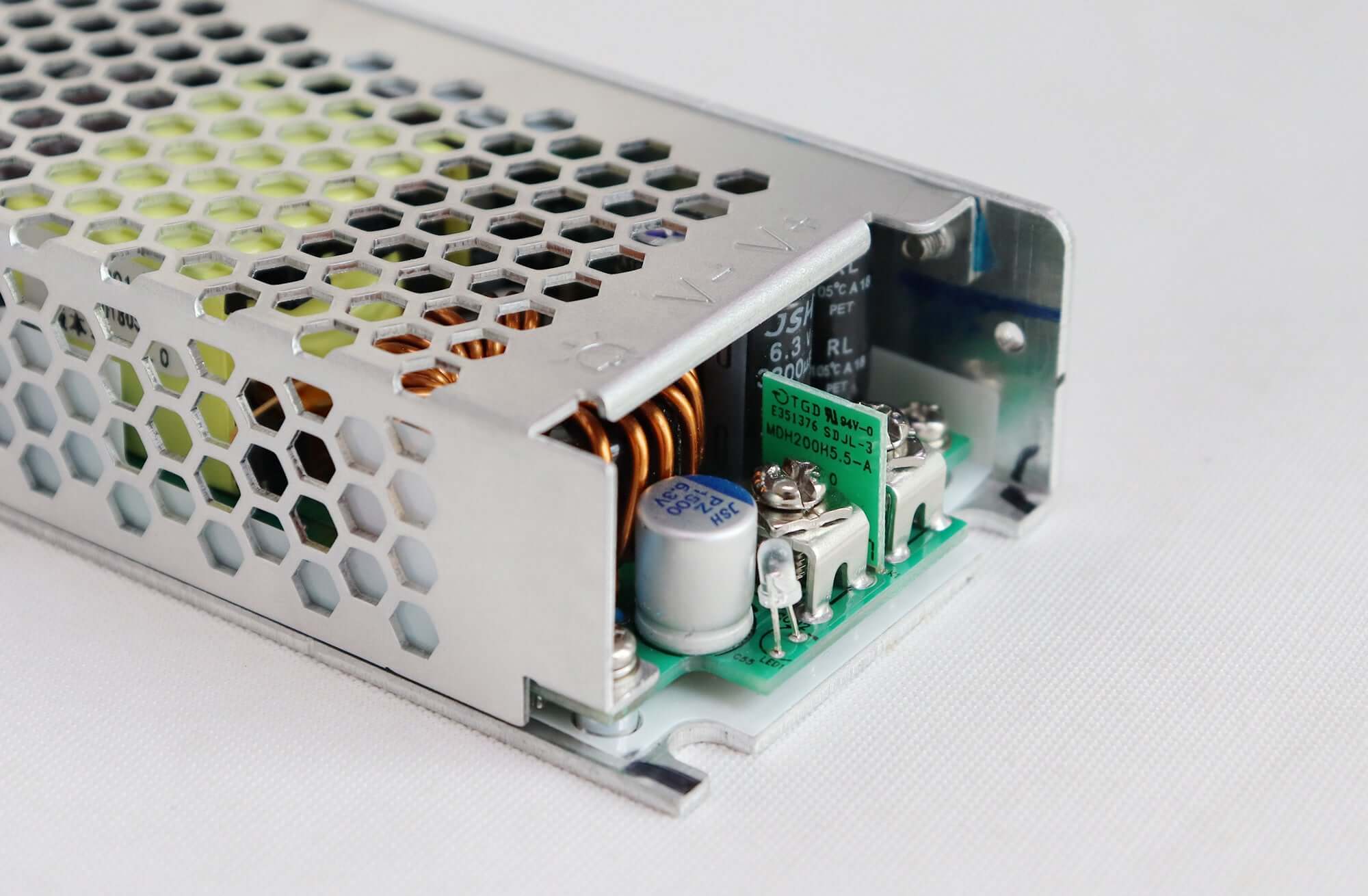

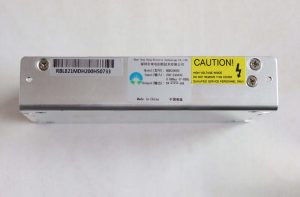

Rong-Electric MDH200H5 LED Screen Power Supply For Transparent LED Video Wall

$13.00

Rong-Electric MDH200H5 LED Screen Power Supply For Transparent LED Video Wall Feaetures: 2.43 MDH200H Series Input Voltage:186-264Vac, 47-63Hz      Output Power:200W Max Insulation:I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac      Leakage Current:0.30mA@230Vac      Protection Function:Input Undervoltage,Over Load,Short,etc.  Operating Temperature:-30~+60℃      Storage Temperature:-40~+100℃   Safety Standards:GB4943,EN60950 Cooling Mode:Self-cooling        dimension:142*58*30mm   Item No Type Output Voltage…

Add to Cart
Rong-Electric MDH200H5 LED Screen Power Supply For Transparent LED Video Wall
$13.00

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Rong-Electric MDH200H5 LED Screen Power Supply For Transparent LED Video Wall
$13.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Rong-Electric MDH200H5 LED Screen Power Supply For Transparent LED Video Wall Feaetures:

2.43 MDH200H Series
Input Voltage:186-264Vac, 47-63Hz
Output Power:200W Max
Insulation:I/P-O/P:3.0KVac;I/P-FG:1.5KVac;O/P-FG:0.5KVac
Leakage Current:0.30mA@230Vac
Protection Function:Input Undervoltage,Over Load,Short,etc.
Operating Temperature:-30~+60℃
Storage Temperature:-40~+100℃
Safety Standards:GB4943,EN60950
Cooling Mode:Self-cooling
dimension:142*58*30mm



Item No Type Output Voltage Output Current Ripple & Noise Effi.
MDH200H5 CV 5V 40A < 150mV 0.89
