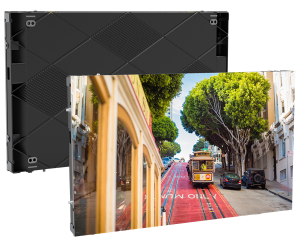

High Definition 16:9 COB LED Display Screen P0.62/ P0.78/ P0.93/ P1.25/ P1.56/ P1.87mm
High Resolution
16:9 Aspect Ratio
Seamless Connection
3840Hz~7680Hz
Large Viewing Angle
Strong Module
Front Access
Easy Maintenance

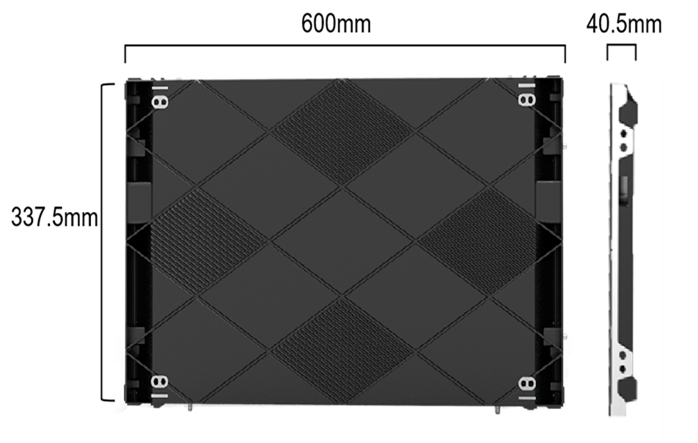

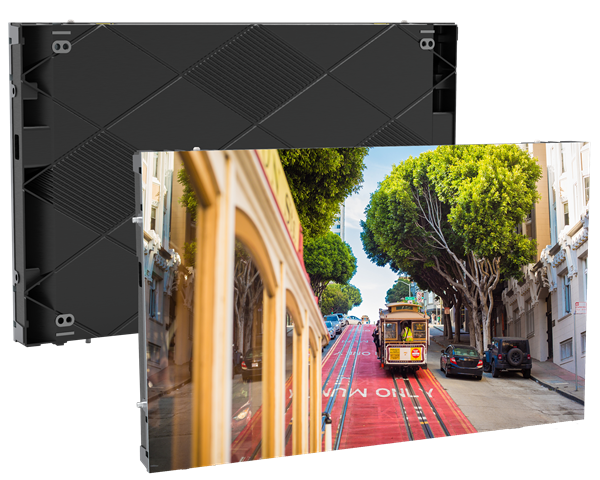

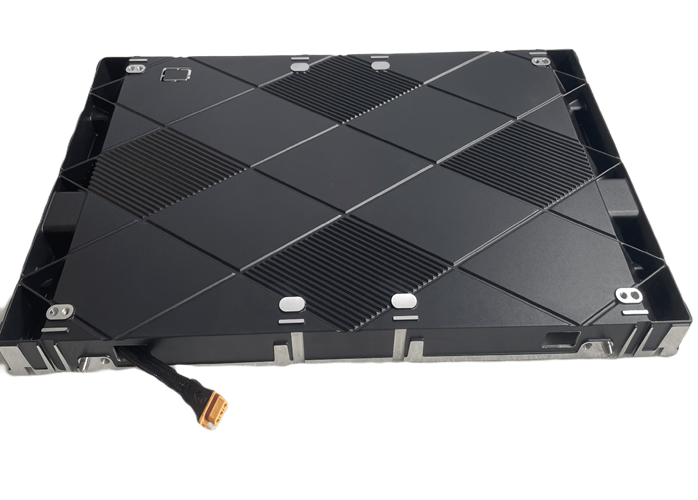

Die-Casting Aluminum Cabinet Design
Full die-casting aluminum material makes the cabinet light, thin and has tactile appeal; The diamond pattern design on the back shell makes it stylish and aesthetic; The gaps on the both sides increase the heat dissipation surface area and can be easily held in the hand for installation and transportation. 600mm×337.5mm.40.5mm thickness.5kg/panel weight. P0.62, P0.78 , P0.93 , P1.25 , P1.56 , P1.875 are available.

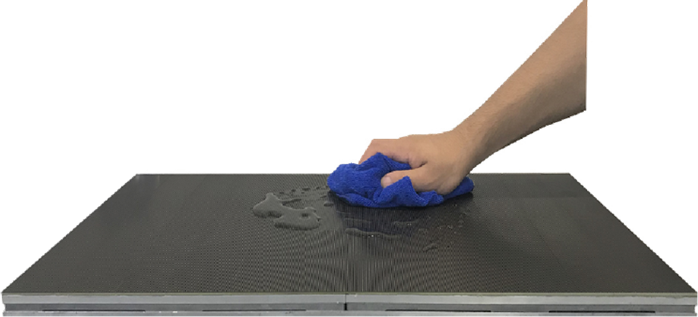

IP54, Ultra High Stability
The COB production process achieves comprehensive sealing of important components such as PCB boards, lamp beads, and solder pins. This makes Outdoor Waterproof COB LED Display Screen outstanding in moisture-proof, dust-proof, and bump-proof. The IP 54, which is high protection of COB LED screen. High stability reduces accidental damage during transportation and installation, and also makes the product easy to clean.
Low Energy Consumption
Using flip-chip technology, compared with conventional COB products, welding wires are saved and intermediate links that generate thermal resistance are reduced. This greatly reduces screen power consumption, and its power consumption can be reduced by 50% compared with conventional chip COB products. P0.6 P0.7 P0.9 adopts common cathode technology to achieve precise power supply for red, green and blue lamp beads respectively, reducing unnecessary energy consumption and saving up to 75% energy.

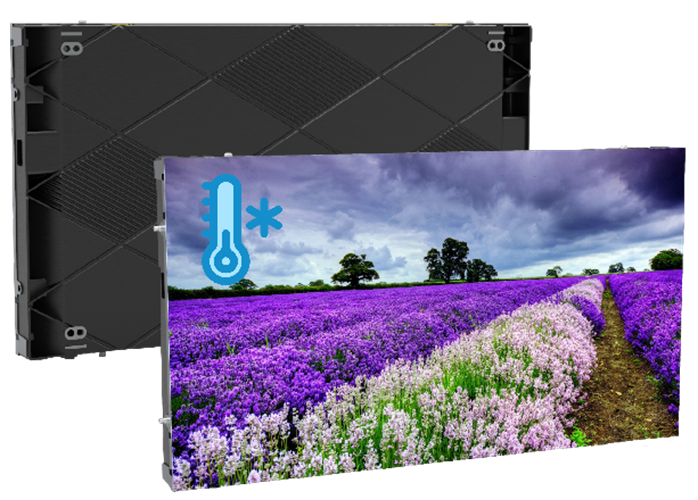

Perfect Near-Screen Experience
Flip chip has unique heat dissipation technology. Under the same brightness, the screen surface temperature is 10°C lower than that of conventional COB products. No pixel graininess, switching from “pixel light source” to “area light source”, and good brightness uniformity. Suitable for long-term viewing at close range and less likely to cause visual fatigue.

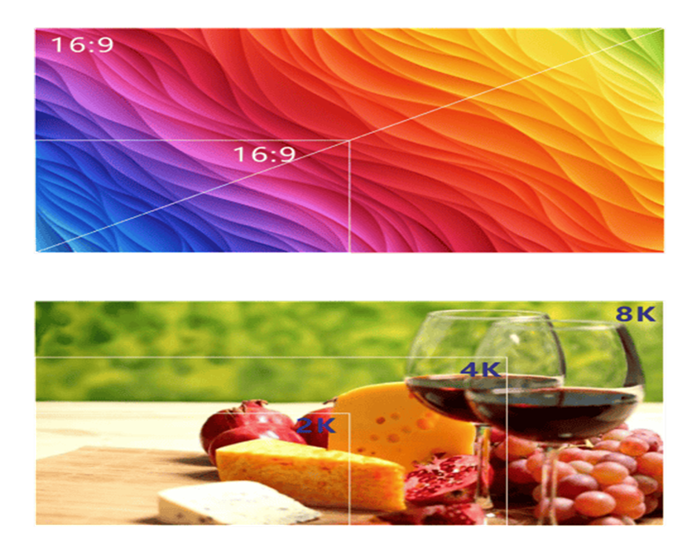

Ultra-high Pixel Density
P0.62 P0.78 P0.93 are available for customers to choose from. Easily achieve 2k/4K/8K resolution and ultra-high definition. Present more details in the picture and colorful visual effects.

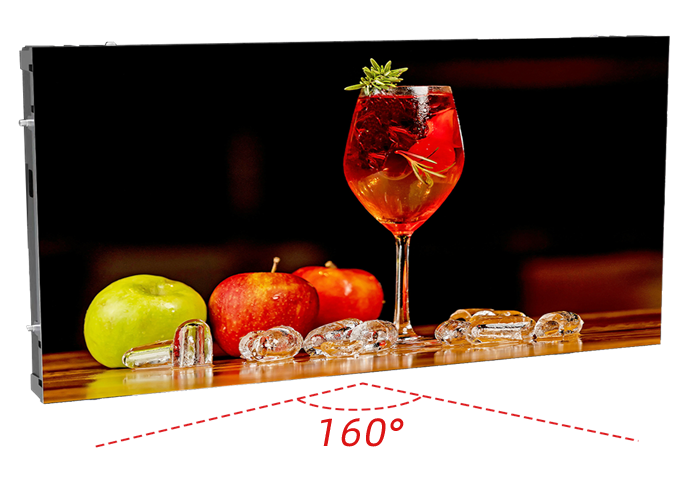

Wide Viewing Area
Flip-chip technology enables unlimited viewing angles, reaching a viewing angle of nearly 160°. There is no color cast or deformation when viewed from the side, and the color uniformity is good. Suitable for large size screen.
16:9 Aspect Ratio
The golden ratio is 16:9. The box size is 600mm×337.5mm. Bring our customers a comfortable viewing experience.
Power and Signal Redundancy
COB GOB Mirco LED Display supports dual backup of power and receiving card. When a problem suddenly occurs, the backup power supply and receiving card can keep the screen working, ensuring that important meetings or activities are not affected.

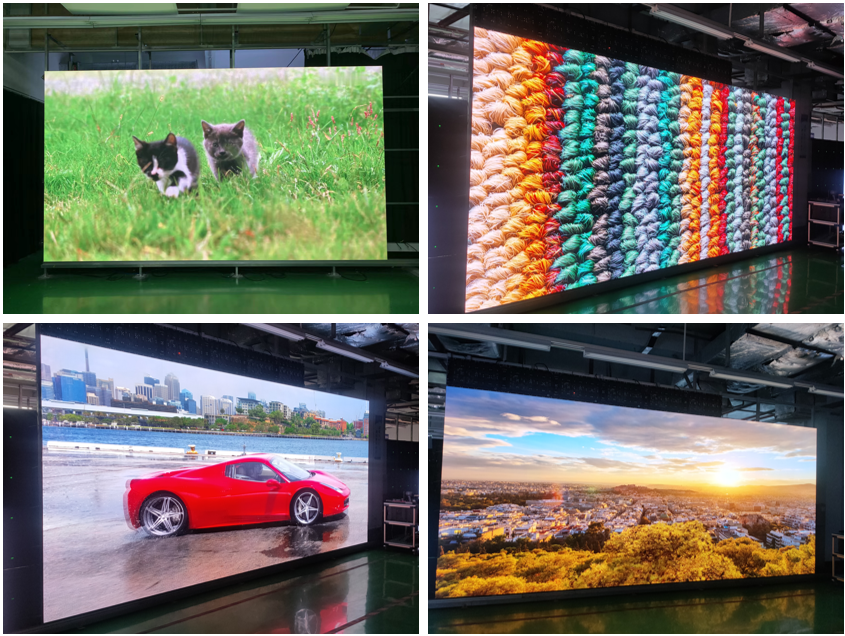

Application Fields
To fit every different scene, our products utilize superior materials with a concise and strong structure, and various installation methods make it flexible and easy to apply.This product is usually used in:
-
Meeting Room;
-
TV Studio;
-
Exhibition Center;
-
Shopping Mall;
-
Airport;
-
Cinema.
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P0.7
0.78mm
COB
192dots×216dots
1/64scan
41,472dots
150mm×168.75mm
600mm×337.5mm×40.5mm
768dots×432dots
1,638,400dots/m²
≥0.78mm
600nits~800nits
IP54
3840Hz ~7680Hz
14bits~22bits
H:160° / V:160°
380W/m²
127W/m²
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Aluminum
5kg/panel
Windows（Win7，Win8，etc.）
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P0.9
0.93mm
COB
161dots×181dots
1/54scan
29,141dots
150mm×168.75mm
600mm×337.5mm×40.5mm
645dots×362dots
1,156,203dots/m²
≥0.9mm
600nits~800nits
IP54
3840Hz ~7680Hz
14bits~22bits
H:160° / V:160°
380W/m²
127W/m²
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Aluminum
5kg/panel
Windows（Win7，Win8，etc.）
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.25
1.25mm
COB
120dots×135dots
1/60scan
16,200dots
150mm×168.75mm
600mm×337.5mm×40.5mm
480dots×270dots
640,000dots/m²
≥1.25mm
600nits~800nits
IP54
3840Hz ~7680Hz
14bits~22bits
H:160° / V:160°
320W/m²
110W/m²
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Aluminum
5kg/panel
Windows（Win7，Win8，etc.）
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.56
1.56mm
COB
96dots×108dots
1/54scan
10,368dots
150mm×168.75mm
600mm×337.5mm×40.5mm
384dots x 216dots
410,913dots/m²
≥1.56m
600nits~800nits
IP54
3840Hz ~7680Hz
14bits~22bits
H:160° / V:160°
330W/m²
110W/m²
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Aluminum
5kg/panel
Windows（Win7，Win8，etc.）
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.875
1.875mm
COB
80dots×90dots
1/45scan
7,200dots
150mm×168.75mm
600mm×337.5mm×40.5mm
320dots x 180dots
284,444dots/m²
≥1.875m
600nits~800nits
IP54
3840Hz ~7680Hz
14bits~22bits
H:160° / V:160°
400W/m²
130W/m²
AC100V～AC240V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Die-casting Aluminum
5kg/panel
Windows（Win7，Win8，etc.）
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
