Leeman LED Display 1000×500 Outdoor P1.9, P2.6, P2.9, P3.9, P4.8 LED Screen Rental Services for Events
Great Cabinet Design
Light Weight
Seamless Connection
IP65
Curve Capabilities
Easy Repair
High Brightness
Various Shapes
The cabinet material is die-casting aluminum. The dimensional accuracy is at a high level, so the surface is smooth. Die-casting aluminum material is thin and can be complex shapes, clear contours.

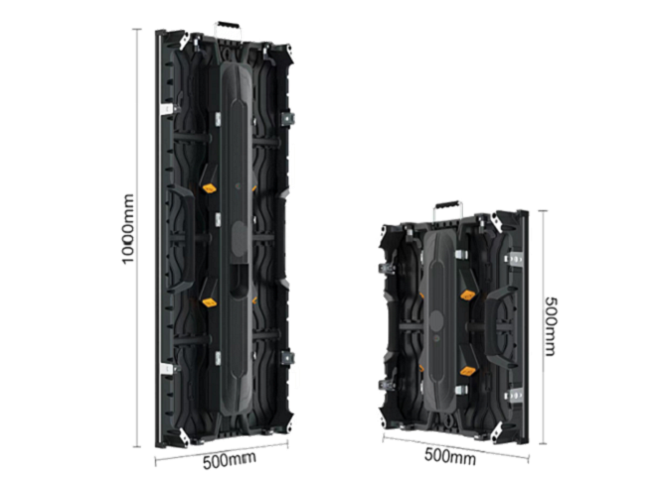

Cabinet size: 500mm x 500mm
500mm x 1000mm

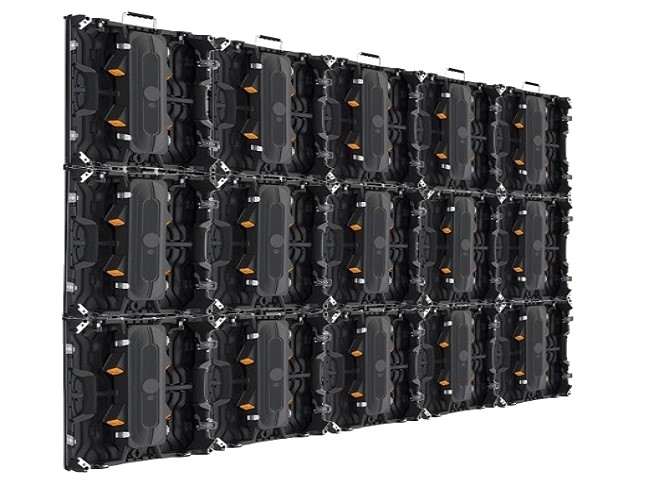

Two cabinets sizes can combine together in one big screen, which is convenient to create more possibility
Thinkness: 90mm
The pixel pitch: P1.9, P2.6, P2.9, P3.9, P4.8

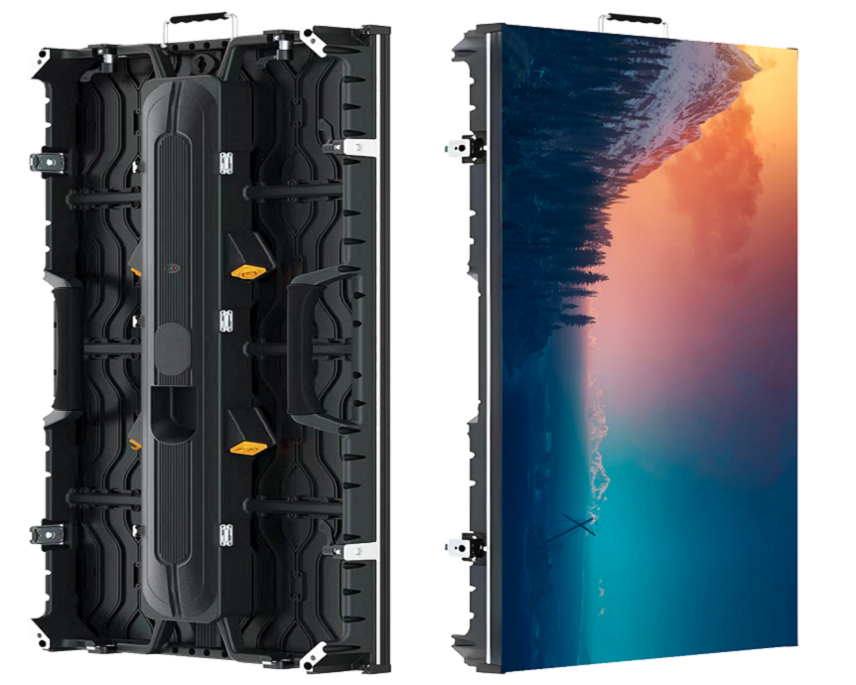

Cabinet design
Protectors on the corner to protect the LEDs and cabinet, avoid damage caused by accidental collision.
Die-casting aluminum cabinet is for good heat dissipation. And it is light for transportation and installation.
Fast lock for quick installation in the events and realize tigher assemble with no gap.

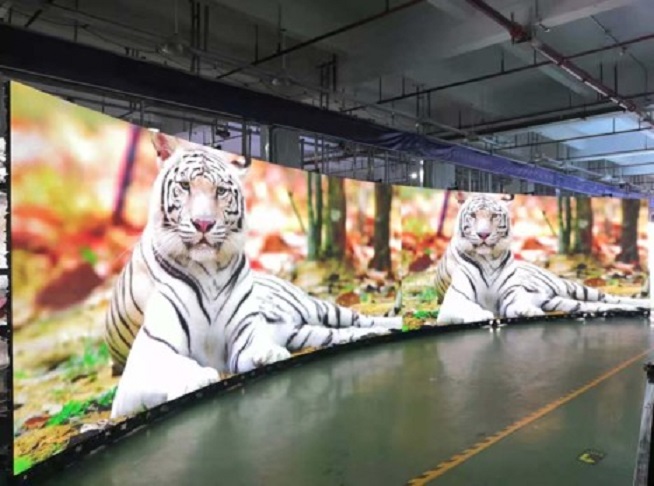

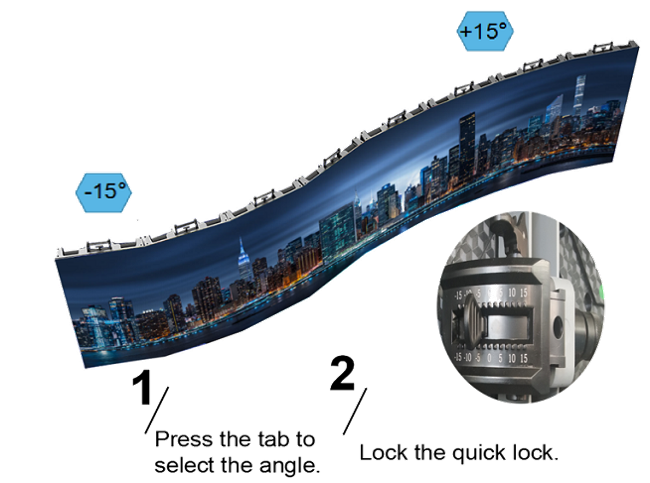

Curve Capabilities
Curve connection locks are available to support the curve from -15° to +15°, which allows users to choose the flexible shape of the advertising LED screen. Flat, concave and convex screen create a strong visual impact.

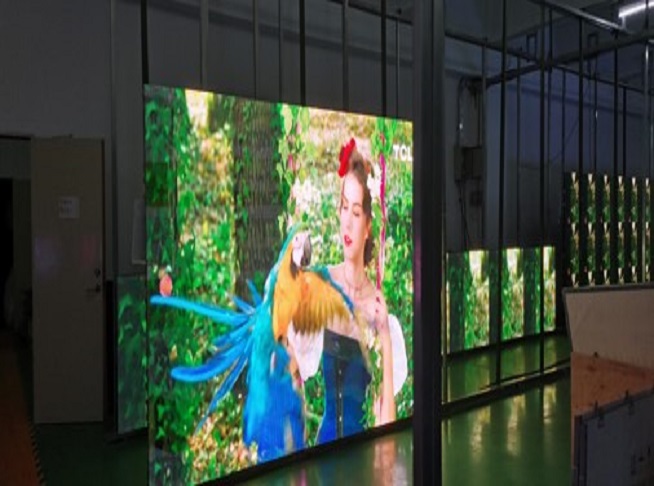

High Brightness
The brightness of the display is 4,500nits ~ 6,000nits, provide amazing picture quality with fine pixel pitch displays, which creates stunning visual output for the direct-view audience

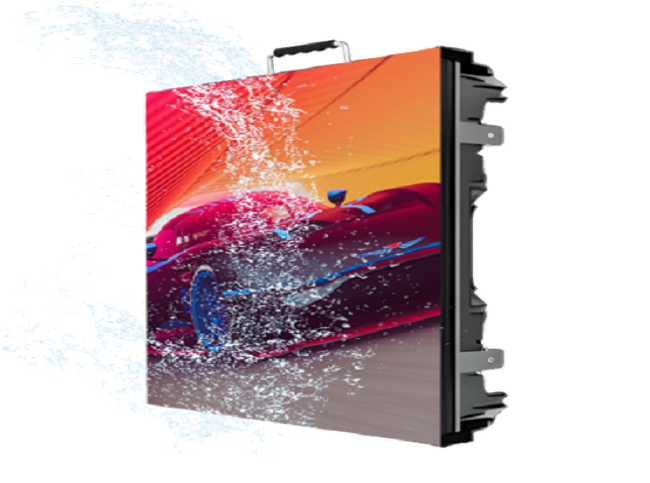

High IP Grade: IP65
LED displays with an IP65 rating are built to withstand harsh environments and can last for a long time, excellent Waterproof.
Great Performance
Our Curved Flexible Rental LED display has good visual effects due to its high-quality and high-performance LED products and solutions.

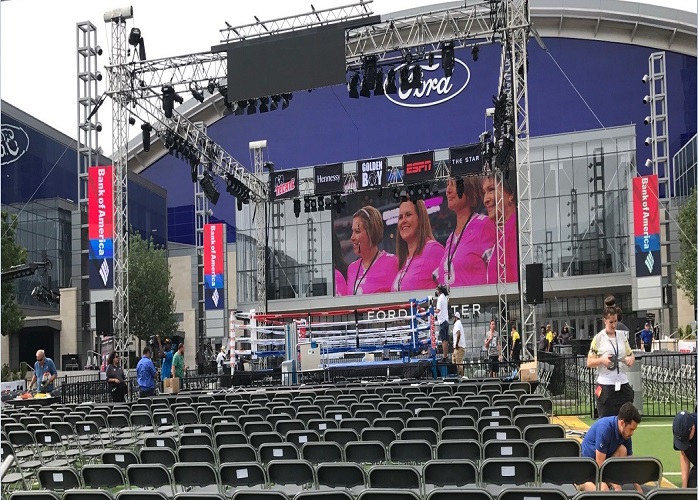

Application Fields
To fit every different scene, the giant LED screen is made up of superior quality materials with the concise and strong structure. This product is usually used in:
-
Activity;
-
Stages;
-
Advertisements;
-
Sports Events.
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Cabinet Weight
Cabinet Material
Input Voltage
Operating Temperature
Operating Humidity
Operating System
Signal Source Compatibility
-
P2.9
2.976mm
SMD1415
84dots x 84dots
1/21scan
7,056dots
250mm x 250mm
500mm x 500mm
168dots x 168dots
112,896dot/m²
≥2.9m
≥4,000nits
IP65
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
550W/m²
185W/m²
7kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/60Hz
﹣20℃~65℃
10%~90%
Windows(Win7,Win8,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P3.9
3.906mm
SMD1921
64dots x 64dots
1/16scan
4,096dots
250mm x 250mm
“500mm x 500mm or 500mm x 1,000mm”
“128dots x 128dots or 128dots x 256dots”
65,536dots/m²
≥3.9m
≥4,500nits
IP65
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
550W/m²
185W/m²
7kg/panel or 14kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/60Hz
﹣20℃~65℃
10%~90%
Windows(Win7,Win8,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P4.8
4.807mm
SMD1921
52dots x 52dots
1/13scan
2,704dots
250mm x 250mm
“500mm x 500mm or 500mm x 1,000mm”
“104dots x 104dots or 104dots x 208dots”
43,264dots/m²
≥4.8m
≥4,500nits
IP65
1,920Hz~3840Hz
13bits~18bits
H:160°/V:160°
550W/m²
185W/m²
7kg/panel or 14kg/panel
Die-casting Aluminum
AC110V~AC220V @ 50Hz/60Hz
﹣20℃~65℃
10%~90%
Windows(Win7,Win8,etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
