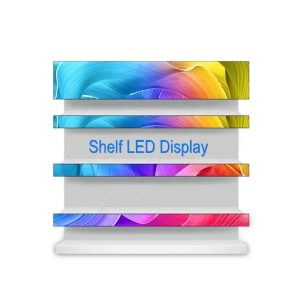

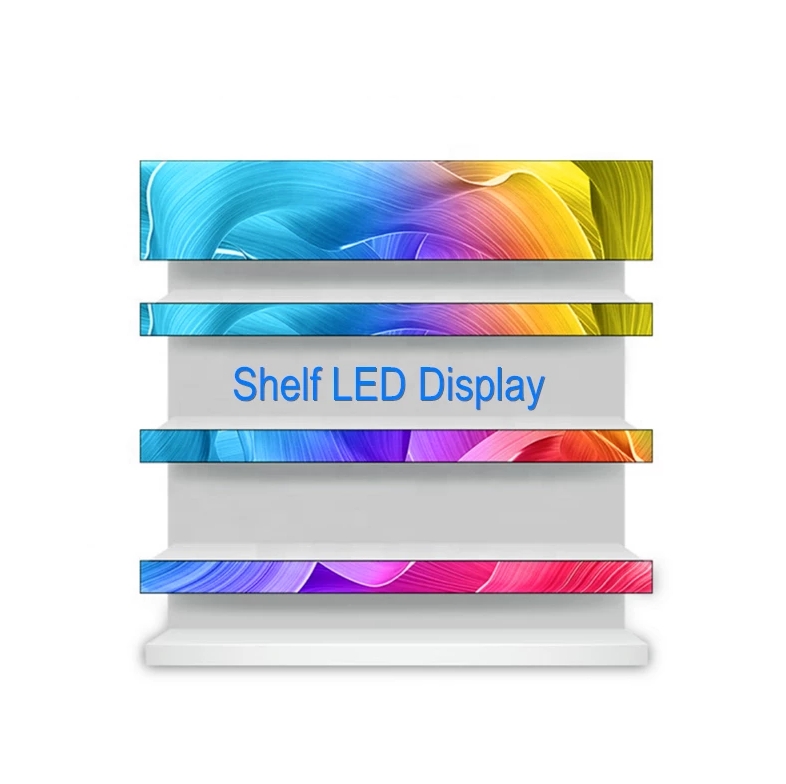

Shelf LED Display Screen P1.25 P1.53 P1.667 P1.86 P1.9
Vivid Performance
Suitable for Different Shelves
Lighter and Thinner
Water&Collision-Resistant
Easy to Control
Quick to Install and MaintainVivid Performance

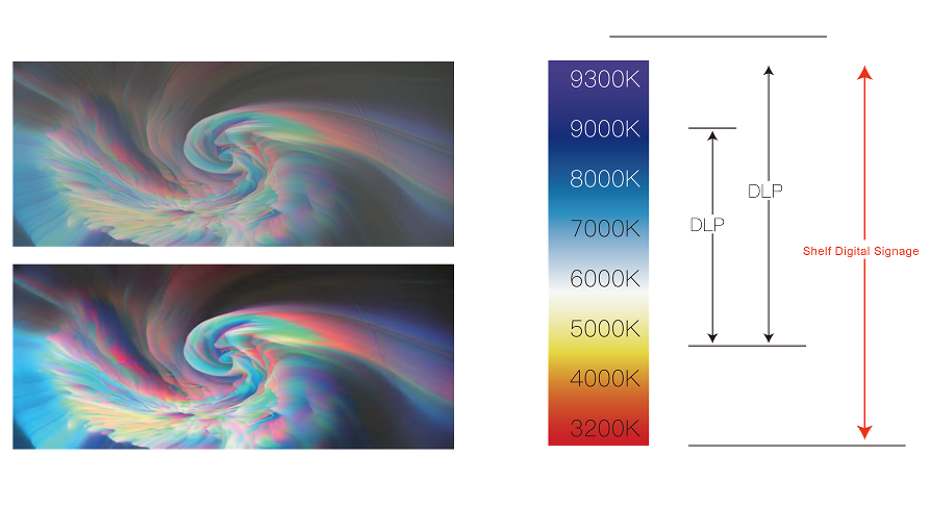

High refresh rate, high gray scale, great color saturation and intelligent color temperature adjustment which make the visual effect of our LED Shelf display more vivid.

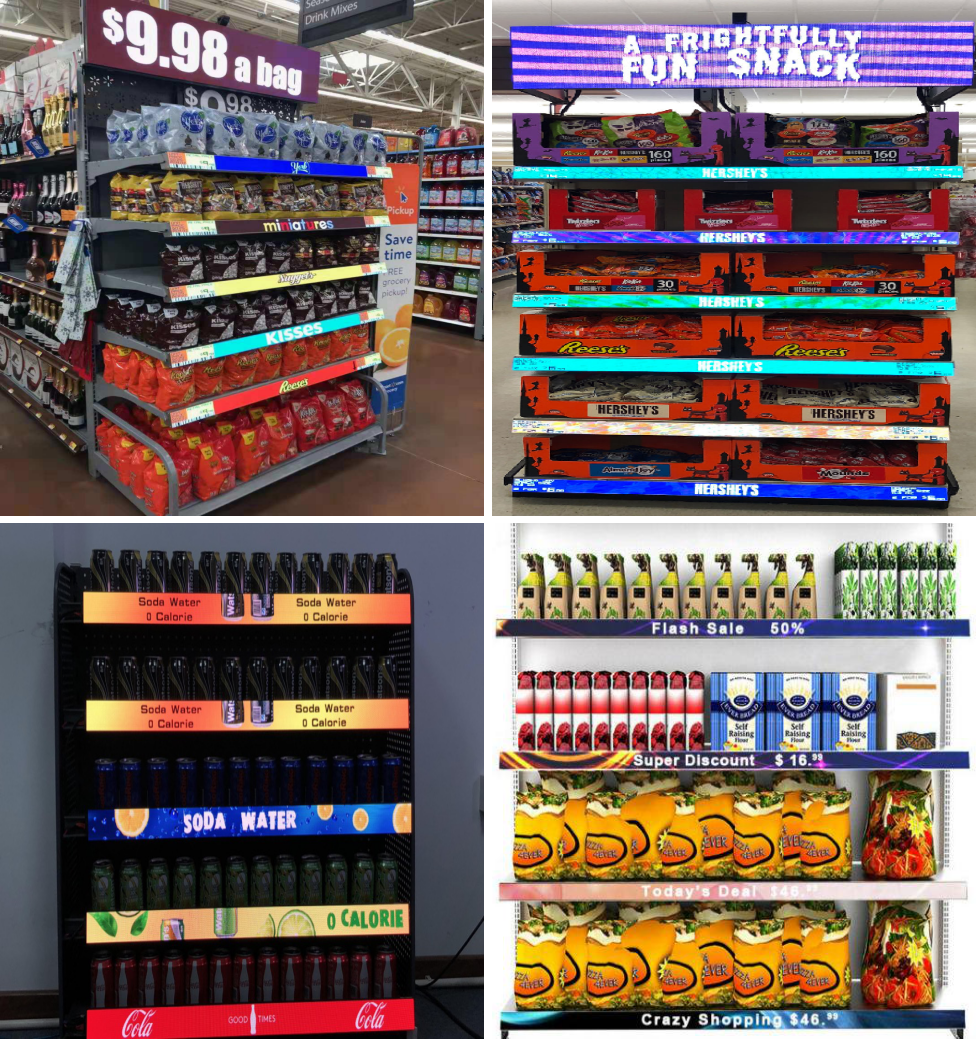

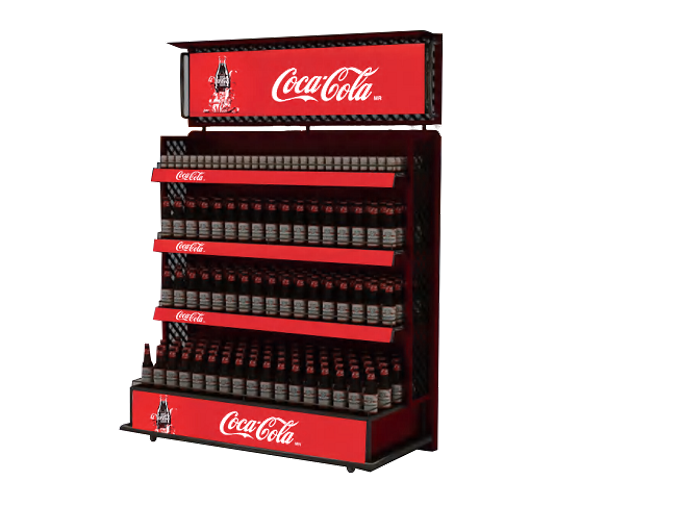

Suitable for Different Shelves
Shelf led screen is designed for different types of shelves: it can be placed in shopping malls, supermarkets, retail stores, etc.
Light and Thin, Easy Installation

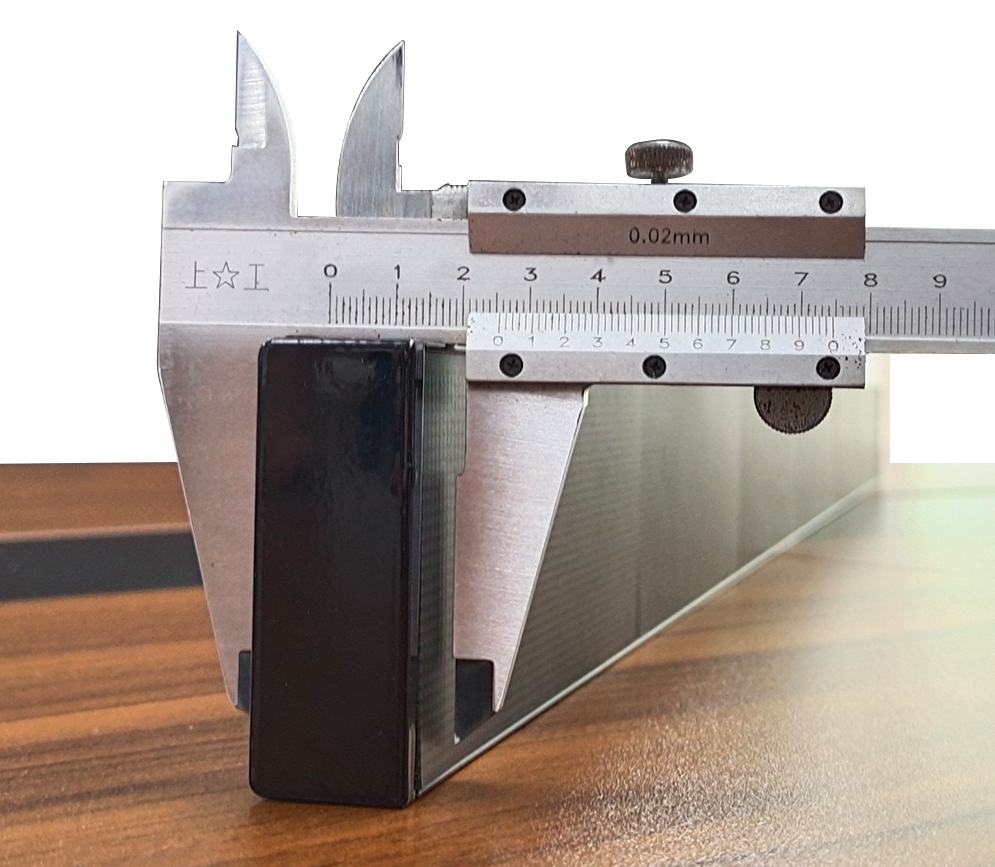

22mm cabinet thickness and 1.5kgs weight make Shelf led display lighter and thinner than most LED shelf displays in the market.
Water-Proof & Collision-Resistant
High-tech GOB raises the level of protection up to IP65, which protects the screen from being damaged by water and collision.

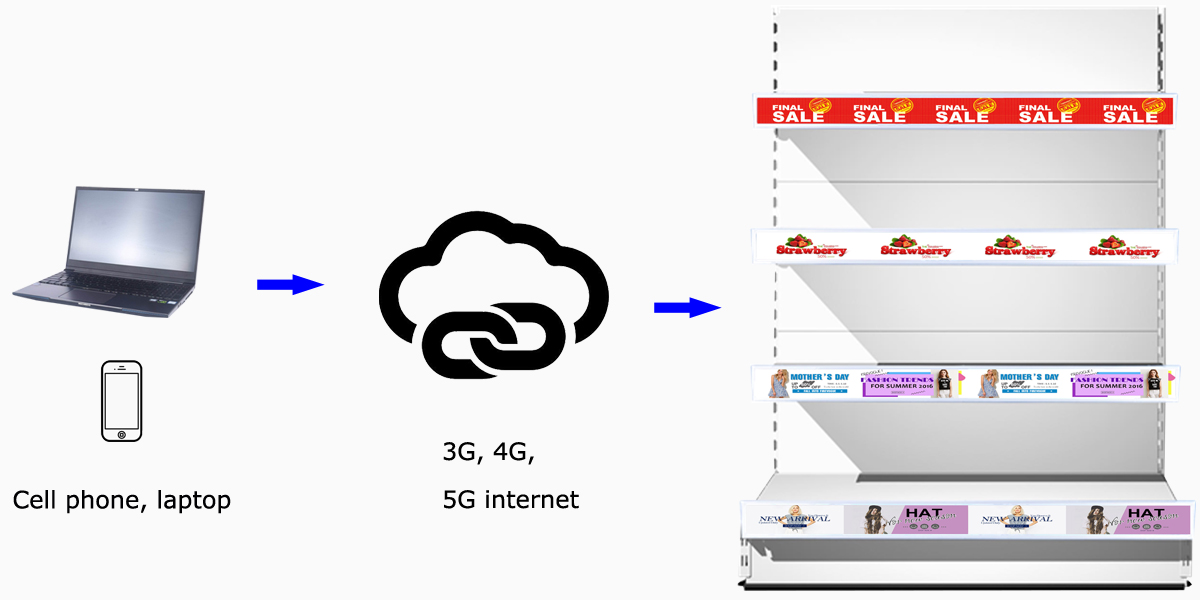

Easy to Control
Advanced controlling system enables the screen to “plug and play”. What’s more, the content of display can be changed via cloud- base anywhere anytime.

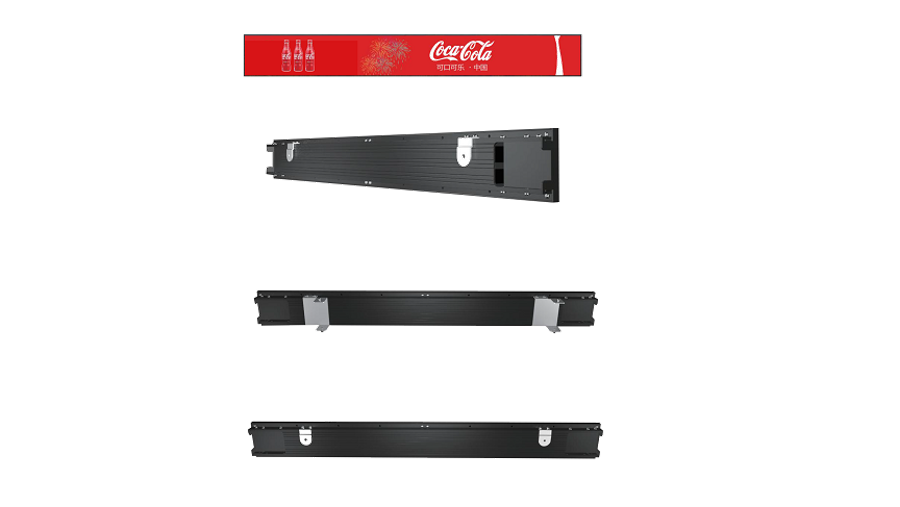

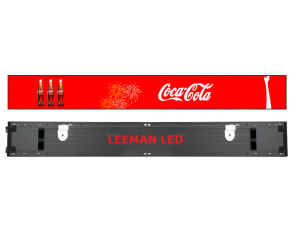

Quick to Install and Maintain
The shelf led price tags cabinet has two sizes: 600mm × 60mm, 900mm × 60mm and 1200mm x 60mm. Thus the cabinet splicing is flexible and this item suits various shelves.
Application Fields
Digital Shelf LED screen can play various videos and pictures. It always shows attractive videos and pictures display effects to our customers.
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P1.25
1.25mm
R/G/B SMD1010
240dots × 48dots
1/48scan
11,520dots
300mm × 60mm
600mm × 60mm or 900mm × 60mm
480dots × 48dots or 720dots × 48dots
640,000dots/㎡
≥1.2m
500nits～800nits
IP43 or IP65 (with GOB technology)
3,840Hz
13bits～24bits
H:160° / V:160°
16W/PC or 27W/PC
5.5W/PC or 8W/PC
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Aluminum
1.2kg/panel or 1.8kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.25
1.25mm
SMD 4 in 1
192dots × 48dots
1/48scan
9,216dots
240mm × 60mm
1200mm × 60mm
960dots × 48dots
640,000dots/㎡
≥1.2m
500nits～800nits
IP43 or IP65 (with GOB technology)
3,840Hz
13bits～24bits
H:160° / V:160°
35W/PC
10WPC
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Aluminum
2.5kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.5
1.5mm
R/G/B SMD1212
200dots × 40dots
1/40scan
8,000dots
300mm × 60mm
600mm × 60mm or 900mm × 60mm
400dots × 40dots or 600dots × 40dots
444,444dots/㎡
≥1.5m
500nits～800nits
IP43 or IP65 (with GOB technology)
3,840Hz
13bits～24bits
H:160° / V:160°
18W/PC or 27W/PC
5.5W/PC or 8W/PC
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Aluminum
1.2kg/panel or 1.8kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.8
1.875mm
R/G/B SMD1515
160dots × 32dots
1/32scan
5,120dots
300mm × 60mm
600mm × 60mm or 900mm × 60mm
320dots × 32dots or 480dots × 32dots
284,444dots/㎡
≥1.8m
500nits～800nits
IP43 or IP65 (with GOB technology)
3,840Hz
13bits～24bits
H:160° / V:160°
18W/PC or 27W/PC
5.5W/PC or 8W/PC
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Aluminum
1.2kg/panel or 1.8kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
-
P1.8
1.875mm
SMD1515
128dots × 32dots
1/32scan
5,120dots
240mm × 60mm
1200mm × 60mm
640dots × 32dots
284,444dots/㎡
≥1.8m
500nits～800nits
IP43 or IP65 (with GOB technology)
3,840Hz
13bits～24bits
H:160° / V:160°
35W/PC
10W/PC
AC110V～AC220V @ 50Hz / 60Hz
﹣20℃～60℃
10%～90%
Aluminum
2.5kg/panel
Windows (Win7, Win8, etc.)
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
