Novastar VE7 Video Input Expander for Novastar N9 Switcher

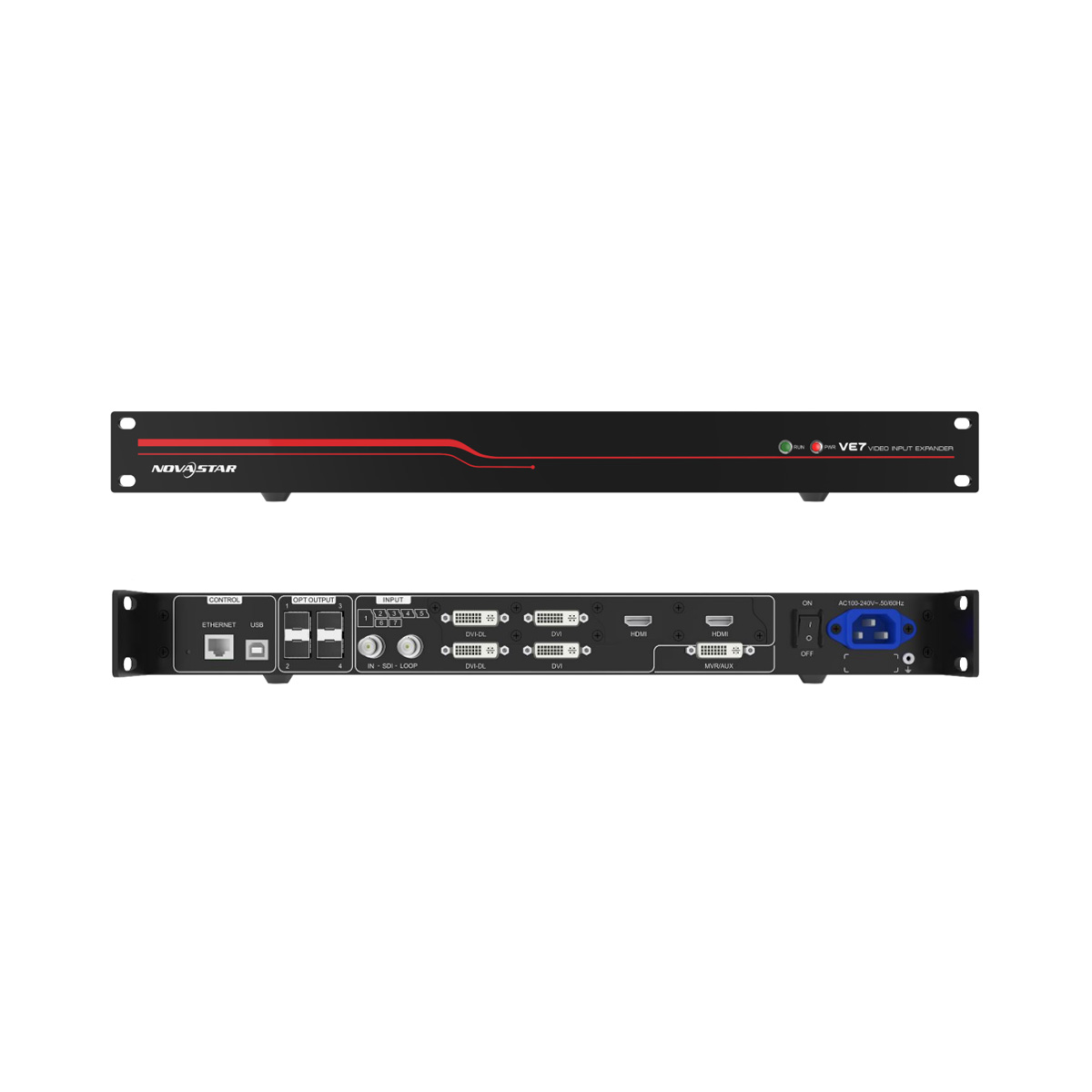

Novastar VE7 video input expander is an input signal receiving device with a variety of input connectors. It features powerful video input receiving capabilities, and supports a maximum of 7 video inputs up to 1920×1080@60Hz, or 1 video input up to 1920×1080@60Hz and 3 video inputs up to 4K×1K@60Hz. It also supports input EDID management and input color adjustment. The VE7 is mainly used for expanding the input sources for the N9 seamless switcher.
VE7 Video Input Expander Features:
1). Industry-standard video input connectors:
a. DVI: 1920×1080@60Hz and other VESA standard video source inputs
b. HDMI 1.3: 1920×1080@60Hz and other VESA standard video source inputs
c. 3G-SDI: 1920×1080@60Hz
d. DP 1.1: 4K×2K@30Hz
e. HDMI 1.4: 4K×2K@30Hz
2). 4 optical fiber outputs:
The VE7 can output the received video inputs to the N9 seamless switcher via 4 optical fiber output connectors.
3). DVI MVR output:
a. Monitoring all input sources
b. Displaying input resolution and frame rate
c. Loop output of one input source
4). EDID management and input color adjustment:
a. Input resolution management of DVI, HDMI and DP connectors
b. Input color adjustment
5). Device update via V-Can or NovaLCT

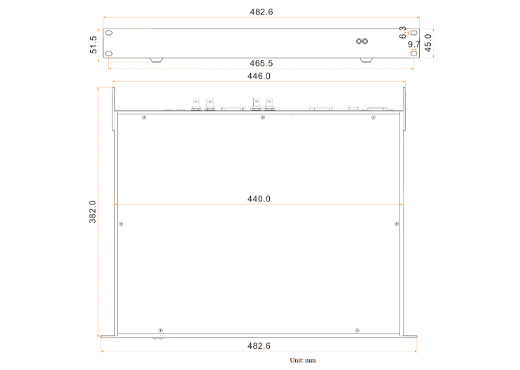

VE7 Video Input Expander Dimensions:

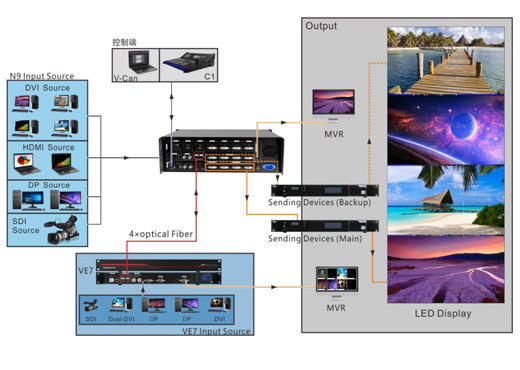

VE7 Video Input Expander Applications:
VE7 Video Input Expander Specifications:
| Input | ||||
| DVI |
Supports 1920×1080@60Hz and other VESA standard resolutions, downward compatibility and custom resolutions. Supports HDCP 1.4. Does not support interlaced signal inputs. |
|||
| 3G-SDI |
Supports up to 1920×1080@60Hz input resolution and downward compatibility. Supports 3G-SDI loop output. Supports deinterlacing processing. |
|||
| HDMI 1.3 |
Supports 1920×1080@60Hz and other VESA standard resolutions, downward compatibility and custom resolutions. Supports HDCP 1.4. Does not support interlaced signal inputs. |
|||
| DP 1.1 |
Supports 3840×2160@30Hz input resolution, downward compatibility and custom resolutions Supports HDCP 1.3. Does not support interlaced signal inputs. |
|||
| HDMI 1.4 |
Supports 3840×2160@30Hz input resolution, downward compatibility and custom resolutions Supports HDCP 1.4. Does not support interlaced signal inputs. |
|||
| Dual DVI |
Supports 3840×2160@30Hz input resolution, downward compatibility and custom resolutions Supports HDCP 1.4. Does not support interlaced signal inputs. |
|||
| Output | ||||
| DVI |
|
|||
| OUTPUT 1, 2, 3, 4 |
10G optical fiber connectors The VE7 can be connected to the N9 via 4 optical fiber connectors which enable the signal transmission between the VE7 and N9. |
|||
| Control | ||||
| ETHERNET | For device update via NovaLCT. | |||
| USB (Type-B) | ||||
| Connector performance | Common resolutions | |||
|
l DVI l HDMI 1.3 |
800×600@50/60/75/85Hz | 1366×768@50/60Hz | ||
| 1024×768@48/50/60/75/85Hz | 1366×800@50/60Hz | |||
| 1152×864@75Hz | 1400×1050@48/50/60/75Hz | |||
| 1280×720@48/50/60Hz | 1440×900@60/75/85Hz | |||
| 1280×768@48/50/60/75Hz | 1600×900@48/50/60Hz | |||
| 1280×800@50/60Hz | 1600×1200@48/50/6 0Hz | |||
| 1280×960@50/60/85Hz | 1680×1050@60Hz | |||
| 1280×1024@48/50/60/75/85Hz | 1792×1280@60Hz | |||
| 1360×768@60Hz | 1920×1080@30/48/50/60Hz | |||
| 1364×1024@48/50/85Hz | 1920×1200@50/60Hz | |||
|
l DP 1.1 l HDMI 1.4 l Dual DVI |
800×600@50/60/75/85Hz | 1680×1050@60Hz | ||
| 1024×768@48/50/60/75/85Hz | 1792×1280@60Hz | |||
| 1152×864@75Hz | 1920×1080@30/48/50/60Hz | |||
| 1280×720@48/50/60Hz | 1920×1200@50/60Hz | |||
| 1280×768@48/50/60/75Hz | 2048×1080@30/48/50/60Hz | |||
| 1280×800@50/60Hz | 2048×1152@30Hz | |||
| 1280×960@50/60/85Hz | 2304×1152@ 60Hz | |||
|
1280×1024@48 /50/60/75/85Hz 1360×768@60Hz 1364×1024@48/50/85Hz 1400×1050@48/50/60/75Hz 1440×900@60/75/85Hz 1600×900@48/50/60Hz 1600×1200@48/50/60Hz |
2048×1152@60Hz 2560×1080@50/60Hz 2560×1400@50/60Hz 2560×1600@50/60Hz 3840×1080@30/50/60Hz 3840×2160@30Hz |
|||
| 3G-SDI |
480i，576i 1280×720p@24/25/30/50/60Hz 1920×10 80p@24/25/30/50/60Hz |
|||
| Overall Specification | ||||
| Electrical specifications | Power connector | AC100-240V~, 50/60Hz。 | ||
| Power consumption | 40 W | |||
| Operating environment | Operating temperature | 0℃~60℃ | ||
| Operating humidity | 0%RH~95%RH non-condensing | |||
| Storage temperature | -20℃~60℃ | |||
| Physical specifications | Dimensions | 482.6mm×3 82.0mm×51mm | ||
| Net weight | 3.4 kg | |||
| Total weight | 21.6 kg（VE7+N9） | |||
| Packing information | Accessory | 1×power cord, 4×10GSFP+DAC 0.3M | ||
| Flight case（VE7+N9） | 556mm × 277mm × 700mm | |||
| Certifications | CE, RoHS, FCC, IC, EAC | |||
| Noise Level (typical at 25°C/77°F) | 45dB(A) | |||
